MODBUS scan

Troubleshooting Unknown Register Mappings

1. Context

When a connection between the proxy and your TSUN device is established but no telemetry data or metrics are found, the root cause is often an unknown register mapping.

The proxy identifies register mappings using a specific sensor-list-id. After establishing a connection, the proxy automatically tests all sensor lists it knows. Each test is initiated with a log entry like this:

2026-07-21 05:30:55 INFO | root | Testing sensor-list: 0x**** by reading Modbus registers at 0x****

If a sensor list is not supported by your specific TSUN device, the proxy usually encounters a timeout or receives an error message, such as:

CRC error: 0005 != ffff for msg: 0500

The proxy will then automatically proceed to test the next available sensor list. Currently, the following lists are natively supported by the proxy:

• 0x2b0 – Modbus registers at 0x3000
• 0x1097 – Modbus registers at 0x1000
• 0x3026 – Modbus registers at 0x00

If the proxy successfully detects a matching mapping, it will log a confirmation message:

2026-07-21 05:30:55 INFO | root | Use sensor-list: 0x2b0 for 'y***************'

---

2. Check if a Modbus Scan is Required

A Modbus scan becomes necessary if your proxy goes through all known sensor lists without finding a match, leaving your device connected but data-less.

Check your application logs. If you do not see the successful Use sensor-list: 0x... entry, and instead only see CRC errors or timeouts for all tested lists, the register mapping of your TSUN device is currently unsupported. In this case, you should perform a Modbus scan to determine which registers your device actually responds to.

---

3. How to Perform the Modbus Scan

Configuration

The proxy includes a built-in Modbus scanner. You can configure it using the following settings:

Keyword	Type	Mandatory/Optional	Description
modbus_scanning.start	int	Optional	Modbus scanner: start address
modbus_scanning.step	int	Optional	Modbus scanner: step width Default: 0x400
modbus_scanning.bytes	int	Optional	Modbus scanner: number of bytes to read. Default: 0x10

Step-by-Step Instructions

1. Activate the Scan: Set the modbus_scanning.start configuration parameter to a valid integer value (e.g., your desired starting address). Good values for a first run are: start: 0, step: 256, bytes: 10
2. Run the Proxy: Restart the proxy application. The scanner will now systematically probe the device registers based on your configured steps and byte lengths.
3. Analyze the Logs: Check the log output. Successfully discovered registers and their responses will be clearly displayed there.
4. Deactivate the Scan: Once you have gathered the data, disable the scanner by setting modbus_scanning.start to an empty string ("").

Submitting Results (Privacy Warning)

To check if your new register mapping can be integrated into the proxy, please contact the project maintainer.

⚠️ IMPORTANT PRIVACY NOTE: Do not post your raw log files or scan results directly into a public GitHub issue, as they may contain sensitive private data (such as serial numbers, WiFi details, or IP addresses).

Instead, please:

1. Open a brief issue on the GitHub repository to state that you have performed a scan.
2. Send the actual log files containing your scan results (e.g. trace.log file) via email directly to the maintainer: DataType76@allius.de.

---

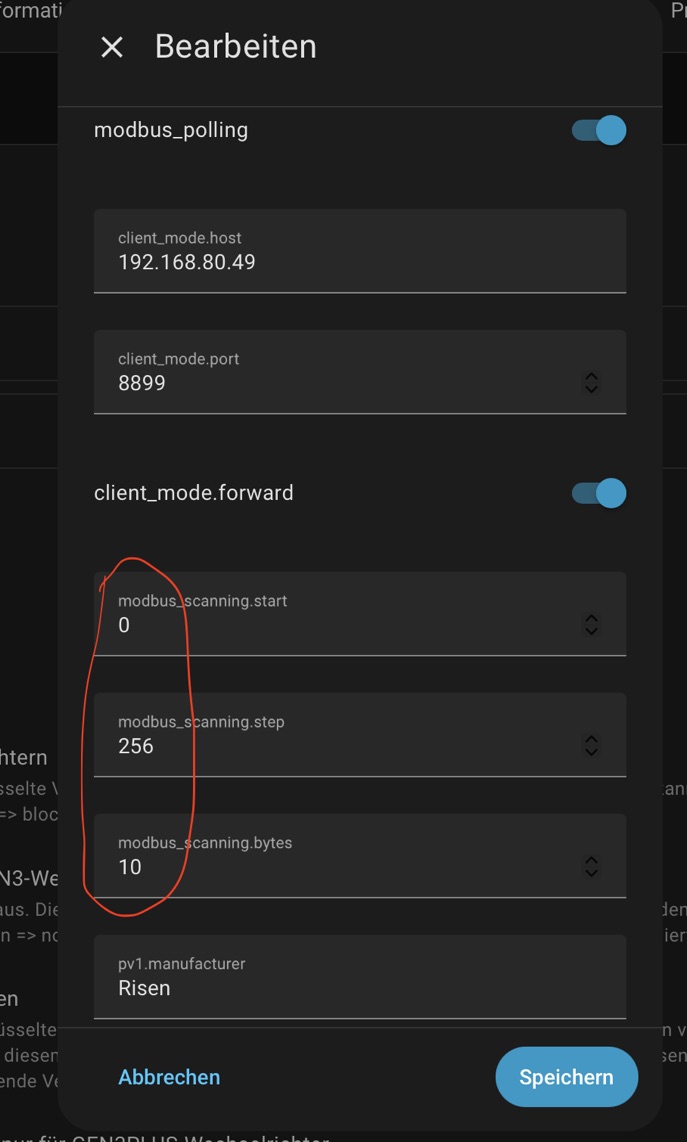

Screenshot of the scan configuration

Example:
