Stacked on #272. This branch contains that commit as its base so the two
do not fight over the same region of editor.ts. Merge #272 first and this
reduces to its own single commit; the changelog entries are separate blocks.

The problem

Four things open over the canvas on a phone, and every one of them had exactly
one way out — press the button that opened it again:

overlay outside-press dismissal before this PR
slide list drawer (☰) none
properties drawer (Format) none
+ insert menu none
⋯ more menu none

The last two are the interesting ones. Every other dropdown in the bar — Save
as, Share, Language, Shape, Media, the present pill — already wires up the same
three lines:

document.addEventListener('pointerdown', (ev) => {
  if (!wrap.contains(ev.target as Node)) wrap.classList.remove('open')
})

+ and ⋯ do not. And they are the only two dropdowns that exist exclusively on
a phone
(.ed-phone-only). So the menus that were hardest to escape were the
ones a thumb could not escape at all.

Measured on the dev server under an iPhone profile, tapping the canvas with each
overlay open:

after ☰ : slides drawer open  → tap canvas → still open
after Format : props drawer open → tap canvas → still open
after + : menu open → tap canvas → still open
after ⋯ : menu open → tap canvas → still open

The fix

Tapping the slide beside an overlay closes it.

Two conditions keep this from reaching anywhere it shouldn't:

  • Only while the panels are drawers (≤700px — the threshold the CSS and
    applyPhoneChrome already share). On a wide screen the panels are columns
    beside the canvas, and a click on the canvas is just a click on the canvas.
  • A press inside the topbar is exempt. This is the trap the obvious version
    falls into: ☰ is outside the drawer, so a naive handler closes the drawer on
    its pointerdown and the click that follows immediately reopens it — the
    button would never shut anything again. There is a regression test for exactly
    this (open → close → open).

The two phone menus get the same helper the rest of the bar open-codes. I left
the other five call sites alone deliberately: converting them is pure churn on a
file several branches touch, and it belongs in its own cleanup.

Before / after

Same gestures both sides: open +, tap the slide; open ☰, tap the slide.

overlay dismissal, before and after

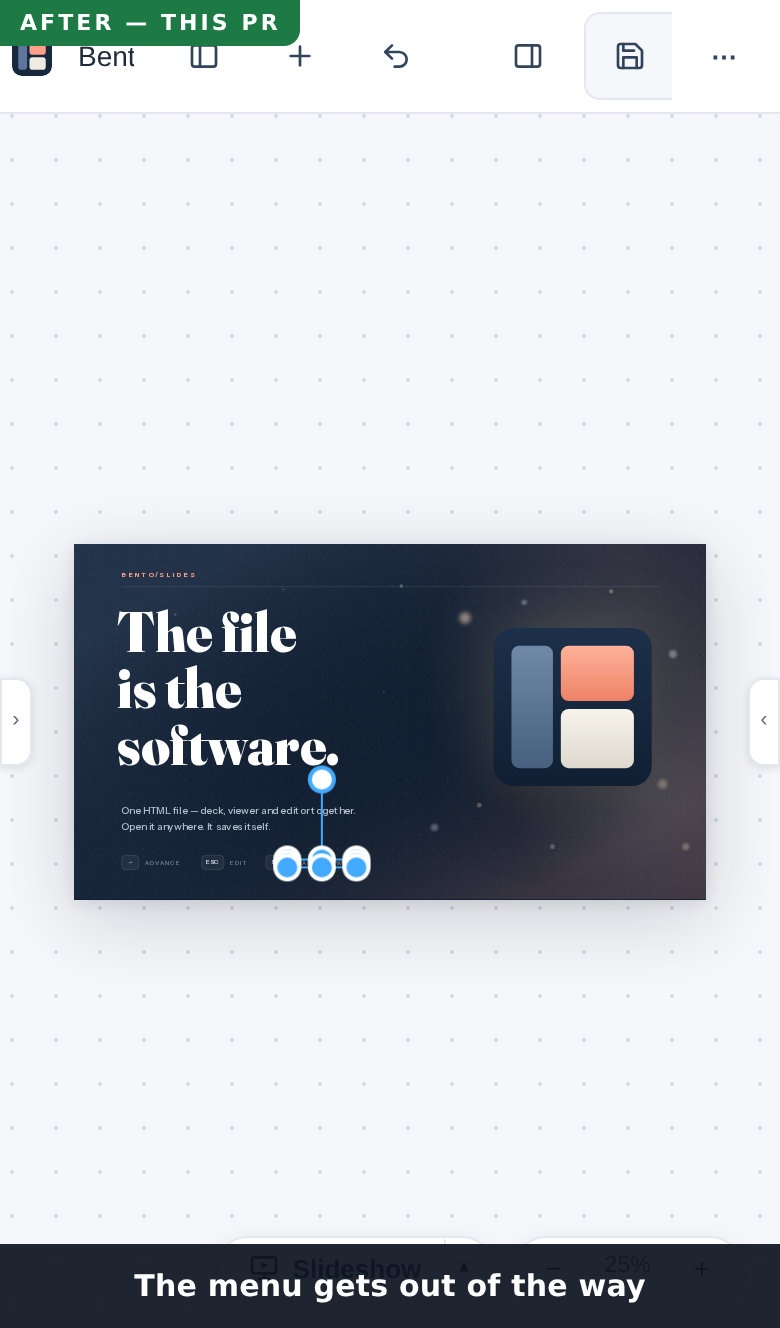

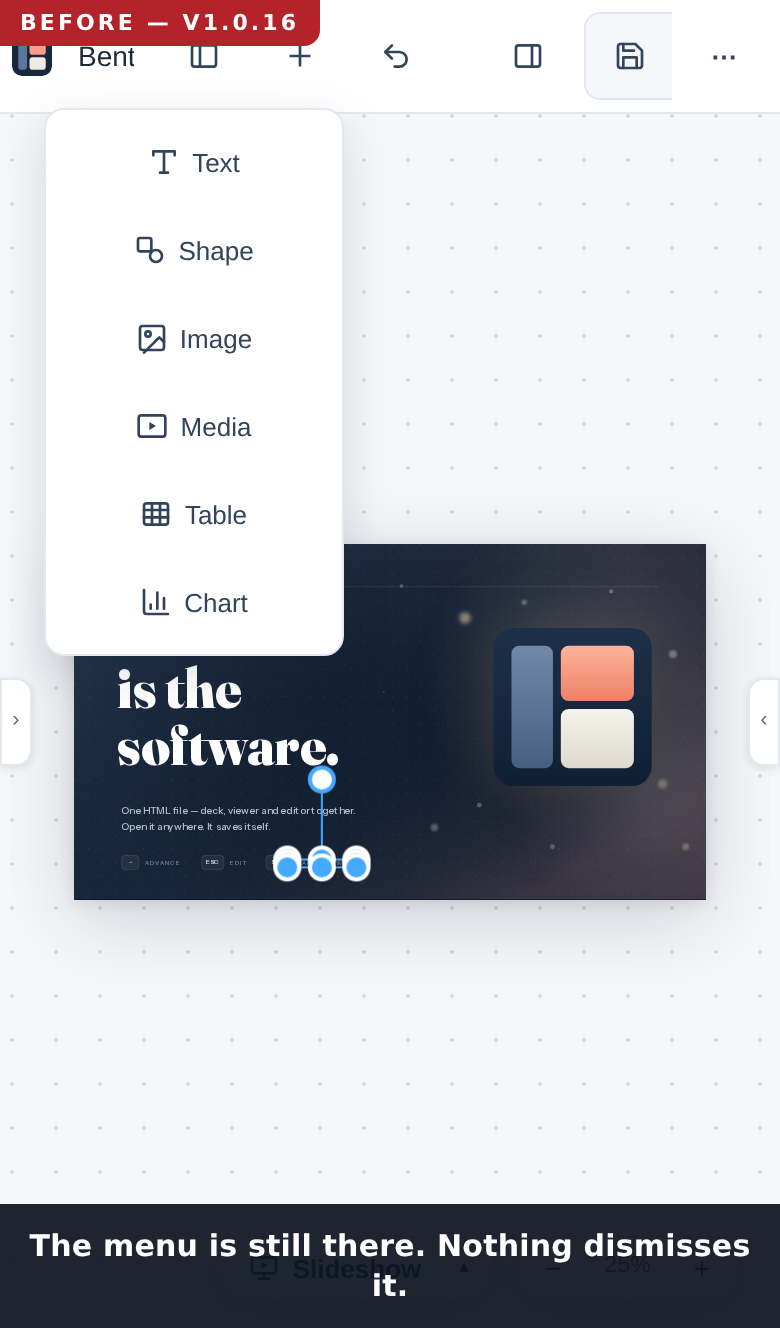

before — the menu stays over the deck after — it gets out of the way

How this was verified

iPhone emulation (390×664, DPR 3, hasTouch) with real touch dispatch, plus a
1280×800 mouse context:

case result
☰ opens the slides drawer; tapping the canvas closes it pass
Format opens the properties drawer; tapping the canvas closes it pass
☰ still works as a toggle: open → close → open pass
tapping inside the properties drawer keeps it open pass
+ menu opens, then closes on an outside tap pass
⋯ menu opens, then closes on an outside tap pass
desktop: both columns start open pass
desktop: clicking the canvas leaves both columns open pass

Gates:

node_modules/.bin/tsc -b                                        clean
npm run build:single                                            ok (664KB shell)
node scripts/shell-gate.mjs …/Bento_Slides.bento.html           splice contract OK

No new user-facing strings, so no i18n catalog changes. No format or kernel
change; nothing under sync/.

Deliberately not in scope: dismissing with Escape. A phone has no Esc key,
and Escape already carries meaning on the canvas — bundling it in would make
this change harder to reason about, not easier.

Caveat: verified under Chromium's iPhone emulation, not on physical iOS
hardware. The logic is pointer-target and viewport-width based with no
WebKit-specific behaviour involved.


Changelog entry — not in the diff, on purpose

CHANGELOG.md is this repo's named conflict magnet (docs/PARALLEL-WORK.md §3). With several of these open at once, and [Unreleased] being emptied every time a release is cut, a changelog hunk made every one of them conflict on that file and nothing else — twice over. They carry no CHANGELOG.md change so they stay mergeable; here is the entry to drop in at release time, or I'll add it back in whatever form you prefer.

- **Picking a slide on a phone now shows you the slide.** Below 700px the slide
  list is not a column beside the canvas — it is a drawer laid over it. Tapping
  a thumbnail navigated correctly and then left the list sitting on top of the
  answer, so every slide change cost a second trip to the ☰ toggle to see what
  you had chosen. The drawer now steps aside when you pick from it. On a wide
  screen the list is a real column and rightly stays where it is, and the
  per-thumbnail Duplicate and Delete buttons leave it open on every width —
  those are edits to the list, not a choice of slide.

- **Overlays on a phone can be dismissed by tapping away from them.** The slide
  list, the properties panel and the two phone-only bar menus (+ and ⋯) all
  opened over the canvas and then had exactly one way out: press the same button
  again. On a drawer that covers the control that opened it, that is a hunt.
  Tapping the slide beside an overlay now closes it — the gesture every sheet on
  a phone answers to. The + and ⋯ menus were, in fact, the only dropdowns in the
  bar with no outside-press dismissal at all, and they are the two that exist
  only on a phone. Nothing changes on a wide screen, where the panels are
  columns beside the canvas rather than sheets on top of it, and the ☰ / Format
  buttons still work as plain toggles.

@iamgeo92
iamgeo92 force-pushed the phone-drawer-dismiss branch 2 times, most recently from ef80014 to b832901 Compare August 10, 2026 02:28
Below 700px the side panels are not columns — styles.css makes them
overlay drawers laid across the canvas, because a 188px column beside a
402px screen leaves the thing being edited as the smallest thing on it.

Tapping a thumbnail navigated correctly and then left the drawer covering
the slide it had just navigated to, so every slide change cost a second
trip to the toggle in the topbar to actually see the result.

Closing is scoped to the drawer width and to the thumbnail itself: on a
wide screen the list is a real column and stays put, and the Duplicate
and Delete buttons on a thumbnail already stop propagation, so editing
the list never dismisses it.
The slide list, the properties panel and the two phone-only bar menus all
open across the canvas, and every one of them had a single way out:
press the button that opened it. On a drawer wide enough to cover that
button, that is a hunt rather than a gesture.

Tapping the slide beside an overlay now closes it. Two conditions keep
this from reaching anywhere it should not: the drawer rule runs only
while the panels ARE drawers (on a wide screen they are columns, where a
click on the canvas is just a click on the canvas), and a press inside
the topbar is exempt so the toggles keep toggling — closing on their
pointerdown would let the click that follows reopen what it just closed.

The + and ... menus turn out to be the only dropdowns in the bar without
an outside-press dismissal, and they are the two that exist only on a
phone: the menus hardest to escape were the ones a thumb could not
escape at all. They now use the same helper.
@iamgeo92

Copy link
Copy Markdown
Author

@nyblnet — this one when you get a chance.

Four things open over the canvas on a phone and none of them could be dismissed by tapping away: both drawers and the +/⋯ menus. The last two turn out to be the only dropdowns in the bar without an outside-press dismissal, and they're the two that exist only on a phone — so the menus hardest to escape were the ones a thumb couldn't escape at all.

The interesting bit is the trap it had to avoid: ☰ is outside the drawer, so a naive handler closes on its pointerdown and the click reopens it, and the button never shuts anything again. There's a regression test for exactly that (open → close → open).

Stacked on #272 — merge that first and this reduces to one commit.
