scCairns

Reproducible single-cell integration with a documented decision trail. Integrate a multi-batch dataset with scVI/scANVI (or Harmony/Scanorama), inspect the result, decide which cells and clusters to drop, filter, and re-integrate — repeating until the data is clean. Every round records its seed, code commit, and input fingerprint, so the whole lineage is reproducible. Like a trail of cairns, each round leaves a marker you can retrace.

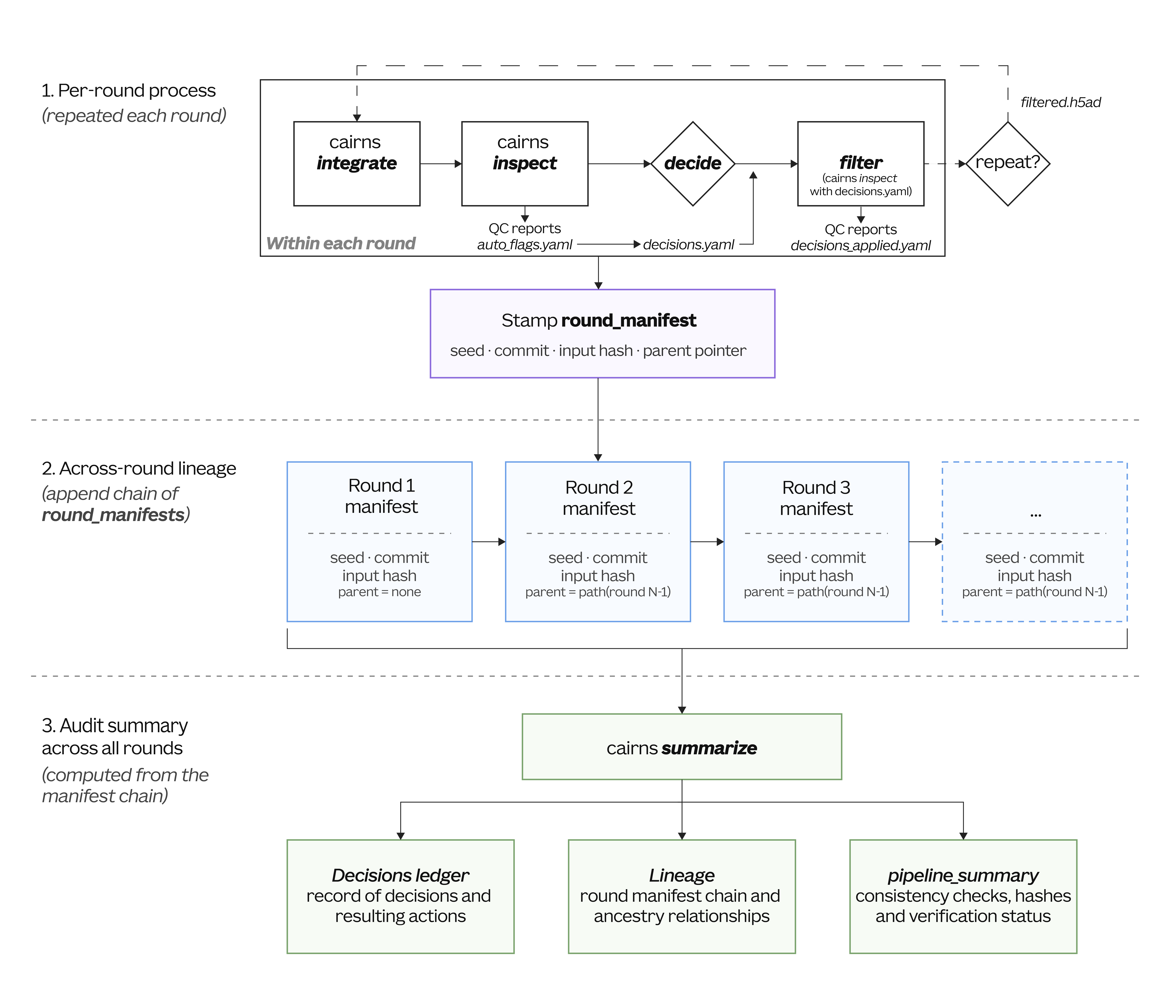

per round:     integrate → inspect → edit decisions → filter → re-integrate
                                   ↓  each round stamps a round_manifest
across rounds:   round 1 → round 2 → round 3 → …   (seed · commit · input hash · parent pointer)
                                   ↓
               cairns summarize → decisions ledger + lineage + integrity report

Who it's for: anyone doing quality-controlled single-cell integration who wants a reproducible, reviewable loop rather than an ad-hoc notebook. The defaults are tuned for mouse sympathetic-nervous-system data, but the engine is dataset-agnostic — see Adapting to your data.

New here? Start with the docs

Guide	For
Getting started	Install, verify, and the input-data contract
Tutorial	A full runnable loop on synthetic data (no downloads)
Configuration reference	Every config field, and when to change it
Integration methods	Tune the scVI architecture, or swap in another method (Scanorama, etc.)
Decisions (decisions.yaml)	The filtering syntax
Interpreting outputs	Is my integration good? When do I stop?
Adapting to your data	Non-mouse / non-SNS datasets (and: should you fork?)
Troubleshooting	Common errors and fixes
Code Ocean	Running the capsule

Workflow

flowchart TD
    cfg["pipeline.yml<br/>(versioned config)"]:::cfg

    subgraph INT["cairns integrate"]
        direction TB
        qc["QC filter<br/>(skippable after round 1)"] --> hvg["HVG selection<br/>(batch-aware)"]
        hvg --> scvi["scVI training<br/>obsm['X_scVI']"]
        scvi -.->|annotation.enabled| scanvi["scANVI annotation<br/>obsm['X_scANVI']"]
        hvg -.->|harmony.enabled| harmony["Harmony<br/>obsm['X_pca_harmony']"]
        scvi --> emb["neighbors → UMAP → Leiden<br/>per embedding"]
        scanvi --> emb
        harmony --> emb
        emb --> bench["scIB benchmarking<br/>scVI vs Harmony vs PCA"]
    end

    INT --> integ["integrated.h5ad<br/>+ round_manifest.json<br/>+ scib_benchmark_results.csv"]:::art

    subgraph INS["cairns inspect"]
        direction TB
        rpt["cluster QC + markers<br/>+ diagnostic plots"] --> flags["auto_flags.yaml<br/>(suggested removals + reasons)"]
        flags --> html["inspection_report.html<br/>(+ Run Provenance footer)"]:::art
    end

    integ --> INS
    html --> review{"human review"}:::dec
    review --> dec["decisions.yaml<br/>(keep/remove + reasons)"]:::cfg

    dec --> filter["apply_decisions()"]
    filter --> filt["filtered.h5ad<br/>+ decisions_applied.yaml<br/>+ filtering_retention_summary.csv"]:::art
    filt -->|next round| INT

    cfg --> INT
    cfg --> INS

    classDef cfg fill:#e8f0fe,stroke:#4477AA;
    classDef art fill:#eef7ee,stroke:#449944;
    classDef dec fill:#fff3e0,stroke:#cc7a00;

Loading

The filtered output of each round feeds the next round's integration. A human reviews the report and authors the decisions.yaml — that's the one non-automated gate.

Package layout

scCairns installs as the sccairns package with a single cairns command:

Module / command	Role
sccairns.integrate — cairns integrate	QC, HVG selection, scVI training, optional scANVI annotation, UMAP/Leiden, benchmarking → integrated.h5ad
sccairns.inspect — cairns inspect	Inspection report, cluster QC, auto-flags, and decisions-based filtering
sccairns.summarize — cairns summarize	Cross-round summary: table, decisions ledger, Mermaid lineage, integrity report
sccairns.record_filter — cairns record-filter	Record provenance for a filter applied outside scCairns (Seurat, Loupe, a notebook), from an .h5ad pair or cell-ID lists
sccairns.contamination — cairns flag-contamination	Marker-based per-cell contamination flagging (used by inspection)
sccairns.config	Shared config defaults, validation, and provenance helpers

The package lives at code/sccairns/ (not the repo root) because Code Ocean reproducible runs ship only the code/ folder. pyproject.toml maps it back to the import name sccairns for local/PyPI installs, so import sccairns works everywhere. The code/*.py scripts are thin backward-compat shims (e.g. python code/integrate_scvi.py) so the Code Ocean capsule keeps working unchanged; new work should prefer the cairns CLI.

Quick start

Install (details in getting-started.md):

pip install scCairns

For a reproducible environment with pinned dependencies (recommended for analysis):

mamba create -n sccairns -c conda-forge python=3.10 pip scikit-misc -y
mamba activate sccairns
python -m pip install -r requirements.txt   # pinned scientific stack
python -m pip install -e .                  # the sccairns package + `cairns` CLI

One full round, locally:

cp examples/pipeline_scvi.yml pipeline.yml      # then edit data.input_h5ad / output_dir

# 1. integrate
cairns integrate --config pipeline.yml

# 2. inspect (writes inspection_report.html + auto_flags.yaml)
cairns inspect --config pipeline.yml

# 3. review the report, rename auto_flags.yaml -> decisions.yaml, edit it, then filter:
cairns inspect --config pipeline.yml \
  --input rounds/round_01/integrated.h5ad \
  --decisions rounds/round_01/decisions.yaml \
  --output-dir rounds/round_02

# 4. re-integrate the filtered object for the next round
cairns integrate --config pipeline.yml \
  --input rounds/round_02/filtered.h5ad --output-dir rounds/round_02

# 5. summarize every round so far: table, decisions ledger, lineage, integrity checks
cairns summarize --rounds-dir rounds --verify

Step 5 writes to rounds/summary/ and is worth running even after a single round — --verify is what catches a dirty working tree, seed or version drift between rounds, and an input whose content no longer matches what the parent round produced. Add --strict to exit non-zero on any finding, which is what you want inside a pipeline.

Prefer a guided, runnable version? Follow the tutorial — it generates a synthetic dataset and walks the whole loop with expected numbers.

Outputs and provenance

Each round writes a cumulative record. Highlights:

File	Description
integrated.h5ad	All genes; log-normalized .X; raw counts in the counts layer; embeddings, UMAPs, clusters
inspection_report.html	Self-contained report with a Run Provenance footer
auto_flags.yaml	Suggested removals — the starting point for your decisions.yaml
filtered.h5ad	The filtered object for the next round
filtering_retention_summary.csv	Pre/post counts by cluster, batch, and cluster × batch
run_config_resolved.yml	The fully merged config that actually ran
round_manifest.json	Seed, git commit, input fingerprint, parent-round pointer, package versions

Reproducibility. reproducibility.seed (default 0) is applied via scvi.settings.seed before any stochastic step, so scVI/scANVI training, the neighbor graph, UMAP, and Leiden clustering are deterministic — which makes the Leiden cluster IDs that decisions.yaml references stable across re-runs of the same config. Set seed: null for an intentionally non-reproducible run. Every round_manifest.json also identifies the pipeline that ran — its installed version, plus the git revision and a dirty flag when running from a checkout — along with a SHA-256 fingerprint of the input, and a parent_round pointer linking rounds into an explicit lineage. Installed from a pinned release rather than a checkout, the version is the identifier, so pin an exact tag in whatever builds your environment. command_args.json keeps an append-only history of every stage invocation. Full field-by-field detail lives in the configuration reference and interpreting outputs.

If filtering happened in an external interactive tool, record the same provenance without re-running Cairns filtering:

cairns record-filter \
  --input-h5ad rounds/round_01/integrated.h5ad \
  --output-h5ad rounds/round_02/filtered.h5ad \
  --output-dir rounds/round_02 \
  --embedding-key X_scVI_Xlarge_geneXcell_cell_nb \
  --filter-used "Removed non-neuronal clusters from interactive review" \
  --notes "Manual lasso/cluster filtering in interactive mode"

Either side can be a list of cell IDs instead of an .h5ad (--input-cell-ids / --output-cell-ids), so a tool that can't write AnnData — Seurat, Loupe — can hand back just the barcodes it kept. --embedding-key is optional, for a filter applied at ingest before any embedding exists. See filtering outside scCairns.

Summarizing a completed set of rounds

After several rounds, combine every round_manifest.json into one view. Point at a parent directory of round_* subdirectories:

cairns summarize --rounds-dir results/rounds --verify

…or pass an explicit, ordered list of round directories (useful when rounds are archived under arbitrary names — e.g. Code Ocean overwrites /results each run, so rounds are copied out to durable storage):

cairns summarize \
  --rounds data/260603_cmg_round1 data/260605_cmg_round3 \
  --output-dir results/summary --verify

Output	Contents
pipeline_summary.md / .html	Round table + Mermaid lineage + integrity findings
rounds_table.csv	One row per round (input + final cells, clusters, seed, commit, filtered-on variant, scIB scores)
decisions_ledger.csv	Every keep/remove action across all rounds
lineage.mmd	Raw Mermaid lineage diagram
pipeline_summary.json	Full merged record + verification verdicts

With --rounds, the supplied order is taken as the lineage when run-time paths no longer resolve; --verify still hashes each parent's integrated.h5ad as it sits on disk and compares it to the child's recorded input fingerprint. --strict exits non-zero when a check fails, so the summary can gate CI. In discovery mode (--rounds-dir), rounds are ordered by their recorded parent_round lineage.

Environment

Local development uses a Python 3.10 conda/mamba environment and requirements.txt (CPU-friendly scvi-tools==1.3.3). The Docker image pins the same libraries with the CUDA extra for GPU/container parity. Run the checks with:

python -m compileall -q sccairns code tests
python -m pytest -q

Notes

• V1 supports integration.model_type: scvi; scANVI is an annotation stage on top of the single-model scVI path (not combinable with sweeps).
• SNS marker defaults are part of the resolved config/template rather than implicit inspection logic, so they're visible and overridable.

License

See LICENSE (Allen Institute).
