YF C500 Plug'n Play Plugs + Adapter for SA/SC support

[Apehaenger]

No description provided.

[github-actions]

KiBot Diff vs main

Renderings

PCB Top | PCB Bottom

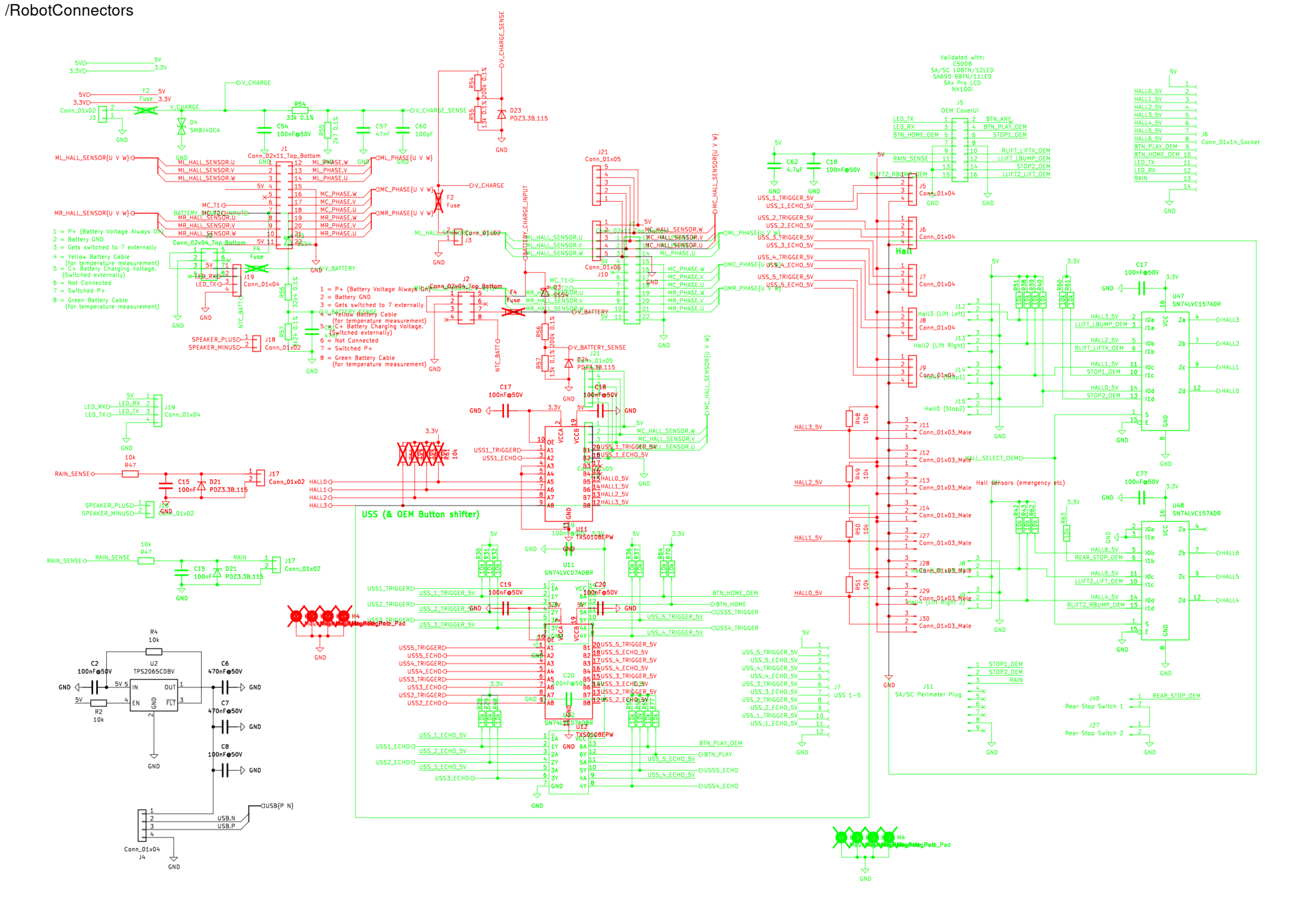

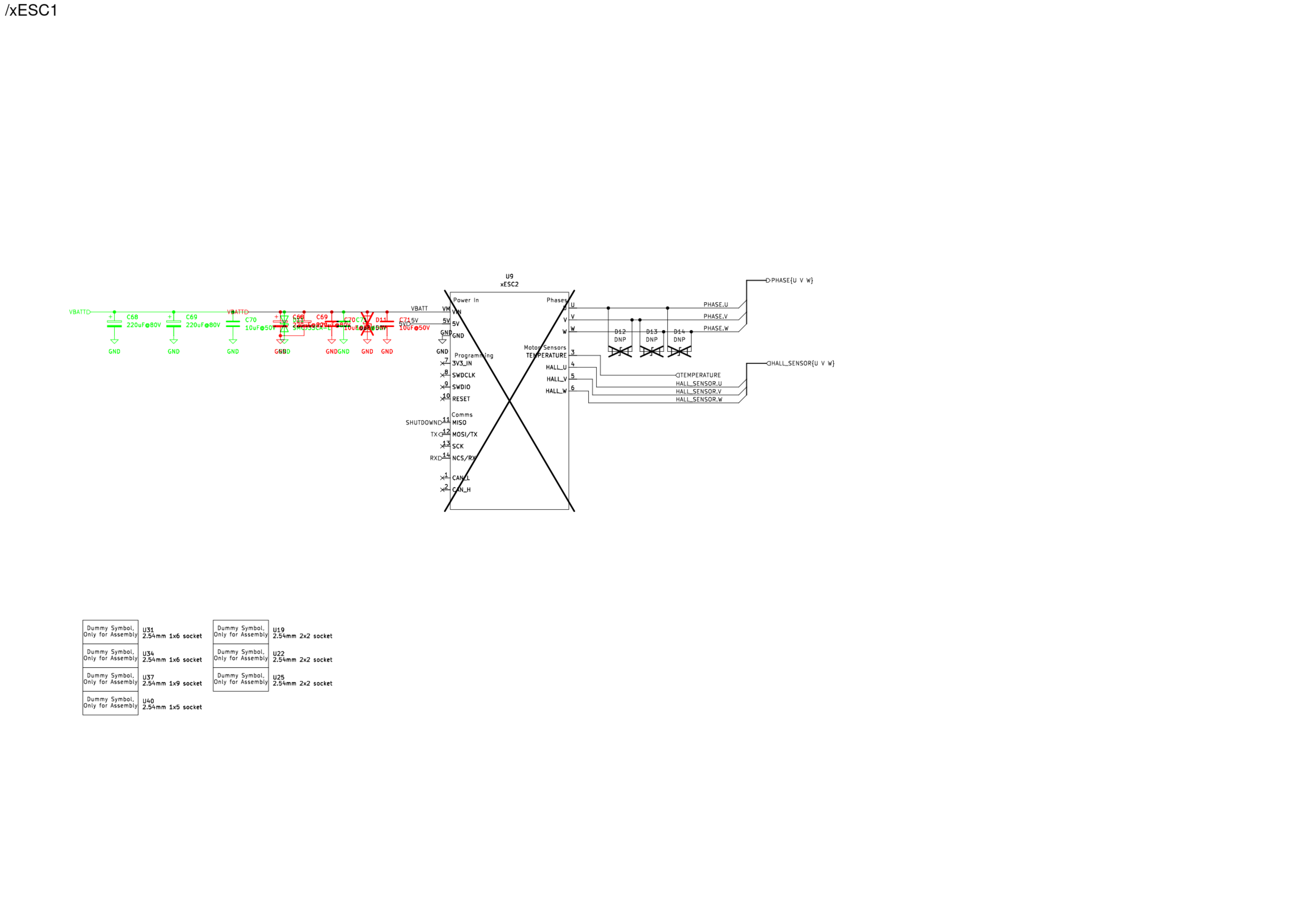

Schematic diff

Show schematic diff

PCB diff (with copper fills)

Show PCB diff (with copper fills)

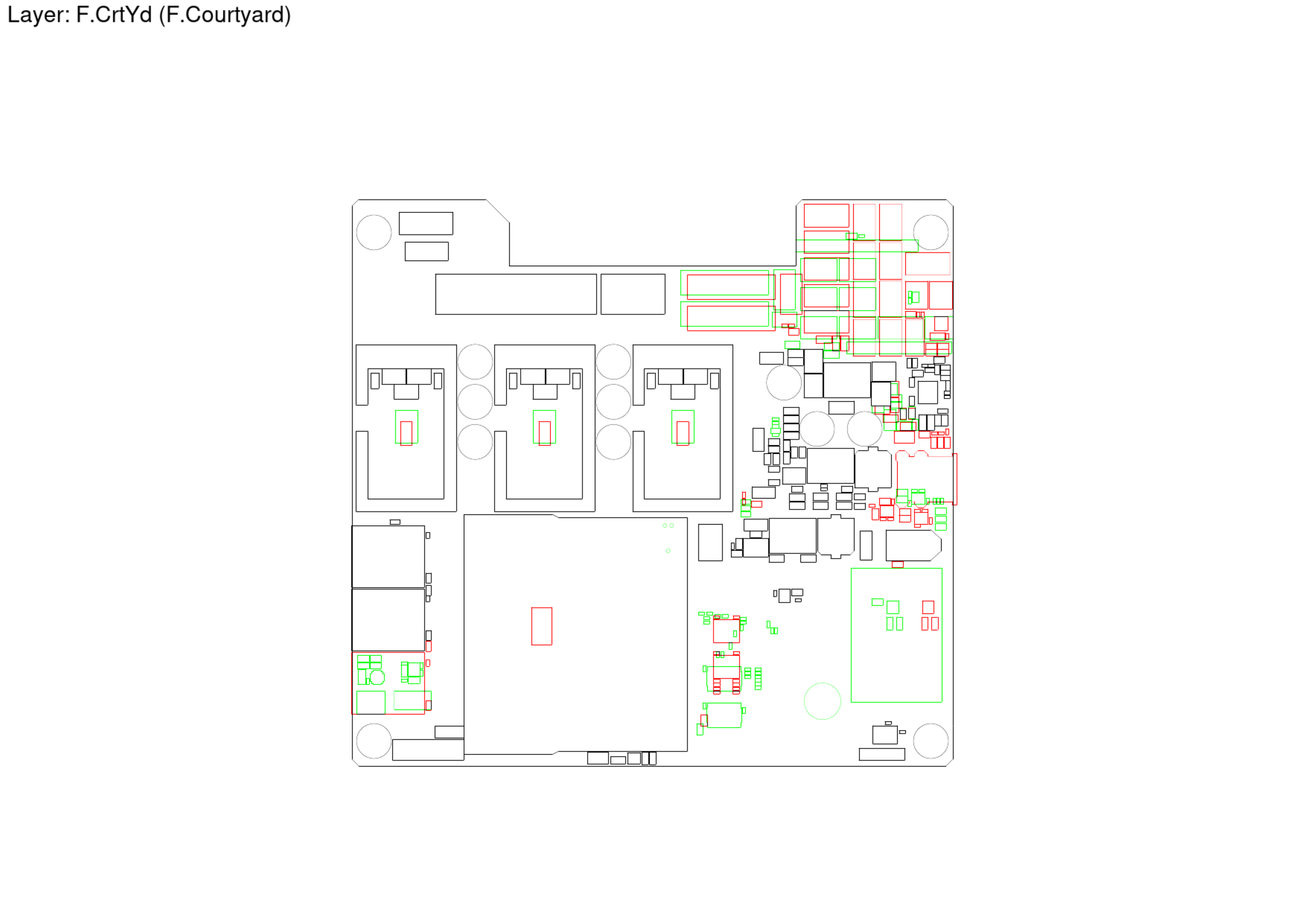

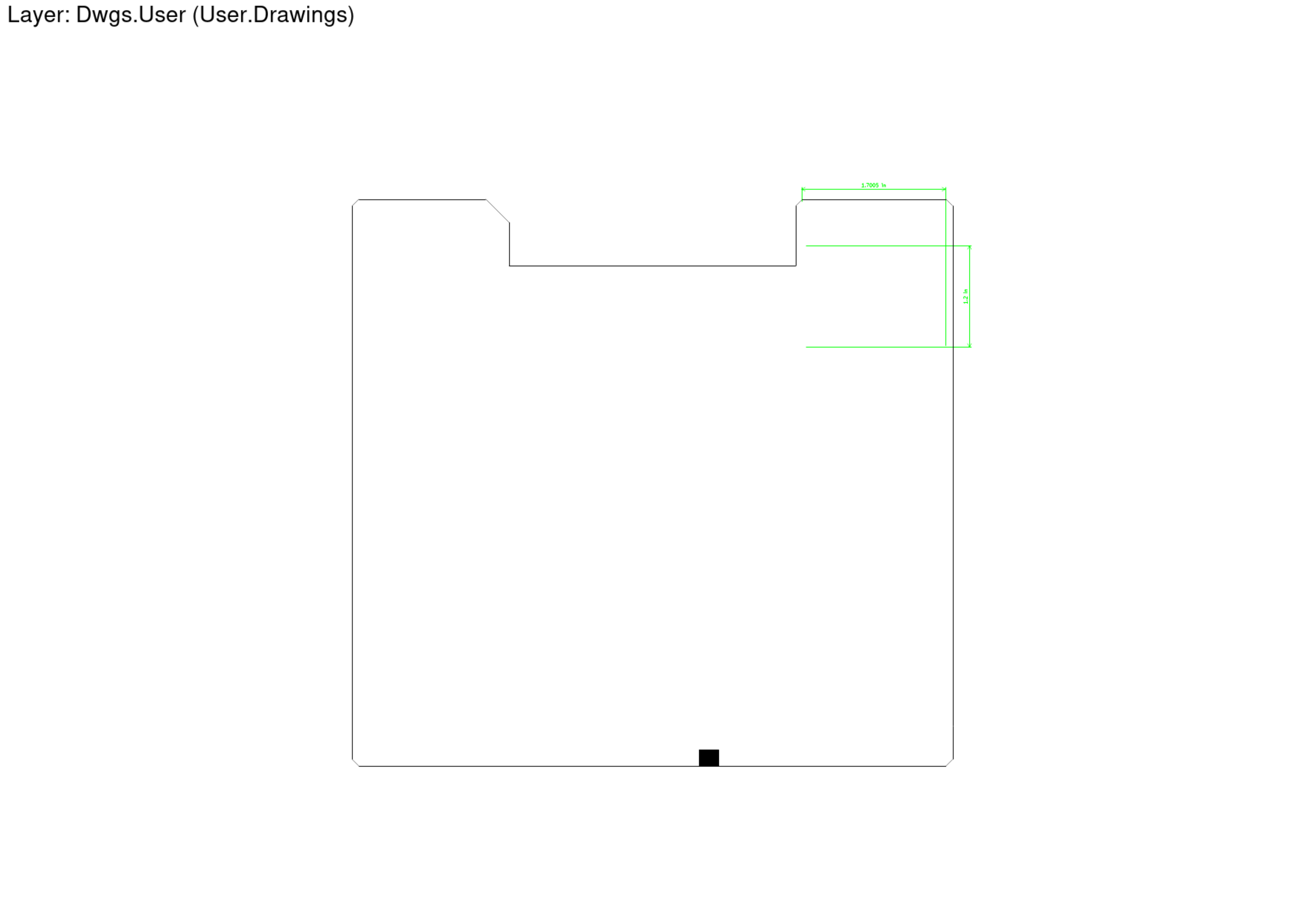

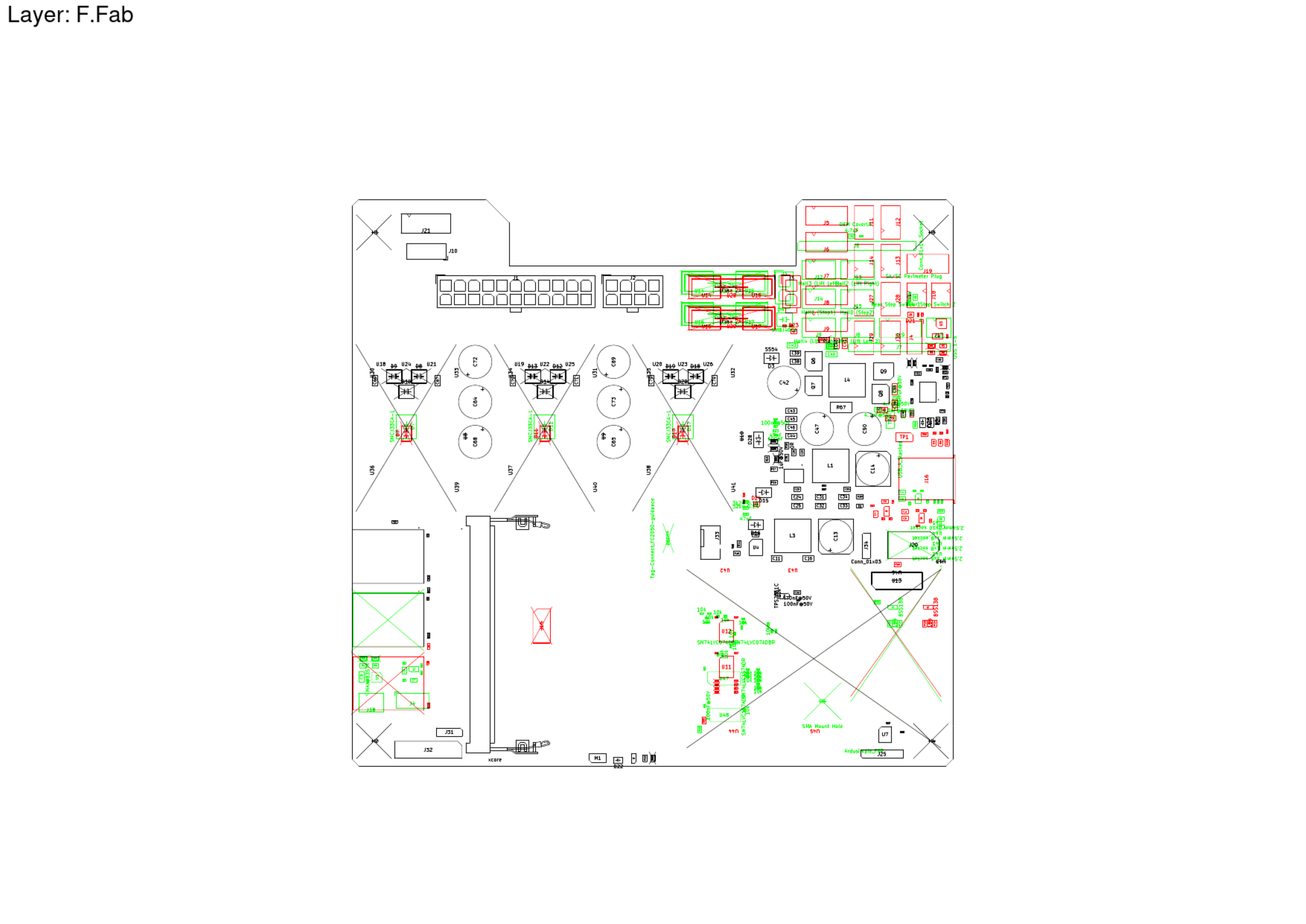

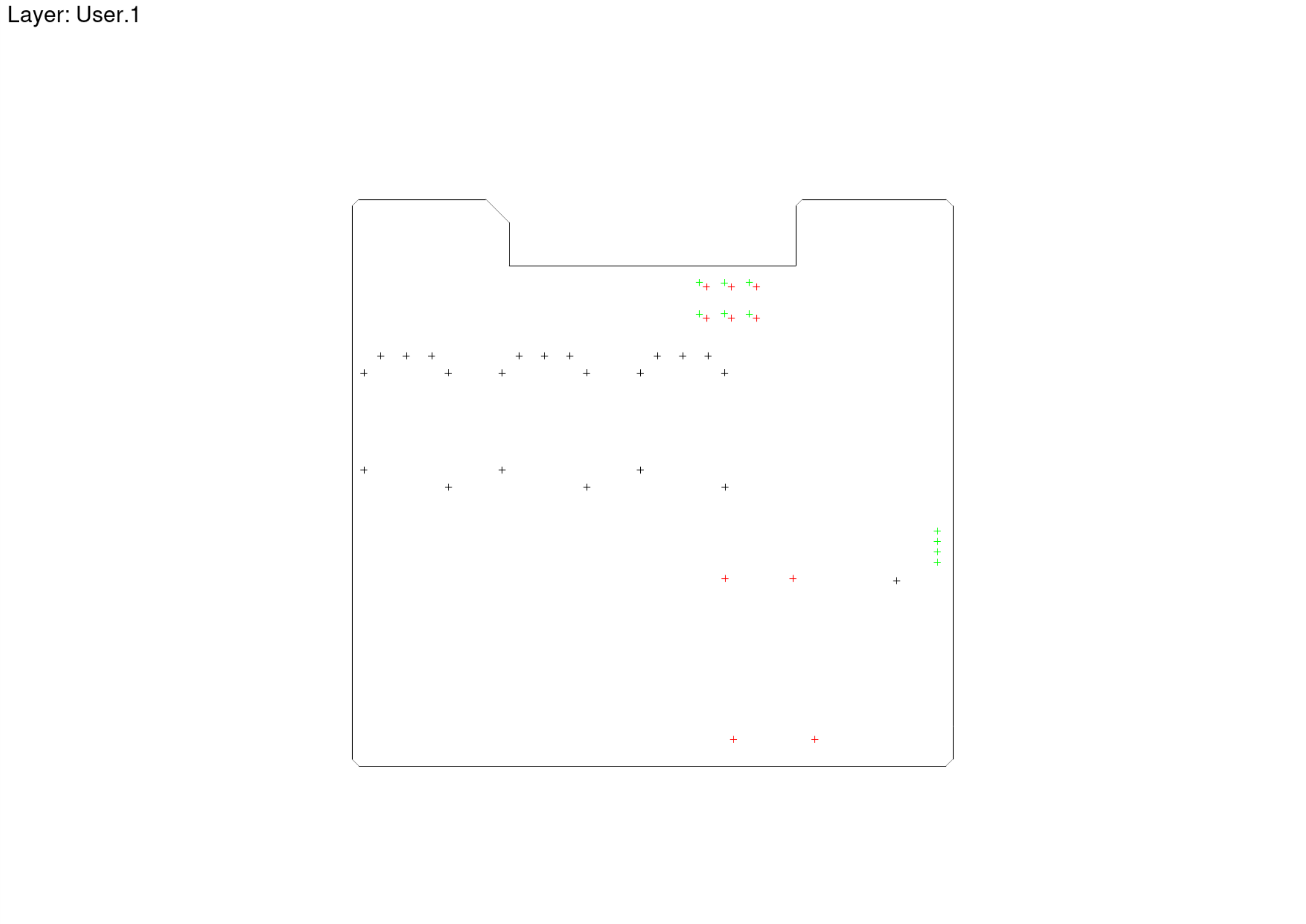

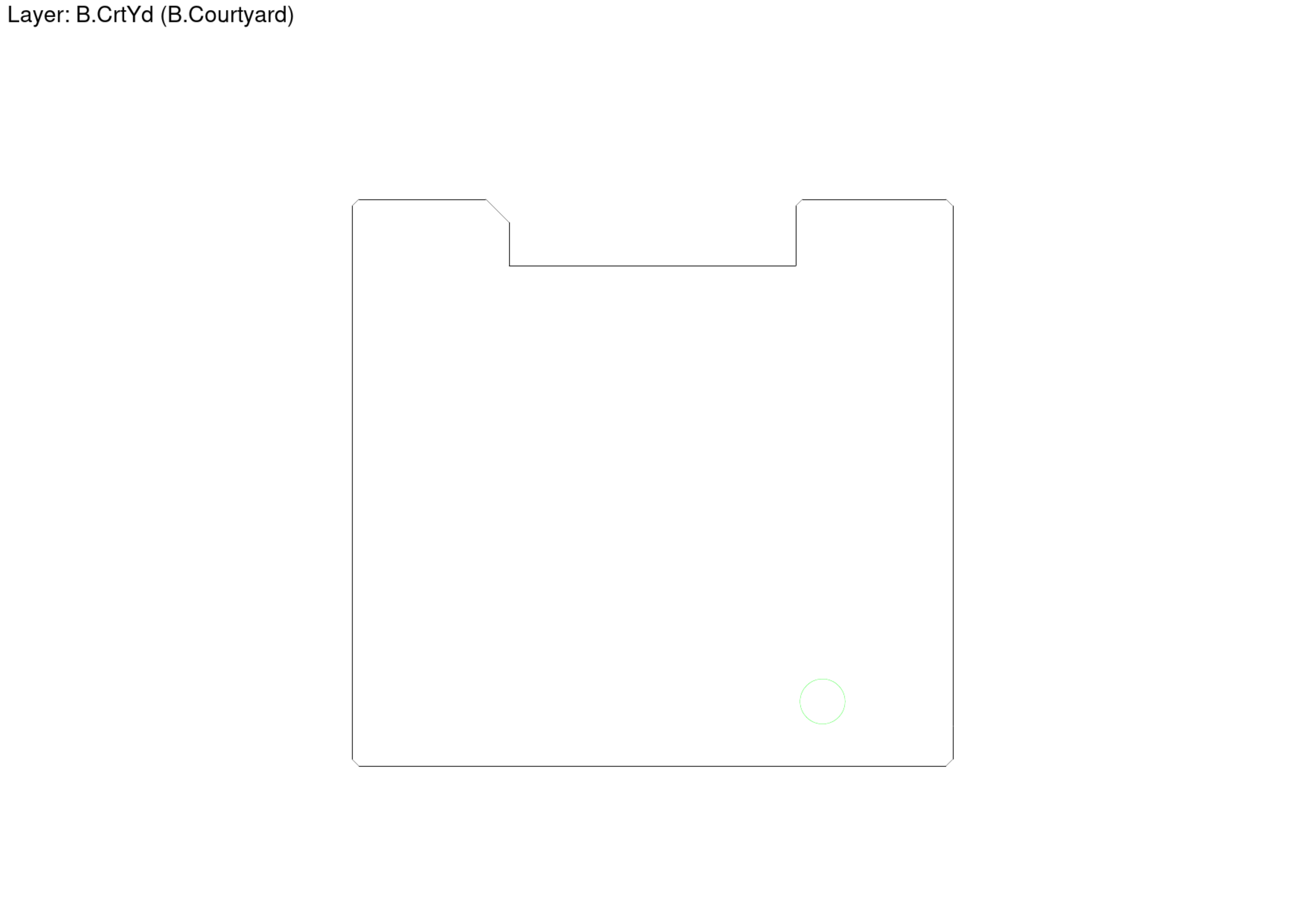

PCB diff (without copper fills)

Show PCB diff (without copper fills)

---

BOM

Show BOM diff

--- diff/bom_main_sorted.csv	2026-06-09 14:56:15.066264177 +0000
+++ diff/bom_current_sorted.csv	2026-06-09 14:56:15.067002191 +0000
@@ -19,7 +19,6 @@
 100nF@50V,C18,C_0402_1005Metric,C307331
 100nF@50V,C19,C_0402_1005Metric,C307331
 100nF@50V,C20,C_0402_1005Metric,C307331
-100nF@50V,C21,C_0402_1005Metric,C307331
 100nF@50V,C22,C_0402_1005Metric,C307331
 100nF@50V,C23,C_0402_1005Metric,C307331
 10uF@50V,C24,C_1206_3216Metric,C13585
@@ -49,10 +48,15 @@
 1uF@50V,C51,C_0805_2012Metric,C354368
 100nF@50V,C52,C_0402_1005Metric,C307331
 470nF@50V,C53,C_0805_2012Metric,C13967
-4.7uF@50V,C55,C_1206_3216Metric,C29823
-4.7uF@50V,C56,C_1206_3216Metric,C29823
-4.7uF@50V,C58,C_1206_3216Metric,C29823
-4.7uF@50V,C59,C_1206_3216Metric,C29823
+100nF@50V,C54,C_0402_1005Metric,C307331
+4.7uF@50V,C55,C_0805_2012Metric,C2991173
+4.7uF@50V,C56,C_0805_2012Metric,C2991173
+47nF,C57,C_0603_1608Metric,C1622
+4.7uF@50V,C58,C_0805_2012Metric,C2991173
+4.7uF@50V,C59,C_0805_2012Metric,C2991173
+100pF,C60,C_0402_1005Metric,C1546
+47nF,C61,C_0603_1608Metric,C1622
+4.7uF,C62,C_0805_2012Metric,C1779
 100nF,C63,C_0402_1005Metric,C307331
 220uF@80V,C64,CP_Radial_D10.0mm_P5.00mm,C106516
 220uF@80V,C65,CP_Radial_D10.0mm_P5.00mm,C106516
@@ -67,6 +71,7 @@
 10uF@50V,C74,C_1206_3216Metric,C13585
 10uF@50V,C75,C_1206_3216Metric,C13585
 100nF@50V,C76,C_0603_1608Metric,C14663
+100nF@50V,C77,C_0402_1005Metric,C307331
 4.7uF,C78,C_0805_2012Metric,C1779
 100nF@100V,C79,C_0805_2012Metric,C28233
 1uF@50V,C80,C_0805_2012Metric,C354368
@@ -77,14 +82,16 @@
 LED GREEN,D1,LED_0805_2012Metric,C2297
 V1FM10-M3/H,D2,D_SMF,C3758930
 SS54,D3,D_SMA,C22452
+SMBJ40CA,D4,D_SMB,C84730
 LED GREEN,D5,LED_0805_2012Metric,C2297
 LED GREEN,D6,LED_0805_2012Metric,C2297
+SMCJ33CA-L,D7,D_SMC,C7470408
+SMCJ33CA-L,D11,D_SMC,C7470408
 SS54,D15,D_SMA,C22452
 SS54,D16,D_SMA,C22452
+SMCJ33CA-L,D17,D_SMC,C7470408
 "PDZ3.3B,115",D21,D_SOD-323,C426855
 D_Schottky,D22,D_SOD-123F,C8598
-"PDZ3.3B,115",D23,D_SOD-323,C426855
-"PDZ3.3B,115",D24,D_SOD-323,C426855
 V1FM10-M3/H,D26,D_SMF,C3758930
 SS54,D28,D_SMA,C22452
 LED GREEN,D29,LED_0805_2012Metric,C2297
@@ -92,34 +99,31 @@
 Conn_02x04_Top_Bottom,J2,Molex_Mini-Fit_Jr_5566-08A_2x04_P4.20mm_Vertical,C2764796
 Conn_01x02,J3,Molex_Mini-Fit_Jr_5566-02A_2x01_P4.20mm_Vertical,C62132
 Conn_01x04,J4,JST_PH_B4B-PH-K_1x04_P2.00mm_Vertical,C442246
-Conn_01x04,J5,JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical,C144395 C144394
-Conn_01x04,J6,JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical,C144395 C144394
-Conn_01x04,J7,JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical,C144395 C144394
-Conn_01x04,J8,JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical,C144395 C144394
-Conn_01x04,J9,JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical,C144395 C144394
+OEM CoverUI,J5,HDR-IDC-2_54-2X8P_C3406,C601981
+Conn_01x14_Socket,J6,PinSocket_1x14_P2.54mm_Vertical,
+USS 1-5,J7,PinSocket_1x12_P2.54mm_Vertical,
+Hall5 (Lift Left 2),J8,JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical,C144394
+Hall5 (Lift Left 2),J9,JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical,C144394
 Conn_01x05,J10,JST_PH_B5B-PH-K_1x05_P2.00mm_Vertical,C442247
-Conn_01x03_Male,J11,JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical,C144394
-Conn_01x03_Male,J12,JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical,C144394
-Conn_01x03_Male,J13,JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical,C144394
-Conn_01x03_Male,J14,JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical,C144394
-USB_A_Stacked,J16,USB_A_Wuerth_61400826021_Horizontal_Stacked,C720548
+SA/SC Perimeter Plug,J11,ZX-HY2_0-9PZZ_C7429585,C7429585
+Hall5 (Lift Left 2),J12,JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical,C144394
+Hall5 (Lift Left 2),J13,JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical,C144394
+Hall5 (Lift Left 2),J14,JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical,C144394
+Hall5 (Lift Left 2),J15,JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical,C144394
+USB_A_Stacked,J16,USB-269-BRW_C720548_MOD,C720548
 Conn_01x02,J17,JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical,C2910525
 Conn_01x02,J18,JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical,C2910525
-Conn_01x04,J19,JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical,C144395 C144394
-Conn_01x02,J20,AMASS_XT60-F_1x02_P7.20mm_Vertical,C98734
+Conn_01x04,J19,JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical,C144395
 Conn_01x05,J21,JST_XH_B5B-XH-A_1x05_P2.50mm_Vertical,C157991
-HR911130A,J23,HR911130A,C54408
 HR911130A,J24,HR911130A,C54408
 Conn_01x05_Pin,J25,PinHeader_1x05_P2.54mm_Vertical,C6332198
 xcore,J26,xcore,
-Conn_01x03_Male,J27,JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical,C144394
-Conn_01x03_Male,J28,JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical,C144394
-Conn_01x03_Male,J29,JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical,C144394
-Conn_01x03_Male,J30,JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical,C144394
+Rear Stop Switch 2,J27,HC-HY-2A_C2845460,C2845460
 Conn_01x03_Pin,J31,PinHeader_1x03_P2.54mm_Vertical,
 Conn_02x08_Odd_Even,J32,PinHeader_2x08_P2.54mm_Vertical,C779499
 Molex 470531000,J33,FanPinHeader_1x04_P2.54mm_Vertical,C240840
 Conn_01x03,J34,PinHeader_1x03_P2.54mm_Vertical,
+Rear Stop Switch 2,J40,HC-HY-2A_C2845460,C2845460
 6.8uH,L1,L_Sunlord_MWSA1004S,C408485
 22uH,L3,L_Sunlord_MWSA1004S,C408489
 10uH,L4,L_Sunlord_MWSA1004S,C408487
@@ -136,8 +140,6 @@
 10k,R4,R_0402_1005Metric,C25744
 1M,R5,R_0805_2012Metric,C17514
 0R,R8,R_0805_2012Metric,C17477
-300R,R9,R_0603_1608Metric,C23025
-300R,R10,R_0603_1608Metric,C23025
 300R,R11,R_0603_1608Metric,C23025
 300R,R12,R_0603_1608Metric,C23025
 300R,R13,R_0603_1608Metric,C23025
@@ -153,10 +155,22 @@
 150,R25,R_0805_2012Metric_Pad1.20x1.40mm_HandSolder,C17471
 0R,R26,R_0805_2012Metric,C17477
 10k,R27,R_0402_1005Metric,C25744
+10k,R28,R_0402_1005Metric,C25744
+10k,R29,R_0402_1005Metric,C25744
+10k,R30,R_0402_1005Metric,C25744
+10k,R31,R_0402_1005Metric,C25744
+10k,R32,R_0402_1005Metric,C25744
 249kR 0.1%,R33,R_0603_1608Metric,C705752
 10k,R34,R_0402_1005Metric,C25744
 10k,R35,R_0402_1005Metric,C25744
+10k,R36,R_0402_1005Metric,C25744
+10k,R37,R_0402_1005Metric,C25744
+10k,R38,R_0402_1005Metric,C25744
+10k,R39,R_0402_1005Metric,C25744
+10k,R40,R_0402_1005Metric,C25744
 10k,R41,R_0402_1005Metric,C25744
+10k,R42,R_0402_1005Metric,C25744
+10k,R43,R_0402_1005Metric,C25744
 20k,R44,R_0805_2012Metric,C4328
 2.2k,R45,R_0805_2012Metric,C17520
 10k,R46,R_0402_1005Metric,C25744
@@ -166,20 +180,28 @@
 10k,R50,R_0402_1005Metric,C25744
 10k,R51,R_0402_1005Metric,C25744
 150,R53,R_0805_2012Metric_Pad1.20x1.40mm_HandSolder,C17471
-200k 0.1%,R54,R_0402_1005Metric,C728556
-13k 0.1%,R55,R_0402_1005Metric,C852524
-200k 0.1%,R56,R_0402_1005Metric,C728556
-13k 0.1%,R57,R_0402_1005Metric,C852524
+33k 0.1%,R54,R_0402_1005Metric,C5455470
+2k7 0.1%,R55,R_0402_1005Metric,C852706
+32k4 0.1%,R56,R_0603_1608Metric,C861323
+3k24 0.1%,R57,R_0603_1608Metric,C728589
 2.2k,R58,R_0805_2012Metric,C17520
 2.2k,R59,R_0805_2012Metric,C17520
+10k,R60,R_0402_1005Metric,C25744
+10k,R61,R_0402_1005Metric,C25744
+10k,R62,R_0402_1005Metric,C25744
+10k,R63,R_0402_1005Metric,C25744
+10k,R64,R_0402_1005Metric,C25744
+10k,R65,R_0402_1005Metric,C25744
 0R,R66,R_0805_2012Metric,C17477
 5mR,R67,R_2512_6332Metric,C309526
 10R,R68,R_0402_1005Metric,C25077
 10R,R69,R_0402_1005Metric,C25077
+10k,R70,R_0402_1005Metric,C25744
 220kR 0.1%,R71,R_0603_1608Metric,C861231
 133kR,R74,R_0603_1608Metric,C227577
 10k,R75,R_0402_1005Metric,C25744
 10k,R76,R_0402_1005Metric,C25744
+10k,R77,R_0402_1005Metric,C25744
 TPS2065CDBV,U1,SOT-23-5,C353882
 TPS2065CDBV,U2,SOT-23-5,C353882
 MAX98357A,U3,TQFN-16-1EP_3x3mm_P0.5mm_EP1.23x1.23mm,C910544
@@ -187,8 +209,8 @@
 LM76005RNPR,U5,LM76005RNPR,C2866241
 TPS2061C,U6,SOT-23-5,C265129
 M24C02-WMN,U7,SOIC-8_3.9x4.9mm_P1.27mm,C7562
-TXS0108EPW,U11,TSSOP-20_4.4x6.5mm_P0.65mm,C17206
-TXS0108EPW,U12,TSSOP-20_4.4x6.5mm_P0.65mm,C17206
+SN74LVC07ADBR,U11,SN74LVC07ADBR_C2676799,
+SN74LVC07ADBR,U12,SN74LVC07ADBR_C2676799,
 Fuse Holder,U14,Dummy,C206977
 Fuse Holder,U15,Dummy,C206977
 Fuse Holder,U16,Dummy,C206977
@@ -222,3 +244,5 @@
 2.54mm 1x8 socket,U44,Dummy,C7509515
 2.54mm 1x10 socket,U45,Dummy,C7509514
 2.54mm 2x6 socket,U46,Dummy,C718230
+SN74LVC157ADR,U47,SOIC-16_3.9x9.9mm_P1.27mm,C7664
+SN74LVC157ADR,U48,SOIC-16_3.9x9.9mm_P1.27mm,C7664

---

📦 Download diffs | Download build outputs

[ClemensElflein]

Very nice! Looks good to me! Thank you for the amazing work! 🎉
