KB Arena

Compare retrieval architectures on your own documentation and choose with evidence.

KB Arena runs the same corpus and question set through 19 built-in retrieval strategies, lexical, dense, graph, hybrid, hierarchical, reranked, and more. It records retrieval quality, answer quality, latency, cost, and run artifacts, so you can decide which design fits your data before you build on it.

Use it before you commit to a retrieval architecture, or as a regression lab after your corpus, chunking, model, or index changes.

Explore a checked result

The packaged demo uses precomputed AWS Compute results. It needs no API key, Docker service, or Neo4j instance.

pip install kb-arena
kb-arena demo

Open the URL printed by the command. The demo ships 8 benchmark result files for the aws-compute corpus, one per strategy, so the benchmark table, the per-tier breakdown, the source drill-down and the strategy comparison all have real numbers behind them.

The hosted dashboard has no server behind it

xmpuspus-kb-arena.static.hf.space serves the same dashboard as a static site. No server runs behind it, so every strategy card reads "Runtime status unavailable" and no route returns live data. It shows what the interface looks like. Run kb-arena demo for numbers.

A static Space serves exact file paths, so the deploy points every link at one. The navigation works, and each route reads /benchmark/index.html rather than /benchmark/.

The Retriever Lab and the spread across repeated runs are empty until you produce them. They read run directories, and the package bundles none. Run kb-arena retriever-lab and kb-arena benchmark --runs 3 against a corpus to fill them.

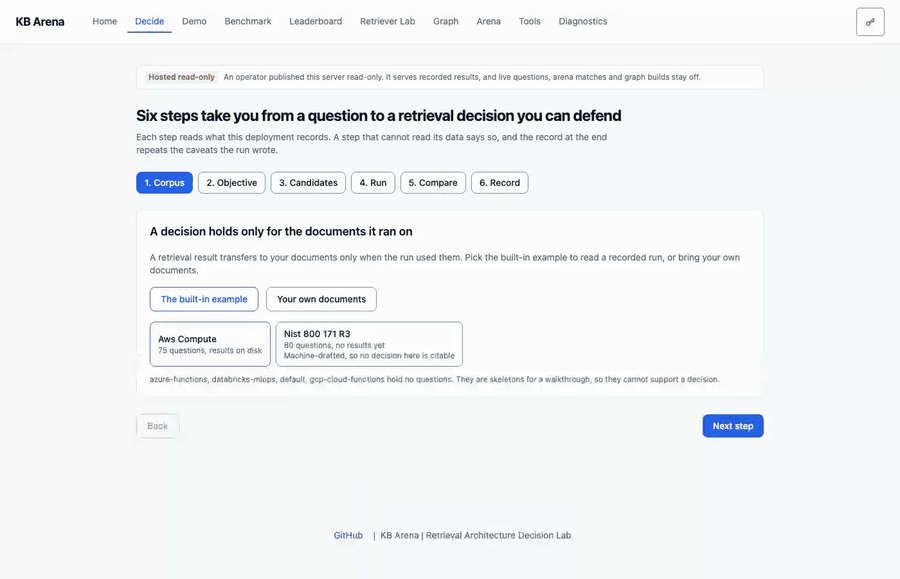

Six steps take you from a question to a decision

/decide walks the path in order: pick the corpus, pick what you are optimising for, read which strategies the catalog offers, copy the commands that run them, read the comparison, and take a record that repeats what the run recorded and nothing more.

Every number in that recording comes from the committed run. The record names the corpus, the question count, the metric, both means, the paired delta, the confidence interval and the Wilcoxon p. It also carries what the comparison refused to claim: the difference is not significant, and neither result file carries a manifest, so the question set, the judge and the top-k went unchecked.

Regenerate it with kb-arena demo running, then python3 docs/tapes/record-decide.py. The script reads KB_ARENA_DEMO_BASE when the demo is on another address.

Point it at your own documents

Ingest your files, build the strategy your provider budget allows, and score retrieval for free through BM25, the one built-in strategy that needs no key. Run it on your documents below has the setup for local and hosted providers, and the own-corpus walkthrough runs ingest through an exported evidence bundle with the real console output from each step.

Four ways to run a comparison

• CLI runs kb-arena, with commands from ingest through evidence. See the command reference.
• HTTP API starts with kb-arena serve, which runs the FastAPI server behind the dashboard. See the HTTP reference for every route and its auth gate.
• MCP server installs with pip install 'kb-arena[mcp]', then runs with python3 -m kb_arena.mcp.server. It exposes corpus, strategy, benchmark, and evidence tools over stdio to an MCP client such as Claude Code or Codex. See the server module.
• GitHub Action retrieval-regression-gate ingests a corpus, builds an index, and fails a pull request when a named metric drops past a threshold. See the example workflow.

What KB Arena helps decide

Question	Comparison
Do exact terms matter more than semantic similarity?	BM25 against dense retrieval
Does document context improve chunk retrieval?	Naive against contextual vector
Do cross-document relationships justify a graph?	Dense against graph and hybrid
Does hierarchy help on broad questions?	Dense against RAPTOR and PageIndex
Is a reranker worth its latency and cost?	Dense against reranked dense
Is a proposed method meaningfully different?	Paired scores, confidence intervals, and rank overlap

KB Arena does not give a universal leaderboard. A result applies to the corpus, questions, ground truth, configuration, and models named in that run.

Evidence included in this repository

The tracked Retriever Lab run 855aac4e is a historical, reproducible example:

• Corpus: aws-compute, three documents and 1,549 words
• Run date: 2026-04-26
• Questions: 75 across five tiers
• Cutoff: top 5 chunks
• Chunk-level labels: 35 questions have labels, and 40 do not
• Scope: eight strategies from the version available on the run date

Strategy	Recall@5	MRR	NDCG@5
Contextual Vector	0.355	0.433	0.388
Naive Vector	0.352	0.414	0.367
RAPTOR	0.352	0.414	0.367
BM25	0.275	0.352	0.278
Hybrid	0.080	0.093	0.086
PageIndex	0.061	0.111	0.076

Source: tracked report and run artifact.

These numbers show the report format and calculation path. The corpus is too small, and its chunk labels are too incomplete, to support a general winner claim. Q&A Pairs and Knowledge Graph from that run have zero chunk-level scores because their retrieved identifiers did not map to the available labels. Those zeroes reflect gaps in the current evaluation, not evidence that the methods cannot retrieve useful context.

A larger public corpus for method development

The repository includes a deterministic NIST SP 800-171 Revision 3 corpus built from the official publication. It has 130 control documents and 80 questions across direct, paraphrased, scenario, boundary, and multi-control categories. Each question maps to source control sections, with 48 development, 12 validation, and 20 holdout items.

The question set is not a human-approved benchmark but a machine-generated draft. Do not publish a strategy winner from it until a qualified reviewer checks the questions, answers, constraints, and holdout isolation. See the corpus notes, source manifest, and evaluation method.

Run it on your documents

Local models with Ollama

Install and start Ollama, then pull both generation and embedding models:

ollama pull llama3.1:8b
ollama pull nomic-embed-text

export KB_ARENA_LLM_PROVIDER=ollama
export KB_ARENA_EMBEDDING_PROVIDER=ollama

Create a corpus, place files in raw/, and run the pipeline:

pip install 'kb-arena[all-formats]'
kb-arena init-corpus my-docs
cp -R /path/to/docs/. datasets/my-docs/raw/
kb-arena run --corpus my-docs --skip-graph

run ingests a populated raw/ directory automatically. Remove --skip-graph after starting Neo4j when you want graph and hybrid comparisons.

Hosted generation and embeddings

The generation and embedding providers are independent:

export KB_ARENA_LLM_PROVIDER=anthropic
export KB_ARENA_ANTHROPIC_API_KEY=...
export KB_ARENA_EMBEDDING_PROVIDER=openai
export KB_ARENA_OPENAI_API_KEY=...

kb-arena run --corpus my-docs

Supported embedding providers are OpenAI, Voyage, Cohere, Gemini, local BGE, and Ollama. See the getting-started guide for formats, Neo4j setup, checkpoints, and provider configuration.

Evaluation paths

Use the retrieval-only path when you need to isolate the index and ranking behavior:

kb-arena label-chunks --corpus my-docs
kb-arena retriever-lab --corpus my-docs --top-k 5

It reports Recall@k, Precision@k, Hit@k, MRR, NDCG@k, MAP, R-Precision, bpref, bootstrap confidence intervals, and per-tier breakdowns.

Use the full benchmark for generated-answer scoring, source attribution, latency, cost, and reliability:

kb-arena benchmark --corpus my-docs --top-k 5
kb-arena report --corpus my-docs --format markdown

Use optimization after you define a development split. Keep a separate holdout for the published comparison:

kb-arena optimize \
  --corpus my-docs \
  --split development \
  --strategies bm25,naive_vector,contextual_vector,raptor \
  --top-ks 3,5,10 \
  --metric ndcg

After you choose the configuration, run the public comparison with kb-arena benchmark --split holdout.

Optimization remains retrieval-only. QnA Pairs and RAPTOR reuse their prebuilt indexes and sweep top-k only. They do not regenerate pairs or summaries during a search.

Read the evaluation method before interpreting small score differences or synthetic question sets.

Strategy catalog

The catalog holds 19 strategies. The default all benchmark runs 9 of them and leaves out 10: LightRAG, Metadata Filtered, Temporal, Rerank Vector, SQR, HyDE, Multi-Query, Late Interaction, SPLADE and Agentic. Each one is out for one of two reasons the catalog records.

Four need an optional dependency group a plain install does not carry: Rerank Vector, SQR, Late Interaction and SPLADE. Rerank Vector installs per backend, so read its entry in the strategy catalog rather than one command.

Seven are marked experimental, which means they run but carry no general performance claim: LightRAG, Metadata Filtered, Temporal, SQR, HyDE, Multi-Query and Agentic. SQR is in both lists.

The API reports loaded and unavailable strategies at GET /strategies.

Strategy	Architecture	Default	Notes
Naive Vector	Dense	Yes	Chunk, embed, cosine retrieval
Contextual Vector	Dense	Yes	Adds parent context before embedding
Q&A Pairs	Generated index	Yes	Creates likely questions at index time
Knowledge Graph	Graph	Yes	Retrieves through Neo4j entities and relationships
LightRAG	Experimental	No	Local entity neighborhood plus a global community summary, needs Neo4j
Hybrid	Hybrid	Yes	Routes and fuses vector and graph results with RRF
RAPTOR	Hierarchical	Yes	Retrieves chunks and recursive summaries
PageIndex	Hierarchical	Yes	Uses document structure and LLM tree traversal
BM25	Lexical	Yes	Keyless keyword baseline
Metadata Filtered	Access-aware dense	No	Applies a tag, owner, classification, and doc ID filter inside retrieval
Temporal	Version-aware dense	No	Prefers the newest document version and supports an as-of date
Rerank Vector	Reranked dense	No	The BGE backend uses kb-arena[rerank].
QISS	Experimental	Yes	Pure NumPy fidelity reranker over dense candidates
SQR	Experimental	No	Qiskit Aer SWAP-test reranker, install kb-arena[quantum]
HyDE	Experimental	No	Embeds an LLM-written hypothetical answer instead of the question
Multi-Query	Experimental	No	Asks the LLM for several sub-queries and fuses their results with RRF
Late Interaction	Token-level dense	No	ColBERT-style MaxSim reranker, install kb-arena[late-interaction]
SPLADE	Learned sparse	No	Term-weight expansion over its own sparse index, install kb-arena[splade]
Agentic	Experimental	No	Retrieve-judge-refine loop under a hard iteration and call budget

See strategy details and the plugin guide.

Data and method limits

• Auto-generated questions help expand coverage, but production queries and human review give stronger deployment evidence.
• An LLM judge can introduce model bias. Use a different judge family, keep the prompts and model versions, and inspect disagreements.
• Architecture-native indexes do not always return the same chunk identifiers. Validate qrel mappings before comparing retrieval metrics.
• Cost and latency depend on provider, model, cache state, hardware, concurrency, and region.
• Tune on development data. Publish results only from a sealed holdout.
• Quantum strategies are experiments. The AWS sample does not show a Recall@5 gain over the dense baseline.

The method guide defines the evidence that belongs with a public result.

Project references

• Getting started
• Evaluation method
• Retriever Lab
• Strategy catalog
• Command reference, generated from the code
• HTTP reference, every route and what it asks of a caller
• Environment reference, every setting
• Release rollback, how each published surface comes back
• Dataset adapters
• Changelog
• Security policy
• Contributing

Checking a result

A benchmark number is only worth as much as what sits beside it. These three commands are how KB Arena says what a number is, and what it is not.

# Repeat a benchmark, so a difference can be told from noise
kb-arena benchmark --corpus my-docs --runs 3 --seed 7

# Read the spread across those repeats
kb-arena variance --corpus my-docs

# Write the record that travels with a run
kb-arena evidence --corpus my-docs --run-id <id>

variance groups runs by experiment and by build. Two runs from different commits measured different code, so it lists their values and reports no mean. Two runs is a range a reader can misread as a bound, so it says when a row rests on fewer than three.

evidence writes the command, the package version, the commit, the platform and the seed beside the result. It also writes whether the run may be cited:

"citable": false,
"why_not_citable": "publishable is true only when every scored question is human-reviewed."

kb-arena evidence --check <path> reads a bundle back. It refuses one that calls itself citable while its own review says otherwise, and one that is not citable and does not say why.

The committed example lives at results/run_422209dd. It needs no API key to repeat.

Public datasets

kb-arena datasets                                  # what is available, and its terms
kb-arena datasets --name crag --destination ~/data/crag

An adapter records who made the data, which revision, under what licence, and what KB Arena did to it before scoring. A moving revision such as latest is refused, because a run against one cannot be repeated.

A dataset whose licence forbids redistribution is never bundled. CRAG is CC BY-NC 4.0, so its adapter ships nothing, fetches nothing for you, and refuses to write inside the checkout. See dataset adapters.

The sealed holdout

kb-arena optimize refuses --split holdout without --confirm-holdout. Every run that reads holdout questions appends to results/holdout_uses.jsonl, judged by the questions it read rather than by the split it named. kb-arena holdout-uses prints that ledger.

Development

git clone https://github.com/xmpuspus/kb-arena
cd kb-arena
pip install -e '.[dev]'
ruff check .
ruff format --check .
pytest tests/ -q --ignore=tests/live

The frontend uses Next.js 16 and needs Node.js 20.9 or later:

cd web
npm ci
npm run lint
npm run build

Citation

The canonical citation metadata is in CITATION.cff. GitHub can export it through the repository's Cite this repository action. The archived software record is available through the DOI badge above.

License

MIT
