hybrid-rag-app

https://us-constitution.streamlit.app/

This project is a small Streamlit app that lets you ask questions about a local text document using LangChain, Pinecone, Google Gemini embeddings, an Ollama Cloud-hosted chat model, and a Groq-hosted evidence judge.

The app currently loads constitution.txt, splits it into chunks, creates embeddings with Google's gemini-embedding-001, stores them in a Pinecone vector index, drafts answers with gpt-oss:120b through the Ollama Cloud API, and uses Groq llama-3.1-8b-instant to judge whether the cited evidence supports the answer.

Streamlit is a Python framework for quickly building interactive web apps for data and AI projects. Learn more at https://streamlit.io/.

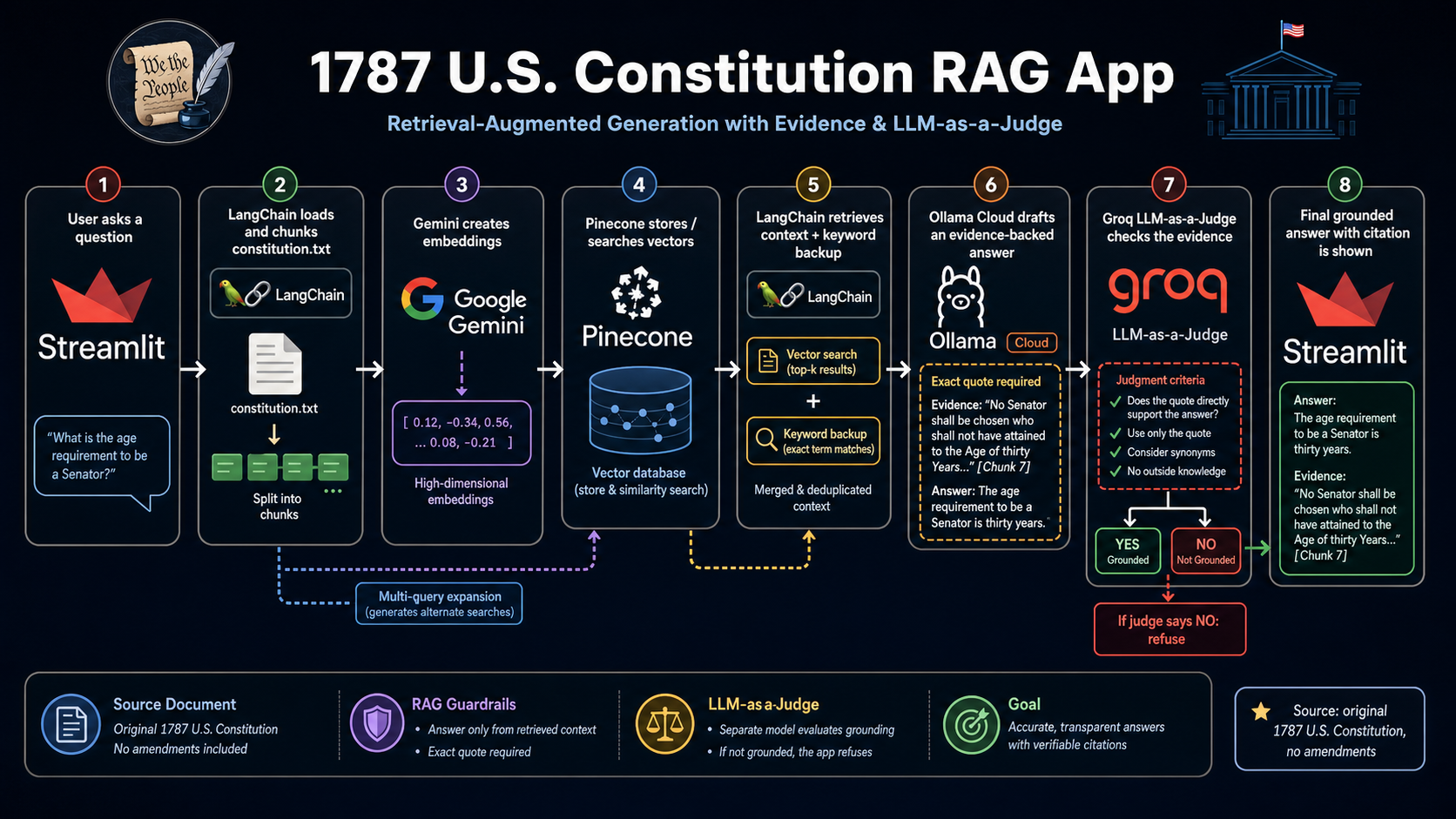

Below is a diagram to help visualize the architecture:

Stack Overview

This is a hybrid RAG app.

RAG means Retrieval-Augmented Generation: the app retrieves relevant chunks from constitution.txt, passes those chunks into the prompt, and asks the chat model to answer only from that context.

It is hybrid because retrieval uses two approaches:

• Vector retrieval: Google gemini-embedding-001 converts document chunks and questions into vectors. Pinecone searches for semantically similar chunks.
• Keyword backup: The app also scans chunks for exact words from the question. This helps with questions where exact terms matter, such as Senator.

The app also uses a multi-query retrieval step, which asks the chat model to generate alternate versions of the user's question before vector search. That can improve recall when the user's wording does not closely match the document.

After the Ollama chat model drafts an answer, the app sends the question, answer, and exact evidence quote to a separate Groq judge model. The judge decides whether the quote directly supports the answer. If the judge says no, the app replaces the answer with I do not know based on the provided document.

Layer	Tool / Model	Open Source?	Where It Runs
UI	Streamlit	Open source	Locally during development, or on Streamlit Community Cloud if deployed
Orchestration	LangChain	Open source	In the Streamlit Python process
Vector database	Pinecone	No, hosted vector database	Pinecone cloud
Embeddings	Google gemini-embedding-001	No, proprietary Google model	Google Gemini API / Google AI Studio cloud
Chat model	OpenAI gpt-oss:120b via Ollama Cloud	Open-weight model under Apache 2.0; served here by Ollama	Ollama Cloud
Evidence judge	Meta llama-3.1-8b-instant via Groq	Open-weight model; served here by Groq	Groq Cloud

Notes:

• gpt-oss:120b is an open-weight OpenAI model available under the Apache 2.0 license, but in this app it is not running locally. The app calls Ollama's hosted Cloud API.
• llama-3.1-8b-instant is used only as a judge. It does not draft the final answer; it checks whether the answer's quote directly supports the answer.
• gemini-embedding-001 is not open source. It is a proprietary Google embedding model accessed through a Gemini API key.
• Pinecone stores the vectors in the constitution-rag index under the constitution namespace. The source document remains constitution.txt.
• The app uses Pinecone's official Python SDK directly instead of langchain-pinecone. The local virtual environment is currently Python 3.14, while langchain-pinecone==0.2.13 requires Python <3.14, so the direct SDK keeps this crash-course app installable in the current environment.

Tools

Tool	URL
Ollama	https://ollama.com/
Groq	https://groq.com/
Google AI Studio / Gemini API	https://ai.google.dev/
LangChain	https://www.langchain.com/
Pinecone	https://www.pinecone.io/
Streamlit	https://streamlit.io/

Requirements

Before running the app, make sure you have:

• Python 3.14 recommended; this project is currently tested with the local .venv on Python 3.14
• An Ollama API key
• A Groq API key
• A Google AI Studio / Gemini API key
• A Pinecone API key

At the time of writing, Ollama, Groq, Google, and Pinecone have free tiers.

You do not need a local Ollama server for the current version of this app. The chat model runs through the Ollama Cloud API, the evidence judge runs through Groq, embeddings run through the Gemini API, and vector storage/search runs through Pinecone.

1. Create API Keys

Create an Ollama API key from your Ollama account:

https://ollama.com/

Create a Gemini API key from Google AI Studio:

https://ai.google.dev/

Create a Groq API key from GroqCloud:

https://console.groq.com/keys

Create a Pinecone API key from your Pinecone account:

https://www.pinecone.io/

2. Clone or Open the Project

If you already have this project locally, open a terminal in the project directory:

cd /path/to/ollama-crash-course

3. Create a Virtual Environment

Create a Python virtual environment:

python3 -m venv .venv

Activate it:

source .venv/bin/activate

On Windows PowerShell, use:

.venv\Scripts\Activate.ps1

4. Install Python Dependencies

Install the required packages:

pip install -r requirements.txt

5. Add Local Secrets

Create a local Streamlit secrets file:

mkdir -p .streamlit

Then add your API keys to .streamlit/secrets.toml:

OLLAMA_API_KEY = "your_ollama_api_key"
GROQ_API_KEY = "your_groq_api_key"
GEMINI_API_KEY = "your_gemini_api_key"
PINECONE_API_KEY = "your_pinecone_api_key"

This file is ignored by git so your keys do not get committed.

VS Code Setup

This project includes .vscode/settings.json, so VS Code should automatically use the local virtual environment at .venv/bin/python when you open the folder.

If VS Code still shows squiggly lines under imports after installing dependencies, reload the window:

1. Open the Command Palette again.
2. Search for and select Developer: Reload Window.

If the squiggly lines remain, open the Command Palette, select Python: Select Interpreter, and choose .venv/bin/python.

6. Run the App

Start the Streamlit app:

streamlit run hybrid_rag_app.py

Streamlit will print a local URL, usually:

http://localhost:8501

Open that URL in your browser, type a question, and the app will answer using the contents of constitution.txt.

When the app starts, it embeds the document chunks with Google Gemini, creates the Pinecone index if needed, upserts the chunks into Pinecone, and waits for your question. For each question, Ollama drafts an evidence-backed answer and Groq judges whether the evidence directly supports it.

Example Questions

Try asking:

• What is the purpose of the Constitution?
• What powers does Congress have?
• How can the Constitution be amended?
• What does the document say about the President?

You can also test whether the app avoids answering from the model's general knowledge:

Question	Expected Answer
What does the 22nd Amendment say about presidential term limits?	The app should say it does not know based on the provided document, because this constitution.txt file does not include the 22nd Amendment.

Project Files

• hybrid_rag_app.py - Main Streamlit application
• constitution.txt - Source document used by the app
• requirements.txt - Python dependencies
• CDOC-110hdoc50.pdf - Original PDF source included in the project

Troubleshooting

If you see an error about OLLAMA_API_KEY, make sure .streamlit/secrets.toml contains:

OLLAMA_API_KEY = "your_ollama_api_key"

If you see an error about GROQ_API_KEY, make sure .streamlit/secrets.toml contains:

GROQ_API_KEY = "your_groq_api_key"

If you see an error about GEMINI_API_KEY, make sure .streamlit/secrets.toml contains:

GEMINI_API_KEY = "your_gemini_api_key"

If you see an error about PINECONE_API_KEY, make sure .streamlit/secrets.toml contains:

PINECONE_API_KEY = "your_pinecone_api_key"

If Google reports that an embedding model is unavailable, check that hybrid_rag_app.py is using:

EMBEDDING_MODEL = "models/gemini-embedding-001"

If Python packages are missing, make sure your virtual environment is activated, then run:

pip install -r requirements.txt

If Streamlit is not found, run it through Python:

python -m streamlit run hybrid_rag_app.py

References

• Ollama gpt-oss model page: https://ollama.com/library/gpt-oss
• OpenAI gpt-oss open-weight model overview: https://help.openai.com/en/articles/11870455
• LangChain Groq integration docs: https://docs.langchain.com/oss/python/integrations/chat/groq
• Groq supported models: https://console.groq.com/docs/models
• Google Gemini embeddings docs: https://ai.google.dev/gemini-api/docs/embeddings
• Pinecone Python SDK docs: https://docs.pinecone.io/reference/python-sdk
