Codebase Genius - AI Documentation System

An AI-powered system that automatically generates high-quality documentation for any software repository using multi-agent architecture and Google Gemini AI.

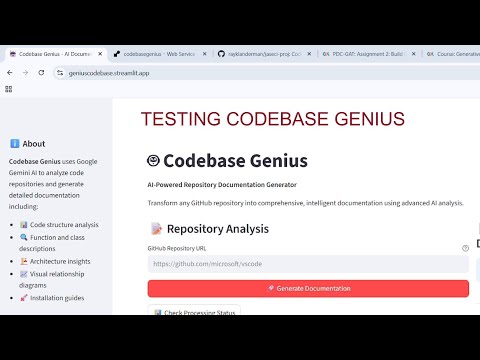

🎥 Video Showcase

Click the image above to watch a comprehensive demonstration of Codebase Genius in action!

📸 Screenshots & Demo

📋 View Screenshots & Interface Demo - See the application interface and generated documentation examples.

� Live Demo

• Frontend (Streamlit): https://geniuscodebase.streamlit.app/
• Backend API (Render): https://codebasegenius.onrender.com/

Current Status ✅

• Deployment: Fully deployed on Streamlit Cloud and Render
• AI Integration: Google Gemini 2.5 Flash API integrated and working
• CORS: Cross-origin requests configured for production
• Testing: Successfully tested with multiple repositories
• API Limits: Handles small to medium repositories (large repos may hit API limits)

✨ Features

• 🤖 AI-Powered Analysis: Uses Google Gemini AI for intelligent code understanding
• 🔄 Multi-Agent System: Supervisor, RepoMapper, CodeAnalyzer, and DocGenie agents
• 📊 Code Structure Analysis: Parses code relationships and dependencies
• 🌐 Graph Visualization: Builds Code Context Graphs with NetworkX
• 📝 Professional Documentation: Generates comprehensive markdown docs
• 🎨 Modern Web UI: Streamlit-based interface with real-time progress
• ☁️ Cloud Deployed: Accessible online without local setup
• 🔒 Secure: Environment variable management for API keys

🚀 Quick Start

Use the Live Application

1. Visit https://geniuscodebase.streamlit.app/
2. Enter any GitHub repository URL
3. Click "Generate Documentation"
4. Download the AI-generated markdown documentation

Local Development

Prerequisites

• Python 3.8+
• Google Gemini API key
• Git

Backend Setup

1. Clone and navigate:

   git clone https://github.com/rayklanderman/jaseci-proj.git
   cd jaseci-proj/codebase_genius/backend

2. Install dependencies:

   pip install -r requirements.txt
   pip install jaseci

3. Configure environment:

   cp .env.example .env
   # Edit .env with your GEMINI_API_KEY

4. Start the Jac server:

   jac serve main.jac

Frontend Setup

1. Navigate to frontend:

   cd ../frontend

2. Install dependencies:

   pip install -r requirements.txt

3. Run the app:

   streamlit run app.py

🏗️ Architecture

The system uses a sophisticated multi-agent architecture:

1. Supervisor Agent: Orchestrates the entire documentation workflow
2. RepoMapper Agent: Clones repositories and generates file structure analysis
3. CodeAnalyzer Agent: Parses code using Tree-sitter and builds relationship graphs
4. DocGenie Agent: Synthesizes all data into professional markdown documentation

Data Flow

GitHub Repo → Jac Agents → Python Modules → Gemini AI → Markdown Docs

📡 API Endpoints

• POST /walker/generate_docs - Generate documentation for a repository

  {
    "repo_url": "https://github.com/microsoft/vscode",
    "session_id": ""
  }

• POST /walker/get_status - Check processing status
• POST /walker/download_docs - Download generated documentation

🛠️ Technologies Used

• Jac Language: Agent orchestration and graph-based logic
• Google Gemini 2.5 Flash: AI analysis and documentation generation
• Tree-sitter: Advanced code parsing and syntax analysis
• NetworkX: Graph construction and code relationship visualization
• GitPython: Repository cloning and version control operations
• Streamlit: Modern web interface framework
• FastAPI/Uvicorn: High-performance API server
• Requests: HTTP client for API communications

📁 Project Structure

codebase_genius/
├── backend/
│   ├── main.jac              # Main Jac server with CORS-enabled walkers
│   ├── python/
│   │   ├── orchestrator.py   # Coordinates AI analysis pipeline
│   │   ├── repo_parser.py    # Repository processing with Gemini integration
│   │   └── gemini_connector.py # Google AI API wrapper
│   ├── outputs/              # Generated documentation storage
│   ├── render.yaml           # Render deployment configuration
│   ├── start.sh              # Linux-compatible startup script
│   ├── requirements.txt
│   └── .env                  # Environment variables (API keys)
└── frontend/
    ├── app.py                # Streamlit UI with production API support
    └── requirements.txt

🚀 Deployment

Streamlit Cloud (Frontend)

• Automatically deployed from GitHub
• Environment variable: BACKEND_URL=https://codebasegenius.onrender.com

Render (Backend)

• Auto-deploys on git push
• Includes CORS configuration for cross-origin requests
• Environment variables managed securely

🐛 Troubleshooting

Common Issues

502 Bad Gateway Error

• Check that BACKEND_URL is set correctly in Streamlit Cloud
• Verify Render service is running

API Rate Limits

• Google Gemini has free tier limits (15 RPM, 1M tokens/month)
• Try smaller repositories or upgrade to paid plan

Large Repository Timeouts

• Complex repos may exceed Render's 30-second timeout
• Consider processing in chunks or using paid Render plan

CORS Errors

• Ensure all Jac walkers have CORS configuration
• Check browser developer tools for specific errors

Testing Commands

Test local backend:

Invoke-WebRequest -Uri "http://localhost:8000/walker/generate_docs" -Method POST -ContentType "application/json" -Body '{"repo_url": "https://github.com/octocat/Hello-World"}'

📊 Performance Notes

• Small repos (< 50 files): Fast processing, reliable
• Medium repos (50-200 files): May take 30-60 seconds
• Large repos (> 200 files): May hit API limits or timeouts
• Free tier limits: Monitor Google AI Studio usage dashboard

🤝 Contributing

1. Fork the repository
2. Create a feature branch
3. Make your changes
4. Test locally and on deployed version
5. Submit a pull request

� Security

API Key Management

• Google Gemini API Key: Stored securely as environment variables, never committed to code
• Environment Variables: All sensitive credentials managed through platform-specific secure storage
• Access Control: API keys are validated server-side before processing requests

Input Validation & Sanitization

• Repository URLs: Validated to ensure they are valid GitHub HTTPS URLs
• Rate Limiting: Built-in protections against abuse and excessive API usage
• Content Filtering: Only processes public GitHub repositories

CORS Configuration

• Cross-Origin Requests: Properly configured for Streamlit Cloud domain
• Origin Validation: Restricted to allowed domains in production
• Secure Headers: Appropriate CORS headers implemented in Jac walkers

Data Handling

• Temporary Processing: Repositories cloned to temporary directories, cleaned up after processing
• No Data Persistence: Generated documentation is transient and not stored long-term
• Privacy: Repository content is processed in-memory and not retained

Best Practices

• HTTPS Only: All communications use secure HTTPS protocols
• Error Handling: Sensitive information never exposed in error messages
• Logging: Minimal logging to prevent data leakage
• Updates: Regular dependency updates for security patches

Security Considerations for Users

• Public Repositories Only: Only processes publicly accessible GitHub repositories
• API Limits: Respects Google Gemini API rate limits and quotas
• No Authentication: Currently designed for public use without user accounts
• Data Privacy: Repository analysis is performed server-side and results are returned to user

Reporting Security Issues

If you discover a security vulnerability, please report it responsibly by creating an issue in the GitHub repository.
