Pingularity

A single-binary internet connectivity monitor with a built-in web dashboard, native speedtests, and a Prometheus /metrics endpoint. It continuously checks your connection by pinging several always-on internet landmarks at once and going by majority vote (a quorum across multiple anchors), with anti-flapping (debounce) so a single blip isn't mistaken for a real outage. It records latency, uptime, and speed to SQLite and shows it all in a live UI - no runtime to install.

This is the dashboard on a real install. The live demo is the same thing on synthetic data, with a badge to say so:

Quick start

go build -o pingularity .   # requires Go 1.27.0+ (go.mod); pure Go, no cgo
./pingularity               # UI on http://localhost:9000

No flags needed - but a fresh install measures nothing until you open the dashboard and answer Quick Setup (headless: start with -quick-setup=skip); left unanswered it starts on its own 48h after first launch. Once started it probes every 5s. The UI binds :9000 by default, but every install starts private: a built-in filter answers only the machine it runs on, and other devices get 403 until you flip Network access on in the settings drawer's Access tab (flip it on and hit Save; the tab shows the address to use), or start with -access network. This is true in a container too - a published port returns 403 until you set -access network (or -e PINGULARITY_ACCESS=network), so a container is never accidentally exposed. -listen 127.0.0.1:9000 hard-pins it to local-only at the socket level regardless.

Connectivity is probed over both IPv4 and IPv6 (each as an independent quorum of three anycast anchors). IPv6 is auto-detected - skipped on IPv4-only hosts - and the families are tracked separately, so an IPv6-only outage is visible without falsely reporting the whole link down. Overall status is "online" when either family has connectivity. Be precise about where that shows up: a single-family outage appears in the live status bubbles, the raw latency samples, and the monitor.v4_only_down_s / monitor.v6_only_down_s counters - but outage events, the downtime heatmap, and the uptime ratios are driven by the overall state, so a loss of just one family is not recorded as downtime there. That is the intended reading of "either family": the link still carried traffic.

Install

Prebuilt binaries and packages for Linux, macOS, and Windows (amd64 + arm64) are published on every tagged release. Pick the channel that fits your OS - each one lands the same single static binary. The .deb/.rpm packages also register and start the background service for you; Homebrew and winget install the binary and leave pingularity install to you (each section below says which).

Linux

Fastest path is a native package (sets up and starts the systemd service, drops an EnvironmentFile for flags, and runs the daemon as a dedicated unprivileged pingularity user granted just an ambient CAP_NET_RAW - enough for the raw-socket traceroute behind the Exit panel - inside a systemd sandbox, so it is never root):

# Debian / Ubuntu (.deb)
sudo apt install ./pingularity_*.deb

# Fedora / RHEL (.rpm)
sudo dnf install ./pingularity_*.rpm

# openSUSE (.rpm) - same package, openSUSE's own package manager
sudo zypper install ./pingularity_*.rpm

Both start pingularity.service immediately (systemctl status pingularity), put the database in /var/lib/pingularity, and read flags from /etc/default/pingularity (EnvironmentFile) - edit that and systemctl restart pingularity to change them. Two kinds of flag won't work there, because that unit is sandboxed: /var/lib/pingularity is its only writable path, so a -db pointing anywhere else fails on a read-only filesystem, and CAP_NET_RAW is its only capability, so a -listen port below 1024 can't be bound. Keep the database on the state directory and the dashboard on a high port, or put a reverse proxy in front.

Prefer no package manager? Grab the .tar.gz for your arch from the Releases page, extract it, and use the binary's own installer:

tar xzf pingularity_*_linux_amd64.tar.gz
sudo cp pingularity /usr/local/bin/
sudo pingularity install    # registers, configures, and starts the systemd service

Or run it as a container (see Docker for why the flags matter):

docker run -d --name pingularity --restart unless-stopped \
  --network=host --cap-add=NET_RAW \
  -v pingularity-data:/var/lib/pingularity \
  ghcr.io/pingular/pingularity

macOS

Requires macOS 13 Ventura or newer (the Go 1.27 toolchain's floor).

brew install pingular/tap/pingularity
sudo pingularity install    # registers the launchd service and starts it

brew upgrade later pulls new versions; sudo pingularity uninstall removes the service (data untouched).

Windows

irm https://install.pingularity.dev/winget.ps1 | iex

One paste from any PowerShell. The script elevates itself (one UAC click), updates a too-old winget first (fresh Windows images ship one that fails zip installs silently), points winget at the maintainer-hosted package source (winget.pingularity.dev - so installs and upgrades never wait on app-store moderation), installs under Program Files, and registers + starts the Windows service. Re-running the same paste later updates: it stops the service, upgrades, and starts it again. Prefer to run the steps yourself? This is what it does, from an elevated PowerShell:

winget source add -n pingularity -a https://winget.pingularity.dev -t Microsoft.Rest --accept-source-agreements
winget install pingular.pingularity -s pingularity --scope machine
& "$env:ProgramFiles\WinGet\Links\pingularity.exe" install    # registers the Windows service and starts it

The source add is one-time (re-running it just reports the source already exists). --scope machine matters - it installs under Program Files, where the Windows service expects its binary; keep it on upgrades too. The last line spells out the exe's path because winget adds pingularity to the PATH of new shells only - from your next terminal onward, plain pingularity works. If the install fails silently right after "Successfully verified installer hash", your winget is outdated: update App Installer in the Microsoft Store and re-run.

Custom certificate stores (macOS, Windows): if SSL_CERT_FILE or SSL_CERT_DIR is set in the daemon's environment, its outbound TLS (webhooks, speedtests, the update check) now trusts the roots in those files instead of the operating system's keychain - a Go 1.27 behavior change. A stale or truncated file there breaks every TLS connection with certificate errors; unset the variable, or start with GODEBUG=x509sslcertoverrideplatform=0 to restore the old behavior.

Downloaded a raw binary in a browser? macOS Gatekeeper or Windows SmartScreen may block it as "unidentified". Clear the quarantine flag once and it runs:
xattr -d com.apple.quarantine ./pingularity      # macOS
Unblock-File .\pingularity.exe                    # Windows
Installs via brew, winget, apt/dnf, and docker don't trip this at all - the prompt only appears for a file you fetched directly with a browser.

Docker

docker run -d --name pingularity --restart unless-stopped \
  --network=host --cap-add=NET_RAW \
  -v pingularity-data:/var/lib/pingularity \
  ghcr.io/pingular/pingularity

The image is multi-arch (amd64 + arm64). --restart unless-stopped is there because a connectivity monitor that stays down after a reboot is silently useless - Docker brings it back with the daemon unless you stopped it yourself. Two more flags matter:

--network=host (load-bearing) - Pingularity measures your host's internet path. Behind Docker's default bridge network you'd instead measure the container's NAT'd view (extra hop, wrong latency, and a traceroute that dead-ends at the Docker gateway). Host networking also means the UI is reachable on the host's :9000 directly - no -p needed. Docker Desktop (macOS, Windows) can't reproduce this the same way. Desktop runs the container inside its own Linux VM, so --network=host attaches to that VM's network namespace, not your Mac's or PC's interfaces. Docker Desktop 4.34+ does add opt-in host networking (enable it under Settings -> Resources -> Network), but it only bridges TCP and UDP flows between the host and the VM - it still does not expose the host's own interfaces or anything below L4, so the raw-ICMP traceroute behind the Exit panel and true native-host parity remain unavailable. Even with it turned on, the readings describe the VM's path rather than your machine's. Speedtest numbers are capped the same way: the VM's traffic leaves through a user-space network proxy that terminates every connection and re-opens it from the host, so on a fast link the measured throughput can sit well below what the machine gets natively. A small VM compounds it - the Ookla engine sizes its parallel streams from the CPUs it can see, and VM defaults are often just 2. Giving the VM more cores and memory (Docker Desktop: Settings -> Resources; colima: colima start --cpu 6 --memory 8) wins back the streams and some headroom, but the proxy ceiling stays. All of this applies to every VM-backed runtime, not only Docker Desktop: colima, OrbStack, Rancher Desktop, and Podman machine share the design. Run Pingularity natively on macOS or Windows if you want the measurements to match the host. (The dashboard's container notice is raised for a bridged container, which is the case it can detect; it does not detect Docker Desktop's host-networking mode specifically.)
--cap-add=NET_RAW (keep it - without it the container won't start) - the Exit panel walks a raw-socket ICMP traceroute to find where traffic leaves your ISP. The images grant that privilege through a file capability stamped on the binary (cap_net_raw+ep), and the effective (+e) bit makes it mandatory: when NET_RAW is missing from the container's capability set, the kernel refuses to execute the binary at all, so the container exits immediately with "operation not permitted" - it does not come up with a degraded trace. Stock Docker still grants NET_RAW by default, so plain docker run works without the flag today - but Podman 4+ dropped it from its default set, and --cap-drop=ALL / a Kubernetes capabilities: {drop: [ALL]} remove it too, so all of those need it added back (--cap-add=NET_RAW; Kubernetes add: [NET_RAW]) for the container to start. Spelling it out keeps the command correct everywhere. Two related setups behave differently, and the difference is that file capability:
- --security-opt no-new-privileges (Kubernetes allowPrivilegeEscalation: false) does not stop the start: it blocks a file capability from raising privileges at exec even when NET_RAW is granted, so the daemon runs without the capability and only the trace degrades - the Exit row shows as unavailable, everything else works. The unprivileged ICMP fallback that can save the trace natively is normally closed in a container (a fresh network namespace's ping_group_range admits no group), but you can open it and win the trace back without the capability: --sysctl net.ipv4.ping_group_range="65532 65532" on a bridged container (the same sysctl via securityContext.sysctls on Kubernetes). Under --network=host the namespace is the host's, so Docker refuses --sysctl there - widen the host's own ping_group_range instead.
- A native binary without the privilege degrades gracefully, because the release binaries carry no file capability - the deb/rpm unit grants an ambient CAP_NET_RAW instead, and a tarball binary run unprivileged just loses the trace. Only the container images make the capability a start condition.

Reaching the dashboard from other devices. Every install starts loopback-only, containers included - it is never guessed open from the network setup. With --network=host the dashboard answers on the host's localhost:9000, but other devices on your LAN get 403 until you opt in with -access network (or -e PINGULARITY_ACCESS=network) - set a login at the same time. A bridged container that publishes a port with -p needs the same flag, or the published port returns 403. An explicitly passed -access / PINGULARITY_ACCESS is authoritative at every start: it updates a disagreeing saved setting (in either direction) and logs the change, so -e PINGULARITY_ACCESS=network also recovers an install whose saved local-only would otherwise lock its published port out. The flip side: while the flag or env stays pinned in your unit/compose file, changing Network access in the UI is overridden again at the next restart - drop the flag to let the UI choice stick.

Upgrading a container from 0.61 or earlier? Up to 0.61 a container answered the network by default; every install now starts private - upgrades included. An existing container install is not kept network-reachable across the upgrade: it starts local-only like everything else, so its published port answers 403 until you opt in, and that 403 body names the setting that refused you and both ways out (the Access tab from the machine itself, or -access network / -e PINGULARITY_ACCESS=network at start). The one-step fix is the env var: add -e PINGULARITY_ACCESS=network and recreate the container - an explicitly passed access mode is authoritative at every start, so it opens the port immediately, at that start and every later one. It does not write the choice into the database, though: keep the env var in your docker run / compose file, or - to make it stick without one - open the Access tab while the port is open, leave Network access on, enter your current password and hit Save, which does store it (a saved value persists even when it matches what the env var supplies), then drop the env var. Set a password at the same time. Your volume, database and history are untouched either way.

The current password is the point of that step, not a formality: storing "network" is what makes the open port outlive the variable, so it is a real access change and is priced like one. Save it without the password and the setting still applies - nothing breaks, and every other setting on the page saves normally - but the choice is not written down, so dropping the env var returns the install to local-only. If a login is not configured yet, there is no password to enter and Save stores it as before.

Why you have to say it, rather than the daemon working it out: what it can see is an established database that never stored an access choice, and more than one kind of install looks exactly like that. A container upgraded from 0.61 or earlier is one - its dashboard did answer the network. But so is any database that simply lacks the birth marker stamped on new installs, including one whose marker could not be written when it was created. The first wants opening; the rest were private all along, and guessing "open" for them would put an unauthenticated dashboard on the LAN. So the ambiguity fails closed. (A container carrying the marker is not ambiguous and is never warned about.) The daemon does say so when it sees the ambiguous shape: one warning in the log, container install with no recorded access choice: access stays LOCAL-ONLY, so a published port answers 403 until you opt in, with the same fix attached. It only explains - it never changes access on its own.

The -v pingularity-data:/var/lib/pingularity volume is what makes updates safe: the SQLite database and pingularity.key (which encrypts saved iperf3 passwords) live there. Skip the volume and a docker pull + recreate throws away your history and key. Pass flags as arguments after the image name, e.g. ghcr.io/pingular/pingularity -speedtest-interval 30m - in compose, that means under command:, e.g. command: ["-allow-host=your.domain"]. Pingularity does not interpret PINGULARITY_OPTS as flags: that variable is expanded by the native Linux systemd units from /etc/default/pingularity, and the container images ignore it.

A named volume is the happy path: on first use Docker copies the image's data directory into it - owner 65532:65532, mode 0700, plus a marker file the daemon uses to recognize its own directory - so an unprivileged container just works. (Some Docker engines loosen a fresh volume's root during that copy; at boot the daemon re-tightens exactly that directory - its own path, its own owner, the image's marker - back to 0700 and logs that it did.) A bind mount is whatever host directory you point at it, and the image's user won't own it: chown 65532:65532 it first (and chmod 700), or run with --user <uid>:<gid> matching the directory's owner. Either way the data lands on the mount - the image's entrypoint pins -db /var/lib/pingularity/pingularity.db, so a --user override changes who writes, never where. On Kubernetes, mount the PVC at /var/lib/pingularity and set securityContext: fsGroup: 65532 so the kubelet makes the volume writable for the pod (add fsGroupChangePolicy: OnRootMismatch to skip the re-chown on every mount). The daemon notices the resulting group-writable volume root at each boot and says exactly that: the shape is how an fsGroup pod writes at all, so it explains it and leaves it alone, and the database file itself stays owner-only. To make the directory owner-only and end the notice, chown the volume root to uid 65532 once and drop fsGroup.

Two image variants ship to the same repo. The default ghcr.io/pingular/pingularity is a lean distroless image and deliberately ships no iperf3 - its base has no package manager, so the opt-in iperf3 speedtest engine can't run there and speedtests fall back to Ookla. If you use the iperf3 engine, pull the -iperf variant instead (ghcr.io/pingular/pingularity:latest-iperf), a debian-slim image that bundles a working iperf3 and is otherwise identical - same non-root uid 65532, same CAP_NET_RAW binary, same volume layout, so every flag above carries over. If you run it bridged rather than with --network=host, read iperf3 in a container first: several iperf3 settings name things only the host has, and the compose file there maps host.docker.internal so a host-side iperf3 -s stays reachable.

What docker logs shows. Logging is off by default, but the daemon always prints one startup line to stdout - version, listen address, access mode, and dashboard URL, e.g. pingularity 0.70.0: listening on :9000, access local-only, dashboard at http://localhost:9000 - so a healthy container is distinguishable from a hung one. A genuinely fresh install prints a second line beside it - first run: monitoring is on hold - nothing is being measured yet - naming the dashboard URL and -quick-setup=skip, because that is the state where docker ps reads (healthy) and nothing is being recorded. Warnings and errors (the ambiguous-access warning above, security warnings) still surface at the default level; routine detail needs the log level raised in the About tab.

Health check. Both images bake in a HEALTHCHECK ["/pingularity", "healthz"] (every 30s, 5s timeout, 10s start period): the healthz subcommand fetches http://127.0.0.1:9000/healthz from inside the container and exits 0 on a 200, so docker ps reports (healthy)/(unhealthy) with no curl or shell in the image. If you change -listen's port, or bind it to an address that excludes 127.0.0.1, the baked-in probe misses the daemon and the container reads unhealthy while it is fine: in compose, override it with the exec form - healthcheck: { test: ["CMD", "/pingularity", "healthz", "-addr", "127.0.0.1:8080"] } - and with plain docker run, pass --no-healthcheck on the default image (--health-cmd needs a shell, which distroless does not have; the -iperf image has one). A bind that keeps port 9000 and still answers on loopback - :9000, 0.0.0.0:9000, 127.0.0.1:9000 - needs no override at all.

Read-only root filesystem. The default image runs under docker run --read-only: everything the daemon writes - the database and its -wal/-shm sidecars, pingularity.key, and the logs.txt log snapshot - lives beside the pinned -db path, on the volume. The -iperf variant wants one addition, --tmpfs /tmp, if you use iperf3 RSA auth: the server's public key is staged as a temp file for the iperf3 child, and with nowhere to write it those runs fail with a clear iperf3 auth: temp key error (nothing else is affected).

Forgot the password? pingularity reset-auth needs the database, and in a container that means the volume - run it from a one-off container sharing the volume (the image's entrypoint pins the run subcommand, so override it). It opens the database as it is: a path that is missing, empty or not a database is refused, and it never creates a database or sets one aside.

docker run --rm --entrypoint /pingularity \
  -v pingularity-data:/var/lib/pingularity \
  ghcr.io/pingular/pingularity:<tag> \
  reset-auth -db /var/lib/pingularity/pingularity.db
docker restart pingularity   # the running daemon caches settings in memory

Use the tag your container runs (docker inspect pingularity --format '{{.Config.Image}}'), so the one-off binary matches the database it opens.

Locked out of a published port? A restore that forces access to local-only (see the restore notes) leaves a bridged container's published port answering 403 - including to the browser that ran the restore. Recreate or restart the container with -e PINGULARITY_ACCESS=network: an explicit access choice at start overrides the stored setting. Then set things right in the Access tab.

Updating

apt / dnf - download the newer .deb/.rpm and reinstall it the same way (sudo apt install ./pingularity_*.deb / sudo dnf install ./pingularity_*.rpm); your data and env file are preserved, and the running service is restarted onto the new binary automatically.
Homebrew - brew upgrade pingularity, then sudo pingularity restart.
winget - re-run the one-shot (irm https://install.pingularity.dev/winget.ps1 | iex), or by hand from an elevated PowerShell, in this order: pingularity stop, then winget upgrade pingular.pingularity -s pingularity --scope machine, then pingularity start. Stop first - winget cannot replace a running service's binary - and keep --scope machine, or winget reinstalls into your user profile and the service loses its program.
Docker - docker pull ghcr.io/pingular/pingularity, then docker rm -f pingularity and re-run it (the named volume carries your data across). Coming from 0.61 or earlier and reaching the dashboard from other devices? Add -e PINGULARITY_ACCESS=network to that re-run: every install starts private and the upgrade is not grandfathered, so without it the published port answers 403 (see Docker).
tarball - Linux won't let you overwrite a running program file ("text file busy"), so either stop the service first, or copy alongside and rename over it (rename always works):
```
sudo cp pingularity /usr/local/bin/pingularity.new
sudo mv -f /usr/local/bin/pingularity.new /usr/local/bin/pingularity
sudo pingularity restart
```

The in-app update badge notifies you when a newer release exists - it's a poll of a maintainer-controlled feed (latest.json), notify-only, and never touches your install. See RELEASING.md for how that feed is published.

Rolling back to an older release? Stepping the binary back (and forward again) is fine on its own - a downgrade does not rewrite your history. The one boundary that matters is 0.70. That release added a marker on the bookkeeping rows a failed or partly-retried speedtest leaves behind so their bytes still count toward Speedtest data used without being shown as runs; builds older than 0.70 don't know the column is there. Point one at a database a 0.70-or-newer build has written and it reads those rows as real runs: a 0 Mbps / 0 ms speedtest at the top of the dashboard, folded into the run averages, and published on /metrics as pingularity_speed_download_mbps 0 - enough to fire a "download below X" alert. Reading is safe: nothing is damaged, the marker is left untouched, and coming back up on 0.70+ hides those rows again. Deleting is not: the older build removes only the row you clicked. Delete the bogus 0 Mbps row and you have deleted an accounting row 0.70+ keeps on purpose, so its bytes leave Speedtest data used for good. Delete the real run it was billing for and that row is stranded instead - hidden again on 0.70+, still counting, with no run left to delete it by until retention prunes it. Do your deleting before you step down, or after you come back up. What does not heal is a backup taken by the older build: its export has no marker to carry, so restoring that file onto an install that does not already hold those rows - a fresh box, a rebuilt volume - brings them back as permanent 0 Mbps runs. Take the backup with the newer build, before you step down - though that file is your way back up, not a rescue while you are down: any run carrying the new columns stamps the export for the release that introduced them - 0.70 for the failed-run marker, higher again for the city-race verdict every Ookla run has recorded since - and an older build refuses a newer stamp outright rather than restoring half of it. One rung is yours to trigger: with Discard losers off a round's other servers are kept as rows of their own, which stamps the export a rung higher again, so take the backup before you turn it off (or turn it back on first) if the file has to restore onto an older release.

Run in the background (systemd / launchd / Windows service)

The .deb/.rpm packages already do this for you; the steps below are for the tarball, a go build, or a fresh binary you dropped in yourself.

sudo cp pingularity /usr/local/bin/
sudo pingularity install    # no flags - DB goes to /var/lib/pingularity, UI on :9000 (loopback-only until you turn Network access on); starts the service
pingularity status          # running | stopped | not installed (macOS: with sudo, see below)

The database path and its directory are chosen and created automatically. On Windows that is always %ProgramData%\pingularity\ - service or not - so the installed service and an admin prompt (reset-auth) find the same database. On Linux and macOS what decides is root, not the service: as root (which is how install's service runs) it is /var/lib/pingularity/ on Linux and /Library/Application Support/pingularity/ on macOS; as a regular user it is a per-user data dir - ~/.config/pingularity/ on Linux ($XDG_CONFIG_HOME honoured), ~/Library/Application Support/pingularity/ on macOS - with a temp-dir path as the last resort when there is no home directory at all. Any flags you do pass to install are persisted into the service definition. On systemd you can change them later without re-installing: the unit that install writes also reads /etc/default/pingularity, if you create one, so PINGULARITY_OPTS="-speedtest -listen 127.0.0.1:9000" plus sudo systemctl restart pingularity is enough. macOS and Windows have no equivalent, and re-running install is not one: over a service that already exists it fails with an "already exists" error and leaves the flags it was installed with exactly as they were - on macOS, on Windows, and on a systemd unit this CLI installed alike. Wherever /etc/default isn't an option, then, changing a flag means uninstall first, then install with the new set. Whatever you pass reaches the daemon exactly as typed: on systemd the unit escapes a %, a $ or a backslash in a value, which systemd would otherwise expand or choke on. Manage with pingularity start | stop | restart | status | uninstall. On macOS status needs sudo like the rest: launchd shows a system daemon only to root, so run unelevated it reports the state as unknown and points at pingularity healthz, which asks the daemon itself. On Linux and Windows status answers any user. On Linux and macOS a reload signal (sudo systemctl reload pingularity, or kill -HUP <pid>) re-reads settings from the database without restarting - how you pick up an out-of-band change like reset-auth, and the way back from the 503 a daemon serves when it couldn't load its settings at all. Windows has no reload signal; restart the service there.

Alongside the database sit logs.txt (the log viewer's ring, so it survives a restart) and pingularity.key (0600) - the key that encrypts the secret that has to be kept recoverable: each saved iperf3 server's password. iperf3 needs it in the clear at test time (it encrypts it with the server's RSA key itself), so unlike your dashboard login it can't be hashed. Two things follow:

Back up the key with the database if you want those passwords to survive a restore. Delete or lose the key and you re-enter them - the daemon mints a fresh one at the next start. That also signs out every logged-in browser, because session cookies are signed with a second secret derived from this same file; which is the point, since it means a database travelling without its key can't mint a valid session for whoever picks it up. Your password, settings and history are untouched. (A key file that is present but not 32 bytes - a truncated copy, a half-restored backup - is refused rather than used: the daemon still starts and still monitors, but stores iperf3 passwords in the clear and says so on stderr until you move the file aside and let it make a new one.)
The key lives next to the database, so this does not protect you from someone who can read the host. What it does protect is the database travelling on its own - a backup, a snapshot, a stray copy - which now carries ciphertext, not your password.

Backup exports never contain passwords at all (neither the login nor the iperf3 ones). They are still sensitive files. A config export deliberately carries your webhook URL and heartbeat URL so that a restore is complete, and for both of those the URL is the credential - there is no separate token to withhold. Anyone holding an export file can post to your alert channel or tick your dead-man's-switch (masking a real outage), so store and share it like a secret, and rotate both URLs at their provider if one leaks. Two more consequences worth knowing before you need them:

Copying the database files by hand? Stop the service first. While it runs, recent rows live in a sidecar file (pingularity.db-wal) that a copy of just pingularity.db misses - on a young install that can be everything. A clean stop folds the sidecar back into the main file. (The Data tab's Export is the safe way to back up a running instance - it streams a single consistent read-snapshot, so categories can't skew across it. A full-retention export round-trips, however large - import puts no ceiling on the total file, only on a single record (8 MiB) or a single JSON element (256 MiB), which no real backup reaches.)
A database that won't open is set aside, not repaired. A torn file - typically a hard power-off mid-write - would otherwise crash-loop the service forever, so instead the daemon renames it and its -wal/-shm sidecars to pingularity.db.<UTC timestamp>.corrupt, starts again on an empty store, and logs which file it moved - wherever in the file the damage sits, not only in the page the first statement reads, and whether or not enough of it survives to still look like a database. Monitoring carries on: the daemon knows this is no first run (it just moved your database aside), so it does not ask Quick Setup again or hold measuring for the 48h consent grace. The exception is an install torn while it was still on its first run - one that had never answered Quick Setup - and only when the old file can still say so: that comes back held, and offers the dialog again, because it never consented to anything. Nothing is deleted, so the old data is still there to inspect or hand to a recovery tool - but the dashboard comes back blank, every saved setting (login, network access, thresholds, notifications) is back at its default, so the box is local-only with no password until you set it up again, and the quarantined copy keeps taking up its space until you remove it. This is the failure a periodic Export exists for. What the daemon will not do is touch a -db path that is not a file at all: a directory (the easy slip - -db /var/lib/pingularity for the file inside it) or a symlink is refused with an error naming what it found, rather than re-permissioned or renamed - -db is never followed through a link, so point it at the file itself. reset-auth never sets a file aside either - it opens the database as it is, or refuses.
Restoring a backup where login was enabled? The export carries the "login on" preference but never the password, so on a machine that doesn't already have one the restore leaves login off, forces access to local-only so it can't fall open to the LAN, and tells you so - set a new password in the Access tab, then re-enable Network access. (Restoring onto the same machine, where the password still exists, keeps login working untouched and access unchanged.) Restoring onto a machine that already has its own password works the other way round: the backup's login name is ignored and yours is kept, and a backup that turns login off does not disable it. The import says so in both cases - the password never travels, so a foreign name paired with your hash would lock you out of the only page that can fix it. In a container, the local-only forced by that FIRST case - a backup with login on, restored where no password exists - can lock you out of a published port - 403, including for the browser that ran the restore - and the import response says so; the way back in is restarting the container with -e PINGULARITY_ACCESS=network, then setting things right in the Access tab.
Restoring onto a different machine? A backup never carries the source's install date, so the destination keeps its own answer to "monitoring since". That date is the denominator behind every uptime figure, and importing it would have this box reporting uptime over a stretch it did not watch. Restore the history too and the date moves anyway - derived from the earliest row that actually arrived, which is a claim the restored data backs up. A backup does not carry who can reach the dashboard either: whether a machine answers only itself or the whole network is a decision about that machine, so a restore never opens a dashboard to the network, and closes one only in the fail-closed case above - a backup with login on, restored where no password exists. Set it in the Access tab on the destination.
Restoring on an older version? It will refuse the file rather than restore half of it. A backup is stamped with the oldest version that can read it, and that stamp is worked out from what the file actually contains - so a backup whose runs use nothing new still restores on an older build, and one that doesn't is turned away up front, before anything is written.

Architecture

One static binary runs a handful of independent goroutine loops that share a SQLite store and a live settings controller. Nothing else is required - the UI, web font, and favicon are embedded; outbound calls are the probes themselves, optional enrichment (geo/ISP/exit), speedtests (Ookla, or the iperf3 server you point it at), the update check, and the alert webhook and heartbeat if you configure them - the full inventory is the outbound-calls table below.

flowchart TB
  browser["Browser / Prometheus / curl"]

  subgraph bin["pingularity - single binary"]
    web["web<br/>UI · JSON API · /metrics<br/>(loopback filter + auth guard)"]
    monitor["monitor<br/>probe loop + debounce FSM"]
    prober["prober<br/>concurrent quorum dialer"]
    sched["speedtest scheduler<br/>(single-flight)"]
    netinfo["netinfo<br/>IP · ISP · DNS · exit node"]
    notify["notify<br/>webhook + heartbeat"]
    settings["settings<br/>live + persisted"]
    store[("store - SQLite/WAL<br/>samples · events · speed · settings")]
  end

  anchors["anycast anchors<br/>1.1.1.1 · 8.8.8.8 · 9.9.9.9 (v4+v6)"]
  ext["Ookla · ipify · RIPE IPmap<br/>Team Cymru · Cloudflare"]
  watchdog["external watchdog / chat webhook"]

  browser -->|HTTP| web
  web --> store
  web --> settings
  monitor --> prober --> anchors
  monitor --> store
  sched --> store
  sched --> ext
  netinfo --> ext
  monitor -. "settings read live" .-> settings
  sched -. "settings read live" .-> settings
  monitor -->|outage| notify
  sched -->|threshold| notify
  notify --> watchdog

Package	Responsibility
`main`	CLI, OS-service lifecycle (`kardianos/service`), wiring
`config`	flags, defaults, the anchor target list
`prober`	concurrent IPv4/IPv6 quorum dialer
`monitor`	probe loop + debounced up/down state machine
`store`	SQLite persistence + the uptime/aggregate queries
`settings`	runtime-adjustable values, persisted and broadcast live
`speedtest`	Ookla + iperf3 testers, single-flight scheduler
`netinfo`	public IP/ISP/DNS + exit-node discovery (traceroute)
`notify`	webhook alerts + dead-man's-switch heartbeat
`web`	embedded UI, JSON API, `/metrics`, access/auth guard

Speedtests

A run records download, upload, ping, jitter, (best-effort) packet loss, and bufferbloat, plus the bytes used and the connection it ran on (public IP, ISP, DNS resolver). A run also records two facts that used to be invisible: the address family the transfer actually used (IPv4, IPv6, or mixed when one run genuinely used both) - read back from the run's own connections, never guessed - and which direction its loss/jitter probe sampled. Not every field is present on every run: a download-only or upload-only run has no figures for the direction it skipped, packet loss is optional and not always measurable, family and probe direction are recorded only when the run really established them (the engine notes below say when that is), and bufferbloat is absent when a transfer phase was too short to sample, returned too few samples, the latency target was unreachable, or too few idle probes survived the retransmit filter to leave a baseline. That last case drops the figure on purpose: a single retransmit in the idle number is worth about a second, enough on its own to cancel real bloat down to zero, so a polluted baseline would report a clean link instead of an unmeasurable one. Missing is stored as missing rather than as a zero, so charts and thresholds can tell "not measured" from "measured, and it was bad". A run that failed outright isn't a measurement at all: it is kept only as a flagged data-usage row, which every measurement view filters out (see the data-usage bullet under Metrics).

The ping shown is the engine's own number, a mean over ten samples, so it keeps matching what speedtest.net would report. A mean has no defence against an outlier, though: one stalled handshake among nine fast ones reports several times the real latency (and lands in jitter, which is their standard deviation, as a much larger distortion still). So the run also keeps the fastest of those same samples - no extra probes - and everything that decides on latency uses that floor instead: which city wins the race for the centre, which server every automatic run ranks first (and whether last run's server keeps its seat within the max(2 ms, 15 %) band), which server wins a best-of round, which server the very first run picks, and whether your ping threshold breached. A pothole shouldn't pick your server or page you, but a genuinely distant link has a high floor too and still breaches. iperf3 exposes no per-sample values of its own, so a run measures the latency itself: five bare TCP handshakes to the server before the transfer, reported as their median (if none of them land, iperf3's own min_rtt, and failing that the idle baseline). There is no separate fastest figure on those runs, so that median is both what is shown and what decides.

Bufferbloat is the extra lag that appears only while the line is busy - the reason a video call breaks up the moment a big download starts. Pingularity measures it by pinging before the test (idle) and during it (loaded) - both against a fixed target of its own (one.one.one.one, Cloudflare) rather than the speedtest server, so only the gap between them is meaningful, and the idle figure will not match the ping recorded above:

flowchart LR
  idle["idle link<br/>ping 24 ms"] --> load["speedtest saturates<br/>the connection"]
  load --> queued["your packets now wait in the<br/>modem's queue: ping 190 ms"]
  queued --> bloat["bufferbloat = 190 - 24<br/>= +166 ms under load"]

Both figures are medians of their probes - the idle one over only the probes that survive a retransmit filter, since on an unloaded link a sample more than 500 ms above that burst's own minimum is an OS retry rather than latency. A burst whose own fastest probe is already at or above a second holds no honest sample to measure the rest against, and yields no baseline at all. The loaded phases keep theirs, where a near-second sample is the bloat itself. The headline bufferbloat number - the one the tiles show and the one your max bufferbloat threshold is compared against - is median(loaded) - median(idle). The chart also plots a p95 per direction, the sustained bad end of the distribution. p95 is deliberately not the maximum: these are TCP-connect probes, and a single worst sample on one is usually a SYN retransmission (a fixed ~1000 ms OS retry, and ~2000 ms for a second one) rather than queue delay, so a max-based number reports round figures that say more about packet loss than about buffering. The probes go to a fixed dual-stack name, and the address family that wins their connection race is not taken on trust - a path that drops half its handshakes still wins races constantly, and its retries would land in the baseline. So the winner is graded with a short burst first, and only if that burst comes back lossy is the other family resolved and measured, taking the job only if it grades cleaner. A host reachable in just one family keeps it however lossy: lossy data beats none.

There are two engines, picked in the settings drawer:

Ookla (speedtest.net) - the default. Numbers match speedtest.net; no setup. Its own knobs: parallel connections (0 = auto, which is one per logical CPU for downloads and at most 8 for uploads; a value you set instead applies to both directions, up to 16 - worth raising on a fast or high-latency link, or in a small VM that can only see two cores) and the packet-loss probe.
iperf3 - opt-in, run against your own iperf3 -s box (LAN, homelab, or VPS). It measures what Ookla can't: internal/LAN links and honest upload. Used only when the iperf3 binary is installed (otherwise it falls back to Ookla) - present on a native install once you've installed iperf3, and in the container only in the -iperf image variant, not the default image. Its own knobs: parallel streams, duration, warm-up, TCP window, congestion control, MSS, DSCP, the loss/jitter UDP pass, and - per server - IP version, bind source, and optional RSA auth. Congestion control and MSS are Linux (and FreeBSD) knobs: macOS and Windows cannot set either, so the daemon runs with the system default there and says so once in the log. The TCP window is the kernel's to grant, not iperf3's - about 8 MB on stock macOS (kern.ipc.maxsockbuf), a few hundred KB on stock Linux until net.core.rmem_max/wmem_max are raised - and a window past that fails the run with a message naming the setting, the KB it asked for and the sysctl to raise. In a bridged container several of those knobs point at things only the host has - see iperf3 in a container below.

Direction (both / download / upload, plus iperf3's simultaneous --bidir) and retries (default 1, at most 3) are kept per engine: the Ookla and iperf3 tabs each carry their own pair, so tuning one never disturbs the other, and switching engines switches which pair is in force. On Ookla, retries are also what let a very slow uplink finish at all: when parallel upload streams are too slow for any of them to complete inside the capture window, the retry falls back to a single stream. Set Ookla's retries to 0 and that fallback cannot run, so on a link that slow the upload always fails and records nothing. The run's download half is kept either way - a "both" run that loses only its upload stores its download, ping and jitter as a partial result, with the upload shown as unmeasured (the same contract iperf3 has always had) - and the warning in the log says why and names the setting.

That UDP pass needs the iperf3 port open for UDP as well as TCP - the same port, both protocols (ufw allow 5201/tcp and ufw allow 5201/udp, or the equivalent security-group rules). Allowing only TCP is the usual reason a server reports throughput perfectly while loss and jitter stay blank forever: the control connection and both transfers are TCP and connect fine, and the UDP datagrams are dropped without a refusal, so the pass waits out its window and gives up. The daemon logs iperf3 udp pass failed, loss and jitter unrecorded each time, and when the run's TCP transfers succeeded it names the firewall as the likely cause. Nothing is retried later, so runs taken while the port was closed have no loss or jitter to recover.

For iperf3, the separate UDP loss/jitter pass probes the same direction you test: downstream normally, upstream for an upload-only run - so a one-direction test on an asymmetric line reports loss for the direction you asked about. That also means loss and jitter describe one direction per run, never both, and loss on an asymmetric path genuinely differs by direction - so each sample now records which way its probe ran. The loss and jitter readouts name the path on hover, the run tooltip carries it in its Quality line, and it's exported as udp_direction (down/up) in the API and CSV. An Ookla run records a direction too: its packet-loss probe sends the datagrams from the client to the server, so a probe that succeeded is recorded as up. Runs that never measured loss/jitter - either engine's - and rows recorded before the field carry no direction and are shown unlabeled rather than guessed at.

iperf3 in a container

A bridged container (the default docker run/compose network) has its own network namespace: its own localhost, its own interfaces and addresses, its own /etc/hosts, and NAT between it and everything else. Several iperf3 settings are host-referential - they name things that exist on the host but not inside that namespace. All of them fail loudly rather than mismeasure quietly, and when the daemon knows it runs in a container, most of the failures carry a container-specific explanation in the error itself (natively the same errors mean exactly what they say, and get no such note):

A loopback server address (localhost, 127.0.0.1, ::1) - inside a bridged container that is the container, so the connection is refused by the container's own (empty) loopback before it ever reaches the iperf3 -s on the host. The settings drawer warns as soon as a saved server points at loopback while the daemon runs bridged (a host-network container's loopback is the host, so it never warns there; it never blocks saving either - the operator may really mean the container), and a failed run's error explains the same thing. Use host.docker.internal (see the compose file below) or the host's LAN IP.
Server names the host resolves privately - entries in the host's /etc/hosts and mDNS .local names resolve natively but not in a bridged container, which has its own hosts file and no mDNS responder. The run fails with iperf3's own name-resolution error (no container-specific hint for this one - the daemon can't tell a host-private name from a typo). Use an IP, or a name the container's DNS resolves.
Bind source = a host IP (--bind) - the address doesn't exist in the container's namespace, so the bind fails ("cannot assign requested address"), and the error says so. Bind a container address instead, or use host networking.
Bind source = a host interface name (--bind-dev) - interface names don't cross network namespaces, so it fails ("no such device"), and the error says so. Separately, on kernels older than 5.7 SO_BINDTODEVICE needs CAP_NET_RAW, which the -iperf image's iperf3 deliberately does not have (the capability is stamped on the pingularity binary alone - see docs/security-model.md) - so on those kernels --bind-dev fails in the container even for an interface that does exist inside it. Native installs are unaffected: the deb/rpm unit's ambient CAP_NET_RAW carries into the iperf3 child.
IP version = IPv6 - the default Docker bridge carries no IPv6 (unless you've enabled it in the daemon config), so a forced IPv6 run fails outright ("network unreachable"), and the error says why. The quieter half of the same problem is Auto: it doesn't fail, it silently measures IPv4 where a dual-stack native install would measure IPv6. That is why a run records the family its transfers actually used - shown beside the server in the runs table and run tooltip, exported as ip_family (4/6/mixed) in the API and CSV. iperf3 reads it back from each direction's own connection report, and mixed means the download and upload really landed on different families (dual-stack DNS can do that) - labeled IPv4+IPv6 in the UI rather than picking a side. Ookla runs record it from the transfer's real connections; a run with no recordable connection - for example one carried entirely through an operator's proxy, where only the hop to the proxy is visible - stays empty, never guessed, like rows recorded before the field existed. An Ookla mixed claims less than an iperf3 one: a single recorder spans both directions and every retry there, so it means both families showed up somewhere in the run's transfers - a retried attempt landing on the other family is enough, and the two directions need not have differed.

Two more things a bridged container changes without any error at all:

MTU. The Docker bridge defaults to an MTU of 1500 no matter what the uplink uses, so over a tunnel or PPPoE uplink with a smaller effective MTU, full-size packets fragment along the way. The UDP loss/jitter probe now sends 1200-byte datagrams (1200 + 8 UDP + 40 IPv6 = 1248, under the 1280-byte IPv6 minimum MTU), so the probe itself can't fragment on any sane path - container or not - and its loss figure can't be fabricated by dropped or late fragments. An oversized MSS setting doesn't error here either: the kernel silently clamps it to what the interface takes.
LAN line rate. Bridged traffic crosses a veth pair and conntrack NAT, which costs real CPU per packet - against a fast LAN server the measured TCP rate can sit measurably below native line rate, most visibly at multi-gigabit speeds. The number honestly describes the container's network path; it just isn't the host's.

And one setting empties rather than fails: the congestion control dropdown's suggestions come from /proc/sys/net/ipv4/tcp_allowed_congestion_control, which exists only in the host's initial network namespace - a bridged container can't see it, so the dropdown arrives with no suggestions, and the UI now says why instead of letting the empty list read as "this host supports no algorithms". An algorithm you type or import is still passed to iperf3 unchanged.

--network=host makes nearly all of this go away on Linux Docker Engine: the container shares the host's namespace, so loopback is the host, host IPs bind, IPv6 works, multicast reaches the wire, and LAN tests measure at native line rate. Two caveats survive it: .local name resolution still depends on the image's own resolver (debian-slim has no mDNS module - prefer an IP or host.docker.internal), and on kernels older than 5.7 an interface-name bind still fails in the container (the capability note above). It is already the recommended way to run the container (see Docker - including why Docker Desktop can't provide it).

The canonical compose file for the iperf3-enabled image lives at install.pingularity.dev/compose-iperf.yaml - fetch it from there rather than copying a block from this README: the served file is pinned to the image version it was published with and carries the current comments, so it cannot drift from the daemon the way an inline snapshot here could. Three of its pieces are the ones this section is about:

It defaults to network_mode: host, for all the reasons above.
Its extra_hosts: ["host.docker.internal:host-gateway"] maps host.docker.internal to the host's gateway address, so an iperf3 -s running on the host is reachable from the container by that name on Linux Docker Engine too (Docker Desktop resolves the name on its own).
If you must stay bridged (published ports, Docker Desktop without host networking, an orchestrator that owns the network), it keeps the fallback as a commented pair - ports: ["9000:9000"] together with environment: ["PINGULARITY_ACCESS=network"]. Uncomment both or neither: a published port alone answers 403, because every install starts private (see Docker) - and set a login when you opt in.

One honest caveat either way: a test against an iperf3 -s on the same machine measures the container-to-host virtual path (or loopback, under host networking), not any real network - fine as a smoke test, useless as a line measurement.

Scheduling and triggers

Scheduled speedtests are off by default - turn them on in the Speedtest settings (or with -speedtest). Once enabled, they run on startup and on a schedule (-speedtest-interval, default 1h). Two extra triggers are governed separately: a test runs after a reconnect (on by default; -speedtest-on-reconnect=false to disable) - spaced out so a flapping line cannot fire tests back to back: at most one reconnect test per -speedtest-interval, or per 15 minutes when that interval is shorter. There is also an optional while degraded toggle in the Speedtest settings (off by default, needs scheduled tests on) that fires a test when latency stays high without the link fully dropping - above Degraded above (default 150 ms, 0 = off) for two probe rounds in a row, re-arming once latency recovers. Run now (or POST /api/speedtest) always works.

Only one speedtest runs at a time, and the triggers do not queue behind each other. If a scheduled slot comes due while any other test is already running, that slot is skipped and the schedule advances to the next one - it is not retried, and not run late (the counter pingularity_stat_total{stat="speed.scheduled_skipped"} records it). A slot held back by a closed window or a busy link behaves the opposite way: nothing was measured, so it keeps polling and fires as soon as the condition clears. "Busy" is traffic on the busiest interface above Busy above (default 5 Mbps) - and unlike the alert thresholds, 0 is not "off" here: it makes any measurable traffic count as busy, so scheduled tests stop firing. Only scheduled runs consult it; reconnect, degraded and Run now go regardless.

Choosing an Ookla server

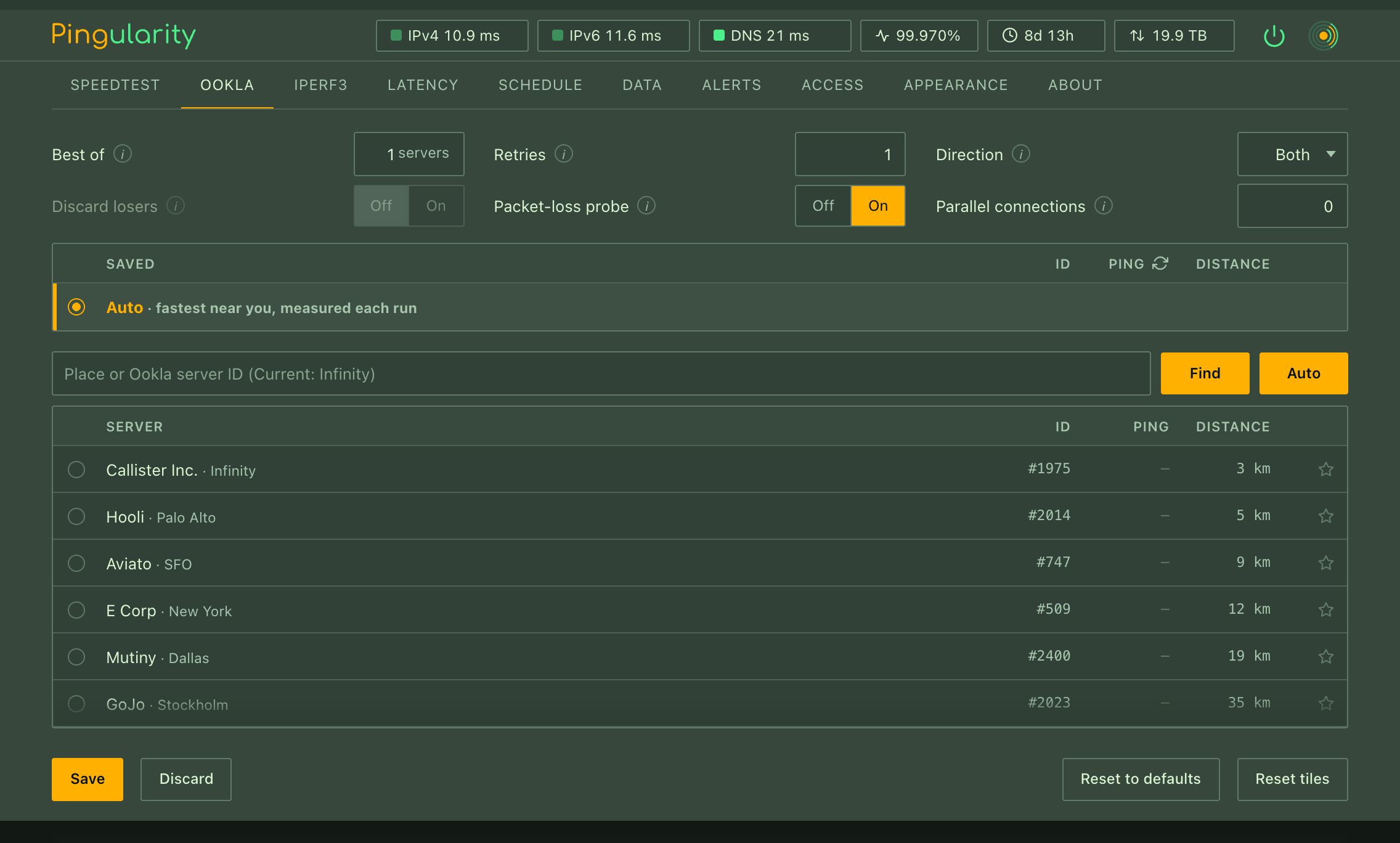

For Ookla, choose a server (Find by place or Ookla ID, then pick its row) or leave Auto - fastest near you. A row badged Unsupported cannot be chosen: that server has no HTTP speedtest endpoint (Ookla's legacy upload path), so every test against it would fail - clicking it says so in the footer instead of selecting it, and typing its ID into Find lists it with the badge rather than pinning it (hover the badge for the reason). Such a server can still be starred, and a server that is already chosen keeps its radio even if it later earns the badge, so the picker never hides what the next run will use. That badge comes from a cheap check - fetching the server's latency file - which a host whose upload endpoint refuses everything still passes. Those only reveal themselves when a run tries them, so when one refuses every upload the daemon stops offering it to automatic selection for twelve hours, and remembers that across a restart. A server that comes back and refuses everything again earns a longer rest each time - twelve hours, then a day, then three - because re-admitting a still-broken server costs a whole measurement turn to rediscover. It is never permanent: a repaired server is back within three days on its own, and one that has behaved for a week starts over at twelve hours. Auto isn't just "nearest": every server that's effectively equidistant gets to race (in a big city, a dozen providers all sit "0 km away" - one of each is pinged rather than an arbitrary few, and the same rule seeds each candidate city's six in the city race that picks the centre, with distance ties broken by the echo the server list itself came back with) and the lowest latency wins - judged on the floor of each server's ten probes, not their mean, because one stalled probe among nine fast ones moves a mean by 20 ms and a floor by nothing (the city race and the Best-of verdict use the same floor, so the three decisions agree). Your own ISP's server, when Ookla lists one nearby and the sponsor name can be matched to your ISP, is guaranteed a place in the race - traffic to it never leaves your provider's network, so it's the most likely winner - but it still has to win on ping like everyone else. (That match is a name heuristic: if your ISP is unknown or trades under a different name than it sponsors servers under, its server simply competes on distance like any other.) Two ties are broken deliberately rather than by jitter: a run keeps the server the last automatic run measured while it is still among the servers this run pings (the winning city's list, seeded as above) and still pings within max(2 ms, 15 %) of the fastest (win reason incumbent when that kept it ahead of a faster server; plain fastest_ranked when it was the fastest anyway), and failing that prefers your ISP's own server inside the same band (on_net) - so the history compares like with like instead of flipping between equivalent servers, while a server that has gone bad loses its seat the run it goes bad, because the seat is re-pinged every run rather than remembered - and an incumbent the winning city's list does not carry is not pinged at all, and loses the seat the same way. A server that still pings well but can no longer be measured - it answers, then moves no bytes - is the one case pinging cannot see, and a failed run records no winner for the next run to learn from, so it would hold its place indefinitely, hourly, with nothing to alert you: the next ranked candidate rides behind whichever server an automatic run leads with, is measured when that one cannot be, and takes the place itself (win reason fallback, counter speed.head_failed). The run after it leads with the server that answered, so the failure usually costs one wasted attempt and no more - though only while that server pings within the same hair of the fastest that the paragraph above describes. Further out it cannot be preferred over a faster-pinging server, so the wasted attempt repeats each run until the broken one recovers or slows down; either way a real measurement is now recorded every time, where before there was none. A pinned server has no fallback: the pin is your answer to this question. Ping alone never learns whether a rival is faster to transfer, so after every twelve automatic tests (any unpinned Ookla run counts; the challenge itself lands on the next scheduled single-server run, and with Best of above 1 it never does, because every round already measures rivals) the run measures the incumbent's strongest rival instead - one server, no extra data - and the rival takes the seat only if its one score clears a bar set by the incumbent's own last dozen same-direction runs: their median plus 15 %, or their second-best hour if that is higher. So on a steady wired line the rival needs a clear 15 % win; on a link whose runs swing by a fifth it has to beat what the incumbent itself reaches on a good hour, or one lucky hour would steal the seat and the next challenge would steal it back - nobody has to know their link's noise as a number, the record already says it. A score that lands more than three times the incumbent's good hour is not treated as a win at all: one reading has no round to be disbelieved against, and a server that buffers and acknowledges an upload without delivering it can report several times the line - so it is judged as the record's median instead and keeps the seat where it is. The reading itself is still recorded as the test's result; what the daemon declines to do is hand a seat to a number the line cannot carry. A fresh seat needs three runs of record before it is challenged at all, and changing the test direction starts that record afresh. There is nothing to set: the cadence is speed_challenge_every on the settings API (default 12; 0 turns the challenger off) and is deliberately not in the drawer. If the rival cannot be measured the incumbent is measured as the fallback and the attempt still counts. Win reasons challenger (tried, lost), challenger_won and challenger_failed record it; the speed.challenge / speed.challenge_won / speed.challenge_failed counters count it. The centre of that search is measured, not guessed: the candidate cities your connection names - your ISP's exit-router city (found by traceroute), the city your IP's geolocation puts you in, the cities of any servers you have starred, the city that won the last race (so a lookup going dark cannot make Auto forget where its servers are - it is a candidate like the others, and still has to win), and the one speedtest.net itself places you in - each enter six of their nearest servers (at most five of the cities with a coordinate of their own are fetched, in the order listed - with the exit and ISP cities both known that leaves room for stars in three cities, and past it the last race's city is dropped first, then further starred cities; speedtest.net's own placement is never displaced) - seeded the way a run's own ranking is, so a metro whose servers all sit "0 km" apart contributes one per provider and your ISP's box rather than six by chance - into one deduplicated ping race, and the city whose server answers fastest becomes the centre. (Ookla returns the servers around a coordinate, so a different centre yields a genuinely different list rather than the same one reordered - picking the wrong city can hide the fast servers entirely, which is why it's raced. The lists usually overlap, and where two candidate cities are close enough to be interchangeable they collapse, so a server never gets to race twice.) The race does the run's homework as it goes: the winning city's list and the pings the race already took are what the run ranks, so it fetches nothing twice and only pings the servers the race did not reach. Its verdict - which cities raced, each one's fastest answer, which won and why - is recorded on the run (the Centre column of the runs table; hover it for every city) so a surprising city is explainable afterwards - and the muted tag after the server name (incumbent, challenger won, pinned, …) says why that server was the one measured; hover it for the rule. Searching a place in the picker only moves the list you are looking at; nothing but a pinned server overrides the race.

Dashboard

The dashboard is built into the binary (no extra services, no CDN - the UI, web font, and favicon are all embedded) and served at the -listen address. The top bar carries the live status bubbles - per-family (IPv4/IPv6) latency, process runtime, 24h/7d uptime, and cumulative speedtest data used (click it for a breakdown by window). That figure is the transfer payload each run recorded, including the runs that failed partway or that you cancelled - they still cost you the traffic, so on a metered link the number has to include them. What it is not is a wire total: protocol framing, retransmits, the warm-up seconds an engine throws away, and the UDP loss probe all move bytes that nothing counts, which makes this a measured lower bound rather than a bill (the exclusions are listed in full under Metrics). On a default install - the Ookla engine, with its five-second packet-loss probe - the uncounted part is overhead plus that one short probe, so the figure runs a few percent light and no more. It only becomes worth budgeting around on an install deliberately pointed at iperf3, where every direction discards a warm-up second before the count starts and the UDP pass moves megabytes of its own - or gigabytes, if you raise that probe's rate cap by hand (the daemon warns about the uncounted usage only from 1 Gbps up, so a smaller raise is silent). Those attempts are counted but never shown as measurements: they appear in no chart, table, average or CSV, because nothing was measured. The latency and DNS dots are the theme accent at varying intensity - full = healthy, fading as latency or DNS gets worse - so the bar stays calm at a glance and only the dot that needs attention dims. The uptime, runtime, and data bubbles use plain icons (a pulse line, a clock, and up/down arrows); their numbers carry the state.

Below that:

Connection - public IP (v4·v6), ISP + geolocation, the actual upstream DNS resolver (provider + location), the internet exit: where traffic leaves the ISP's network - the exit router and peering handoff found by a built-in traceroute walked to the AS boundary (per-hop RTTs + city; on Linux this needs root, CAP_NET_RAW, or a suitable ping_group_range and is silently omitted otherwise - Windows and macOS need no privileges), plus the Cloudflare PoP serving the connection. A refresh button (top-right) re-runs all of it on demand. A dual-stack host that loses IPv4 for 15+ minutes while IPv6 still works is treated as IPv6-only (identity switches to the IPv6 side) until IPv4 returns.
Speed - Download / Upload / Ping / Jitter / Packet-loss cards plus bufferbloat (idle vs loaded latency); three stacked history charts (speed with plan-threshold lines, a ping/jitter quality band, and bufferbloat) with per-chart Speed / Quality / Bufferbloat show-hide toggles, over a window of 1d / 7d / 30d / 1y, a custom duration, or a typed date range - the custom box takes plain language (jul 1 to jul 8, 2026-07-01 to 2026-07-08, since jul 1, yesterday, 2026, 9am to 5pm, 3d ago to now) and echoes back the span it read. An end date includes that whole day, and a bare four-digit year means that year. A typed range reaches back at most 366 days from today: an older start is quietly raised to that floor, so a span lying entirely further back comes up empty, and the chart can say only that there is nothing in the range, not why. Nothing out of the box gets there - latency samples are kept 30 days by default, speed runs and outages a year - so it takes raising a retention window past a year (or to 0, keep forever) and then accumulating that much history, or restoring a backup that already holds it. The charts fit whatever data the span actually holds, so picking a wide range with only a little data in it zooms to the data rather than drawing empty margins; a span with no runs in reach says so. While a fixed range is pinned the stat cards follow it rather than the newest run, and a Live button returns to the rolling window, and an expandable all-runs table (paginated, with CSV export and a per-run health badge).
Latency over time - the lowest round-trip across your anchors, plus a separate DNS-resolution line. Each round resolves a random throwaway name through the host's own system resolver (the random label dodges caches, so it times the real lookup path your apps use; "no such name" is a healthy answer - the resolver replied, which is what is being timed). The name is fully qualified, so it is looked up exactly as written rather than being tried against your search domains first. That matters if you are comparing against readings from 0.61 or earlier, which looked it up unqualified: on a host with a search domain those readings timed an extra doomed lookup and read high, while on one whose search domain answers wildcards they timed a fast local hit for a different name and read low. Either way the two are not comparable, and the change can move the number in either direction - re-baseline any DNS alert thresholds rather than assuming which way it went. Readings from 0.80.0-rc.1 and earlier also sit a few ms above later versions and spike harder: every version through 0.80.0-rc.1 asked an IPv4/IPv6 question pair and timed the slower answer, and on the Linux binaries - which use Go's built-in resolver - one lost reply pinned a "healthy" reading at the full 3s budget (the macOS and Windows binaries resolve through the system resolver, which already reported that case as a failure; on 0.61 and earlier the pair stacks on top of the search-domain effect above). Later versions ask a single IPv4 question, and a lookup that eats its whole budget now always counts as a failure - after upgrading expect the DNS line slightly lower and calmer, and re-baseline DNS thresholds one more time. A round skips its lookup while the previous one is still in flight, so a hung resolver cannot pile lookups up behind it; a lookup gives up after 3s, so in practice that needs a probe interval shorter than that. The DNS line gaps wherever a bucket held no successful lookup (timeout / SERVFAIL / no resolver), so a DNS gap with the latency line intact means "online, but DNS was struggling." On the wider windows one plotted point averages many lookups, and that average counts the successful ones only - a failure neither plots nor shifts the value, so a bucket gaps only when none of its lookups succeeded. Narrow the window to see them one by one. Selectable window (5m / 1h / 6h / 1d / 7d, a custom duration, or a typed date range exactly like the Speed panel; rolling windows are capped at the relevant retention), with red bands marking rounds that failed their checks. Those come from the latency samples themselves, not from the debounced outage log below - so a blip too short to become an outage event still shows a band, and deleting an outage does not erase the bands underneath it. Hover either chart to read the exact point.
Downtime heatmap - a GitHub-style year of daily outages. A cell's shade is how many outages that day, not how long they lasted: one 23-hour outage and one 1-second blip are both a single event and shade identically, while three blips shade darker than either. Hover a cell for the figure that answers "how bad was it" - the actual downtime, and how much of the day was observed. A day that was watched end to end with nothing to report leaves no record of its own behind, so its cell carries no figures and says "no outages recorded" instead - a claim about what is on file rather than about the day, because a day whose outage history you deleted looks exactly the same from here.
Recent outages - the debounced up/down event log. Each resolved outage has a trash button to delete it (removes it from the log, heatmap, and uptime stats - handy after planned maintenance you don't want counted). The durations here are observed time, the same rule uptime and the heatmap use: any stretch of an outage that monitoring didn't watch - paused with the power button, outside a latency schedule window, or with the host asleep - is subtracted, so a row can be much shorter than the wall time it spans. A restart mid-outage is different: it splits the log into two rows, the first with no duration at all.

Who does Pingularity talk to? Every service it picks for you is keyless public infrastructure - no API token, no signup - and nothing is ever pushed anywhere you did not configure yourself. The complete list of outbound calls, so you can audit or firewall them:

Service What it receives When

anchors (1.1.1.1, 8.8.8.8, 9.9.9.9 + v6) a TCP handshake, no payload every probe round

your own DNS resolver one random throwaway lookup; and, for a LAN resolver only, one CHAOS version.bind query to name its software every probe round (DNS line); the version.bind query on the refresh that first labels the resolver set, again if that set changes, and again on any refresh while a resolver in the set is still labelled by a bare address that is not private, link-local or loopback (its naming lookup came back empty), because that retry relabels the whole set

ipify a "what's my IP" request connection refresh

whoami.akamai.net (DNS) a fixed lookup whose answer is your resolver's egress address, not yours connection refresh

every router on the way to the exit target (1.1.1.1 unless you change it) one ICMP echo per hop, carrying nothing about you exit discovery

Team Cymru (DNS) your public IPv4/IPv6, your resolver's egress address, the resolver addresses your host is configured with, and every traceroute hop in public address space - to name the network each one belongs to; hops that are private, carrier-NAT (100.64/10), link-local or loopback are skipped connection refresh + exit discovery

1.1.1.1:53, then 9.9.9.9:53 (direct DNS, the fallback for the row above) the same Team Cymru query names, sent to that resolver directly rather than through yours only after your own resolver fails one of those lookups (any error - a timeout, SERVFAIL, refused, unreachable - but not a "no such name" answer, which counts as answered) - then first for the following minute, your resolver last, until it answers again. The netinfo.cymru_fallback counter climbs once per lookup a public resolver answers, including every lookup during that minute

RIPE IPmap the two boundary router IPs the traceroute settles on, and your resolver's egress address, for geolocation connection refresh + exit discovery

ipwho.is, then geojs.io your public IP, for the ISP/geo line connection refresh

Cloudflare (/cdn-cgi/trace) a plain fetch, to learn the serving PoP connection refresh

one.one.one.one:443 (Cloudflare) bare TCP handshakes, no payload - the fixed target the bufferbloat idle and loaded samples are measured against. Resolved through your own resolver, so it reaches whichever of 1.1.1.1/1.0.0.1 (or their v6 pair) that answer names every speedtest that samples bufferbloat

reverse DNS router/host IPs, for names connection refresh

Ookla servers the speedtest traffic itself, plus a server-list lookup and a small probe of each listed server's upload endpoint (remembered, so a repeat does not send it again); opening the Ookla tab can also cost one by-ID lookup and one name search first, to centre the list on the server your last automatic run used; for the picker's Auto button, the same selection a run performs - one list fetch per candidate city, a round of pings at every racer, then a round at the rest of the winning city's field (up to twelve), no transfer; for a server ID typed in Find, and for a saved pin the drawer has not yet checked this page load (at most twice per server), one by-ID lookup plus one small POST at that server's upload endpoint to learn whether it can still run a test, no transfer; and for the saved list's refresh button, one by-ID lookup, one endpoint probe and a round of pings at each kept server (up to twelve), no transfer when a speedtest runs, when the Ookla settings tab is opened or a city is searched, when a server ID is typed in Find or a saved pin is first shown, on every Auto click, and on every refresh click in the saved list

your own iperf3 server (opt-in) the test traffic itself - the TCP transfers, plus a short UDP pass for loss and jitter; or, for the status light in the settings drawer, one bare TCP handshake and nothing else when an iperf3 speedtest runs, and when the drawer checks a saved server's status light - once per address while the drawer is open with iperf3 selected, plus whenever you click a server's light or change its address

nominatim.openstreetmap.org the city text you type only when you search a city for a server

update.pingularity.dev a version-check fetch (no identifiers) daily, if the update check is on (until the first check succeeds: retried at 1m/5m/15m, then hourly)

your alert webhook (opt-in) the alert text and its fields, to the URL you set on an outage, a speed-threshold breach, a digest, or the Send test button

your heartbeat URL (opt-in) a bare GET, no body every minute while monitoring is live

The connection refresh and exit discovery rows are the ones that carry your public IP, the whoami.akamai.net line excepted - that lookup's whole point is that it carries nothing of yours, since your own resolver asks it for you and the answer describes the resolver. Rows marked (DNS) are questions handed to that resolver rather than connections the daemon makes itself, so what the service at the far end sees is your resolver arriving with an address in the query - except the direct fallback row, where the daemon asks the named public resolver itself and that resolver sees your address asking. "Connection refresh" means: once an hour on its own (every 5 minutes while a lookup is failing, or while exit discovery has yet to succeed), once after a reconnect at most every 5 minutes, and once after every speedtest - so turning speedtests on multiplies these too. Exit discovery rides those refreshes and re-traces at most every 10 minutes once an exit is known; until one is, a failed trace retries after a minute, and three straight failures stand it down to the slow cadence. They stop when monitoring is paused, and the Connection info toggle (Latency tab) stops them for good. Both cover the automatic lookups only - the Connection panel's refresh button still fetches on demand, and the panel says when it is no longer refreshing itself.

Everything else - dashboard, charts, history, alerts evaluation - is fully local. Turn speedtests, the update check, or the DNS probe off and those rows stop firing on their own, bar two halves that answer to a different switch. The Ookla server list and the iperf3 status light are the settings drawer reaching out, so they follow the drawer rather than the speedtest toggle; the version.bind query rides the connection refresh, so it follows Connection info rather than the DNS probe. (Alert webhooks and the heartbeat post only to URLs you configure yourself.)

Behind a proxy? Ookla speedtests use HTTP_PROXY / HTTPS_PROXY / NO_PROXY from the daemon's environment (lower-case spellings too), written as http://, https://, socks5://, socks5h://, or a bare host:port; ALL_PROXY is not read, because Go's HTTP client never routes a request through it. A value the daemon cannot use - an unsupported scheme, or one that names no host - fails the requests that would have ridden it, quoting the value, rather than quietly connecting direct: traffic leaving by a route you did not choose is the outcome worth refusing. And note a proxied run measures the path through the proxy, not your direct link. Alert webhooks, the heartbeat, and the update check deliberately ignore these variables and always dial direct - the two that dial a URL you configure are vetted by the IP they actually resolve to, which a proxy hop would hide, and the update check goes to one fixed HTTPS address that must not be silently intercepted - so on a network with no direct egress those three won't get out. iperf3 speaks its own TCP protocol and is never proxied. One caveat on a proxy-only network: before letting a proxied request name a speedtest server, the daemon resolves that name locally to check the proxy isn't being pointed at something internal, so with no local resolver every server is refused - and each refusal is logged only at debug level, so the reason is invisible until you raise it. The fix is to give the daemon a working local resolver. NO_PROXY is not one: the name is resolved before the routing decision is made, so listing a destination there does not skip the check that just failed - and a direct connection would need that same lookup anyway. Clearing HTTP_PROXY/HTTPS_PROXY altogether does stand the check down, since it is inert when no proxy is configured, but that only helps if the daemon has direct egress. Where DNS genuinely lives only at the proxy (a socks5h setup), there is no way round it and Ookla speedtests stop rather than run unvetted. Full reasoning in docs/security-model.md.

The logo (top-right) opens a tabbed settings drawer; the power toggle beside it, in the top bar, starts/stops all monitoring. Changes apply live (no restart) and persist across restarts.

Latency → latency probing on/off, latency interval, probe timeout, and sensitivity (failures→down / successes→up, IPv6 mode auto/on/off), plus the DNS resolution probe (on by default), the Connection info lookups, and the Exit-path target - the host or IP the exit traceroute heads toward (blank = 1.1.1.1; it must resolve to IPv4, see How it works).
Speedtest → automatic runs on an interval, plus on-reconnect and when-degraded triggers, a skip-when-busy option, and Test more often while failing (off by default): while the last run is still breaching an Alerts threshold, the interval drops to a quarter of what you set - never longer than 5 minutes, never shorter than 1 - so an hourly schedule tests every 5 minutes until a run passes. It needs a threshold set in Alerts, and it costs far more data than the cadence you configured - 12x the runs on that hourly default, for as long as the breach lasts. Changing the interval shows a live estimate (Ookla only, and only while automatic runs are on) of the daily/monthly data the scheduled tests will use, based on what your recent runs recorded - so it is a measured lower bound like the data-used figure itself - and it counts neither the extra triggers nor this faster cadence. It does follow a speedtest schedule: with one set, only the runs its windows leave room for are counted (plus the one each window opening catches up), so confining an hourly test to office hours shows the handful of tests you will actually get rather than all 24.
Ookla → the Ookla server picker (kept servers, Find by place or ID, Auto to preview what a run would race - the list you were looking at comes back when you reopen the drawer or reload the page: a searched place fetched fresh, the Auto candidates as last raced while that is under ten minutes old and no speedtest has run since, raced again otherwise - and your kept servers' pings are measured again on the same ten-minute rule; Save leaves it all alone and Reset to defaults starts over), test direction, retries, parallel connections, the packet-loss probe, and Discard losers (on by default): what a Best-of round keeps. On, only the best result is recorded - one row per test, as always. Off, every server the round measured gets its own row in the runs table, the chart and the exports, on the second it finished, tagged round and pointing at the winner (round_ts); the winner alone stays the test's result - thresholds, alerts and server selection look only at it - and deleting the winner deletes its round with it. Each row then carries its own data volume (the winner's adds the round's overhead), so the totals are unchanged and the data estimate still counts the whole round. (The automatic challenger that lets a rival server take the seat now and then has no knob here - see Choosing an Ookla server.) The engine itself (Ookla or iperf3) is chosen on the Speedtest tab; iperf3's servers and per-test options live on their own iperf3 tab, laid out the same way: the test knobs on top, the saved servers below in the same kind of list (each row shows the server, its IP version, whether it authenticates, and a status light that re-checks it when clicked). The list's last row adds one: it puts an empty server at the end and opens its details, where you type the address like every other field. Adding, editing and removing all take effect when you press Save, like every other setting in the drawer. Best of (Ookla only, default 1 = a single server, up to 16) is how many servers each scheduled or manual test measures, keeping only the best result (or every result, with Discard losers off). The round is your pinned server if you have one, then your starred servers fastest ping first, then the fastest of the rest, N in all: under a pin the rest come from around the pin; on Auto they come from the whole city race - every candidate city's pool, widened to N, ranked together by ping - so a Toronto server that pings well sits in the same round as Montréal's. A starred server the race did not reach is looked up and pinged for the round. It costs N times the data and up to N times the time of a single test (each server's turn is bounded, and the run's budget grows with N), so the estimate on the Speedtest tab turns amber above 4; above 1 the automatic challenger stands down. (Upgrading from a version with the old on/off: on becomes 3, off becomes 1; the old setting is left as it was, so a downgrade reads it as before the upgrade.) It keeps only the best result as the test's result - handy when one server has a bad day and you'd rather it didn't define your history. The best result is the highest score: a capacity figure weighting download 70% and upload 30% relative to each other (not as raw Mbps, so it means the same on a symmetric line and a 20:1 asymmetric one), discounted by ping (roughly 1% per millisecond, topping out at 20ms). So a server that measured a fifth of your real upload can't hide behind a big download number, a near-tie on speed goes to the lower-ping server, and a clearly faster one still wins. Ties break on ping, then jitter, then bufferbloat; the other runs are discarded (their data volume is still counted, since it was really spent) unless Discard losers is off, which records them as rows of their own. The run that is kept is one real test, so its ping, jitter and bufferbloat are the winner's too: when a round is decided on throughput, those columns can jump because the round changed hands, not because your connection did. It is not averaged across servers - that would describe a test that never happened - so read latency and jitter from the charts, which sample continuously and do not depend on who won. One guard runs before the comparison: when one server reports a direction far beyond what the rest of the round agrees on (buffer absorption at the server, not your line), that reading is held to what the round agrees on - for the decision and for what lands in history - so a speed you never had can't set a record or pass a threshold. And every round keeps its receipts: which servers were ranked, raced, measured, or failed, each one's numbers, and why the winner won - stored next to the run (GET /api/speed/runs/servers?ts=) and summarised in the logs. Each server gets 90 seconds before it is dropped and the next is tried, so a stalled server can't hold up the round. Between one server and the next it pauses two seconds, so each turn starts on a settled link rather than into what the last transfer left draining. A whole round budgets 90 seconds per server, 90 seconds to pick them, and those pauses (a Best of 3 is about six minutes of work; the largest round, 16, about 26). It costs roughly N times the time and data of a normal test, so only the runs worth being thorough about use it: the ones on your chosen interval, and the RUN button. The quick automatic tests - at startup, after a reconnect, and the while-degraded one - always measure a single server. The data estimate on the Speedtest tab accounts for it.
Schedule → optionally restrict when monitoring runs. Latency probing and speedtests are scheduled independently (each off by default = run 24/7); when on, each gets a list of windows, and a window is a weekday selection + a time-of-day range (windows may wrap past midnight). Add multiple windows for split or per-day schedules, with Weekdays / Weekends / Every day / 24/7 / Clear presets, and a "week at a glance" strip under each list shows the merged coverage. Manual "Run now" always works.
Data → retention: three independent windows - latency samples (default 30 days), speed history (default 365 days), and downtime/outage history (the heatmap, default 365 days); 0 = keep forever - plus per-kind "delete data" buttons, each clearing everything its category exports: latency takes the DNS-resolution series with the ping samples, speed takes the server-selection reports with the runs, and downtime takes the pause/unobserved spans with the outage events, so clearing downtime also resets observation coverage. And Export / Import on the same tab: pick any of config / latency / speed / downtime, export them to a JSON file, and import one back - time-series data is merged (existing/newer local rows are kept, only missing rows are added) while config is overwritten and reloaded live. Both ends stream on the wire, but the browser download assembles the whole file before it saves, with no progress shown while it does and no size warning first - the export is sent as a stream, so its size is not known in advance to warn about. A very large backup (years of dense history) can therefore sit silently for a long time, and on a big enough one the tab can give up. For one that big, stop the service and copy the SQLite database file at the -db path together with pingularity.key beside it (a copy taken while it runs misses the pingularity.db-wal sidecar, which on a young install is everything, and without the key the saved iperf3 passwords and signed-in sessions do not survive the restore), or stream /api/export straight to disk with curl -OJ 'http://127.0.0.1:9000/api/export?config=1&latency=1&speed=1&downtime=1' (name at least one category or it is a 400; add -u user:pass when a login is set). The import warns you when it matters: restored rows older than your current retention windows will be pruned within the hour (raise retention first to keep them), and a config restore that carried "login on" without a password leaves login off until you set one.
Alerts → Thresholds (min download/upload, max ping/jitter/packet-loss, and max bufferbloat per direction; each run is marked healthy/unhealthy against the values in effect when it ran) with a Breaches in a row count (1-10) that debounces alerting - it defaults to 1, which pages on every breaching run, so raise it if one blip shouldn't - and Notifications (alert-on-outage, a generic webhook with a Test button, an optional periodic summary posted to the webhook - off / daily / weekly, a "how it went" report of uptime, median speeds, and outage count/downtime; it always goes out on its cadence and states the span it actually observed, so a period spent scheduled-off or paused is reported as such rather than as a confident 100%. The first one lands a full period after you switch it on - enabling "daily" arms the clock rather than sending immediately - and with no webhook URL set nothing is sent and no period is consumed, so a webhook you remove and put back still gets the window that was waiting for it. An install that has never had a webhook has no such window to hand over: adding the URL arms the clock exactly like switching the summary on does, and the first report lands a full day or week after that. And a dead-man's-switch heartbeat URL).
Access → access controls (changes here apply on Save). Network access decides whether other devices can reach the dashboard / API / /metrics, or only this machine - a live loopback filter, so remote clients get 403. It starts off everywhere (localhost-only until you flip it), containers included: the loopback filter is enforced the same way in every environment, and a container that must be reachable opts in explicitly with -access network (or -e PINGULARITY_ACCESS=network) rather than being guessed open. The tab shows the reachable address(es) with port plus a static-IP hint. Require login (off by default) gates everything behind a password: browsers get a login form + session cookie, while API clients and Prometheus use HTTP Basic with the same credentials (passwords are capped at 72 bytes, the bcrypt limit). Failed logins are recorded (with source IP) in the log and rate-limited per client. Once a login is active, changing any Access setting - password, username, the login toggle, or Network access - requires re-entering the current password (API callers send current_password), so a stolen or walked-up browser session cannot quietly take over the account. A login lasts 30 days, and signing out revokes every signed-in browser rather than just the one that asked - which is also how you evict a lost laptop. Forgot the password? Run pingularity reset-auth on the host to clear it and disable auth, then systemctl reload pingularity (or restart the service) - a running daemon caches settings in memory and would keep enforcing the old password; in a container, run it from a one-off container sharing the volume, then restart the container (exact command under Docker). Local-only cannot block a same-host reverse proxy (cloudflared, nginx): it delivers internet visitors as loopback connections, so pair any proxy with login.
Appearance → nine themes - Retro (the default), Light, Dark, Amoled, Cyber, Slate (flat greyscale), Solarized, Parchment, and Ember - plus a Full-width layout toggle and a Corners toggle (Flat squares the panels and controls, Round keeps them rounded), content brightness and fade sliders, UI colours (recolour any of the theme's building blocks: backgrounds, panels, borders, text, status colours, accents - every pixel derives from them), top bar (a colour for the latency and DNS dots - each keeping its health shading - the power button in each state, and the two halves of the wordmark), and chart customization - per-series colours, line thickness and area fill, plus two rows of switches under Thresholds and labels: one to show or hide each threshold line, and one for the chart furniture (Grid lines, Y labels for the numbers up the left, X labels for the times along the bottom, and Y title, which prints what the axis measures sideways down the right edge - LATENCY (ms), SPEED (Mbps), PING (ms), BLOAT (ms)). Turning the Y labels off hands their space back to the chart. All preview live and apply on Save; each picker resets to the theme.
About → version, the daily update-check toggle, and the log viewer (logging on/off, PII redaction, and copy/download/clear). PII redaction is on by default and is a display choice only: every line is kept in both forms, and stdout (journalctl, docker logs) always carries the unmasked one - so use the viewer's own download for anything you intend to share.

Nine built-in themes, every one fully recolourable (backgrounds, panels, status colours, chart series - each picker previews live and resets to the theme):

Notifications post to one webhook URL, shaped per host so the common targets just work - JSON everywhere except ntfy. Discord → {content}, Slack → {text}, ntfy → the alert text as a plain-text body with X-Title / X-Priority / X-Tags headers (see the recipes below); every other receiver gets a rich body carrying the alert text under text/content/ message/body plus a title, a type (info/success/warning/ failure), and a numeric priority (1 low - 5 urgent). The heartbeat pings an external watchdog (Healthchecks.io, Uptime Kuma push, …) every minute while monitoring is on, so the watchdog can alert you if Pingularity or the whole host goes silent - the one failure the in-band outage alert can't deliver. It follows the power button only, not whether probing is actually running: it keeps pinging through a closed schedule window, with -latency=false, and through a fresh install's first-run hold. A green watchdog therefore means "the process is alive", not "the link is being measured" - pair it with pingularity_probing_active if you need the latter.

Notification recipes (set the webhook URL to):

Target	URL	Notes
Discord / Slack	the channel's incoming-webhook URL	shaped automatically
Gotify	`https://gotify.example/message?token=APP_TOKEN`	uses `title` / `message` / `priority`
ntfy	`https://ntfy.sh/your-topic` (or self-hosted)	spoken natively: the alert text arrives as the notification body with title, priority (1-5, mapped from severity), and an emoji tag. ntfy.sh is auto-detected; for ntfy on your own domain set Webhook format: ntfy in the Alerts tab
Apprise → email, Telegram, Pushover, Gotify, ntfy, …	run the Apprise API server, point at `http://apprise:8000/notify/your-key`	one gateway to 100+ services; uses `title` / `body` / `type`

For email, Telegram, or Pushover, the simple path is Apprise: run the Apprise API server, add those services to an Apprise config key, and point Pingularity's webhook at that key. Self-hosted receivers on your LAN/localhost are allowed (only link-local/cloud-metadata addresses are blocked). For "is Pingularity even alive?" use the separate Heartbeat URL, not the webhook.

Initial values can also be set via flags (-interval, -timeout, -latency, -down-after, -up-after, -speedtest, -speedtest-interval, -speedtest-on-reconnect, -ipv6, -retain, -retain-speed, -retain-downtime); the UI overrides them once changed. -ipv4 is flag-only - it has no UI setting.

Commands & flags

pingularity runs the monitor and serves the UI by default; the other subcommands install and control it as a service, print the version, or probe a running instance's health. Flags cover the listen address and access mode, the database path, probe interval and sensitivity, speedtest scheduling, and how long each kind of history is kept. Only -access has an environment-variable form (PINGULARITY_ACCESS), which is how a container sets it - PINGULARITY_OPTS is expanded by the systemd unit and is ignored everywhere else.

→ docs/cli.md - every subcommand and flag, with its default and what changing it costs.

Metrics

Pingularity serves a Prometheus endpoint at GET /metrics, for people who already run a Prometheus/Grafana stack - nothing external is required, and the dashboard is fully standalone. It is a passive pull endpoint, behind the same access guard as the dashboard, with an optional read-only token (-metrics-token) for scrapers. It publishes the current link state, latency histograms, the last speedtest's numbers, outage counters, speedtest failures by stage, and worker health - enough to alert on a wedged prober, a failing schedule, or a link that is up but slow. Beside it sit /healthz and /readyz, answered ahead of the access guard so a container probe needs no credentials.

→ docs/metrics.md - every metric and its labels, the health endpoints, how to scrape it, worked alert rules with the reasoning behind each query, and the importable Grafana dashboard.

HTTP API

Everything the dashboard does, it does over this API, so anything the UI can do is scriptable. Reads return JSON and are gzip-encoded when worth it; writes are POSTs guarded by the same access rules as the dashboard. Two streaming downloads - a full database export and the speedtest run history as CSV - are always sent uncompressed so they keep streaming.

→ docs/api.md - every endpoint, its shape, and the rules they share.

How it works

Connectivity is a debounced state machine. Every round, the prober dials all anchors concurrently; each address family is "up" on a strict majority of its targets, and overall is up when either family is. A confirmed flip needs down-after / up-after consecutive rounds, which is what suppresses flapping.

stateDiagram-v2
  [*] --> Online: starts optimistic
  Online --> Offline: down-after consecutive failed rounds<br/>→ write 'down' event + alert
  Offline --> Online: up-after consecutive ok rounds<br/>→ write 'up' (with duration) + speedtest + alert

Any round that does not meet the threshold leaves the state where it is: a single bad round while Online, or a run of successes shorter than -up-after while Offline, changes nothing and writes nothing.

Each round fans out into the raw series and the derived records. Outage events - not per-probe success - drive uptime and the heatmap, so those views all agree.

flowchart LR
  round["probe round"] --> quorum{"per-family<br/>quorum"}
  quorum --> samples[("samples")]
  quorum --> fsm["debounce FSM"]
  fsm -->|confirmed flip| events[("events")]
  samples --> chart["latency chart"]
  events --> uptime["uptime % (24h / 7d)"]
  events --> heatmap["downtime heatmap"]
  events --> log["recent outages"]

The store is seven independent time-series tables (plus a key/value settings table), tuned for a constant writer with WAL + synchronous=NORMAL.

table	columns
`samples`	`ts` int · `target` text · `latency_ms` real · `success` int · `family` text
`dns`	`ts` int · `latency_ms` real (NULL when the lookup failed) · `success` int
`events`	`ts` int · `type` text (`up` \| `down`) · `duration_s` int
`pauses`	`ts` int · `duration_s` int - an unobserved span: paused, scheduled-off, or process-down
`pauses_quarantine`	`ts` int · `duration_s` int - pause rows held aside by clock repair, returned if the clock corrects
`speed`	`ts` int · `down_mbps` `up_mbps` `ping_ms` `jitter_ms` `packet_loss` real · `healthy` int · `server` text · `race_outcome` text (how the centre was chosen: `decided` \| `silent` \| `unanchored` \| `failed` \| `skipped` \| `bypassed_pin`) · `race_origins` text (every city that raced, with its fastest answer) · `race_winner_label` text · `race_winner_ms` real
`speed_servers`	`run_ts` int - joins `speed.ts`, one row per candidate in that run's server-selection report · `server_id` text · `rank_ping_ms` real · `score` real · `winner` int · `win_reason` text
`settings`	`key` text · `value` text - the key/value table, not a time series

Exit-node discovery traces toward 1.1.1.1, attributes each hop to an ASN, and finds the ISP boundary - then geolocates the two boundary hops. The trace is IPv4-only: on an IPv6-only host the Exit row shows as unavailable, and an exit-path target that doesn't resolve to an IPv4 address falls back to tracing the default 1.1.1.1 path (flagged in the UI).

flowchart TB
  refresh["netinfo refresh"] --> trace["ICMP traceroute → 1.1.1.1<br/>(native per OS: raw/ping socket on Linux,<br/>ICMP socket on macOS, IcmpSendEcho on Windows)"]
  trace --> asn["per-hop ASN<br/>(Team Cymru DNS, via your resolver;<br/>1.1.1.1 / 9.9.9.9 directly when it fails)"]
  asn --> boundary{"walk to the AS boundary"}
  boundary --> exit["exit router<br/>(last hop in the ISP)"]
  boundary --> handoff["handoff<br/>(first hop beyond)"]
  exit --> geo["geolocate: RIPE IPmap,<br/>then rDNS city fallback"]
  handoff --> geo
  refresh --> colo["Cloudflare PoP<br/>(/cdn-cgi/trace)"]
  geo --> panel["Connection panel · Exit"]
  colo --> panel

Every request passes the access guard before any handler runs, with two deliberate exceptions: the /healthz and /readyz probes are answered ahead of it, so a load balancer hitting a bare IP with no credentials still gets its verdict (they carry no data to protect). Everything else meets the DNS-rebinding Host check first, then the loopback filter (judged on the real TCP peer, never the spoofable X-Forwarded-For), then authentication - so a 403 on a public hostname is the rebinding guard talking, not the filter.

flowchart TB
  req["request"] --> hz{"/healthz<br/>or /readyz?"}
  hz -->|yes| handler["handler runs"]
  hz -->|no| rb{"Host header a<br/>public domain<br/>not in -allow-host?"}
  rb -->|yes| d403h["403 (rebinding guard)"]
  rb -->|no| lo{"network access off<br/>AND peer not loopback?"}
  lo -->|yes| d403["403"]
  lo -->|no| au{"login required<br/>AND path gated<br/>AND not authenticated?"}
  au -->|no| handler
  au -->|yes| d401["401 (+ log failed attempt)"]
  handler --> resp["response"]

Design notes

Quorum + debounce. Each round dials several independent anycast anchors and applies a majority rule, and a confirmed up/down flip needs down-after / up-after consecutive rounds - so one flapping anchor or a single dropped packet can't manufacture a false outage.
Address families are independent. IPv4 and IPv6 are each their own quorum; overall status is online when either is up, so an IPv6-only outage is recorded and shown without falsely reporting the whole link down. (IPv6 is skipped entirely on hosts without working IPv6.)
Uptime is real downtime, not a probe success rate. The 24h/7d figures are derived from the debounced outage events (so they match the heatmap and outage log), clamped to the period actually observed - not the fraction of individual probes that succeeded, which would dip whenever a single family flapped.
Self-contained on purpose. Pure-Go SQLite (no cgo) plus an embedded UI, web font, and favicon mean a single static binary with no runtime, no CDN, and no external database - install and run.
SQLite is tuned for a 24/7 writer. WAL + synchronous=NORMAL keep the constant probe-write load cheap, a small connection pool lets dashboard reads proceed without blocking the writer, and the expensive uptime aggregation is cached briefly so the 3-second status poll stays light.

Name		Name	Last commit message	Last commit date
.github		.github
docs		docs
internal		internal
packaging		packaging
.gitattributes		.gitattributes
.gitignore		.gitignore
.goreleaser.yaml		.goreleaser.yaml
Dockerfile		Dockerfile
Dockerfile.iperf		Dockerfile.iperf
LICENSE		LICENSE
README.md		README.md
RELEASING.md		RELEASING.md
SECURITY.md		SECURITY.md
THIRD-PARTY-NOTICES.md		THIRD-PARTY-NOTICES.md
autoorigins_test.go		autoorigins_test.go
birthmarker_creation_test.go		birthmarker_creation_test.go
challenge_wiring_test.go		challenge_wiring_test.go
cliparity_test.go		cliparity_test.go
container_healthz_test.go		container_healthz_test.go
container_startupline_test.go		container_startupline_test.go
defaults_test.go		defaults_test.go
degraded_dispatch_test.go		degraded_dispatch_test.go
deps_denylist_test.go		deps_denylist_test.go
dockerfiles_test.go		dockerfiles_test.go
docsfix_usagerow_test.go		docsfix_usagerow_test.go
failopen_container_access_test.go		failopen_container_access_test.go
failopen_lost_bornmarker_test.go		failopen_lost_bornmarker_test.go
failopen_no_access_migration_test.go		failopen_no_access_migration_test.go
firstrun_hold_test.go		firstrun_hold_test.go
firstrun_holdnotice_test.go		firstrun_holdnotice_test.go
firstrun_wiring_test.go		firstrun_wiring_test.go
go.mod		go.mod
go.sum		go.sum
ignored_opts_test.go		ignored_opts_test.go
incumbent_test.go		incumbent_test.go
iperfhint_container_test.go		iperfhint_container_test.go
licensing_shipping_test.go		licensing_shipping_test.go
main.go		main.go
main_control_blind_test.go		main_control_blind_test.go
main_control_test.go		main_control_test.go
main_prune_startup_test.go		main_prune_startup_test.go
main_prune_unloaded_test.go		main_prune_unloaded_test.go
main_reconnect_test.go		main_reconnect_test.go
main_status_launchd_test.go		main_status_launchd_test.go
main_test.go		main_test.go
metrics_readme_test.go		metrics_readme_test.go
nonloopback_hostcase_test.go		nonloopback_hostcase_test.go
notices_versions_test.go		notices_versions_test.go
priordata_accounting_test.go		priordata_accounting_test.go
quicksetup_hold_corrupt_rebuild_test.go		quicksetup_hold_corrupt_rebuild_test.go
quicksetup_hold_store_fault_test.go		quicksetup_hold_store_fault_test.go
quicksetup_prompt_test.go		quicksetup_prompt_test.go
releaseflow_draft_test.go		releaseflow_draft_test.go
releaseflow_promote_shell_test.go		releaseflow_promote_shell_test.go
releaseflow_promote_test.go		releaseflow_promote_test.go
releaseflow_recut_test.go		releaseflow_recut_test.go
releasing_channels_test.go		releasing_channels_test.go
resetauth_open_test.go		resetauth_open_test.go
retryload_access_test.go		retryload_access_test.go
savedcoord_wiring_test.go		savedcoord_wiring_test.go
seeds_test.go		seeds_test.go
series_counters_seeded_test.go		series_counters_seeded_test.go
shutdown_import_drain_test.go		shutdown_import_drain_test.go
sighup_other.go		sighup_other.go
sighup_unix.go		sighup_unix.go
smoke_test.go		smoke_test.go
svcopts_escape_test.go		svcopts_escape_test.go
svcopts_other.go		svcopts_other.go
svcopts_other_test.go		svcopts_other_test.go
svcopts_windows.go		svcopts_windows.go

Navigation Menu

Uh oh!

Repository files navigation

Pingularity

Contents

Quick start

Install

Linux

macOS

Windows

Docker

Updating

Run in the background (systemd / launchd / Windows service)

Architecture

Speedtests

iperf3 in a container

Scheduling and triggers

Choosing an Ookla server

Dashboard

Commands & flags

Metrics

HTTP API

How it works

Design notes

About

Releases

Packages

Contributors

Languages

Service	What it receives	When
anchors (`1.1.1.1`, `8.8.8.8`, `9.9.9.9` + v6)	a TCP handshake, no payload	every probe round
your own DNS resolver	one random throwaway lookup; and, for a LAN resolver only, one CHAOS `version.bind` query to name its software	every probe round (DNS line); the `version.bind` query on the refresh that first labels the resolver set, again if that set changes, and again on any refresh while a resolver in the set is still labelled by a bare address that is not private, link-local or loopback (its naming lookup came back empty), because that retry relabels the whole set
ipify	a "what's my IP" request	connection refresh
whoami.akamai.net (DNS)	a fixed lookup whose answer is your resolver's egress address, not yours	connection refresh
every router on the way to the exit target (`1.1.1.1` unless you change it)	one ICMP echo per hop, carrying nothing about you	exit discovery
Team Cymru (DNS)	your public IPv4/IPv6, your resolver's egress address, the resolver addresses your host is configured with, and every traceroute hop in public address space - to name the network each one belongs to; hops that are private, carrier-NAT (`100.64/10`), link-local or loopback are skipped	connection refresh + exit discovery
`1.1.1.1:53`, then `9.9.9.9:53` (direct DNS, the fallback for the row above)	the same Team Cymru query names, sent to that resolver directly rather than through yours	only after your own resolver fails one of those lookups (any error - a timeout, SERVFAIL, refused, unreachable - but not a "no such name" answer, which counts as answered) - then first for the following minute, your resolver last, until it answers again. The `netinfo.cymru_fallback` counter climbs once per lookup a public resolver answers, including every lookup during that minute
RIPE IPmap	the two boundary router IPs the traceroute settles on, and your resolver's egress address, for geolocation	connection refresh + exit discovery
ipwho.is, then geojs.io	your public IP, for the ISP/geo line	connection refresh
Cloudflare (`/cdn-cgi/trace`)	a plain fetch, to learn the serving PoP	connection refresh
one.one.one.one:443 (Cloudflare)	bare TCP handshakes, no payload - the fixed target the bufferbloat idle and loaded samples are measured against. Resolved through your own resolver, so it reaches whichever of `1.1.1.1`/`1.0.0.1` (or their v6 pair) that answer names	every speedtest that samples bufferbloat
reverse DNS	router/host IPs, for names	connection refresh
Ookla servers	the speedtest traffic itself, plus a server-list lookup and a small probe of each listed server's upload endpoint (remembered, so a repeat does not send it again); opening the Ookla tab can also cost one by-ID lookup and one name search first, to centre the list on the server your last automatic run used; for the picker's Auto button, the same selection a run performs - one list fetch per candidate city, a round of pings at every racer, then a round at the rest of the winning city's field (up to twelve), no transfer; for a server ID typed in Find, and for a saved pin the drawer has not yet checked this page load (at most twice per server), one by-ID lookup plus one small POST at that server's upload endpoint to learn whether it can still run a test, no transfer; and for the saved list's refresh button, one by-ID lookup, one endpoint probe and a round of pings at each kept server (up to twelve), no transfer	when a speedtest runs, when the Ookla settings tab is opened or a city is searched, when a server ID is typed in Find or a saved pin is first shown, on every Auto click, and on every refresh click in the saved list
your own iperf3 server (opt-in)	the test traffic itself - the TCP transfers, plus a short UDP pass for loss and jitter; or, for the status light in the settings drawer, one bare TCP handshake and nothing else	when an iperf3 speedtest runs, and when the drawer checks a saved server's status light - once per address while the drawer is open with iperf3 selected, plus whenever you click a server's light or change its address
nominatim.openstreetmap.org	the city text you type	only when you search a city for a server
update.pingularity.dev	a version-check fetch (no identifiers)	daily, if the update check is on (until the first check succeeds: retried at 1m/5m/15m, then hourly)
your alert webhook (opt-in)	the alert text and its fields, to the URL you set	on an outage, a speed-threshold breach, a digest, or the Send test button
your heartbeat URL (opt-in)	a bare `GET`, no body	every minute while monitoring is live

Uh oh!

Latest commit

History

Folders and files

Repository files navigation

Pingularity

Contents

Quick start

Install

Linux

macOS

Windows

Docker

Updating

Run in the background (systemd / launchd / Windows service)

Architecture

Speedtests

iperf3 in a container

Scheduling and triggers

Choosing an Ookla server

Dashboard

Commands & flags

Metrics

HTTP API

How it works

Design notes

About

Topics

Resources

Security policy

Stars

Watchers

Forks

Releases

Packages

Contributors

Languages
