bug: conditional tab visibility is submitted as document data

[jhb-dev]

Describe the Bug

When a tab has a function admin.condition, the admin's save request contains a stray root-level key such as "_index-2": {}. That key is not a configured field. Plain Payload drops it, so nothing visibly fails, but any beforeValidate hook or check that inspects data sees it.

Root cause:

1. sanitizeFields gives a tab with a function admin.condition and no id the id tab.id = tabSchemaPath. For a named tab extra in a tabs field that is the third root field, that is _index-2.extra.
2. addFieldStatePromise stores the tab's visibility as state[field.id] = { passesCondition }, without disableFormData: true. The tabs field and unnamed containers get that flag; this entry does not.
3. On submit, Form calls reduceFieldsToValues(fields, true). It includes every entry without disableFormData and unflattens the dotted keys, so _index-2.extra: undefined becomes { "_index-2": { extra: undefined } }, which serializes to "_index-2": {} in _payload.

Blocks: for a block defined in config.blocks (used via blockReferences), the block is sanitized on its own, so the tab id is relative to the block (_index-0.extra). It contains neither the blocks field's path nor the row index. The stray key "_index-0": {} then lands at the document root, not inside the row. For inline blocks the id is layout.section._index-0.extra, which also lacks the row index.

Second effect: since the id contains no row index, all rows of a block share one tab visibility entry. In the reproduction, checking "Show Extra" in the second row also shows the Extra tab in the first row.

Patching addFieldStatePromise to state[field.id] = { disableFormData: true, passesCondition } makes both tests pass. Suggested fix: mark tab visibility entries disableFormData: true, or keep them out of form data entirely. Separately, build conditional tab ids from the row's data path so rows don't share a visibility entry.

Link to the code that reproduces this issue

https://github.com/jhb-software/payload-issue-reproductions/tree/main/conditional-tab-visibility-submitted-as-data/

Reproduction Steps

1. Clone this repo and open the conditional-tab-visibility-submitted-as-data/ directory
2. pnpm install && cp .env.example .env
3. pnpm test:int: the test builds form state with fieldSchemasToFormState and reduces it with reduceFieldsToValues(state, true) like Form does on submit, and fails
4. pnpm dev and log in at http://localhost:3000/admin as dev@example.com / test
5. Create a page, enter a title and click Save. The pages collection has a beforeValidate hook that throws on _index-* keys
6. Expected: the page is saved and data holds only configured fields. Actual: "Something went wrong", the server logs Unknown keys in data: _index-2, and the request's _payload is {"title":"Hello","layout":0,"_index-2":{}}
7. Block variant: add two Section rows to Layout and check Show Extra in the second row only. Both rows show the Extra tab, and saving fails with Unknown keys in data: _index-2, _index-0

Test output:

FAIL  tests/int.spec.ts > conditional tab visibility in submitted data > does not submit a root-level tab visibility entry
AssertionError: expected [ '_index-2' ] to deeply equal []

FAIL  tests/int.spec.ts > conditional tab visibility in submitted data > does not submit a root-level entry for a conditional tab inside a block
AssertionError: expected [ '_index-2', '_index-0' ] to deeply equal []

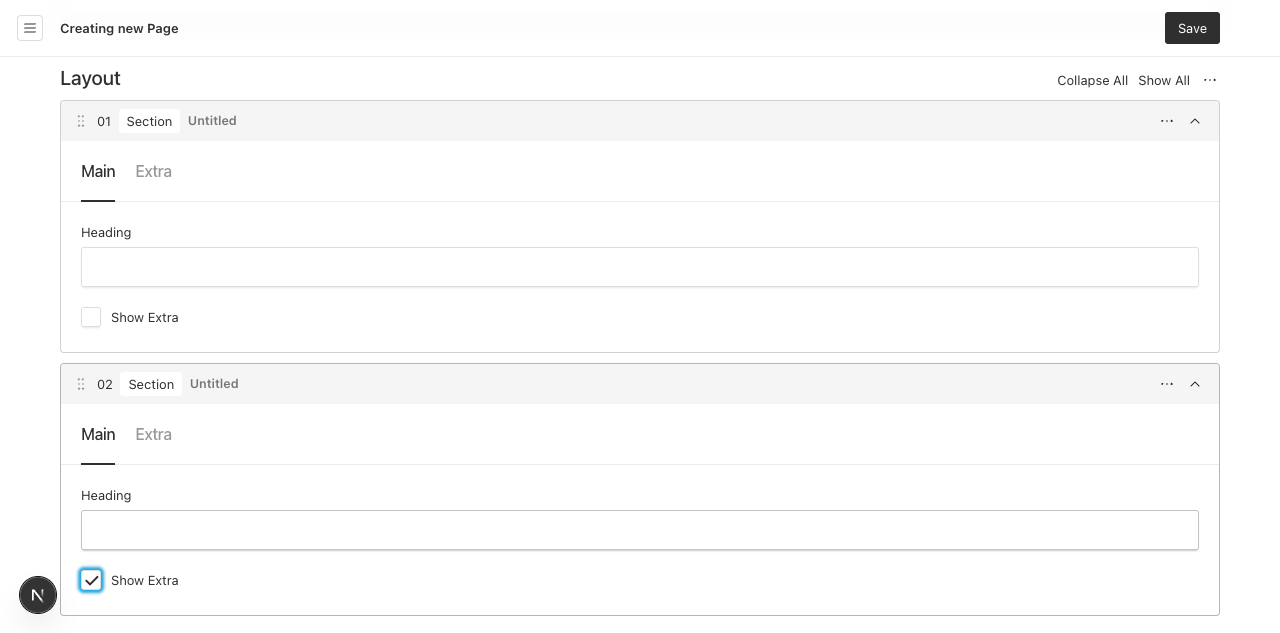

Only the second row has "Show Extra" checked, but both rows show the Extra tab:

Which area(s) are affected?

area: ui

Environment Info

Binaries:
  Node: 22.19.0
  npm: 10.9.3
  Yarn: N/A
  pnpm: 11.5.1
Relevant Packages:
  payload: 3.90.2
  next: 16.3.8
  @payloadcms/db-sqlite: 3.90.2
  @payloadcms/drizzle: 3.90.2
  @payloadcms/graphql: 3.90.2
  @payloadcms/next/utilities: 3.90.2
  @payloadcms/translations: 3.90.2
  @payloadcms/ui/shared: 3.90.2
  react: 19.3.0
  react-dom: 19.3.0
Operating System:
  Platform: darwin
  Arch: arm64

[krishnendu-2003]

Opened #18463 for the stray _index-* key (disableFormData on the tab visibility entry, with int tests for root and referenced-block tabs). The shared-visibility-across-rows part is left for a follow-up.
