Zhewen He1 Junyi Hu1 Haomian Huang1 Zhenhua Li1,2 Yu-Shen Liu3 Yi Fang1,2
1New York University Abu Dhabi 2ChatSign Technology 3Tsinghua University

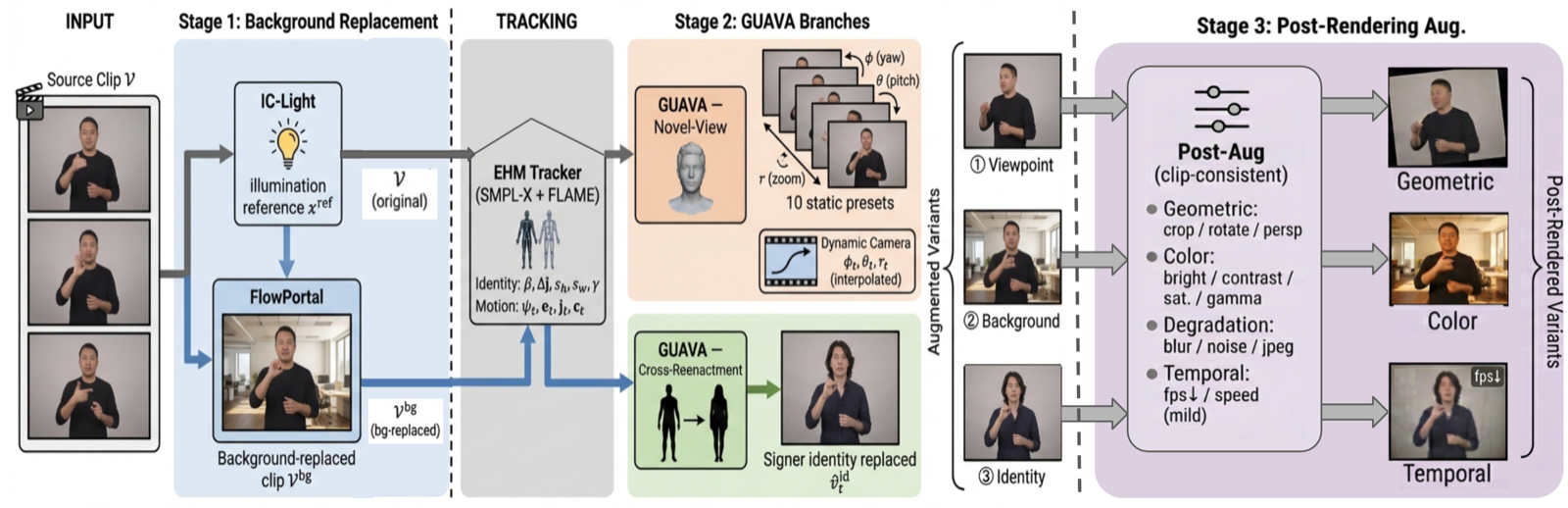

SignNet-1M is a ~1M-clip augmented sign language corpus spanning ASL, CSL and DGS, built by re-rendering seven source corpora along three axes — novel viewpoint (3DGS), background and signer identity (diffusion), and post-rendering capture artifacts — paired with a robustness benchmark that measures how far models fall under each shift and how much of the gap augmented training recovers.
This repository is the reference implementation of that augmentation pipeline — camera schedules, render orchestration, deterministic post-rendering transforms, metadata and validation. It does not contain the videos.
Available to download today: the How2Sign 10× viewpoint subset — 350,530 clips, 134 GiB, ten difficulty levels with per-clip render parameters and checksums. See Dataset.
Abstract
Sign language models are typically trained on datasets captured under constrained conditions, with limited viewpoint, background, and signer-identity diversity, leading to poor robustness under real-world distribution shifts. We introduce SignNet-1M, a large-scale augmented dataset spanning ASL, CSL, and German Sign Language (DGS). SignNet-1M synthesizes realistic variations along three axes: (i) novel-view rendering (rotation and zoom) via 3D Gaussian Splatting (3DGS), (ii) scene/identity editing via diffusion models for background replacement and signer substitution while preserving sign motion and linguistic content, and (iii) post-rendering augmentations that emulate capture and compression artifacts (e.g., geometric transforms, photometric shifts, mild temporal resampling, and compression) to better match in-the-wild recordings. Beyond data release, we provide a unified benchmark suite across downstream tasks (e.g., translation and recognition) and ablations that isolate each augmentation component. Experiments across backbones show that training with SignNet-1M consistently improves generalization under cross-view, cross-background, cross-identity, and post-rendering shifts, while maintaining strong in-distribution performance. The dataset, released augmentation components, metadata, and benchmark resources are available at https://signnet.chatsign.ai/.
- 2026-08-24 — How2Sign 10× viewpoint subset released: 350,530 clips across ten difficulty levels, with per-clip render parameters and SHA-256 checksums.
- 2026-06 — Demo samples (viewpoint and identity-swap renders for How2Sign, Phoenix14T, CSL-Daily) on Google Drive, and this reference code released.
- 2026-06 — SignNet-1M accepted to ECCV 2026.
- Next: Phoenix14T (DGS) and CSL-Daily subsets (2026.09) → full release with generation, translation and evaluation code (2026.10).
The dataset is released subset by subset on Google Drive, not all at once. This table is the authoritative map from the paper's corpora to what you can actually download.
| Source corpus | Lang | Source clips | Hours | Signers | Augmented clips released | Status | Download |
|---|---|---|---|---|---|---|---|
| How2Sign | ASL | 35.00K | 80 | 11 | 350,530 (35,053 × 10 levels) | Released 2026-08-24 | Drive · 134 GiB |
| Phoenix14T | DGS | 8.26K | 11 | 9 | — | Planned 2026.09 | demo samples |
| CSL-Daily | CSL | 20.65K | 23 | ~10 | — | Planned 2026.09 | demo samples |
| OpenASL | ASL | 98.42K | 288 | ~220 | — | Planned 2026.10 | — |
| YouTube-ASL | ASL | 610.19K | 984 | ~2.5K | — | Planned 2026.10 | — |
| CSL-News | CSL | 751.32K | 1,985 | ~20 | — | Planned 2026.10 | — |
| ASL50K | ASL | — | — | — | — | Not redistributable | — |
| SignNet-1M (total) | ASL/CSL/DGS | — | 2,058 | ~10K | ~1M planned | How2Sign live | Drive root |
The corpus rows are the source candidate pool, and SignNet-1M is a curated subsample of it — that is why the rows sum past SignNet-1M's own totals. ASL50K is the seventh corpus counted in the paper; it is commercially licensed, so it carries no statistics here and its renders are not redistributable. The ~10K signer count includes synthetic identities produced by cross-identity reenactment.
Language composition: ASL 70% (~700K clips) · CSL 20% (~200K) · DGS 10% (~100K). Mean clip length 7.41 s. Splits are 8:1:1 at the source-clip level, so every augmented variant of a clip lands in the same split — do not re-split at the clip-variant level or you will leak.
sign-1m-data/ # Drive root
├── demo/
│ ├── viewpoint-aug/ # how2sign · phoenix · csl-daily
│ └── identity-swap-aug/ # how2sign · phoenix · csl-daily
└── released/
└── h2s/ # How2Sign 10x viewpoint augmentation
├── level01.zip … level10.zip # 134 GiB total, 13–15 GiB each
├── params.tar.gz # 26 MB, per-clip render parameters
├── SHA256SUMS
└── README.md
350,530 mp4 = all 35,053 renderable How2Sign clips × 10 avatars / view-difficulty levels, 512×512 H.264, each clip keeping its source frame rate and frame count. Levels are independent — download only the ones you need; extracting several into one directory reconstructs the tree.
sha256sum -c SHA256SUMS # verify before unzipping
unzip level01.zip -d h2s/ # path never collides across levelsPath inside every zip, where <stem> is the How2Sign clip id:
level{01..10}/<stem>/render_fixed_viewpoint/<stem>/<stem>_fixed_viewpoint_video.mp4
The mp4 are stored uncompressed (zip -0) on purpose, so a clip can be read straight out of the
zip without extracting anything — keep one handle per worker:
import zipfile
class H2SLevel(torch.utils.data.Dataset):
def __init__(self, zip_path, stems, level="level05"):
self.zip_path, self.stems, self.level, self._zf = zip_path, stems, level, None
def __getitem__(self, i):
if self._zf is None: # open lazily, once per worker
self._zf = zipfile.ZipFile(self.zip_path)
stem = self.stems[i]
name = f"{self.level}/{stem}/render_fixed_viewpoint/{stem}/{stem}_fixed_viewpoint_video.mp4"
return self._zf.read(name) # raw mp4 bytes, decode as you likeFull field reference, the per-level difficulty ladder, filtering recipes and every known caveat live in docs/DATASET.md.
git clone https://github.com/openhe-hub/SignNet-1M.git
cd SignNet-1M
pip install -e . # Python 3.10+; pulls numpy, opencv-python, pyyaml, tqdmThe render step additionally needs a 3DGS avatar backend, which is not shipped here: it must be
able to load a tracked clip and render a frame from a camera packet. Place it outside this
repository and point the CLI at an adapter module exposing create_backend(model_path, device),
satisfying the SignNetRenderBackend protocol in
signnet/augmentation/render_pipeline.py. The paper used
GUAVA with EHM-Tracker
SMPL-X/FLAME tracking.
A clip manifest in JSONL, one object per line:
{"clip_id": "clip_000001", "tracked_dir": "/path/to/tracked/clip_000001"}
{"clip_id": "clip_000002", "tracked_dir": "/path/to/tracked/clip_000002", "source_identity_dir": "/path/to/source_identity"}source_identity_dir is required only for cross-identity jobs; rows without it are skipped for that
mode.
python scripts/plan_augmentation.py \
--manifest data/manifests/train.jsonl \
--config configs/signnet_augmentation.yaml \
--output outputs/signnet_jobs.jsonl \
--modes fixed_viewpoint dynamic_viewpoint cross_identity # default: all threeFor each clip and level the planner draws yaw / pitch / zoom uniformly from that level's envelope,
seeded by (seed, clip_id, level) — the same manifest and config always expand to the same jobs,
and the draw is recorded in the job row. Planned outputs follow the released layout:
level01/<clip_id>/render_fixed_viewpoint/<clip_id>/<clip_id>_fixed_viewpoint_video.mp4
<clip_id>/render_dynamic_viewpoint/<clip_id>/<clip_id>_dynamic_viewpoint_video.mp4
<clip_id>/render_cross_identity/<clip_id>/<clip_id>_cross_identity_video.mp4
python scripts/run_render_backend.py \
--jobs outputs/signnet_jobs.jsonl \
--backend-module my_backend.signnet_adapter \
--model-path /path/to/avatar/model \
--output-root outputs/rendered \
--metadata outputs/rendered/render_metadata.jsonl \ # optional
--device cuda:0 # default cuda:0python scripts/run_post_rendering.py \
--input-root outputs/rendered \
--output-root outputs/post_rendered \
--num-tasks 8 --task-id 0 \
--mode spatial_color \ # or: temporal
--seed 42Shards are sorted(videos)[task_id::num_tasks]. Run every --task-id from 0 to --num-tasks - 1,
and set LC_ALL=C for all of them — about 6.5% of How2Sign stems begin with -, and a locale
that sorts them differently silently changes shard membership. Keep --output-root outside
--input-root, or a second run will re-ingest its own outputs.
python signnet/evaluation/check_release_metadata.py \
--metadata outputs/rendered/render_metadata.jsonl \
--kind render \ # or: post
--check-files # also assert every referenced video existsExits 2 on missing required fields, 3 on missing files.
| Axis | Mode | What it does | Determinism |
|---|---|---|---|
| Novel view — static | fixed_viewpoint |
10-level yaw / pitch / zoom ladder, a real 3D camera move on the tracked pose | seeded by (seed, clip_id, level) |
| Novel view — dynamic | dynamic_viewpoint |
sinusoidal camera orbit across the clip | fixed by config |
| Identity | cross_identity |
source signer appearance driven by target motion | fixed by config |
| Post-rendering | spatial_color |
25 geometric + photometric transforms (ids 0–24) | md5(f"{seed}:post:{video_name}") |
| Post-rendering | temporal |
7 speed / subsample transforms | md5(f"{seed}:temporal:{video_name}") |
| Background | — | diffusion scene editing (FlowPortal + IC-Light) | not in this repo — planned release |
The fixed_viewpoint ladder in configs/signnet_augmentation.yaml
is the one used for the public How2Sign release; its envelope was recovered from the released
params/ and is documented per level in docs/DATASET.md.
SignNet-1M/
├── assets/teaser.png
├── configs/
│ └── signnet_augmentation.yaml # augmentation axes; the released 10-level ladder
├── docs/
│ └── DATASET.md # dataset spec, params reference, caveats, licenses
├── scripts/
│ ├── plan_augmentation.py # manifest -> planned jobs
│ ├── run_render_backend.py # drive a 3DGS avatar backend over the jobs
│ └── run_post_rendering.py # deterministic post-rendering transforms
└── signnet/
├── augmentation/
│ ├── camera.py # fixed and dynamic camera pose schedules
│ ├── post_rendering.py # OpenCV transforms + deterministic selection
│ ├── render_pipeline.py # backend protocol and render orchestration
│ └── metadata.py # JSONL helpers
└── evaluation/
└── check_release_metadata.py # validate generated metadata tables
In this repository: camera schedules, render orchestration, the released difficulty ladder, deterministic post-rendering augmentations, metadata writing and validation.
Not in this repository: the 3DGS avatar backend internals and weights, SMPL-X/FLAME tracking assets, background-editing models, and the source corpus videos — none are ours to redistribute.
Consequently this repo reproduces the augmentation of the paper given tracked clips and a compatible backend; it does not by itself reproduce the benchmark tables, which additionally require the source corpora, the tracking stage and the downstream model training code (planned for the 2026.10 release). Generating the full ~1M-clip dataset cost roughly 12K GPU-hours.
- 6 of 35,059 How2Sign clips are absent by design — their SMPL-X packs contain NaN and fail deterministically at every level. Ids are listed in docs/DATASET.md.
- ~6.5% of How2Sign stems begin with
-— pass them as--flag=value, guard withcp --, and setLC_ALL=Cwhenever you sort or shard over them. edge_hit_framesis recorded but not filtered — 2.9% of released rows have the signer touching the frame border; filter fromparams/if it matters to you.- Very short clips are not filtered — How2Sign sentence segmentation produces clips as short as
5 frames; filter on
n_frames. - Picture quality was reviewed on a sample, not exhaustively (29 clips of 350,530).
- Post-rendering writes with the
mp4vfourcc, so its outputs are not bit-comparable to the H.264 release renders.
@inproceedings{he2026signnet1m,
title = {SignNet-1M: Large-Scale Multilingual Sign Language Video
Dataset with Downstream Benchmarks},
author = {He, Zhewen and Hu, Junyi and Huang, Haomian and Li, Zhenhua
and Liu, Yu-Shen and Fang, Yi},
booktitle = {European Conference on Computer Vision (ECCV)},
year = {2026}
}If you use an augmented subset, please also cite the source corpus it derives from — BibTeX for all of them is in docs/DATASET.md.
- Code in this repository: MIT.
- Augmented data on Google Drive: CC BY-NC 4.0.
The source corpora keep their own terms, and those terms govern. The augmented clips are derivative works: obtaining them from us does not grant you rights to the underlying corpus, and several corpora require a separate signed agreement before you may use even the originals. Per-corpus licenses and access procedures are tabulated in docs/DATASET.md. Where a corpus is more restrictive than CC BY-NC 4.0, the corpus wins.
SignNet-1M is released for non-commercial research on sign language understanding and on robustness to viewpoint, background and identity shift. The renders contain synthetic signer identities: an avatar in a clip is not a real person signing that content, and the clips must not be used to impersonate any signer, to claim a real person produced an utterance, or to attempt re-identification of signers in the source corpora. Augmented data inherits the demographic and domain skew of its sources — the corpus is 70% ASL, hours are dominated by CSL-News, and several corpora have very few signers — so gains measured here do not automatically transfer to under-represented signing populations.
We thank the authors of How2Sign, OpenASL, YouTube-ASL, Phoenix14T, CSL-Daily and CSL-News for releasing the source corpora, and the authors of GUAVA, EHM-Tracker, SMPL-X, FlowPortal and IC-Light, on which the pipeline builds.
This work was partially supported by ChatSign Technology, Ltd., the NYUAD Center for Interdisciplinary Data Science & AI (CIDSAI), funded by Tamkeen under the NYUAD Research Institute Award CG016, and the NYUAD Center for Interacting Urban Networks (CITIES), funded by Tamkeen under the NYUAD Research Institute Award CG001.
Questions about the code or the data: open an issue, or email zh3510@nyu.edu / yf23@nyu.edu.
