[Luc-nbr]

What changes for the player?

Options › Interface has a new row, "Theme pack". A mod or a plugin can bring a theme that gives the game's own screens a look of their own:

• the colours of the pause menu, its settings windows and lists, the photo mode, the developer tools and the plugins' panels and notifications;
• the rail and the panels as frosted glass over the game's picture. Buttons and action cards stay solid, so they still read as controls;
• the logo at the top of the pause menu: an icon with a name, or a wordmark across the rail;
• the loading screen's colours and logo. The logo can itself be the loading bar: a ring or a line in it is drawn along as the map loads, and parts of it pop up (or flash) as the loading reaches them.

The choice is kept for the next start. openOMSI's own look is the first entry and the default; without a theme, nothing changes (see the before/after screenshots).

How to test

Make a folder Themes/Night/ in the game folder or the content folder with this theme.json:

{
  "name": "Night",
  "colors": { "accent": "#2a75f7", "background": "#0a142e", "surface": "#141a26", "ink": "#e8ebf2" },
  "radius": 12,
  "glass": true,
  "loading": { "logo": "logo.svg", "progress": "stroke" },
  "logo": "logo.svg"
}

and this logo.svg beside it:

<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 400 200">
  <path id="progress" d="M100 20 A80 80 0 1 0 180 100 L380 100" fill="none" stroke="#2a75f7" stroke-width="16" stroke-linecap="round"/>
  <rect id="box" data-at="0.3" x="70" y="70" width="60" height="60" rx="8" fill="#eef1f5"/>
  <circle id="lamp" data-at="0.3" data-delay="0.4" data-blink="" cx="100" cy="100" r="14" fill="#ffd54a"/>
  <circle id="stop" data-at="0.8" cx="330" cy="100" r="22" fill="#ffffff"/>
</svg>

1. Start the game (any map and bus), press Esc and go to Options › Interface › Theme pack. The list has "openOMSI" and "Night". Choose "Night".
2. Press Esc. The rail is a rounded pane of frosted glass over the picture, inset from the window's edges, with the logo across its top (it is twice as wide as high, so it is drawn as a wordmark) and "openOMSI " under it. Resume is blue; End the session and the driver's chip are solid. With no category chosen, the picture beside the rail is only a little dimmed.
3. Choose a category: the picture behind the page is blurred under the navy background, and the action cards are solid navy with a thin light edge. Open Options: the settings panels are glass, and their switches, sliders and drop-downs are solid.
4. Leave the session and start another map. The loading screen is navy, and the logo's ring and line are drawn along as the map loads, over a faint track of the whole path. At 30 % the box pops up, and the lamp flashes twice a moment later. At 80 % the stop pops up. The percentage and the tips are still at the bottom, but there is no striped bar.
5. Host a LAN game, which does not pause, and open the menu: the glass shows the moving picture.
6. Choose "openOMSI" again and restart: the game looks as before.
7. Break theme.json (e.g. "radius": 80) and start the game: game.log says interface theme "Night": radius: 0 to 24 is expected - openOMSI's own look, and the game looks as before.

For a plugin: a theme.json in plugins/<name>/ makes a theme of that name, and omsi.ui.set_theme("<name>") switches to it (omsi.ui.themes() lists them, omsi.ui.theme() says which one is in force).

Tried in the game on Windows 11 with an RTX 4070 SUPER (DX12): the release build of this branch and of main (8119ca6), Berlin-Spandau with the MAN SD200 and 30 AI vehicles, 1600 × 900. Each run had a fresh HOME and OMSI_CONTENT. The Omsi-Hub theme was the test theme (glass, the logo as the loading bar, a wordmark), and the screens were driven by OMSI_INPUT (key Escape, key Right, menu options). Switching and restarting, checked in three runs:

• a plugin's ui.set_theme("omsihub") saves ui_theme=omsihub;
• after a restart the theme is in force before the loading screen, and switching back with ui.set_theme("") saves ui_theme=openomsi;
• after the next restart the game is in openOMSI's own look (last screenshot).

(These runs were made before the key was renamed for #3309: the setting was then ui_theme, now ui_theme_pack; nothing else in that path changed.)

Doing that found and fixed three things: the window, made before the renderer, could not be copied from, so the glass was not blurred; the glass cost too much when it was taken every frame (see Performance); and a loading logo whose view box does not start at 0 popped its marks in a little off their place.

Automated:

• cargo test -p omsi-ui: palette fallbacks, hex colours, per-thread palettes; a path's length, a logo drawn along it, its marks popping up and flashing, also with a moved view box.
• cargo test -p omsi-plugin and cargo test -p omsi-plugin-ui: a plugin asks for a theme the game has, and the API manifest.
• cargo test -p omsi-app: a theme file read whole, a wrong one saying why and nothing read outside its folder, themes found in Themes and plugins with the first id winning, the setting's values, the translated row.
• cargo test -p omsi-render and cargo test -p omsi-launcher-core settings.

Screenshots

In the game, Berlin-Spandau, 1600 × 900. Left main, middle this branch with openOMSI's own look (the same as main), right this branch with the Omsi-Hub theme.

	main	this branch, openOMSI's look	this branch, Omsi-Hub theme

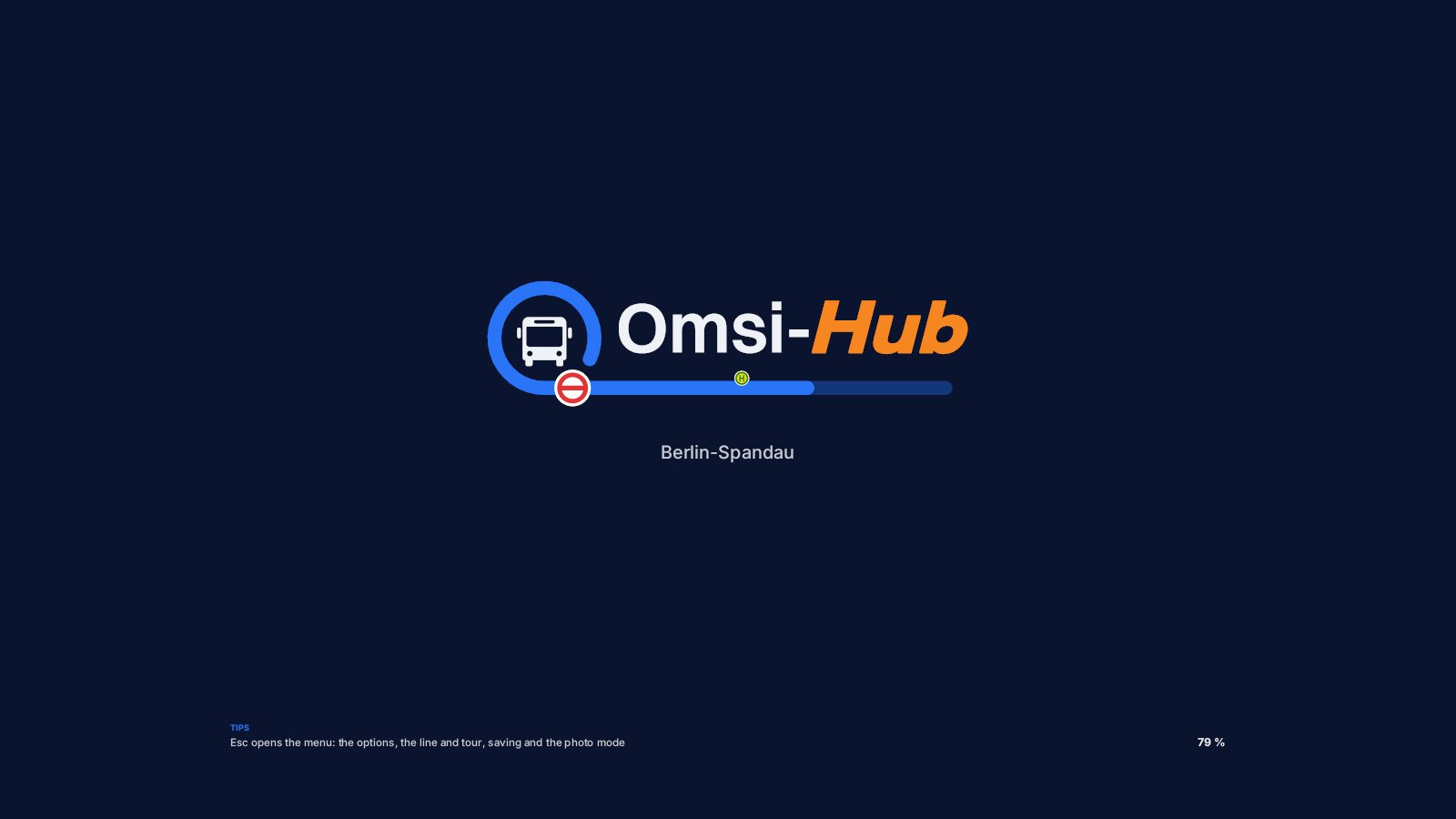

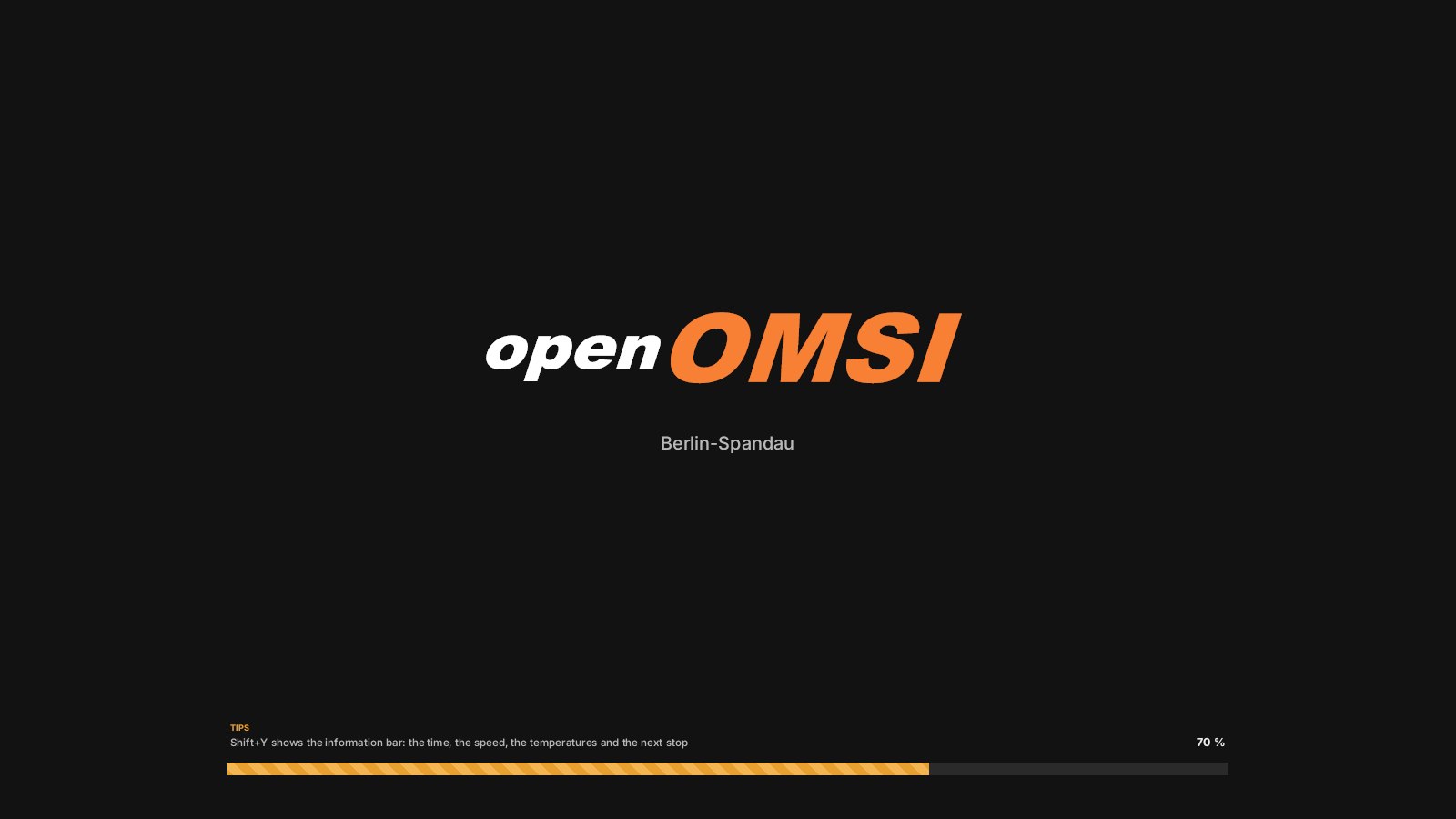

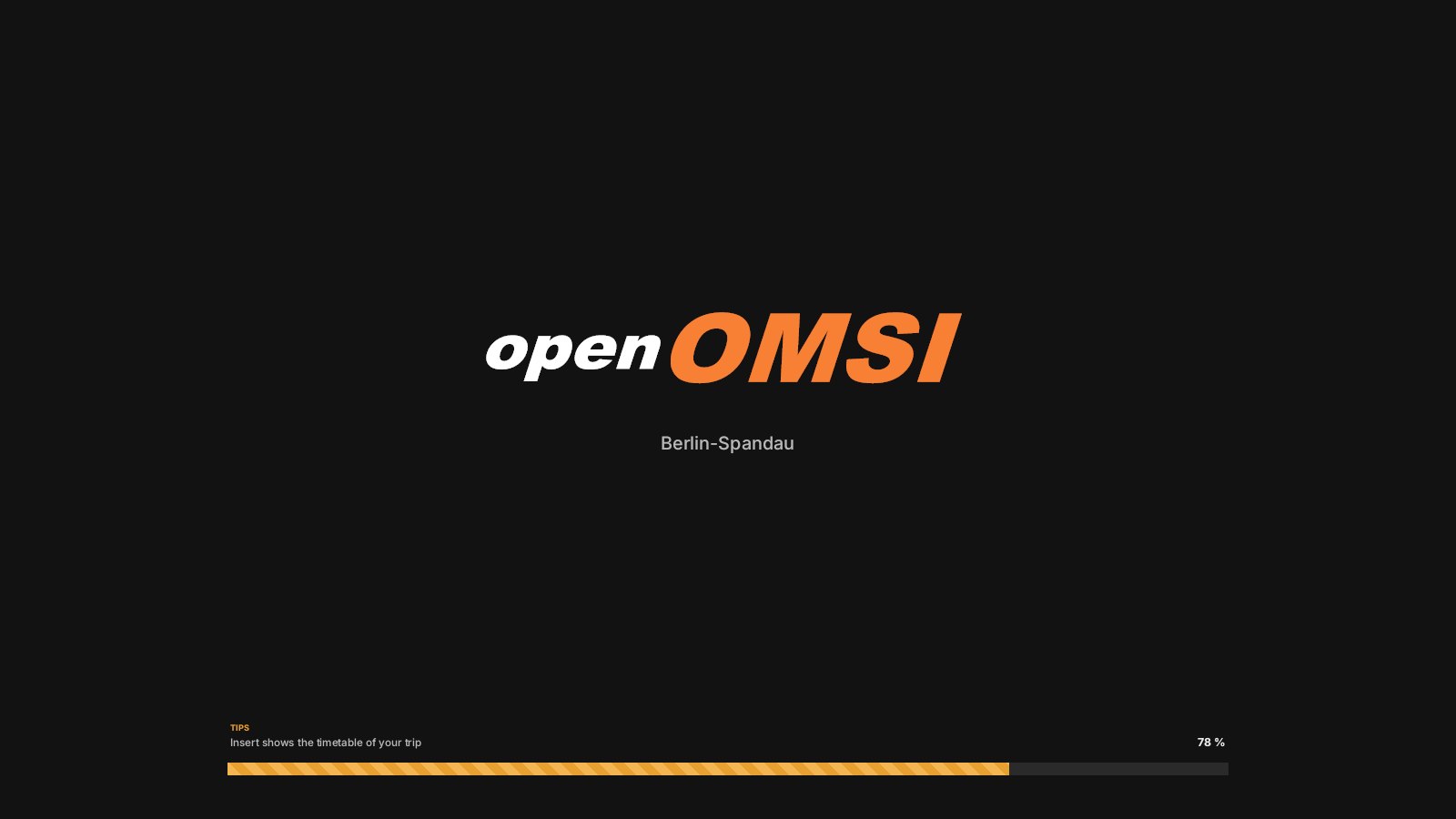

Loading

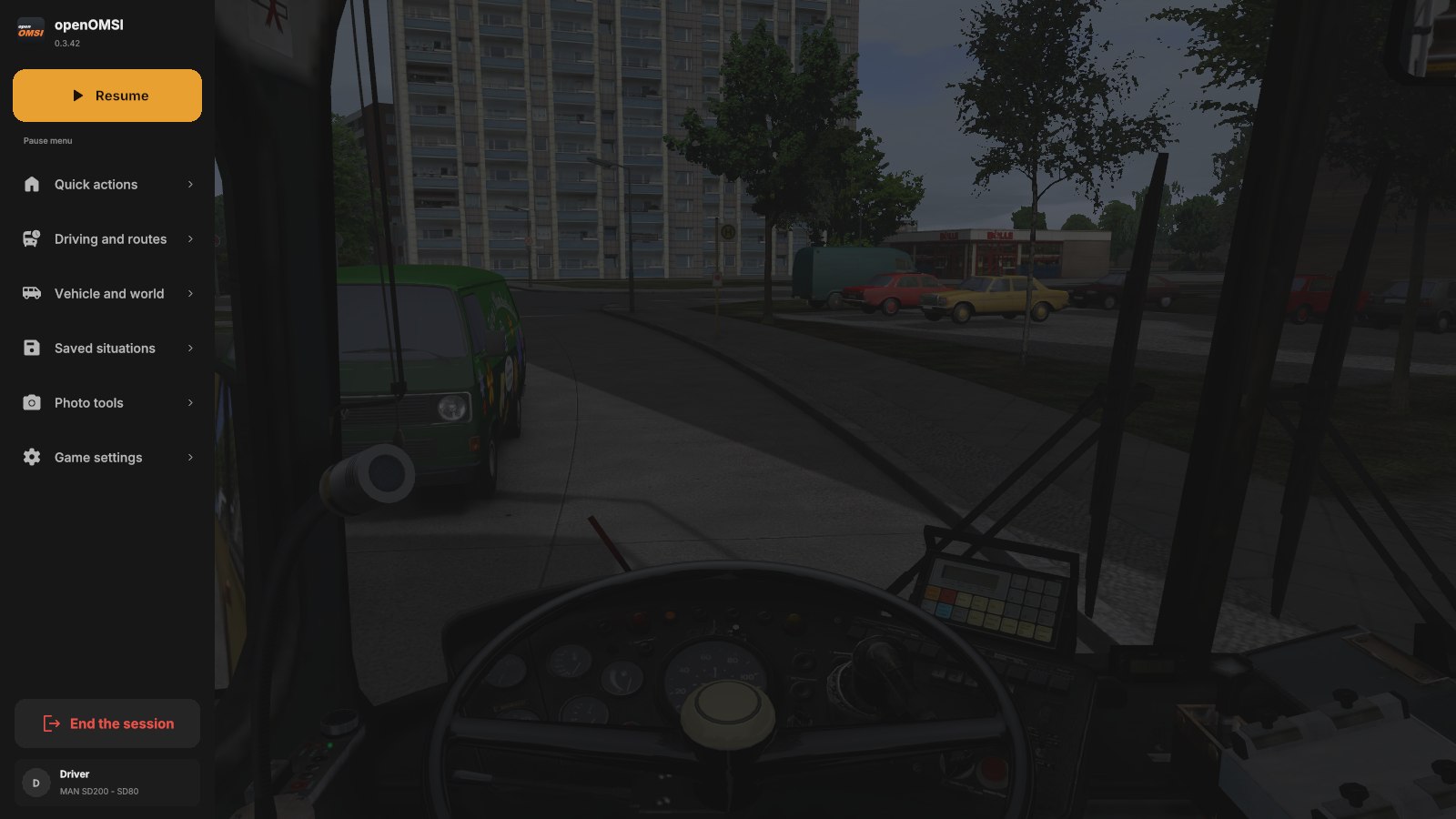

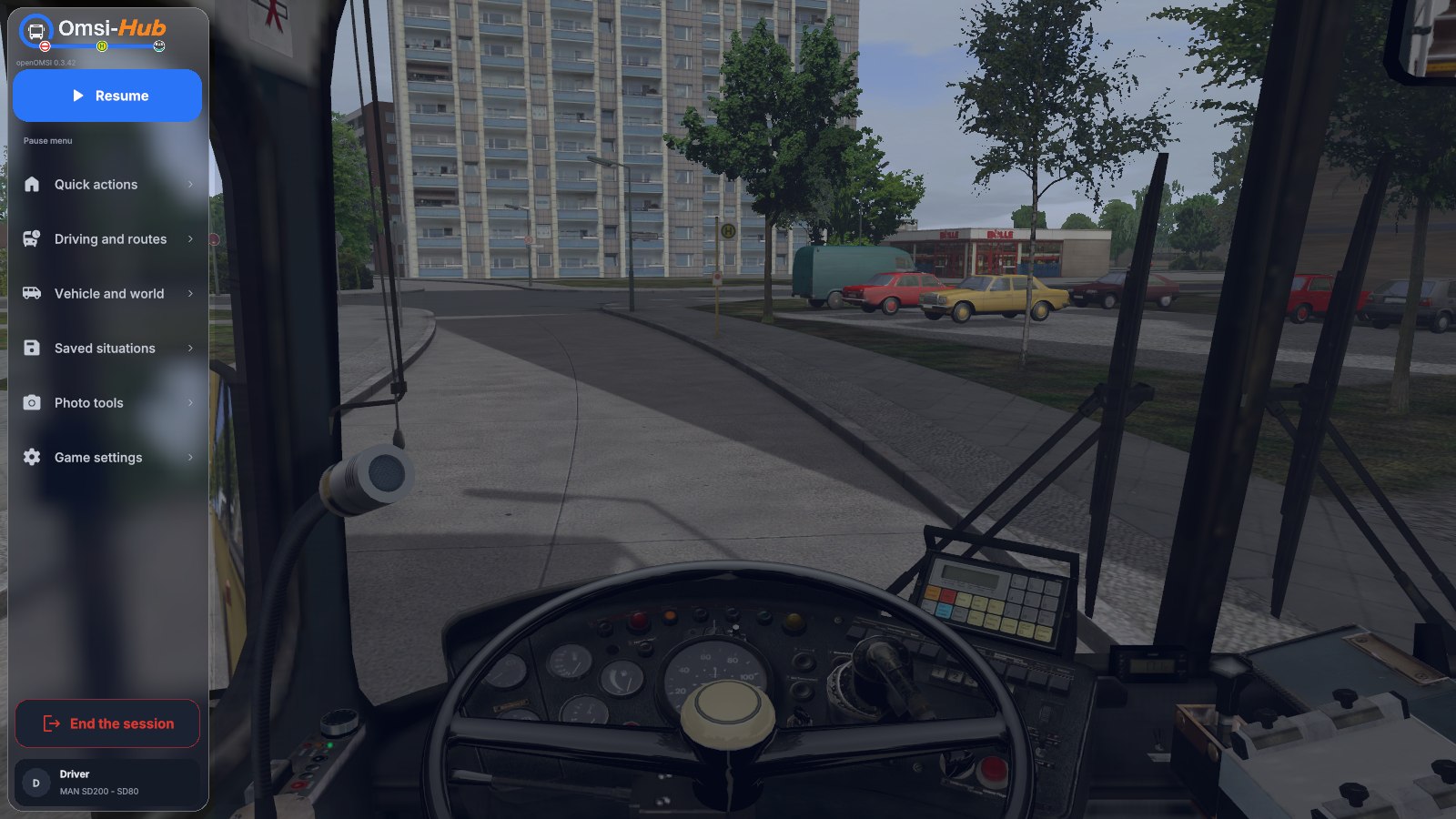

Pause menu

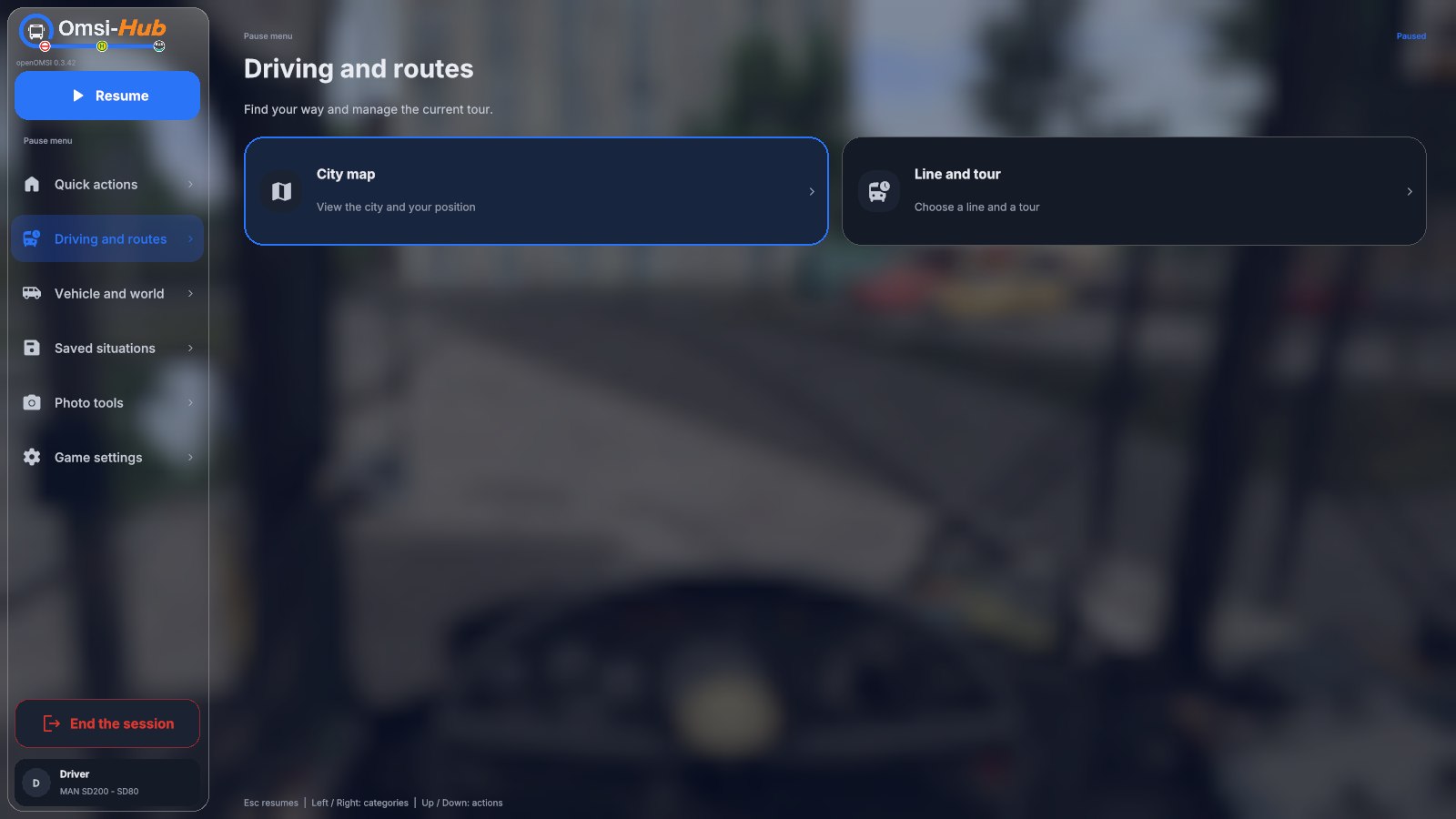

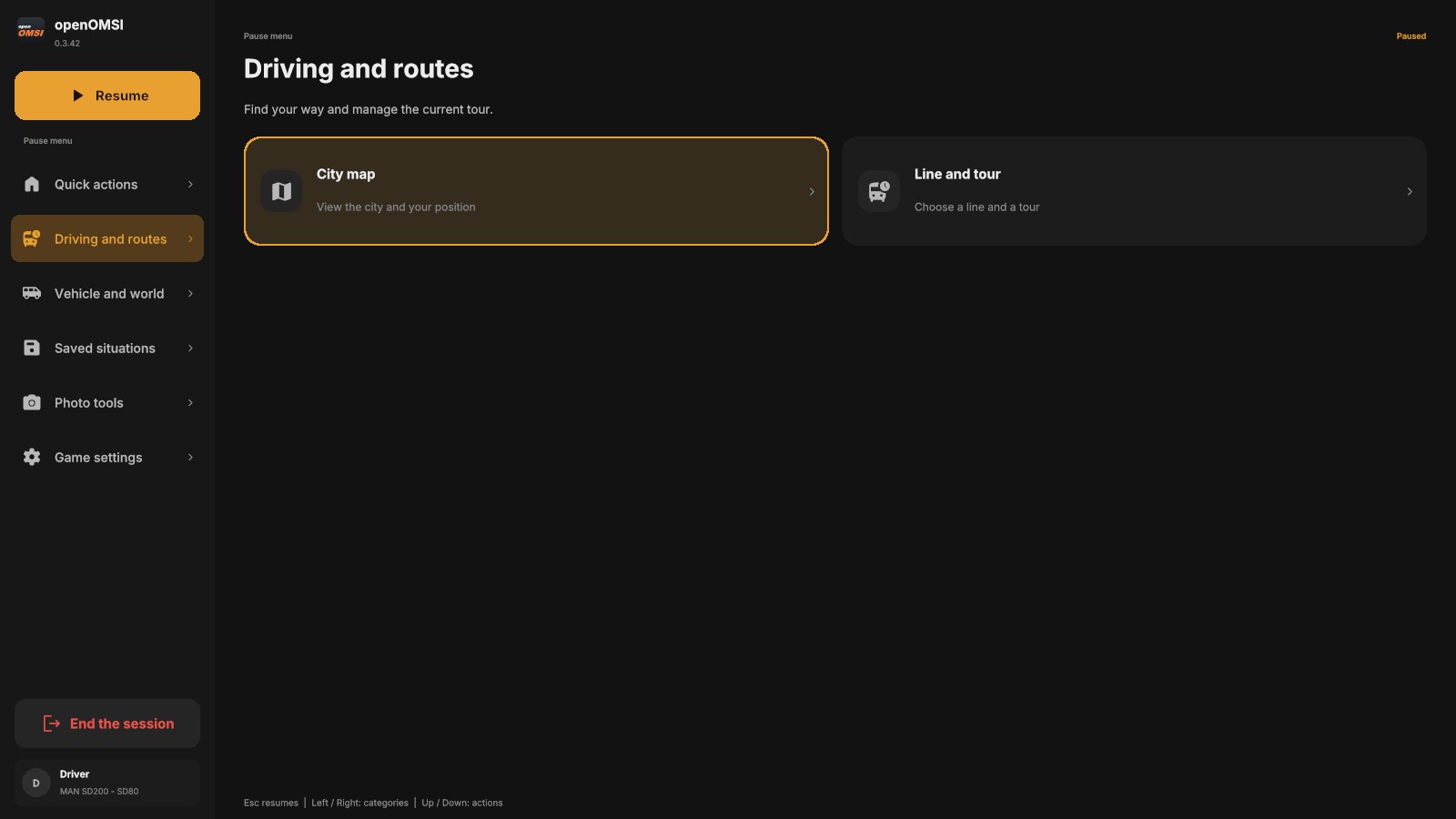

A category

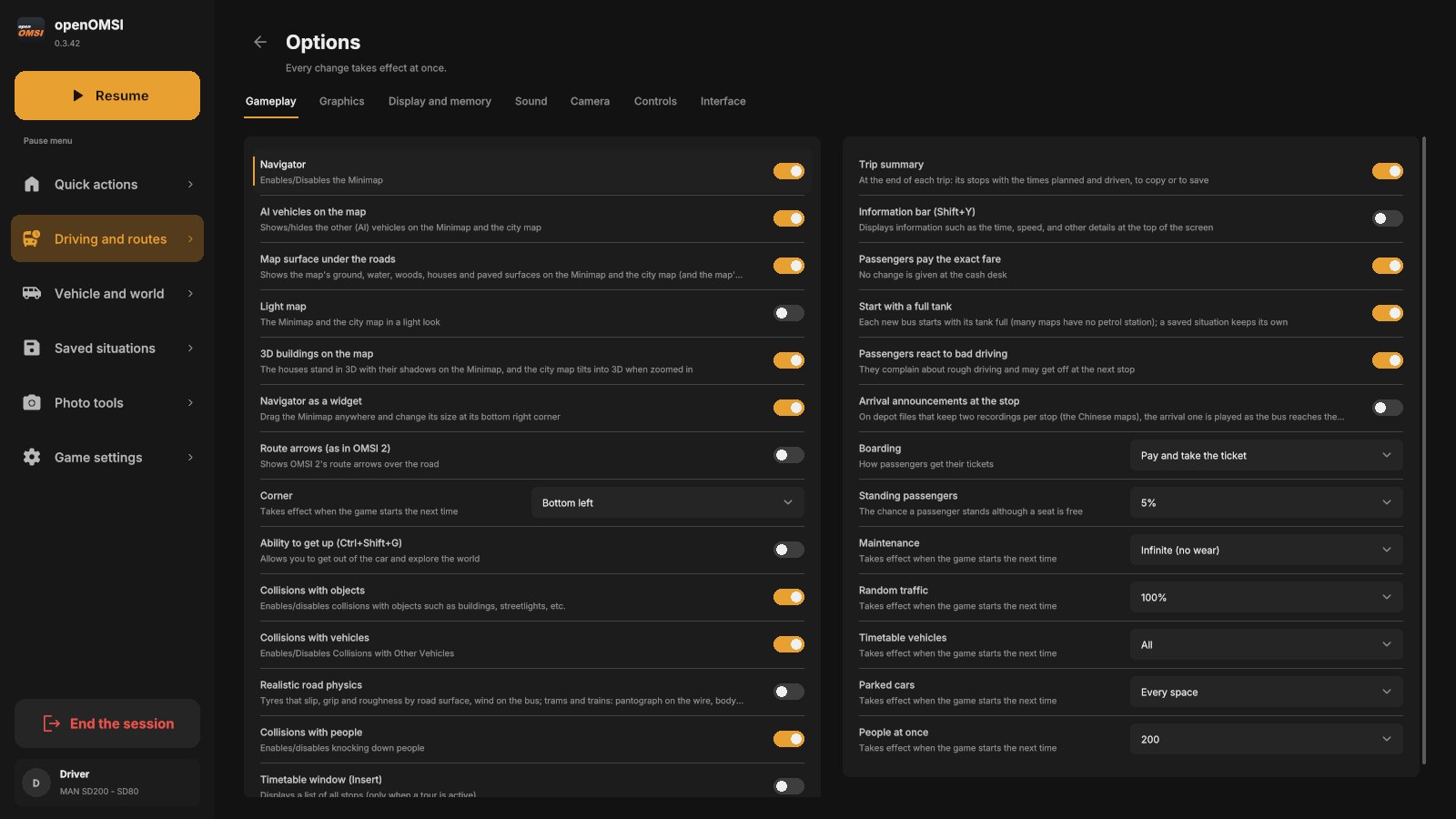

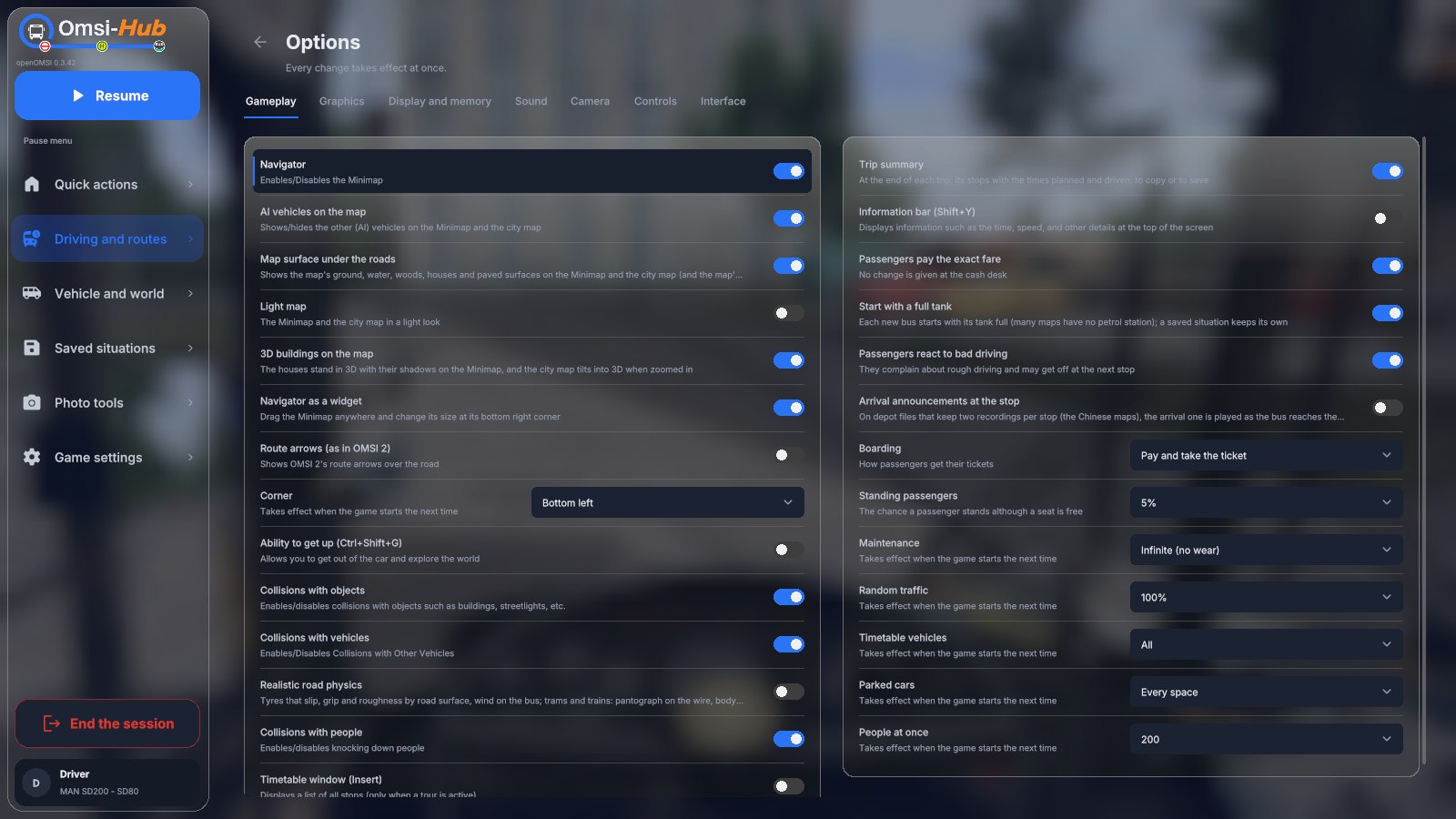

Options

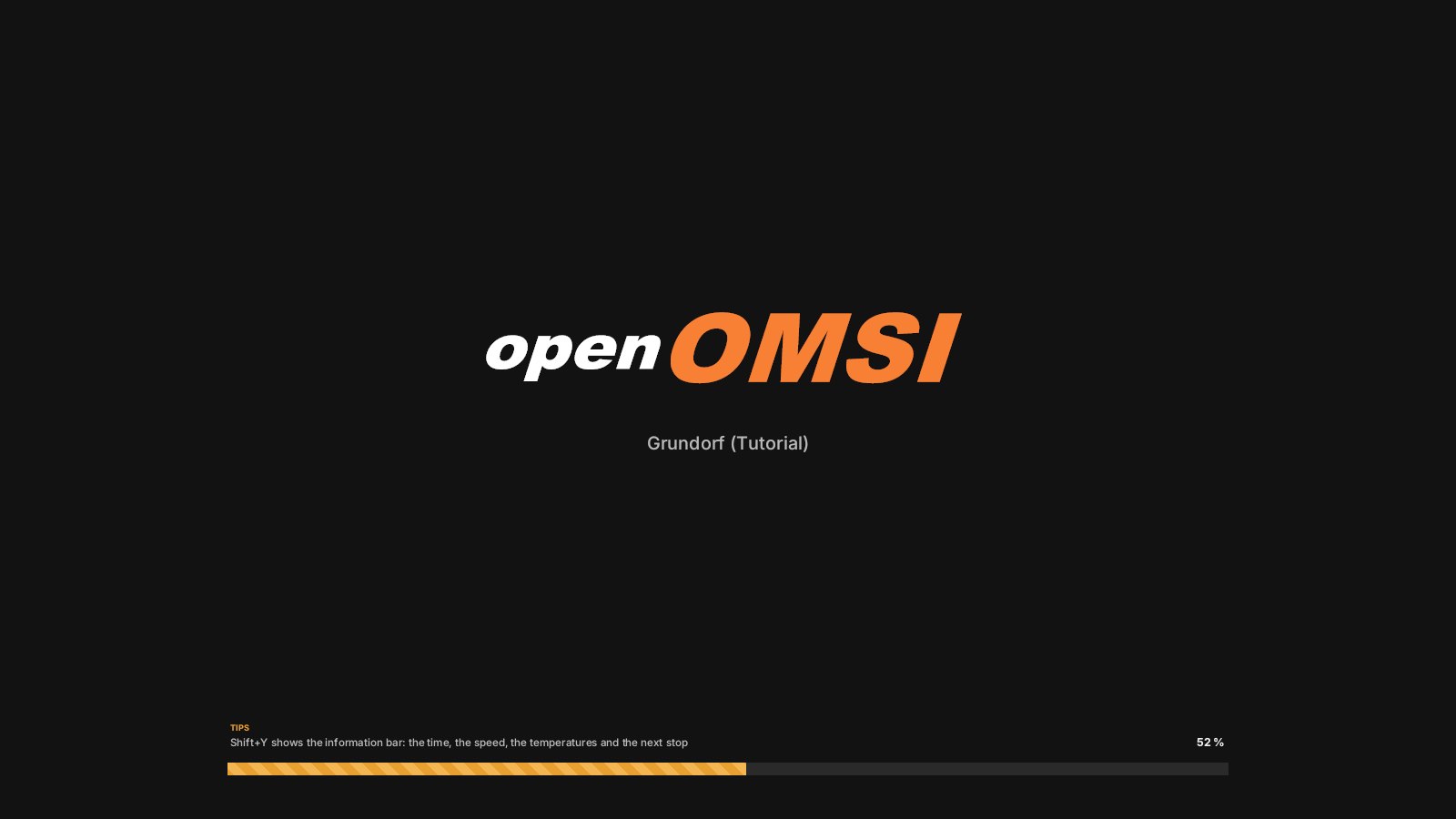

After switching back to openOMSI's look and restarting:

What does this change, and why?

Mods have always changed how OMSI looks, but the game's own screens could not be changed: their colours are constants in the code. With interface themes, a mod or a plugin can give the menus and the loading screen a look that fits it, without touching the code, and the player chooses it. Omsi-Hub, an add-on that runs on openOMSI through the plugin API, is one user: its plugin brings a theme in its own colours, with its logo as the loading bar. Nothing in the change is specific to it. The full format is in docs/THEMES.md.

The loading screen comes before any plugin runs, so a theme is a file that the game reads itself (Themes/<id>/theme.json, or theme.json in a plugin's folder), not a call a plugin makes.

API (omsi.ui.version is now 7; #3277 took 6):

omsi.ui.themes()           --> { { id = "", name = "openOMSI" }, { id = "night", name = "Night" }, ... }
omsi.ui.theme()            --> "" (openOMSI's own look) or the id in force
omsi.ui.set_theme("night") --> true, or false and the reason; kept as the player's setting

• omsi-ui:
  • The constants of theme became a Palette in force (theme::th(), theme::set), with Palette::OPENOMSI as before and with_palette for the tests. A theme's colours left out follow the one they go with (sidebar the background, text the ink and so on).
  • theme::corner(r) is r with openOMSI's look and follows a theme's radius. The reworked pause menu's corners (12, 14, 18 ...) go through it.
  • Glass describes the glass. kit::Ui::surface draws a surface solid, or as glass: the backdrop (Ui::backdrop) behind it through image_part, the panel's colour at the glass's opacity, a sheen and a light edge. panel uses it.
  • icons has path_length, progress_svg (a path drawn along by a dash, over a faint track), marks, staged_svg and Stage (elements with data-at popping up or flashing), and svg_size.
• omsi-render: SurfaceState::picture gives the texture the frame is drawn into, where the window allows COPY_SRC; new_with and adopt ask for it when the adapter offers it. The sRGB stand-in allows it too.
• omsi-app:
  • themes finds, reads and validates themes and keeps the one in force (sync, called every frame, which only reads anew when the setting changes). Settings::ui_theme_pack is the setting, and Options › Interface has its row "Theme pack" (in the 29 languages of that page).
  • The loading screen's drawing is ui/loading.rs, out of ui.rs.
  • The glass: Shell::capture_backdrop copies the frame the scene has just drawn and blurs it on the graphics card in three small passes (a quarter of the window, then a 16th, then an 8th). It is done when the menu opens, then at most 30 times a second while the game goes on behind it (glass_due), and not again while the game is paused. Nothing is read back and nothing waits for the GPU.
  • The pause screens draw the rail and the panels with surface; the buttons, the driver's chip and the action cards stay solid. A wide theme logo goes across the top of the rail.
  • The loading screen takes the theme's colours, logo and progress, and times the logo's marks by its clock. The headset's menu (ui/menu.rs) takes the theme's accent and panel colours, but no glass.
• omsi-plugin: UiState keeps the themes and a plugin's wish (ui/theme.rs), with ui.themes, ui.theme and ui.set_theme. omsi-app hands the wish to the settings after the plugins' frame. The navigator's board (Dock, set_dock, dock) moved to ui/dock.rs, beside ui/menu.rs, to keep ui.rs under its size.
• omsi-plugin-ui: the panels' accent and the notifications' card follow the theme; the panels' colours are look.rs.
• omsi-launcher-core: ui_theme_pack is read and written with the settings file.

With #3309 (light and dark, open): #3309 makes ui_theme the light or dark interface theme, with the row "Interface theme". This PR's setting is ui_theme_pack and its row "Theme pack", so the two keys and rows no longer clash, whichever is merged first. A theme pack is a look a mod or plugin brings; the light or dark theme is openOMSI's own look. Whichever PR lands second will need to fit its palette into the other's (both replace the same colour constants): a theme pack replaces openOMSI's colours, light or dark.

• docs/THEMES.md is new. docs/PLUGINS.md has a section "An interface theme", and its reference and plugin-api.json are regenerated.

What could break?

With openOMSI's own look, every colour is the constant it was, and the screenshots of main and this branch are the same. The screens now read the colours through th() instead of constants: a lock and a copy a call.

A theme is data only: nothing outside its folder is read, a file is at most 4 MB, a picture at most 4096 px, and a content folder another player's game sent in a LAN session brings no theme. A broken theme leaves openOMSI's look with a line in game.log.

The glass needs the window's picture to allow a copy. Where it does not, the panels are see-through without the blur. I tried DX12 only; Vulkan and Metal report COPY_SRC for their windows too, but I have not run them. I could not try the triple screens, the cockpit display or a phone. In VR, the menu keeps its own drawing with the theme's colours and no glass. Plugin panels already drawn keep their old colours until their content changes, after a theme is switched while driving.

Unrelated to this change, but found while testing: a local release build of main crashes at start-up with the renderer pipelines' threads overflowing their stack when dxcompiler.dll is not next to the program (wgpu then compiles with FXC). The released packages are not affected; with DXC beside the program, both builds run.

Performance

The same scene for every run: Berlin-Spandau, the MAN SD200 in the driver's view, 30 AI vehicles, a LAN session hosted (so the menu does not pause the game), the pause menu opened at 40 s and left open until the end at 180 s. Vsync off, no frame limit, 1600 × 900, the summary of OMSI_PROFILE_JSON (after its 15 s warm-up), and the process's private memory read at 2 min.

	This branch, Omsi-Hub glass theme	This branch, openOMSI's look	main (8119ca6)
Average FPS	140.4	145.1 (139.6 in an earlier run)	136.1
Median frame (p50, ms)	6.70	6.46	6.72
Slowest 1 % of frames (p99, ms)	13.07	12.51	16.22
Slowest frame (ms)	95.5	88.2	103.5
Frames over twice the median	168	167	447
Memory after 2 min (MB, private)	2884	2940	2868

Machine: Windows 11, NVIDIA GeForce RTX 4070 SUPER (DX12), 1600 × 900, the default settings of a fresh home (Vanilla+, 4× MSAA, SSAO, 2048 shadows). One run each; the frame times move a few per cent from run to run on this machine (openOMSI's own look: 139.6 and 145.1 FPS in two runs).

With the glass taken every frame, it cost 1.1 ms a frame (121 FPS, p50 7.76 ms). Taken at most 30 times a second, it costs about 0.24 ms (p50), and its slowest 1 % and its slow frames are as with openOMSI's own look: no stall from the glass.

Checklist

• cargo test --workspace and cargo build --release pass: omsi-ui (46), omsi-render, omsi-plugin, omsi-plugin-ui, omsi-app (398) and the launcher's settings tests pass locally, cargo build --release -p omsi-app builds, and scripts/size-budget.sh and scripts/arch-guard.sh pass. The full workspace is left to CI.
• The pull request contains a single change
• Before/after screenshots are in the description if anything changes on screen
• A new feature has its performance table filled in
• New or changed interface texts are in crates/omsi-app/locales/app.yml ("Interface theme" and its description, in the 29 languages of the Interface page)
• Online play, saves, settings and mods made for the previous release still work
• No original OMSI 2 content and no file of a megabyte or more in the commits

[turbo-devv]

Thanks @Luc-nbr. This now conflicts with main: the pause menu was reworked (rounder corners, pause_hidden, the veil on category pages) and #3277 took omsi.ui.version 6, so the theme work should move to 7 (code, docs/PLUGINS.md, the changelog). Could you merge main and re-check the themed pause pages against the new look? Once it merges cleanly the checks run again and we can look at it.

[isaacsa2]

The theme format and the default-look fallback are a useful start. I can't approve 4782a89 yet.

I agree with turbo-devv's merge-main/API-version follow-up. Beyond that, the description still says the feature has not been tried in game, screenshots are pending and performance is unmeasured, although the PR is ready for review. Please add before/after captures of the default look and a themed pause/settings/loading screen, and fill the performance comparison on the same map and machine.

Please include an unpaused LAN session with the glass menu open: frame_glass_backdrop() calls render_to_image, reads the picture back and blurs it on the CPU every 1.5 seconds. Average FPS alone won't show the stalls that path may add; include frame-time spikes/p99 and memory, alongside the default theme. Also check switching back to openOMSI and restarting with the saved selection. I haven't measured a stall myself; this is the unvalidated execution path in the diff. Fresh platform CI is still needed after the conflicts are resolved.

[Luc-nbr]

Thanks both, it's updated.

@turbo-devv: main is merged, the themes are omsi.ui.version 7 now (code, docs/PLUGINS.md, the changelog), and the themed pause pages follow the reworked look. The new rounder corners go through theme::corner(r), which keeps them exactly as on main for openOMSI's own look. pause_hidden and the veils work as on main, with a glass theme blurring the picture behind a category page instead of covering it.

@isaacsa2: I've now run it in the game, and the description has before/after screenshots (main, this branch with openOMSI's look, this branch with a glass theme: loading, pause menu, a category page, options) and the performance table. The table comes from an unpaused LAN session with the glass menu open, against openOMSI's own look and main, on the same map and machine, with p50/p99, slow frames and memory. The path you pointed at is gone: the glass no longer calls render_to_image or reads anything back. It copies the frame the scene has just drawn and blurs it on the GPU, when the menu opens, then at most 30 times a second while the game runs behind it, and once while it is paused. That costs about 0.24 ms at the median, and the p99, the slow frames and the memory are the same as with the default look. Switching back to openOMSI and restarting with the saved selection is checked too (three runs, last screenshot).

Running it in the game also turned up three bugs, now fixed: the window could not be copied from (no blur), the glass every frame cost 1.1 ms, and a loading logo with a moved view box popped its marks in slightly off their place.

It merges cleanly now, so CI can run again.

[github-actions]

Test builds for d2d51be

Platform	Download
Android (arm64)	android.zip
Linux x64 (game and dedicated server)	linux-x64.zip
macOS (Apple silicon)	macos-arm64.zip
Windows x64 (game and dedicated server)	windows-x64.zip

• Unpack the download into a new folder, not over your openOMSI. The launcher shows the version as ...-pr3278, and a test build is never updated. It shares your settings and OMSI 2 folder; mods you installed into your openOMSI folder are only seen when you unpack it into a copy of that folder.
• Android: the download holds an APK that installs as a separate app, openOMSI PR feat: a mod or plugin can give the game's own screens a look of its own (interface themes) #3278, beside the release, and shares its openOMSI folder.
• What to try is under How to test in the description. Please comment with what you found and the version the launcher shows.
• The links work for 14 days after the build.

[isaacsa2]

Rechecked 22b7b50. Thanks for the in-game captures, restart checks and unpaused LAN measurements. The GPU-copy/blur path replaces the readback I flagged earlier, so that evidence request is addressed.

There are still concrete blockers. PR checks / files fails on three file sizes: omsi-app/src/ui.rs is 1,852 lines against 1,810, omsi-plugin-ui/src/lib.rs is 1,510 against 1,500, and omsi-plugin/src/ui.rs is 1,507 against 1,500. Please extract cohesive helpers/modules rather than raise the limits. Log: https://github.com/openOMSI-org/openOMSI/actions/runs/40224043363/job/121261539726

The current Release also fails workspace tests: process_permissions::once_waits_without_blocking_frames_then_prompts_again_and_deny_stays_denied on Windows, and process_wait::timer_can_wait_and_be_cancelled_by_unloading on Linux. I have not established whether those are environmental; please diagnose them or provide the matching base comparison, and get the required checks green. The branch also conflicts with current main again. Coordinate the ui_theme setting with #3309 during that update, since both PRs introduce that key with different meanings. I reviewed the follow-up and CI; I have not run the themed renderer locally.

[Luc-nbr]

Thanks @isaacsa2, all three are addressed in 93914b6.

File sizes: I moved cohesive parts out instead of raising limits:

• the loading screen's drawing is omsi-app/src/ui/loading.rs (ui.rs 1852 → 1671);
• the panels' colours are omsi-plugin-ui/src/look.rs (lib.rs 1510 → 1486);
• the navigator's board (Dock, set_dock, dock) is omsi-plugin/src/ui/dock.rs, next to ui/menu.rs and ui/theme.rs (ui.rs 1507 → 1482).

scripts/size-budget.sh and scripts/arch-guard.sh pass locally.

#3309: this PR's key is now ui_theme_pack and its row is "Theme pack", so #3309 keeps ui_theme and "Interface theme" for light/dark. A theme pack is a look a mod or plugin brings; light/dark is openOMSI's own look. Both PRs replace the same colour constants with a runtime palette, so whichever lands second has to fit into the other. I'm happy to do that on this side if #3309 goes first.

The two test failures: neither test touches anything this PR changes. Both pass 5/5 locally (Windows) on 93914b6, and the same workflow is green on main and the other PRs since then.

• process_wait::timer_can_wait_and_be_cancelled_by_unloading (Linux): ParseIntError { kind: Empty } at line 201. The child writes its pid with std::fs::write, which creates the file before writing the number. The test reads it as soon as pid_file.exists(), so it can read an empty file. That race is in the test; writing to a temp file and renaming it, or waiting for content, would close it. I can open a separate PR for that.
• process_permissions::once_waits_without_blocking_frames_then_prompts_again_and_deny_stays_denied (Windows): it timed out after 45 s with messages=[], so the child process never reported back while the game kept running (17547 frames). That looks like the slow child start-up on Windows runners that test(plugin): allow slow Windows child launch in consent tests #3275 already allowed for.

CI is running again on the new commit.

[isaacsa2]

Rechecked the follow-up and updated this branch with main. The settings conflict keeps both ui_theme_pack and cab_wheel_rotation=0. The fresh build exposed E0432 in omsi-plugin-ui/src/square.rs: main's new quick-menu tiles still imported ACCENT, while this branch uses accent(). I fixed those two references in 99f12f6; the tile layout and behaviour are unchanged. The module extraction and separate ui_theme_pack key address my earlier size/key objections. Theme pack is selectable in Options > Interface and players can return to openOMSI's own look, so its optional glass cost is not an FPS blocker under the current requirement. Approval is still pending the platform/workspace checks on 99f12f6. The supplied DX12 captures and measurements do not establish Vulkan/Metal or VR behaviour, and I have not run the game locally.

[isaacsa2]

Rechecked 99f12f6. The current Release, PR checks, CodeQL and secret scan now pass; size budget, crate layers and whitespace checks also pass locally. The module extractions, separate ui_theme_pack setting and quick-menu accent fix resolve my earlier build/integration objections.

The expensive CPU readback path is gone. Glass uses the existing frame on the GPU, is refreshed at a bounded rate and is optional through Options > Interface > Theme pack, with openOMSI's own look available again. The supplied DX12 captures and measurements address the validation I requested. Approving this head.

#3309 touches the same palette paths, so whichever lands second needs to merge the updated main and rerun its tests; keeping both setting names alone is not enough. I reviewed the code and CI, not a new local gameplay run. Vulkan, Metal and VR behavior is not established by the DX12 measurements.

[thibautgnt]

Thanks a lot @Luc-nbr, this is a carefully built feature: the theme file is validated field by field with clear log lines, openOMSI's own look stays the default and pixel-identical, and the glass moved to a bounded-rate GPU copy with real p99 numbers behind it. Two things before it can go in:

1. An SVG logo can still read files outside the theme's folder (crates/omsi-ui/src/icons.rs:30, :46, :55, :182). read_logo checks the logo's own path (crates/omsi-app/src/themes.rs:232), but the SVG is then parsed with usvg::Options::default(). With no resources_dir, usvg's default image resolver opens any <image href="..."> as a plain path, absolute or relative to the working directory, and reads it whole with std::fs::read (no 4 MB cap). So a theme with <image href="C:/Users/me/Pictures/x.png"/> or href="/some/other/file.svg" reads files outside its folder, and on Linux href="/dev/zero" makes the game read forever and run out of memory every time it starts, because the setting is saved. The file is read again on every parse: four parses at load, then one for each new picture of the loading logo. Fix: one shared Options for theme logos with image_href_resolver.resolve_string returning None (keep resolve_data if you want data: images, which stay inside the 4 MB file), used by rasterize_rgba, svg_size, path_length and marks. Please add a test with an <image href> pointing outside the folder.

2. Conflict with #3309 (unify game theme), merged on main just now. git merge-tree against current main conflicts in 14 files: omsi-ui/src/theme.rs, omsi-ui/src/kit.rs, omsi-plugin-ui/src/{lib,nav,square,widgets}.rs, omsi-app/src/shell/pause.rs, shell/pause/navigation_ui.rs, shell/pause/quick_actions_ui.rs, devtools/panel.rs, photo/panel.rs, game_lists/dropdowns.rs, settings.rs and omsi-launcher-core/src/lib.rs. It is not only text: the two PRs give the same colours two different mechanisms. On main, Ui carries theme: Theme (the UPPERCASE fields) picked by set_theme(light), and light: bool is passed down to the plugin panels (ThemeColors::new(light)), the quick menu and the shell. Here, everything reads a global th() Palette built on the dark palette. If the merge just keeps both, a theme pack shows its colours only where th() is read, and the light theme only where self.theme is read. Please settle on one source of colours, and decide what a pack does on top of Light: the simplest is with_colors starting from palette(light) instead of Palette::OPENOMSI, with radius and glass on top. Then rerun the omsi-ui, omsi-plugin-ui and omsi-app tests and the size budget on the merged result.

Non-blocking notes:

• crates/omsi-render/src/surface.rs:87 and :140 add COPY_SRC to the window's swapchain for every player who can have it, with or without a glass theme. On DX12 your numbers show no cost, but on some mobile GPUs a copy-source swapchain can turn off framebuffer compression, so "without a theme nothing changes" may not hold on Android. Asking for COPY_SRC only while a glass theme is in force, and reconfiguring when that changes, would rule this out.
• themes.rs:249: a picture logo is fully decoded before the 4096 px check (decode_file allows up to 16384 px, so roughly 1 GB from a small, very compressible PNG). Mod textures already go through the same path, so this is no new hole, but reading the header size first would make the "at most 4096 px" in the description true.
• The loading screen re-parses and rasterizes the logo for each new progress hundredth and mark stage (ui/loading.rs:116). That's fine for a normal logo. A 4 MB SVG will make the loading screen stutter, but that only hurts the theme's own author.

[Luc-nbr]

Thanks @thibautgnt, both addressed:

1. SVG <image href>: every SVG now goes through one icons::tree whose resolver keeps data: images and returns None for any string href (7bb6739). There's a test with an <image href> to a file outside the folder, which usvg's default options do read.
2. feat(ui): unify game and launcher themes #3309: merged main and settled on one source, the th() palette. Palette::LIGHT is feat(ui): unify game and launcher themes #3309's light look and theme::palette(light) picks Dark or Light. A pack is with_colors over that, with radius and glass on top (themes::sync(pack, light)). Ui::theme, set_theme and theme::Theme are gone; feat(ui): unify game and launcher themes #3309's widget changes read th() and keep their light-mode fixes. Plugin panels take ThemeColors::of(palette) (openOMSI's dark greys unchanged) and are laid out again when the palette changes. omsi-ui, omsi-plugin-ui and omsi-app tests and the size budget pass on the merged result.

Non-blocking: COPY_SRC is now asked for only while a glass theme is in force (bb8747e), and a picture logo's size is read from its header before decoding (d2d51be). I left the loading screen's re-rasterizing as is.

[thibautgnt]

Thanks @Luc-nbr, that was a thorough round. The SVG fix is the right one: a single icons::tree that keeps data: images, plus a test that proves usvg's own options would have read the file. The merge with #3309 now has one source of colours, with a pack laid over palette(light). You also took care of both non-blocking notes (COPY_SRC only while glass is on, and the picture size read from the header). CI is green, and the branch merges cleanly with current main, where size budget and arch-guard pass.

The merge left one place where Light breaks:

1. The game menu drawn by ui/menu.rs turns white on white in the Light look. own() (crates/omsi-app/src/ui/menu.rs:9) keeps openOMSI's dark colours only when th() == Palette::OPENOMSI. Before the merge, that was true for anyone without a pack. Now themes::sync puts Palette::LIGHT in force for every player with ui_theme=light, so panel() / panel_alt() (:23, :26) return the light panel (252 grey) while the text colours stay fixed light greys: WHITE (236), SOFT, MUTED, DIM (:57, :66-68), and also LIT, SELECTED, CHIP, BORDER, THUMB. The title (:244), the lines and the preview card (:581-589) end up near-white on near-white. On main this menu stays dark in Light. The same thing happens with any pack over Light that doesn't set panel itself.
   Fix: when the palette isn't openOMSI's own, take the inks and line fills from it as well, e.g. WHITE from p.text, SOFT from p.text_soft, MUTED/DIM from p.text_dim, OFF_INK from p.text_faint, LIT/SELECTED from p.hover/p.selected, CHIP from p.field and BORDER from p.edge (the same own(...) wrapper you already use for panel()). Or, if you'd rather keep this menu dark in Light as on main, compare against palette(false)/palette(true) there. A small test under with_palette(Palette::LIGHT, ...) checking that the title ink differs from the panel would keep this from coming back.

Non-blocking:

• read_logo (crates/omsi-app/src/themes.rs:272): when image can't read the header (a format it doesn't know), the file still goes to decode_file before the size check. That's fine, since those formats aren't the compressible kind, but it is the one path left where "at most 4096 px" is checked only after decoding.

[isaacsa2]

Rechecked d2d51be after the main merge. The shared palette integration and the SVG resolver fix address the earlier conflicts and external-file concern; I am not carrying those forward as blockers. Current CI passes.

The remaining blocker is the light palette in crates/omsi-app/src/ui/menu.rs. panel() and panel_alt() now follow th(), but WHITE, SOFT and the fixed border/selection/chip colours still assume a dark background. With Palette::LIGHT, the panel becomes nearly white while titles and preview text remain [236, 236, 236], making them difficult to read. A theme pack inheriting those light backgrounds has the same mismatch.

Please make the foreground/background pairs follow the active palette consistently, including selection states, or keep this menu consistently dark. Add a light-palette regression for the title/text and selected-row colours, alongside the existing default/theme tests. This is a source-level finding, not a new local screenshot or gameplay test.
