Pathfinding Visualizer

A web-based interactive visualization tool for popular search algorithms including Dijkstra's Algorithm, A*, Bi-directional BFS, DFS, and Greedy Best-First Search, with maze generation built in.

https://visualizer-path.vercel.app

Features

• Multiple Algorithms: Visualize and compare different pathfinding algorithms

  • Dijkstra's Algorithm
  • A* (A-Star)
  • Bi-directional BFS
  • Depth First Search (DFS)
  • Greedy Best-First Search (Greedy BFS)

• Maze Generation: Automatically generate mazes using different algorithms

  • Recursive Backtracking
  • Imperfect Maze
  • Prim's Algorithm

• Interactive Grid Manipulation

  • Place and move Start and End nodes
  • Add Walls to create obstacles
  • Set Checkpoints for multi-destination pathfinding
  • Modify Edge Costs between adjacent nodes
  • Use Eraser to remove cells

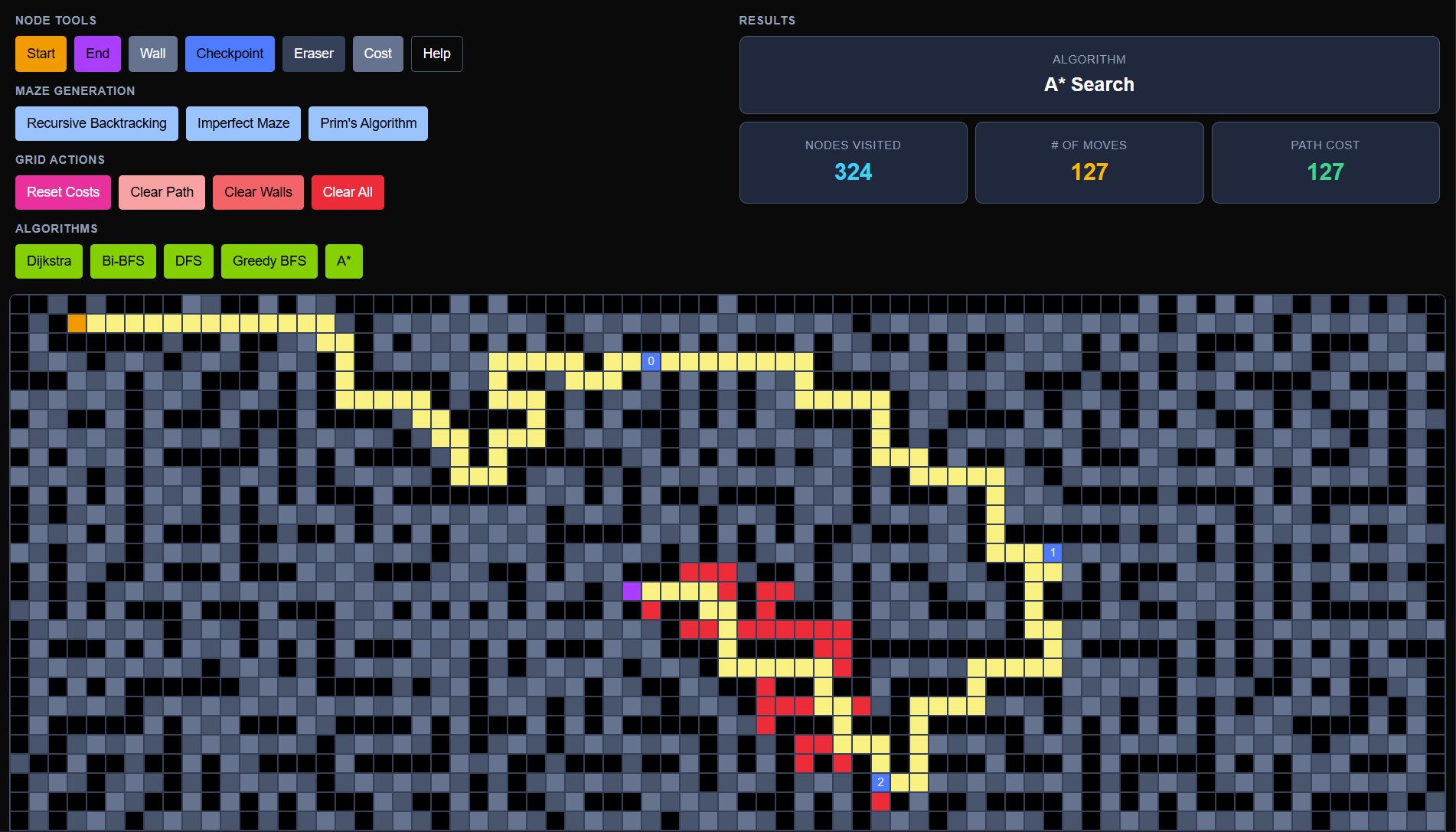

• Real-time Visualization

  • Watch algorithms explore nodes in real-time
  • Color-coded cells for different states (start, end, walls, explored, path)
  • Visual feedback with different colors for even/odd grid positions

• Detailed Results

  • Nodes visited count
  • Number of moves/steps
  • Total path cost
  • Path existence indicator

• Responsive Design

  • Automatically resizes grid based on window dimensions
  • Clean, modern UI with intuitive controls

Getting Started

Prerequisites

• Node.js installed on your system
• A modern web browser

Installation

# Clone the repository
git clone https://github.com/omarabdiwali/pathfinding-visualizer.git

# Install dependencies
npm install

# Run the development server
npm run dev

Open http://localhost:3000 in your browser to see the application.

How to Use

Setting Up the Grid

1. Start Node: Click the "Start" button, then click on a grid cell to place the start position
2. End Node: Click the "End" button, then click on a grid cell to place the end position
3. Walls: Click the "Wall" button, then click and drag to add/remove obstacles
4. Checkpoints: Click the "Checkpoint" button to add intermediate destinations
5. Edge Costs: Click the "Cost" button to modify traversal costs between adjacent nodes (click a cell, then click a neighbor to adjust cost with Shift to decrease)

Generating Mazes

1. Select one of the available maze generation algorithms
2. Watch the maze being generated in real-time on the grid

Running Algorithms

1. Set up your grid with start, end, and optional walls/checkpoints
2. Click any algorithm button (Dijkstra, Bi-BFS, DFS, Greedy BFS, or A*)
3. Watch the visualization run in real-time
4. Press the red "Stop" button to halt execution if needed

Clearing the Grid

• Clear Path: Removes visualization markings but keeps walls and nodes
• Clear Walls: Removes all walls but keeps nodes and visualization markings
• Clear All: Resets the entire grid to its initial state
• Reset Costs: Resets all edge costs to default values (1)

Pathfinding Algorithms

Dijkstra's Algorithm

Finds the shortest path from start to end by exploring all neighbors at the present depth before moving to nodes at the next depth level. Guarantees the optimal solution.

A* (A-Star)

An informed search algorithm that uses heuristics to guide the search toward the goal. More efficient than Dijkstra as it prioritizes paths that appear to lead closer to the target.

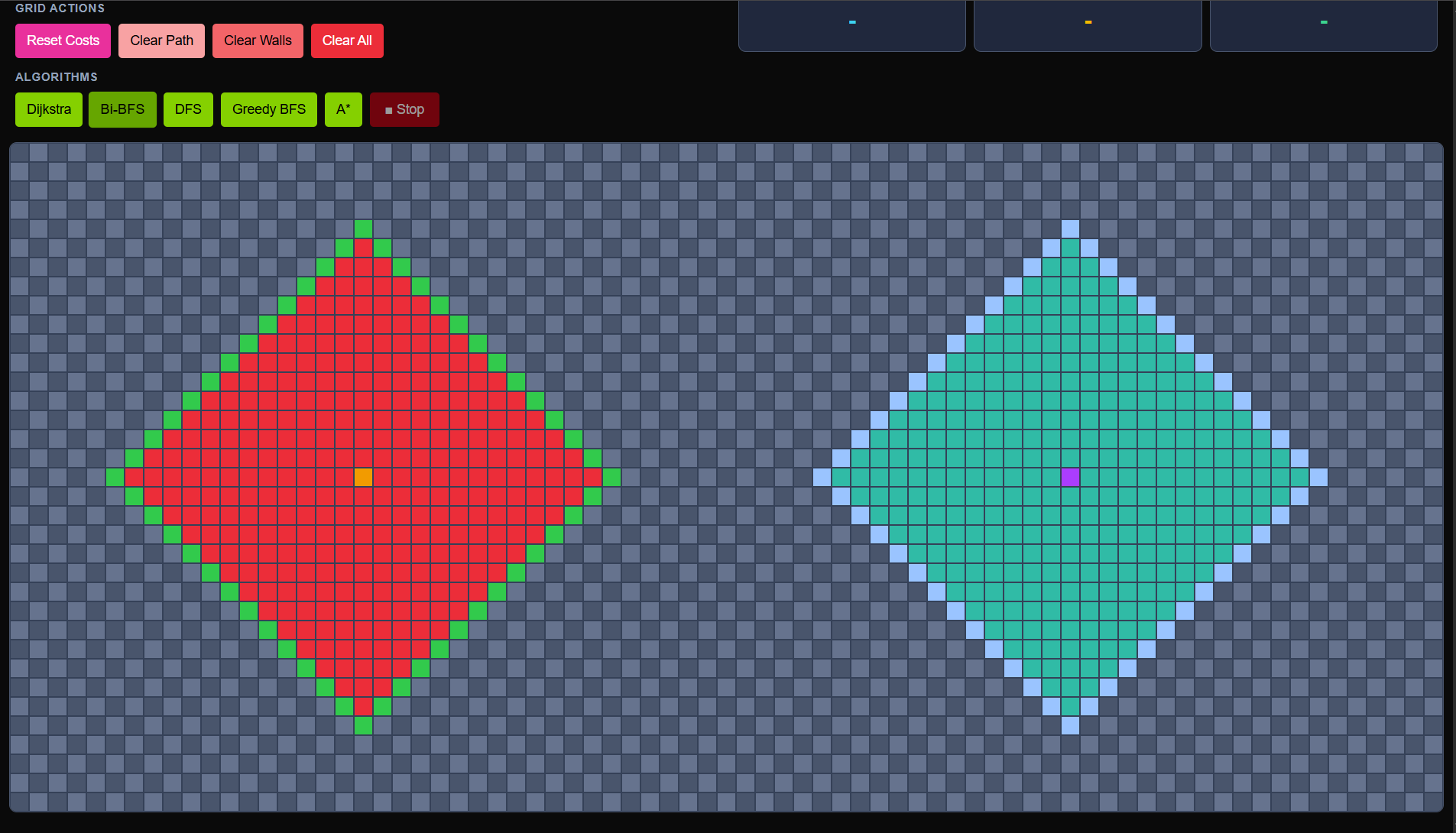

Bi-directional BFS

Runs two simultaneous breadth-first searches - one from the start node and one from the end node - until they meet. Can be faster than standard BFS in some cases.

Depth First Search (DFS)

Explores as far as possible along each branch before backtracking. Does not guarantee the shortest path.

Greedy Best-First Search

Uses only the heuristic function to determine which node to explore next, without considering the cost so far. Not guaranteed to find the optimal path.

Maze Generation Algorithms

Recursive Backtracking

Uses a depth-first approach with a stack. Carves passages by visiting random unvisited neighbors, backtracking when stuck. Produces long winding corridors with few dead ends.

Imperfect Maze

Based on recursive backtracking but randomly removes some walls during rendering. Creates a maze with multiple paths and loops, making it less perfect and more complex.

Prim's Algorithm

Begins with a single cell and grows the maze by randomly adding frontier cells. Creates a more organic, branching maze with many short dead ends.

Tech Stack

• Frontend: Next.js
• Styling: Tailwind CSS
• Algorithms: Custom implementations in JavaScript

Project Structure

search-algorithms/
├── pages/
│   └── index.js                        # Main application component
├── algorithms/
│   ├── utils/
│   │   ├── constants.js                # Constants and utility functions
│   │   ├── PriorityQueue.js            # Custom Priority Queue class
│   │   └── HelpModal.js                # Help modal with usage instructions
|   ├── maze/
│   │   ├── primsAlgorithm.js           # Prim's algorithm implementation
│   │   └── recursiveBacktracking.js    # Recursive backtracking & imperfect maze
|   └── pathfinding/
│       ├── di-bfs.js                   # Bi-directional BFS implementation
│       ├── greedy-bfs.js               # Greedy BFS implementation
│       ├── dijkstra.js                 # Dijkstra's algorithm
│       ├── astar.js                    # A* algorithm
│       └── dfs.js                      # Depth First Search
└── README.md

License

This project is open source and available under the MIT License.
