Hyrdrogen

The lightweight http-server that's beating the web frameworks.

Hydrogen's documentation is a work in progress but you are welcomed to consult it.

Development

Week 1

• networking: binds to tcp/ip socket address and listens on port 8080. Any other port may be used as well.
• http-headers: the server reads the http request header in chunks with lowlevel read calls. Since the tcp/ip socket is a stream socket reading fewer bytes than the chunk size mean that we have reached the end of the header. That's the reason why we don't need to check for the presence of the CRLF terminator.
• http-response: at the moment we respond with a minimal respond header, the client would know that there are no more bytes. This last aspect has been verified with both browsers such as firefox and the curl utility.
• main loop: adds the main loop that waits for incomming connections and then delegates the task of respoding to the client to a child process.
• signal hanlding: the server halts execution gracefully upon signal interrupts by registration of the respective signal handler. The child processes are setup to respond to the signal in the default way to avoid confusion (interrupting a child process should not affect the server, for instance see man clone).
• non-blocking: the server is now able to respond to incoming connections in non-blocking mode. Still need to work on this so that the server is not put to sleep to keep the CPU usage low when there are no connections. Strongly considering to register a signal handler for SIGIO, I think it would be an interesting solution to implement because I have seen polling on the xserver.
• async requests: server responds to incoming requests asynchronously by means of signal handlers. The children still process the request in the usual way which is the right call.
• response timestamp: includes the response timestamp according to RFC9110. Setting the child process timezone environment variable to zero UTC does the trick to respond with the localtime in GMT. Linux date and time utilities were used to implement this.
• favicon: responds to content-type image, the favicon must be located in public/favicons so that the server will write its contents to the HTTP GET response. This has been done in commit a23e21c7165af3c9bbf5ea54ba0d4358c3bb8c17.

Week 2

• CORS: initial handling of cors when Origin is in the headers; this means that the server responds with Access-Control-Allow-Origin: *. This should be fine because the user agent does not send credentials. Have checked that this works on firefox and chrome. This work was done in commit e82bcf5d.
• fixes chromium hang: the fault was the http server implementation, by switching to non-blocking reads from the socket and checking the available space in the read buffer we were able to avoid this problem. The hint was that the process would get a 255 status probably by a buffer overrun (we tried to write to a memory region that did not belong to the process). By checking the available space we pass in to read() the right number of bytes which might be less than the chunk size if there are fewer bytes left in the buffer. Fix was applied on commit de3fe009.
• addresses resource unavaiable issues: in linux tcp/ip errors can be encountered when reading from the socket and so the right thing to do is to try to read again. During tests I found out that if we get the same problem consecutively it's best to defer the reading for about 20 milliseconds before trying again. So far have not seen this problem to happen on firefox, chromium, and google chrome. This work was done in commit c445ae5e.
• implements router: implements a module-based router that makes it possible to modularize the http-server. The server code which implements http is now independent from the code that makesup the webpage. The server only needs the modules that encapsulate the routes and the supported methods for each one. This feature has been inspired by how the xserver adds device input drivers at runtime. The driver code can call code that's part of the xserver and that's the basic idea that we have followed here. The developers that work on the endpoints would call utility functions that are defined in the http server. This avoid needless code duplication. To have this working I had to pass the --export-dynamic flag to the linker; otherwise the symbols would not be found and that was a pain point now in the past, for I have learned this the hardway by reading the man pages. This has been done in commit c239fbce6b44f0b81131a522adc7a1b194d25af9.
• responds with 501 status if not implemented: according to the RFC9110 specification an origin server that does not implement a method for a resource should return a status 501. This has been done in commit 3a21fb67.

Week 3

• closed pipe error handling: the child process is configured to treat the ECONNRESET error (connection reset by peer) as EAGAIN (or try again error). The next time the child process tries to write to the socket it gets the EPIPE in the event the client (or user agent) closes its end of the connection. This allows us to knows when clients abort in the middle of writing data to the socket, this might be useful in the future when we start logging events in production. This was realized in commit 975c54c3.

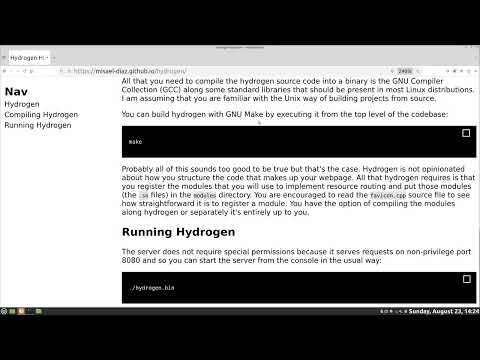

Demos

Copying the build and run commands into the system clipboard to launch hydrogen:

Build

Build the server from source code with just GCC (no makefile required):

mkdir -p modules && gcc -DDEVBUILD=1 -DDIRBUILD="\"$PWD\"" -Wall -Wextra -Wformat -fPIC -g -gdwarf-4 -shared -O0 favicon.cpp -o modules/favicon.so && gcc -DDEVBUILD=1 -DDIRBUILD="\"$PWD\"" -Wall -Wextra -Wformat -fPIC -g -gdwarf-4 -shared -O0 hero.cpp -o modules/hero.so && gcc -DDEVBUILD=1 -DDIRBUILD="\"$PWD\"" -Wall -Wextra -Wformat -fPIC -g -gdwarf-4 -shared -O0 root.cpp -o modules/root.so && gcc -DDEVBUILD=1 -DDIRBUILD="\"$PWD\"" -Wall -Wextra -Wformat -g -gdwarf-4 -O0 -c main.cpp -o main.o && gcc -DDEVBUILD=1 -DDIRBUILD="\"$PWD\"" -Wall -Wextra -Wformat -g -gdwarf-4 -O0 main.o -o hydrogen.bin -Wl,--export-dynamic -ldl

or if you prefer you can build hydrogen with GNU make by executing from the top-level of the repository:

make

Run

You can run this server in the usual way:

./hydrogen.bin

Testing

This is how we are testing the http-server at the moment:

curl http://127.0.1.1:8080 --output -

for the time being we need to pass the --output - argument to curl so that it won't complain about displaying binary output on the console.

Debugging

It is useful to follow the child process instead of the parent process (the server):

set follow-fork-mode child

and even though the server uses clone instead of fork to create the child processes this works nicely. It is important to set the breakpoints ahead of hitting run.

References:

https://www.rfc-editor.org/info/rfc9112/#message.body https://www.linuxfoundation.org/blog/blog/classic-sysadmin-the-linux-filesystem-explained
