Breaking and Fixing Block Cipher Encryption

A Practical Study of Padding Oracle Attacks and AEAD Migration

Author: Mirenge Innocent Course: Applied Cryptography — Spring 2026

---

Overview

This project is a full-stack cryptographic vulnerability study demonstrating how AES-CBC encryption is vulnerable to padding oracle attacks, implementing a live byte-wise attack with browser visualization, then proving that migrating to AES-256-GCM completely eliminates the attack surface. The project spans four interconnected phases, each running as an independent server with its own browser UI.

Phase	Description	Port
Phase 1	Vulnerable AES-CBC server with live internals visualization	5000
Phase 2	Padding oracle attack engine + attacker tool + GCM probe	5002
Phase 3	Secure AES-GCM server with encryption/decryption pipeline	5001
Phase 4	Live analytics dashboard + PDF report export	5004

---

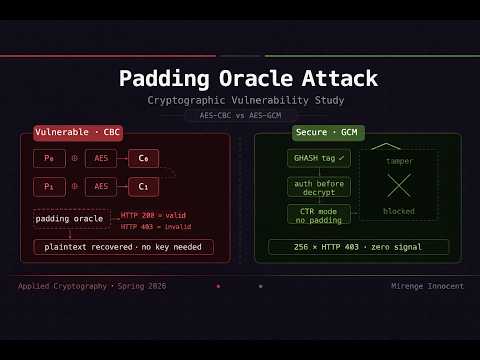

Demo Video

▶ Watch the demo on YouTube

---

Project Structure

padding_oracle_project/
├── phase1/
│   ├── server.py                    # Vulnerable AES-CBC Flask server
│   ├── crypto_utils.py              # AES-CBC + PKCS#7 implementation
│   ├── .env.example                 # Example environment file
│   └── templates/
│       └── index.html               # Interactive encryption/decryption UI
│
├── phase2/
│   ├── attack_visualizer.py         # Attack server + proxy routes (port 5002)
│   ├── attack.py                    # Terminal-based attack script
│   ├── dashboard.py                 # Matplotlib stats dashboard (offline)
│   ├── templates/
│   │   ├── visualizer.html          # Base layout + CSS
│   │   └── tabs/
│   │       ├── tab_attack.html      # Live Attack tab
│   │       ├── tab_howit.html       # How It Works tab
│   │       ├── tab_manual.html      # Attacker Tool tab
│   │       └── gcm/
│   │           ├── tab_gcm_attack.html   # GCM Oracle Probe tab
│   │           ├── tab_gcm_result.html   # GCM Results tab
│   │           └── tab_gcm_why.html      # Why It Fails tab
│   └── static/js/
│       ├── tab_attack.js            # Live attack logic
│       ├── tab_manual.js            # Attacker tool logic
│       └── tab_gcm_attack.js        # GCM probe logic
│
├── phase3/
│   ├── server.py                    # Secure AES-GCM server + UI (port 5001)
│   ├── templates/
│   │   ├── gcm.html                 # Base layout + CSS
│   │   └── tabs/
│   │       ├── tab_encrypt.html     # Encryption pipeline tab
│   │       ├── tab_decrypt.html     # Decryption pipeline tab
│   │       └── tab_howit.html       # How It Works tab
│   └── static/js/
│       ├── tab_encrypt.js           # Encryption pipeline logic
│       └── tab_decrypt.js           # Decryption pipeline logic
│
├── phase4/
│   ├── server.py                    # Dashboard + PDF export server (port 5004)
│   ├── attack_stats.json            # Written by Phase 2, read by Phase 4
│   └── templates/
│       └── dashboard.html           # 5-tab analytics dashboard
│
├── start_all.sh                         # Launch all servers + open browser tabs (local)
├── docker_start.sh                      # Launch all containers + open browser tabs (Docker)
├── Dockerfile                           # Single image for all phases (Python 3.10-slim)
├── docker-compose.yml                   # Orchestrates all 4 services with health checks
├── .dockerignore                        # Excludes venv, .env, caches from build context
├── requirements.txt
├── .env.example
└── README.md

---

Setup

1. Clone the repository

git clone https://github.com/minnocent12/padding-oracle-project.git
cd padding-oracle-project

Then choose how you want to run the project below.

---

Running the Project

Option A — Quick Start (launch all servers at once)

1. Create and activate a virtual environment

python -m venv venv

# macOS / Linux
source venv/bin/activate

# Windows
venv\Scripts\activate

2. Install all dependencies

pip install -r requirements.txt

3. Configure the environment file

cp .env.example .env

The .env file sets the AES-CBC secret key for Phase 1. The default value works out of the box. Do not use the default key in any real system.

4. Launch all servers

# macOS / Linux — make executable first (one-time setup)
chmod +x start_all.sh
./start_all.sh

# Windows (Git Bash or WSL)
bash start_all.sh

This will:

1. Start Phase 1 (port 5000), Phase 2 (port 5002), Phase 3 (port 5001), and Phase 4 (port 5004)
2. Wait for all servers to initialize
3. Open all four UIs in your default browser

Press Ctrl+C in the terminal to stop all servers at once.

Compatibility: Works on macOS, Linux, and Windows (via Git Bash or WSL). The script auto-detects the OS for opening the browser and auto-detects the venv location (venv/bin/python on macOS/Linux, venv/Scripts/python.exe on Windows).

---

Option B — Docker (Recommended)

Docker is the easiest way to run the project — no Python setup, no virtual environment, no dependency conflicts. All four services start in isolated containers with a single command.

Prerequisites: Docker Desktop installed and running.

1. Configure the environment file

cp .env.example .env

The .env file sets the secret keys for Phase 1 and Phase 3. The default values work out of the box. Do not use the default keys in any real system.

2. Build the images (one-time, ~60 seconds)

docker compose build

3. Start all containers + auto-open browser tabs

./docker_start.sh

docker_start.sh starts all 4 containers in the background, waits until each service passes its health check, then opens all four browser tabs automatically.

Service URLs (Local Docker):

Service	URL
Phase 1 — Vulnerable CBC Server	http://localhost:5000
Phase 2 — Attack Visualizer	http://localhost:5002
Phase 3 — Secure GCM Server	http://localhost:5001
Phase 4 — Analytics Dashboard	http://localhost:5004

Common Docker commands:

# Check if Docker is installed
docker --version

# Check if Docker daemon is running
docker info

# Start Docker daemon
open -a Docker                  # macOS only
sudo systemctl start docker     # Linux only
# Windows: launch Docker Desktop manually from the Start Menu

# Check if Docker Compose plugin is available
docker compose version

# Check which containers are currently up
docker compose ps

# Check all containers (including stopped ones)
docker ps -a

# Start containers (background, no browser)
docker compose up -d

# Start containers (foreground, stream logs)
docker compose up

# Follow live logs from all containers
docker compose logs -f

# Follow logs from a specific phase
docker compose logs -f phase1

# Stop all containers
docker compose down

# Stop and delete the shared stats volume
docker compose down -v

# Rebuild after code changes
docker compose build
./docker_start.sh               # macOS/Linux only — use 'docker compose up -d' on Windows

How the containers are wired:

All four services run as separate containers on a shared Docker network. Inter-service communication uses container hostnames (phase1, phase2, phase3, phase4) instead of 127.0.0.1. Phase 2 and Phase 4 share a named Docker volume (stats) so attack results written by Phase 2 are immediately visible to the Phase 4 dashboard.

┌─────────────┐     ┌─────────────┐
│   phase1    │     │   phase3    │
│  port 5000  │     │  port 5001  │
└──────┬──────┘     └──────┬──────┘
       │  HTTP (healthy)   │
       └────────┬──────────┘
                │ depends_on
       ┌────────┴──────────┐
       ▼                   ▼
┌─────────────┐     ┌─────────────┐
│   phase2    │     │   phase4    │
│  port 5002  │     │  port 5004  │
└──────┬──────┘     └──────┬──────┘
       │   shared volume   │
       └────── stats ──────┘
               (attack_stats.json)

---

Option C — Manual (run each phase separately)

Open a separate terminal for each phase.

Phase 1 — Vulnerable AES-CBC Server

cd phase1
python server.py

URL: http://127.0.0.1:5000

The server runs AES-128-CBC with PKCS#7 padding and intentionally leaks padding validity through HTTP response codes:

• HTTP 200 — padding is valid
• HTTP 403 — padding is invalid ← this is the oracle signal

The browser UI has three tabs: Encryption (step-by-step byte visualization), Decryption + Oracle (live oracle signal with padding analysis), and How It Works (PKCS#7 reference).

---

Phase 2 — Padding Oracle Attack

Phase 1 must be running before starting Phase 2.

Terminal attack:

cd phase2
python attack.py                        # interactive prompt
python attack.py "Hello World"          # attack a specific message
python attack.py "My secret message"    # any length works

Browser visualization:

cd phase2
python attack_visualizer.py

URL: http://127.0.0.1:5002

The browser UI has two top-level sections:

⚔ Attack AES-CBC Server — three tabs:

• Live Attack: type any plaintext, watch byte recovery in real time via SSE streaming
• How It Works: step-by-step explanation of the attack algorithm and XOR math
• Attacker Tool: manually probe the oracle, craft IV bytes, brute-force a single byte

🛡 Attack AES-GCM Server — three tabs (requires Phase 3 running):

• Oracle Probe: encrypt a message via GCM, run 256 tampered requests, observe all-403 silence
• Results: response breakdown + CBC vs GCM comparison
• Why It Fails: explanation of why authenticated encryption prevents the oracle

Offline Matplotlib dashboard (requires phase4/attack_stats.json from a prior attack run):

cd phase2
python dashboard.py

---

Phase 3 — Secure AES-GCM Server

cd phase3
python server.py

URL: http://127.0.0.1:5001

The server runs AES-256-GCM with a 96-bit random nonce and 128-bit authentication tag. The auth tag is verified before decryption begins. Any tampered ciphertext returns the same generic HTTP 403 — no padding oracle is possible.

The browser UI has three tabs:

• Encryption: 5-step live pipeline (read plaintext → generate nonce → AES-CTR encrypt → compute GHASH tag → package output)
• Decryption: 5-step live pipeline showing tag verification before decrypt; the Tamper Then Decrypt button demonstrates auth tag catching modification at Step 3
• How It Works: GCM internals, CBC vs GCM comparison table, CVE history

---

Phase 4 — Analytics Dashboard

Requires Phase 1, Phase 2 (with at least one completed attack), and Phase 3 running.

cd phase4
python server.py

URL: http://127.0.0.1:5004

The dashboard has five tabs:

• Overview: live server status for all phases, key stats at a glance
• Attack Stats: queries-per-byte bar chart, query distribution breakdown, efficiency analysis
• CBC vs GCM: side-by-side comparison table + live GCM oracle probe
• Timeline: project phase timeline + animated attack replay
• Report: full project report preview + PDF export

---

AWS Deployment

The project is deployed on AWS EC2 using Docker Compose. The setup mirrors the local Docker workflow exactly.

Infrastructure

Resource	Details
Instance type	t3.small (2 vCPU, 2 GiB RAM)
OS	Amazon Linux 2023
Region	us-east-2 (Ohio)
Storage	20 GiB gp3
Public IP	18.221.87.226

Security Group (Inbound Rules)

Port	Protocol	Purpose
22	TCP	SSH access
5000	TCP	Phase 1 — CBC Server
5001	TCP	Phase 3 — GCM Server
5002	TCP	Phase 2 — Attack Visualizer
5004	TCP	Phase 4 — Dashboard

Deploy to a New EC2 Instance

# 1. SSH into the instance
ssh -i your-key.pem ec2-user@<your-ec2-ip>

# 2. Install Docker and Docker Compose
sudo dnf update -y
sudo dnf install -y docker git
sudo systemctl start docker && sudo systemctl enable docker
sudo usermod -aG docker ec2-user

# Install Docker Compose
sudo curl -SL "https://github.com/docker/compose/releases/latest/download/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose
sudo chmod +x /usr/local/bin/docker-compose

# Install Docker Buildx (required for compose build)
sudo mkdir -p /usr/local/lib/docker/cli-plugins
sudo curl -SL https://github.com/docker/buildx/releases/download/v0.19.3/buildx-v0.19.3.linux-amd64 -o /usr/local/lib/docker/cli-plugins/docker-buildx
sudo chmod +x /usr/local/lib/docker/cli-plugins/docker-buildx

# 3. Clone the repository
git clone https://github.com/minnocent12/padding-oracle-project.git
cd padding-oracle-project

# 4. Create the environment file
nano .env
# Paste your CBC_SECRET_KEY, GCM_SECRET_KEY, FLASK_DEBUG=False

# 5. Build and start all containers
sudo docker-compose up -d --build

Verify All Services Are Running

sudo docker-compose ps

All four containers should show Up and (healthy) status.

---

Key Concepts

Why AES-CBC Is Vulnerable

AES-CBC requires PKCS#7 padding on every message. On decryption, the server checks whether the padding is valid. If the server returns a different response for valid versus invalid padding — even just different HTTP status codes — an attacker can:

1. Submit crafted ciphertexts with one modified byte
2. Observe whether the response is 200 (valid padding) or 403 (invalid)
3. Use XOR arithmetic to recover the intermediate AES output
4. Compute the plaintext byte from the intermediate and the real ciphertext

Repeating this for all 16 bytes per block and all blocks recovers the full plaintext. The secret key is never needed.

Expected queries:  ~128 per byte  (average)
Worst case:        256 per byte
16-byte message:   ~2,048 total HTTP requests → full plaintext

Why AES-GCM Is Safe

AES-GCM uses authenticated encryption. Before decryption begins, the server recomputes the GHASH authentication tag over the received ciphertext and compares it to the transmitted tag. If they do not match — which is always the case for tampered attacker-crafted ciphertext — the request is rejected with a generic error. No decryption occurs. No padding check occurs. No oracle signal is produced.

256 oracle guesses against CBC:  ~1 HTTP 200 → byte recovered
256 oracle guesses against GCM:  256 × HTTP 403 → nothing learned

XOR Math Summary

# When oracle returns HTTP 200 for guess at byte position j:

intermediate[j] = guess ⊕ pad_value
plaintext[j]    = intermediate[j] ⊕ prev_ciphertext_block[j]

# Two XOR operations. No key. Full plaintext byte recovered.

---

Real-World CVEs

CVE	Name	Year	System	Impact
CVE-2014-3566	POODLE	2014	SSL 3.0	Forced deprecation of SSL 3.0 globally
CVE-2013-0169	Lucky Thirteen	2013	TLS 1.0/1.1/1.2	Timing-based oracle; required TLS library patches
CVE-2010-3332	ASP.NET Oracle	2010	ASP.NET ViewState	Session cookie decryption; emergency Microsoft patch

---

Security Recommendations

✔ Do	✗ Do not
Use AES-GCM or ChaCha20-Poly1305	Use AES-CBC for new systems
Verify integrity before decrypting	Decrypt then check padding
Return the same error for all failures	Differentiate padding vs auth errors
Use constant-time tag comparison	Use early-exit equality checks
Use a fresh random nonce every encryption	Reuse a nonce with the same key

---

Dependencies

flask
python-dotenv
pycryptodome
cryptography
requests
rich
matplotlib
numpy
reportlab
python-pptx

---

License

This project is intended for educational purposes in a graduate cryptography course. All implementations are original. Do not use the vulnerable Phase 1 server in any production environment.
