Fix scheduled stop times at 24:00 and later when building bus_stop_time - #32

Open
eastagiletracker wants to merge 1 commit into
mansueto-institute:mainfrom
eastagiletracker:agile-board/gtfs-times-past-midnight
Open

eastagiletracker wants to merge 1 commit into
mansueto-institute:mainfrom
eastagiletracker:agile-board/gtfs-times-past-midnight

Conversation

@eastagiletracker

Copy link
Copy Markdown

This PR proposes a fix for the scheduled stop times at 24:00:00 and later that dedupe_schedules writes into data/clean_timetables, so hours past midnight roll into the service date instead of being rewritten in place (Fixes #21). We include this PR work along with a full history of your repo at https://eastagiletracker.com/projects/500. You can sign in with your GitHub ID to claim ownership of the project.

What happens today

report_automation/update_schedule.py builds bus_stop_time from the GTFS service date and arrival_time, rewriting the hour in place for times that start with 24:

current["time_edit"] = np.where(
    current["arrival_time"].str.slice(0, 2) == "24",
    current["arrival_time"].str.replace("24", "00"),
    current["arrival_time"],
)

Series.str.replace defaults to regex=False and replaces every occurrence rather than just the hour, so a value whose minutes or seconds are also 24 loses them. Separately, 25:XX:XX never matches the == "24" test at all, so it reaches pd.to_datetime(..., errors="coerce") as an unparseable string and lands as NaT.

Running that expression verbatim at 7a4e554 on main, over arrival_time values taken from the current CTA google_transit.zip:

arrival_time   bus_stop_time        expected
06:24:00       2026-08-10 06:24:00  2026-08-10 06:24:00   ok
23:59:30       2026-08-10 23:59:30  2026-08-10 23:59:30   ok
24:06:24       2026-08-11 00:06:00  2026-08-11 00:06:24   wrong
24:24:00       2026-08-11 00:00:00  2026-08-11 00:24:00   wrong
24:32:24       2026-08-11 00:32:00  2026-08-11 00:32:24   wrong
25:08:00       NaT                  2026-08-11 01:08:00   dropped

In that feed (fetched 2026-08-06) 50,938 stop_times rows carry an hour of 24. Of those, 1,685 also have 24 in the minutes or the seconds and silently lose it — 24:24:00 becomes midnight rather than 00:24. A further 728 rows at hour 25 become NaT. The NaT half is already worked around twice in the repo: the comment you left at the assignment, and the is_not_null filter in metrics_utils.create_trips_df that drops schedule rows with no bus_stop_time. The minutes-and-seconds half is not guarded anywhere, because a mangled value is still a perfectly well-formed timestamp.

On blast radius, so the tradeoff is clear rather than oversold: stop_metrics.time_to_next_stop defaults to is_daytime=True and keeps only hours 6 to 20, so none of these rows reach the published metrics as things stand. What does change is data/clean_timetables/*.parquet itself. It is written with date and arrival_time dropped, so bus_stop_time is the only surviving time value — the wrong times are permanent in the archive you publish and push to S3, and cannot be reconstructed later. That is also what makes the late-night window unusable the moment is_daytime is turned off.

The change

build_bus_stop_time adds the stop time to the service date as an offset instead of editing the hour text:

return pd.to_datetime(dates, format="%Y%m%d") + pd.to_timedelta(times, errors="coerce")

pd.to_timedelta already understands GTFS hours past 24, so 24:06:24 and 25:08:00 roll into the next day with their minutes and seconds intact, ordinary times are untouched, and missing or unparseable values still become NaT exactly as before. The time_edit and date_edit columns are now dead, so they come out of the drop list, and the numpy import goes with them since np.where was its only use in the module.

I left the is_not_null filter in metrics_utils.create_trips_df alone. It no longer has anything to drop from this cause, but it is still a reasonable guard and removing it would change behavior you may want for other reasons.

Verification

cta-stop-watch/report_automation/test_update_schedule.py is new, stdlib unittest, no added dependency. From report_automation/:

python -m unittest test_update_schedule

Five tests cover ordinary times, the hour-24 rollover, the hour-25 rollover, unusable values, and the returned dtype. Against the previous expression the hour-24 and hour-25 tests fail while the three controls stay green; against this change all five pass.

I also ran dedupe_schedules() itself end to end, over a small rt21 timetable fixture plus an existing historic parquet, on both trees:

arrival_time   before               after
24:06:24       2026-08-11 00:06:00  2026-08-11 00:06:24
24:24:00       2026-08-11 00:00:00  2026-08-11 00:24:00
25:08:00       NaT                  2026-08-11 01:08:00
               2 null of 8 rows     0 null of 8 rows

The historic row outside the current window survived on both sides and the column drop still succeeds, so the merge with data/clean_timetables is unchanged. The repo ships no test or CI configuration, so for a before/after comparison I used compileall plus an import of every module in report_automation: identical on both trees, including update_metrics failing its memory_profiler import the same way each time. That one is unrelated to this change — memory_profiler is imported but not declared in pyproject.toml — so I left it alone rather than folding it in here.

How this was managed

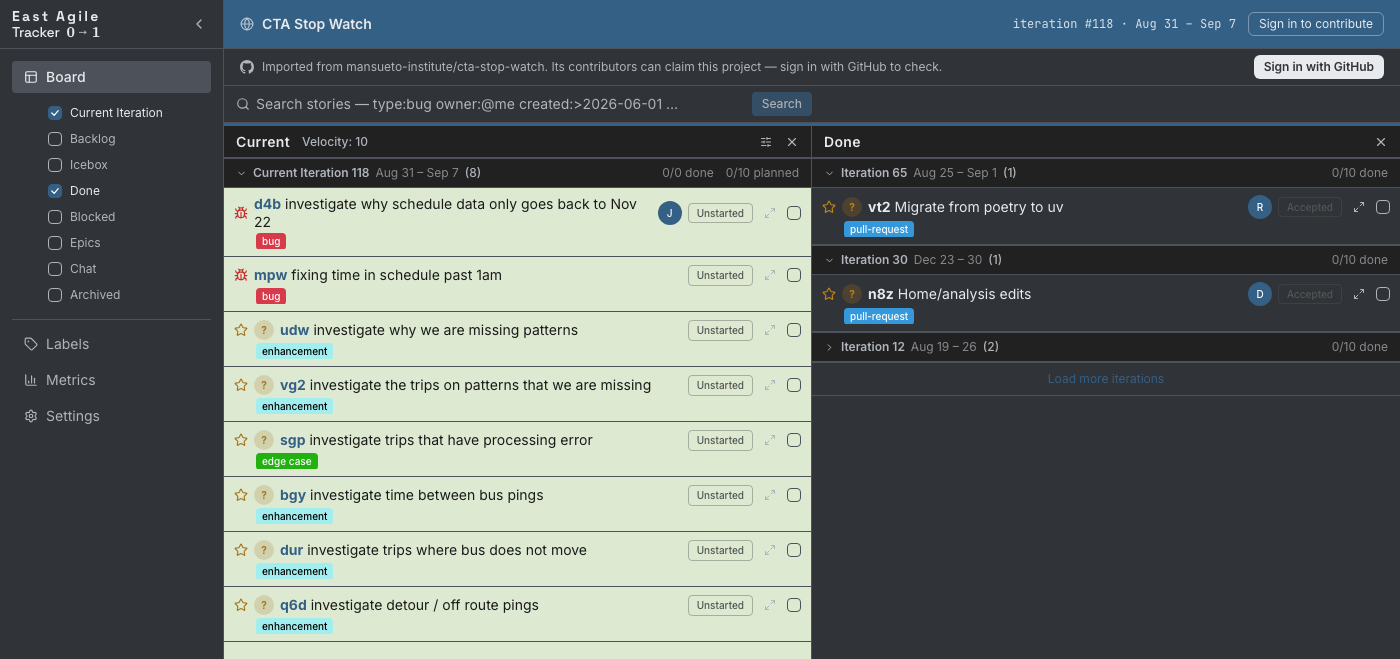

We imported this repository's issues and pull requests onto a live agile board — 31 stories — and used it to manage this work. The story this PR delivers is fixing time in schedule past 1am, and the board it sits on is at https://eastagiletracker.com/projects/500.

board

If you'd rather not receive contributions like this, reply no-more-prs on this pull request and we won't open any further ones on your repositories.


Lawrence W. Sinclair
CEO / East Agile
linkedin.com/in/lwsinclair/
eastagile.com

Schedule times of 24:00:00 and later belong to the previous service day.
dedupe_schedules rewrote the hour in place with a substring replace, which
also rewrote a minute or second of "24" in the same value, and left hours of
25 and above unparseable so they were coerced to NaT.

Build bus_stop_time by adding the stop time to the service date instead, so
the extra hours roll into the date and the rest of the value is untouched.
