fix(docx): let the list's own block carry its spacing#471

Merged
developer0hye merged 1 commit into
mainfrom
fix/docx-list-block-spacing
Jul 26, 2026
Merged

fix(docx): let the list's own block carry its spacing#471
developer0hye merged 1 commit into
mainfrom
fix/docx-list-block-spacing

Conversation

@developer0hye

Copy link
Copy Markdown
Owner

Summary

  • emit one block per list, carrying both the Word line box and the list's w:spacing edge gaps
  • generate_list takes the line-height settings instead of a bool and builds the wrapper itself

Related issue

Fixes #463

Details

A list was wrapped in two blocks: an outer one holding the Word line box, and an inner one holding the edge gaps. Typst does not apply block spacing at a container's edges, so the inner gaps never reached the boundary and the outer wrapper — which set neither above nor below — fell back to Typst's own 1.2em block.spacing.

Baseline-to-baseline pitch from a numbered item to the shaded code line after it, page 1:

Boundary Word GT before after
item 1 to $ office2pdf report.docx 15.64 pt 25.83 pt 15.64 pt
item 2 to $ office2pdf slides.pptx … 15.64 pt 25.83 pt 15.64 pt
item 3 to $ office2pdf *.xlsx … 15.64 pt 25.83 pt 15.64 pt

Mean absolute vertical drift on that file falls from 12.67pt to 1.43pt, and across the business corpus from 13.52pt to 12.88pt.

02_contract_ko moves the other way, 4.20pt to 9.11pt. That is the leaked default having masked a deficit rather than helped: its w:spacing w:after there really is 4pt, matching Word's 22.32pt pitch against an 18pt line box, and the ~8pt the document is short by accumulates earlier — its first three paragraphs are already 2.79pt, 7.52pt, and 7.76pt high before any list appears, which is the title-paragraph defect #402 tracks.

Testing

  • cargo fmt --all -- --check
  • cargo test --workspace
  • cargo clippy --workspace --all-targets --all-features
  • python3 scripts/validate_business_golden_mocks.py
  • pdftotext -bbox pitch comparison against all 10 Word-produced DOCX golden PDFs
  • pdftoppm -r 150 rendering, matched region crops, and magick compare -metric AE -fuzz 5%

Visual impact

  • No rendered PDF change
  • Rendered PDF change or visual evidence added
  • Reason: the gap between a list and its neighbours changed on every DOCX with a list.

Visual audit

  • Issue: DOCX: list blocks inherit Typst's default block spacing instead of w:spacing #463
  • Fixture: tests/golden_mocks/business/sources/docx/05_technical_manual_en.docx
  • Page(s): page 1 of the Word GT and of the office2pdf output
  • Renderer and DPI: pdftoppm, 150 DPI
  • Evidence mode: fix
  • New follow-up issues found in this audit: None
  • GT: assets/bugfixes/issue-463/gt.jpg
  • Before: assets/bugfixes/issue-463/before.jpg
  • After: assets/bugfixes/issue-463/after.jpg

Visual comparison

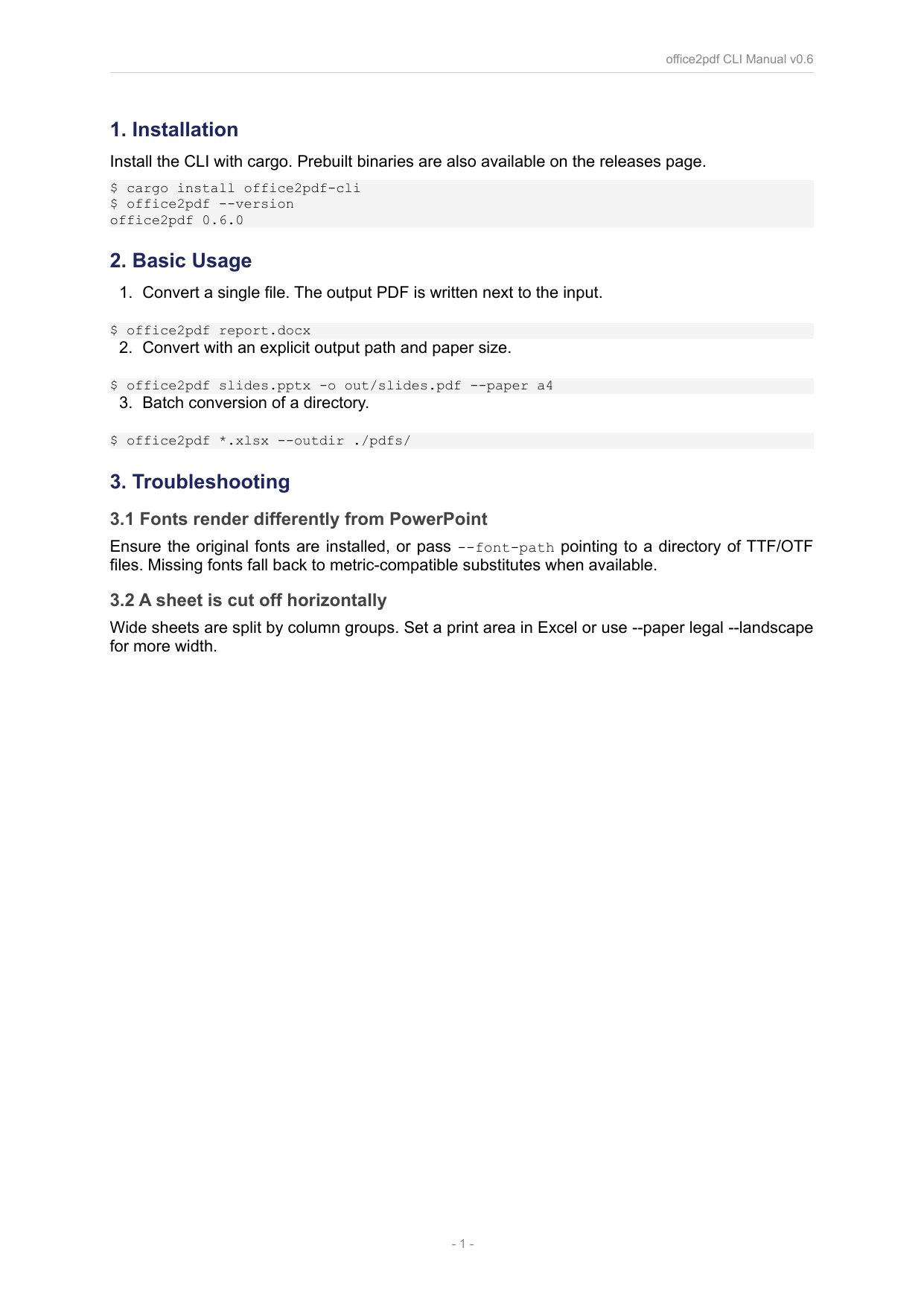

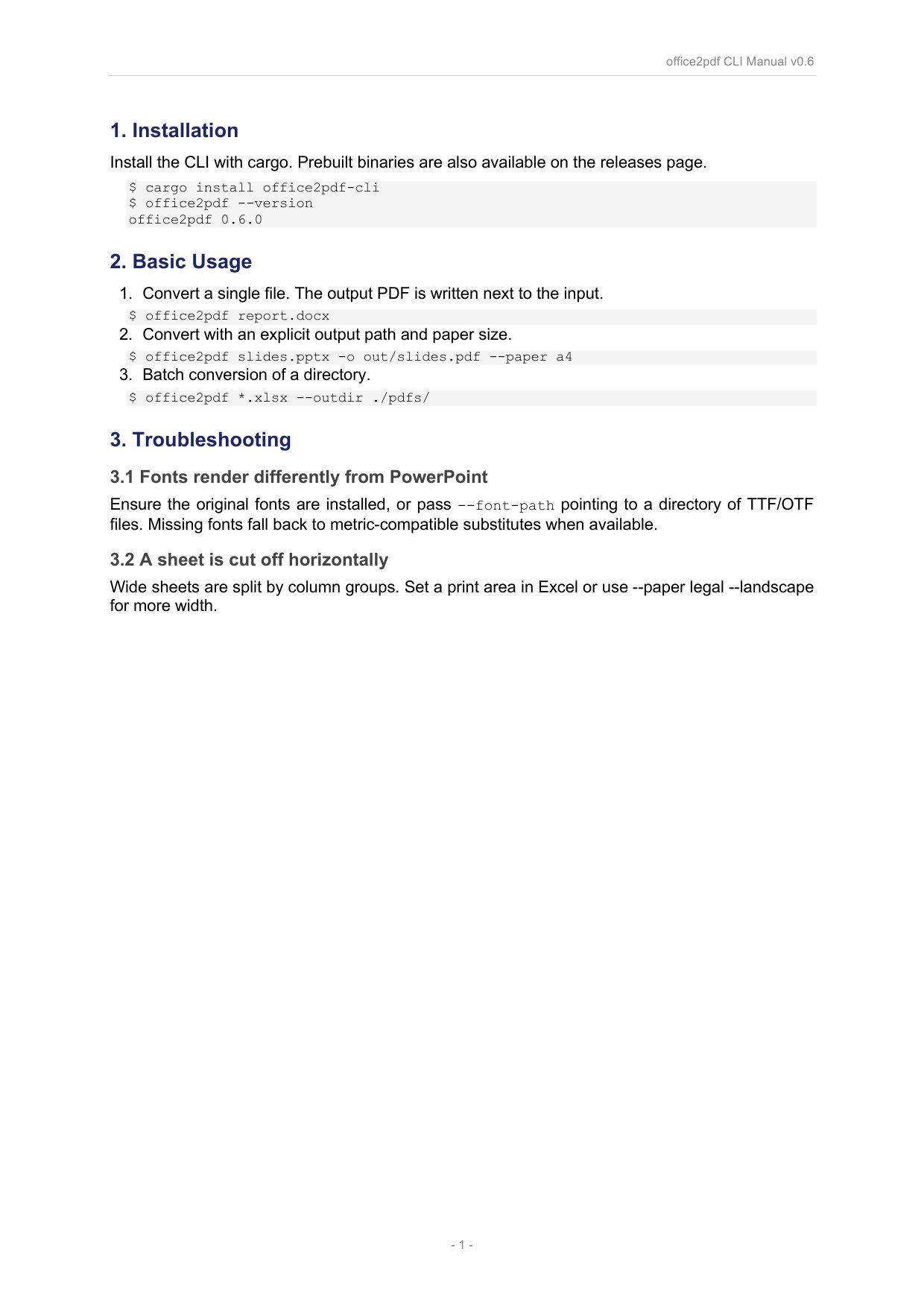

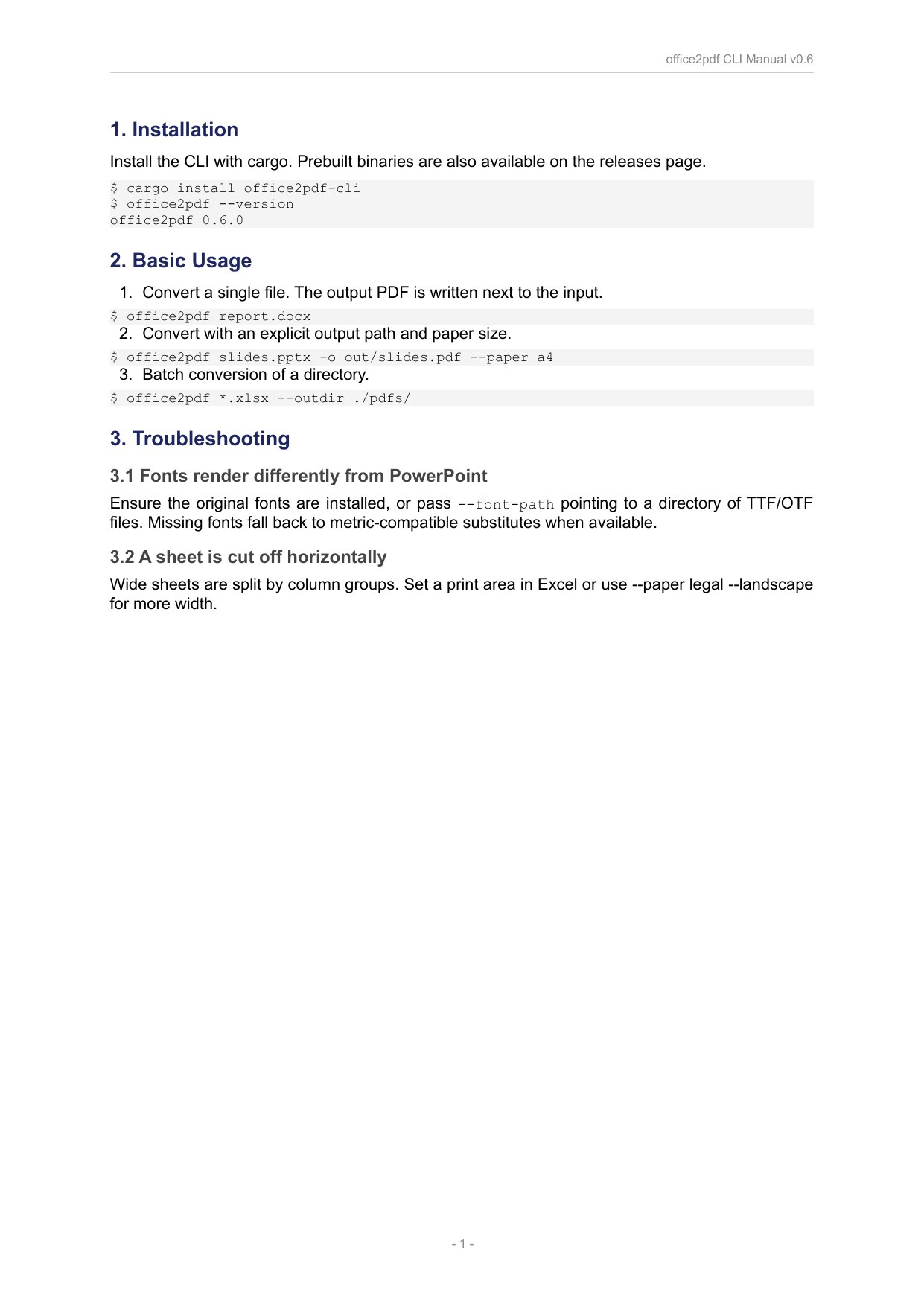

GT Before After
GT Before After

Required inspection

  • Rendered all evidence at 150 DPI or higher
  • Stored progressive JPEG quality 86 assets with metadata stripped
  • Inspected matched region crops at full resolution
  • Ran the 5% fuzz pixel-difference sweep
  • Inventoried hairlines and border dash styles
  • Inventoried font weight, italic, and underline emphasis

The 5% fuzz sweep against the size-normalized GT falls from 88,314 to 57,544 differing pixels. The residual clusters are the 12pt code-paragraph indent tracked in #464 plus font antialiasing. The page's only hairline is the header rule, which matches GT in position, width, and weight on the full-resolution crop; there are no dashed or dotted borders. Bold headings, the monospace runs, and the italic disclaimer all keep the same emphasis as GT.

Deviation audit

Check Result
Page count/order Matches GT - two pages in the same order
Element presence Matches GT - every heading, paragraph, command line, and the exit-code table are present
Position/size Remaining: #464 - the shaded command paragraphs still lose their 12pt w:ind w:left; the page box and text column match GT
Rotation/flip No deviation observed - the fixture contains no rotated or flipped elements
Fill Matches GT - the F4F4F4 code shading is the same color, though its left edge inherits #464
Stroke/border No deviation observed - the header rule matches GT and there are no other strokes
Text content Matches GT - all strings on both pages are preserved
Font family/weight/style Matches GT - Arial body, Courier New code, bold headings, and the italic disclaimer all match
Text color Matches GT - the navy headings, grey header, and black body all match
Alignment Matches GT - the justified body paragraphs and centered footer match
Line/paragraph spacing Fixed - every list-to-code pitch is now Word's 15.64pt against the previous 25.83pt, and the file's mean absolute drift falls from 12.67pt to 1.43pt
Clipping/overflow No deviation observed - no glyph is clipped and nothing overflows the text column

Checklist

  • Commits include a Signed-off-by line
  • PR scope contains one root cause
  • Remaining visual deviations each reference an open issue

A list was wrapped in two blocks: an outer one holding the Word line box,
and an inner one holding the list's `w:spacing` edge gaps. Typst does not
apply block spacing at a container's edges, so the inner gaps never reached
the boundary and the outer wrapper - which set neither `above` nor `below` -
fell back to Typst's own 1.2em `block.spacing`. Every numbered item in the
technical manual opened 10.19pt too far from the shaded code line after it,
accumulating to +30pt by section 3.

Emit one block instead, carrying both the line box and the gaps.
`generate_list` now takes the line-height settings rather than a bool and
builds the wrapper itself, so there is nowhere for a default to leak in.

On page 1 of `05_technical_manual_en` the item-to-code pitch goes from
25.83pt to Word's 15.64pt, mean absolute vertical drift falls from 12.67pt
to 1.43pt, and the 5% fuzz pixel difference against the Word export drops
from 88,314 to 57,544.

`02_contract_ko` moves the other way, from 4.20pt to 9.11pt, because the
leaked default had been masking a deficit rather than helping: Word's gap
there really is the 4pt `w:spacing w:after` this change now emits, and the
~8pt the document is short by accumulates earlier, in the title paragraph
that #402 tracks.

Fixes #463

Signed-off-by: Yonghye Kwon <developer.0hye@gmail.com>
