fix(docx): render a paragraph's left and right indent#470

Merged
developer0hye merged 3 commits into
mainfrom
fix/docx-paragraph-indent
Jul 26, 2026
Merged

fix(docx): render a paragraph's left and right indent#470
developer0hye merged 3 commits into
mainfrom
fix/docx-paragraph-indent

Conversation

@developer0hye

@developer0hye developer0hye commented Jul 25, 2026

Copy link
Copy Markdown
Owner

Summary

  • render a paragraph's w:ind left and right indent as a block inset
  • keep the shading and border on the inner block, where Word paints them: from the left indent to the right indent
  • keep w:spacing on the outermost block so an indent cannot break gap collapsing

Related issue

Fixes #464

Details

w:pPr/w:ind reached the IR but only the list path ever read it, so every indented body paragraph started at the page margin. In the technical-manual golden mock the shaded command lines carry a 240-twip (12pt) indent and rendered 11.95pt left of Word, while every unindented line on the same page matched within 0.05pt.

Line left edge (xMin) on page 1:

Line Word GT before after
$ cargo install office2pdf-cli 82.80 70.85 82.85
$ office2pdf --version 82.80 70.85 82.85
office2pdf 0.6.0 82.80 70.85 82.85
$ office2pdf report.docx 82.80 70.85 82.85
$ office2pdf *.xlsx --outdir ./pdfs/ 82.80 70.85 82.85

Word paints w:shd from the indent, not from the margin. Sampling the shaded band of the first code block at 150 DPI: Word starts it at 81.6pt against a 70.8pt margin, office2pdf started it at 71.0pt and now starts it at 83.0pt. The fill therefore belongs to a block nested inside the inset.

Vertical drift over the business corpus is unchanged at 13.52pt mean absolute, so the indent costs nothing elsewhere.

Testing

  • cargo fmt --all -- --check
  • cargo test --workspace
  • cargo clippy --workspace --all-targets --all-features
  • python3 scripts/validate_business_golden_mocks.py
  • pdftotext -bbox x-position comparison against all 10 Word-produced DOCX golden PDFs
  • shaded-band pixel sampling at 150 DPI, matched region crops, and magick compare -metric AE -fuzz 5%

Visual impact

  • No rendered PDF change
  • Rendered PDF change or visual evidence added
  • Reason: indented paragraphs and their shading now start at the indent.

Visual audit

  • Issue: DOCX: paragraph w:ind w:left is dropped outside lists #464
  • Fixture: tests/golden_mocks/business/sources/docx/05_technical_manual_en.docx
  • Page(s): page 1 of the Word GT and of the office2pdf output
  • Renderer and DPI: pdftoppm, 150 DPI
  • Evidence mode: fix
  • New follow-up issues found in this audit: None

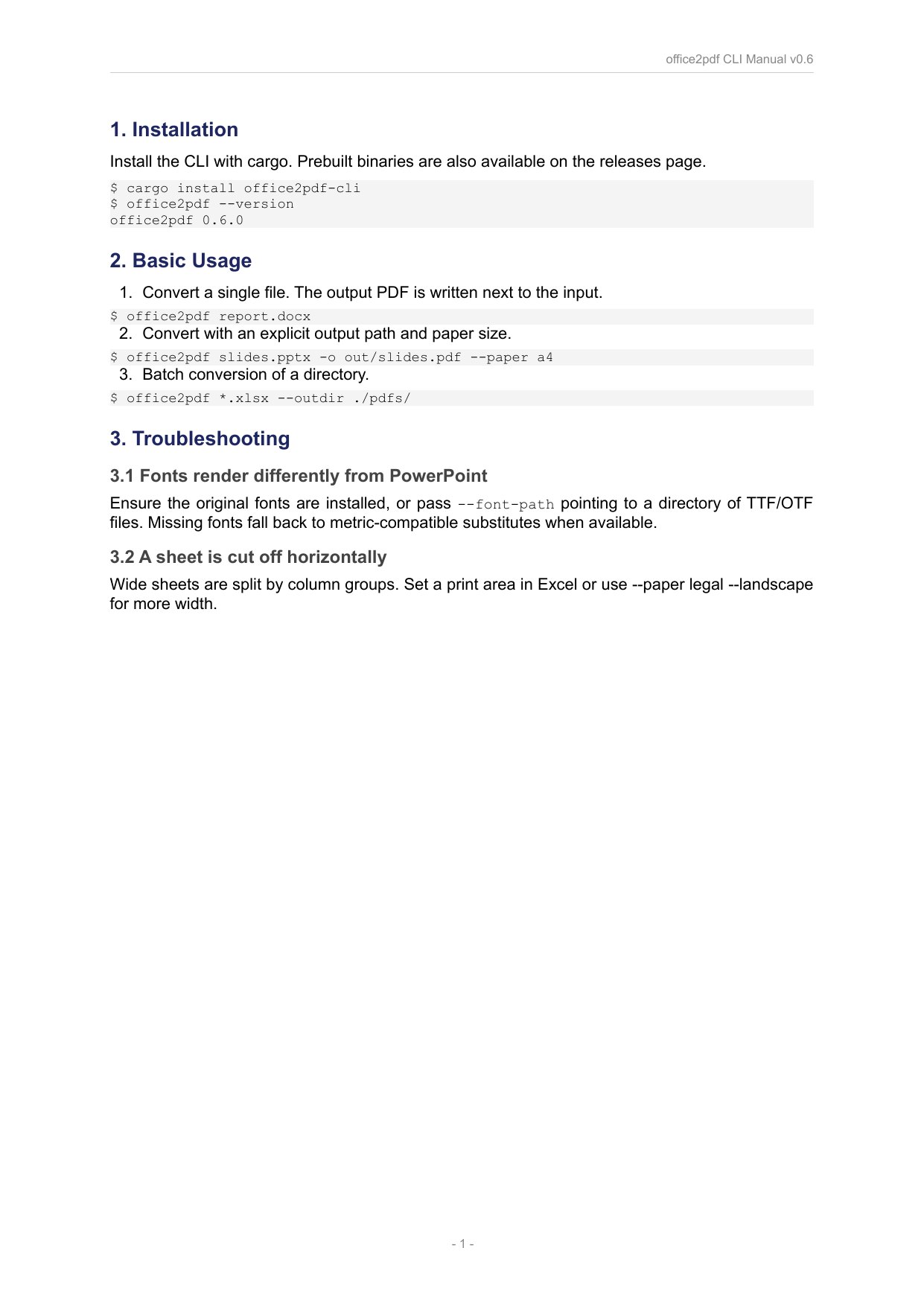

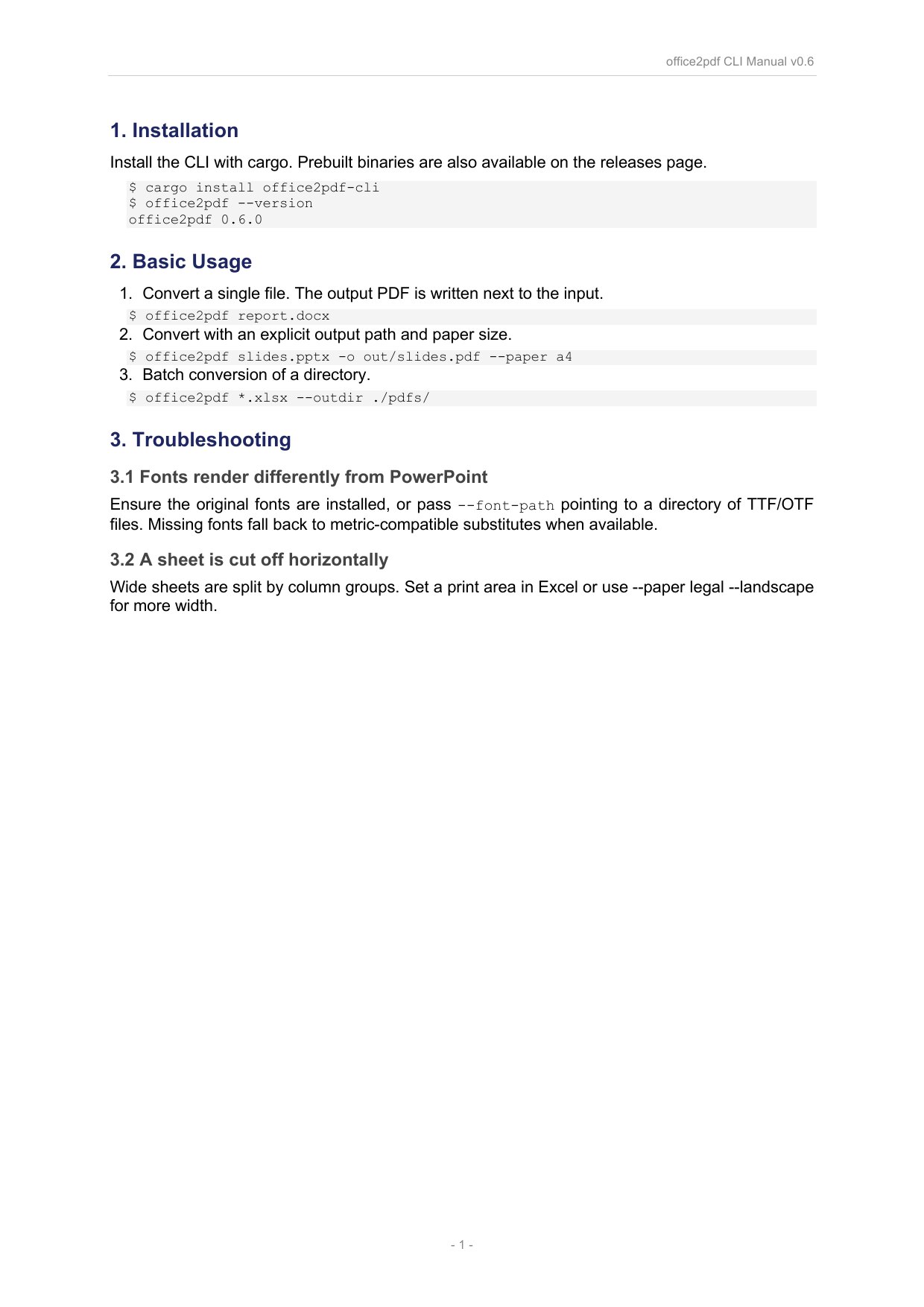

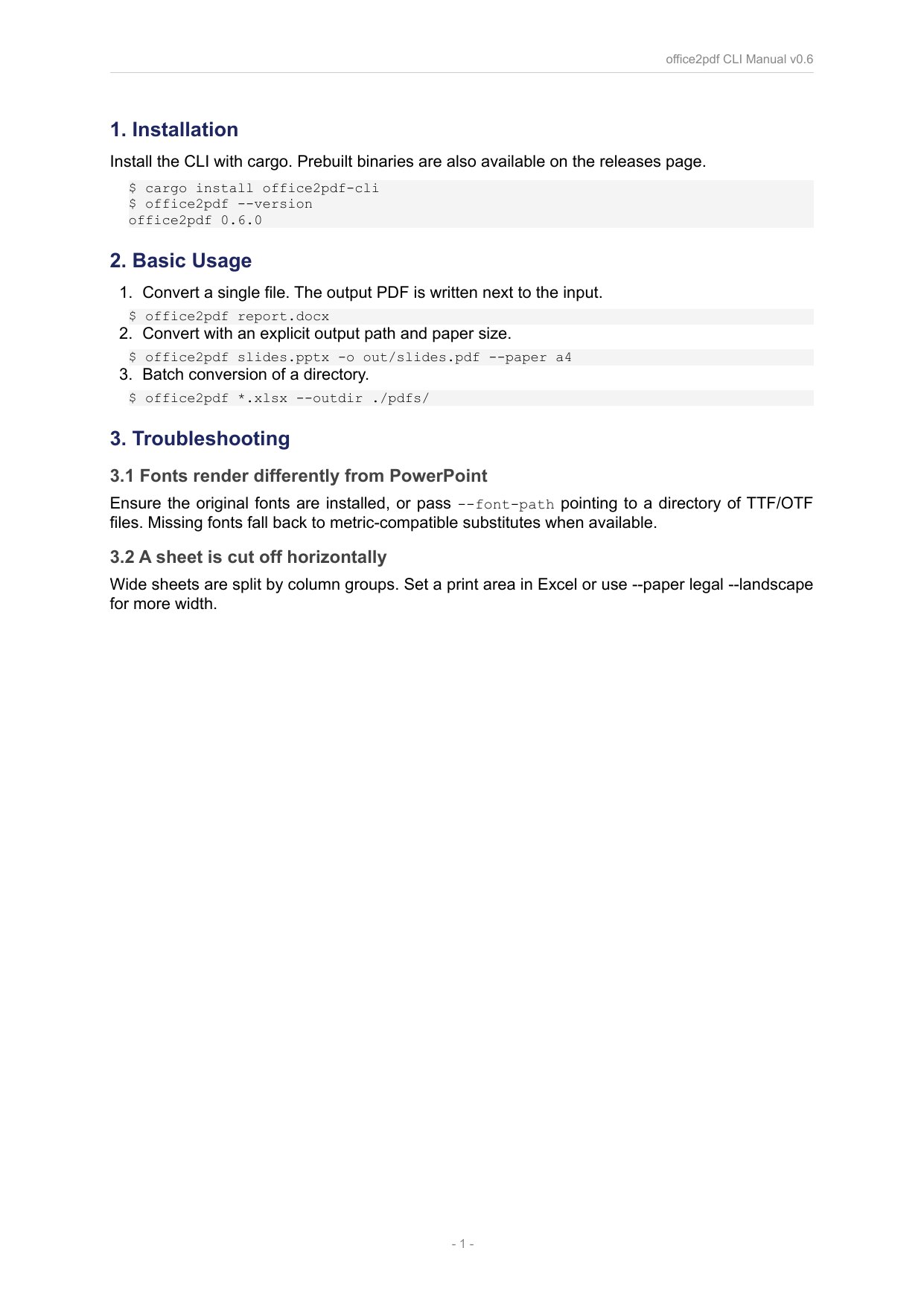

  • GT: assets/bugfixes/issue-464/gt.jpg
  • Before: assets/bugfixes/issue-464/before.jpg
  • After: assets/bugfixes/issue-464/after.jpg

Visual comparison

GT Before After
GT Before After

Required inspection

  • Rendered all evidence at 150 DPI or higher
  • Stored progressive JPEG quality 86 assets with metadata stripped
  • Inspected matched region crops at full resolution
  • Ran the 5% fuzz pixel-difference sweep
  • Inventoried hairlines and border dash styles
  • Inventoried font weight, italic, and underline emphasis

The 5% fuzz sweep against the size-normalized GT falls from 57,544 to 54,480 differing pixels, both measured against current main so the #463 list-spacing fix is in each. The residual clusters are font antialiasing. The page's only hairline is the header rule, which matches GT in position, width, and weight on the full-resolution crop; there are no dashed or dotted borders. Bold headings, the monospace runs, and the italic disclaimer all keep the same emphasis as GT.

Deviation audit

Check Result
Page count/order Matches GT - two pages in the same order
Element presence Matches GT - every heading, paragraph, command line, and the exit-code table are present
Position/size Fixed - every command line now matches Word's x position within 0.05pt, and no line on the page deviates by more than 1pt horizontally
Rotation/flip No deviation observed - the fixture contains no rotated or flipped elements
Fill Fixed - the F4F4F4 shading now starts at the indent, 83.0pt against Word's 81.6pt
Stroke/border No deviation observed - the header rule matches GT and there are no other strokes
Text content Matches GT - all strings on both pages are preserved
Font family/weight/style Matches GT - Arial body, Courier New code, bold headings, and the italic disclaimer all match
Text color Matches GT - the navy headings, grey header, and black body all match
Alignment Matches GT - the justified body paragraphs and centered footer match
Line/paragraph spacing Matches GT - the list-boundary gap this fixture used to overshoot was fixed by #463, which is now on main
Clipping/overflow No deviation observed - no glyph is clipped and nothing overflows the text column

Checklist

  • Commits include a Signed-off-by line
  • PR scope contains one root cause
  • Remaining visual deviations each reference an open issue

`w:pPr/w:ind` reached the IR but only the list path ever read it, so every
indented body paragraph started at the page margin. In the technical-manual
golden mock the shaded command lines carry a 240-twip indent and rendered
11.95pt left of Word, while every unindented line on the same page matched
within 0.05pt.

Wrap an indented paragraph in a block whose inset is the indent. The fill
and border stay on the inner block, because Word paints `w:shd` and
`w:pBdr` from the left indent to the right indent rather than across the
whole text column: measured on the Word export, the shaded band of the 12pt
indented code block starts at 81.6pt against a 70.8pt margin. The
`w:spacing` gaps move to the outer block so an indent cannot separate them
from the neighbouring paragraphs they collapse against.

Every command line now matches Word's x position within 0.05pt and the
shaded band starts at the indent. Vertical drift over the business corpus is
unchanged at 13.52pt mean absolute.

`needs_block_wrapper` deliberately still ignores the indent: the fixed-text
paths share that predicate but emit no inset, so counting it there would
open a bare wrapper that only leaks Typst's default block spacing.

Fixes #464

Signed-off-by: Yonghye Kwon <developer.0hye@gmail.com>
An indented paragraph with no runs takes `generate_paragraph`'s early
return, which closed the style block but not the indent wrapper opened
before it. The generated Typst then carried an unclosed delimiter and the
whole document failed to compile: 73 third-party fixtures went from success
to error, dropping the bulk success rate from 99.07% to 96.52%.

Close the wrapper on that path too, and assert bracket balance for the case
in a unit test.

Signed-off-by: Yonghye Kwon <developer.0hye@gmail.com>
@developer0hye
developer0hye force-pushed the fix/docx-paragraph-indent branch from dd2bfed to e7a1aa4 Compare July 26, 2026 01:38
Both evidence renders now come from current main, which carries the #463
list-spacing fix, so the before/after pair isolates the indent change alone.
The 5% fuzz difference against the Word export goes 57,544 to 54,480, and
the deviation audit no longer defers the list boundary to #463, which has
since merged.

Signed-off-by: Yonghye Kwon <developer.0hye@gmail.com>
@developer0hye
developer0hye merged commit d72b898 into main Jul 26, 2026
17 checks passed
@developer0hye
developer0hye deleted the fix/docx-paragraph-indent branch July 26, 2026 02:10
