fix(xlsx): draw icon-set arrows as Excel's filled shapes#457

Merged
developer0hye merged 1 commit into
mainfrom
fix/xlsx-icon-set-glyphs
Jul 25, 2026
Merged

fix(xlsx): draw icon-set arrows as Excel's filled shapes#457
developer0hye merged 1 commit into
mainfrom
fix/xlsx-icon-set-glyphs

Conversation

@developer0hye

@developer0hye developer0hye commented Jul 25, 2026

Copy link
Copy Markdown
Owner

Summary

  • Draw XLSX icon-set arrows as Excel's filled shapes — a shaft with a triangular head, in the band color with a darker outline — instead of triangle characters roughly a third their size.
  • Diagonal arrows are the same shape rotated 45 degrees.
  • Icon sets that are not arrows (traffic lights, flags, symbols) keep their character rendering.
  • The arrow codepoints moved into the IR so the parser and renderer share one vocabulary for TableCell::icon_text.

Related issue

Fixes #377

Testing

  • cargo test --workspace (1823 tests, all pass)
  • cargo clippy --workspace --all-targets (clean)
  • cargo fmt --check
  • pdftoppm -r 150 on 10_kpi_tracker_en page 1 for all three PDFs
  • Matched-region crops of the Achievement column at 280% scale
  • magick compare -metric AE -fuzz 5% on the size-normalized page

Visual impact

  • No rendered PDF change
  • Rendered PDF change or visual evidence added
  • Reason:

Visual audit

  • Issue: XLSX: icon set glyphs render thin text arrows instead of Excel's solid icons #377
  • Fixture: tests/golden_mocks/business/sources/xlsx/10_kpi_tracker_en.xlsx
  • Page(s): 1
  • Renderer and DPI: pdftoppm, 150 DPI
  • Evidence mode: fix
  • New follow-up issues found in this audit: None

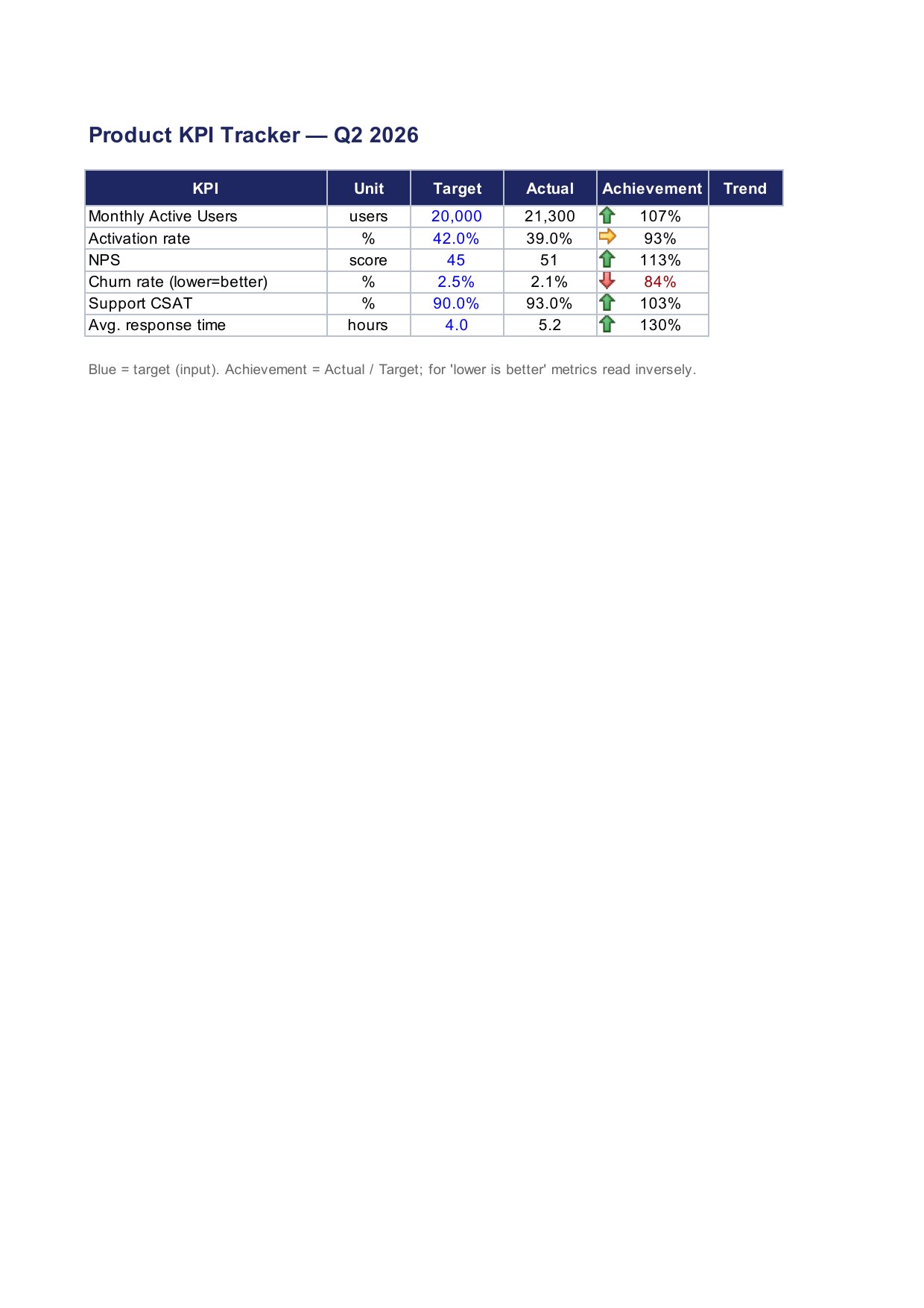

  • GT: assets/bugfixes/issue-377/gt.jpg

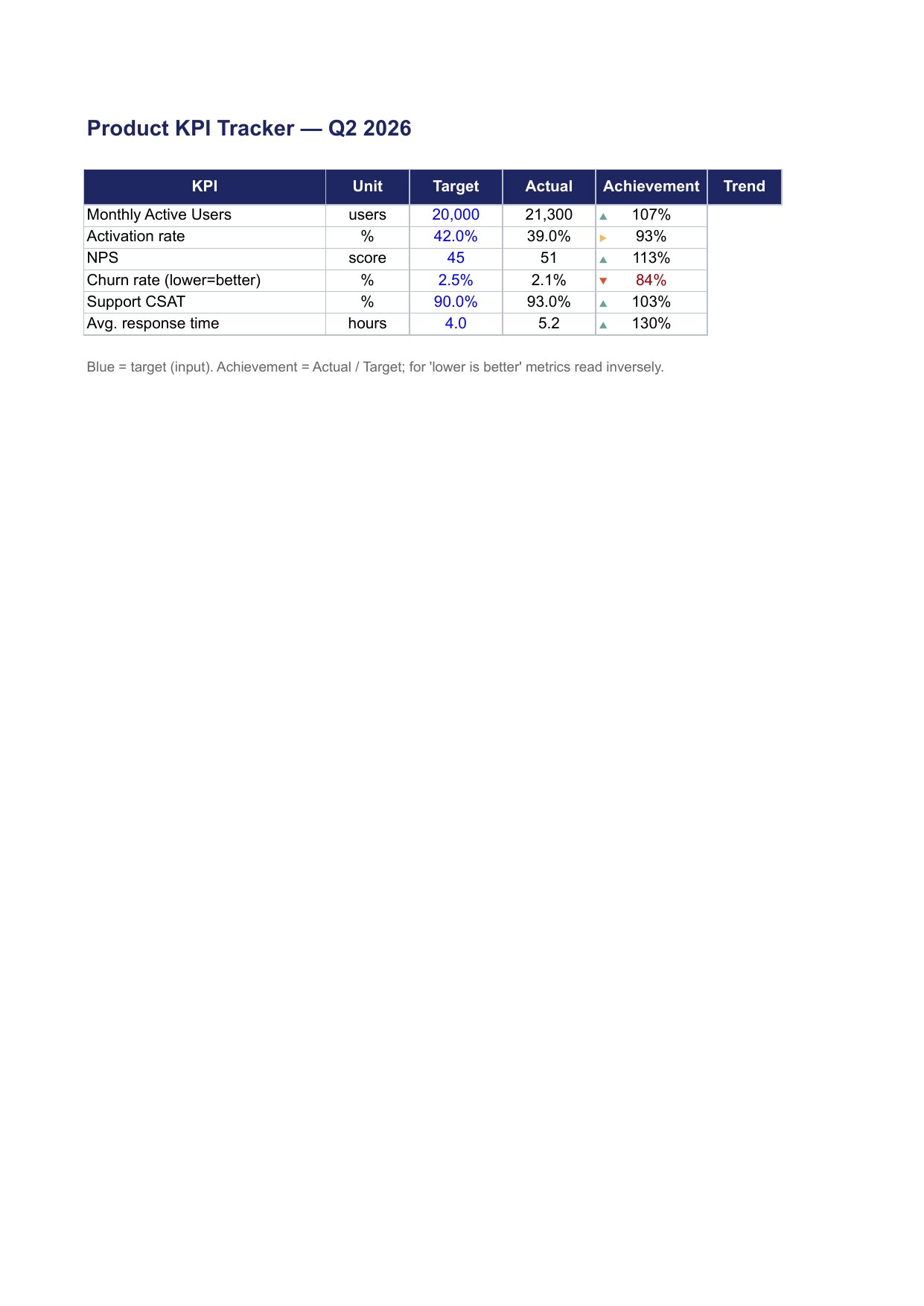

  • Before: assets/bugfixes/issue-377/before.jpg

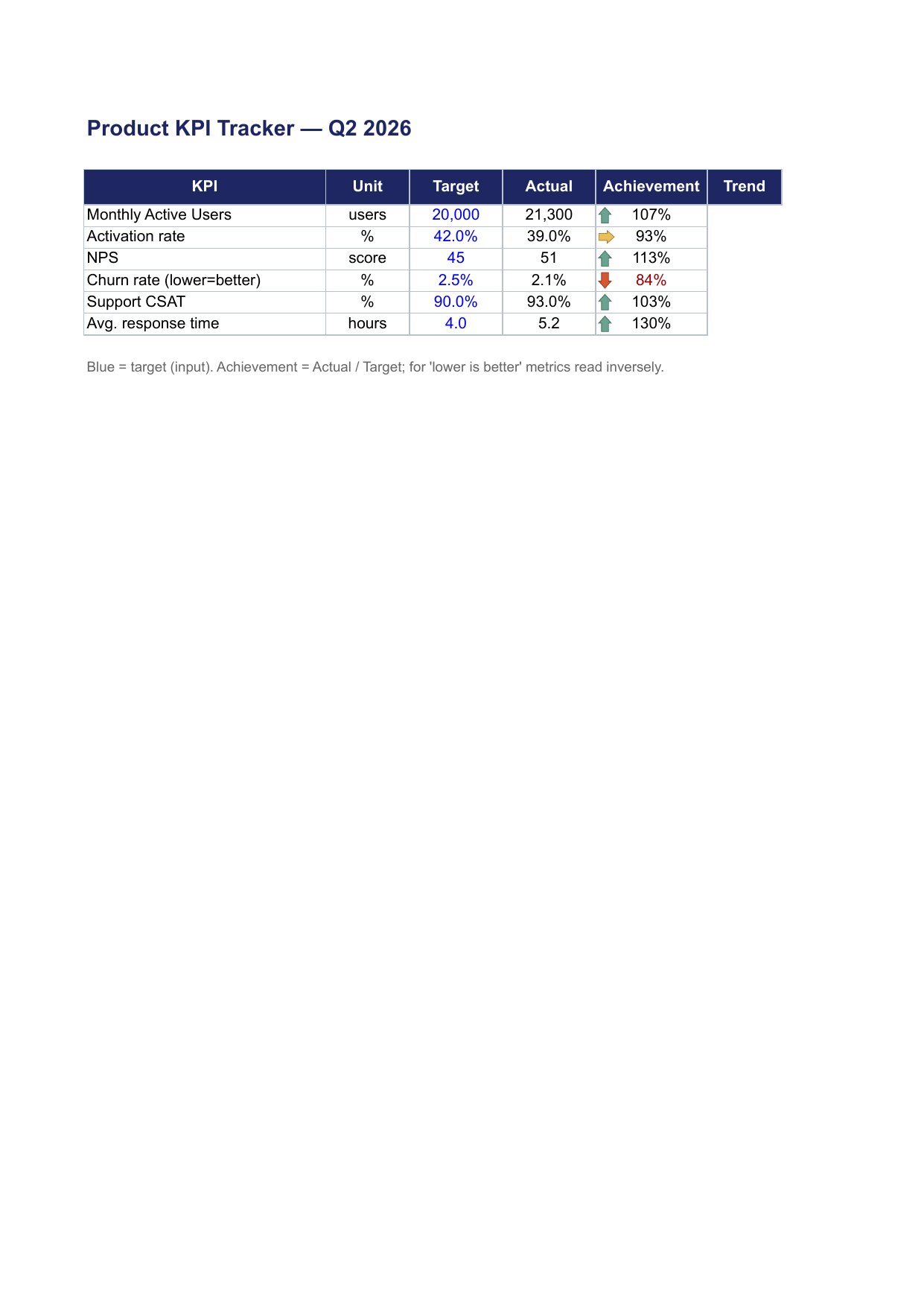

  • After: assets/bugfixes/issue-377/after.jpg
  • Compare: assets/bugfixes/issue-377/compare.jpg

Visual comparison

GT Before After
GT Before After

Required inspection

  • Rendered all evidence at 150 DPI or higher
  • Stored progressive JPEG quality 86 assets with metadata stripped
  • Inspected matched region crops at full resolution
  • Ran the 5% fuzz pixel-difference sweep
  • Inventoried hairlines and border dash styles
  • Inventoried font weight, italic, and underline emphasis

Deviation audit

Check Result
Page count/order Matches GT: one page
Element presence Matches GT: every icon, value, and header cell is present
Position/size Fixed: arrows now fill the row the way Excel's icons do instead of rendering at a third the size
Rotation/flip Matches GT: up, right, and down bands point the way Excel draws them
Fill Fixed: arrows are filled in the band color with a darker outline
Stroke/border Matches GT: the cell grid rules are present at matching positions
Text content Matches GT
Font family/weight/style Matches GT
Text color Matches GT: the red 84% value keeps its conditional font color
Alignment Matches GT: icons stay at the cell's left edge with the value on the same line
Line/paragraph spacing Matches GT: the row tracks are unchanged
Clipping/overflow No deviation observed

Checklist

  • Commits include a Signed-off-by line
  • PR scope contains one root cause
  • Remaining visual deviations each reference an open issue

@developer0hye
developer0hye force-pushed the fix/xlsx-icon-set-glyphs branch from 6f1aa7c to 476cb44 Compare July 25, 2026 10:16
Excel's arrow icon sets are drawn shapes, not characters: a shaft with a
triangular head, filled in the band color and outlined a shade darker,
about 10 pt tall in a 14 pt row. office2pdf rendered them as triangle
characters roughly a third that size.

Draw the five arrow bands as Typst polygons at Excel's proportions, with
the diagonals rotated 45 degrees. Icon sets that are not arrows — traffic
lights, flags, symbols — keep their character rendering. The arrow
codepoints move to the IR so the parser and renderer share one vocabulary
for the glyph field.

Fixes #377

Signed-off-by: Yonghye Kwon <developer.0hye@gmail.com>
@developer0hye
developer0hye force-pushed the fix/xlsx-icon-set-glyphs branch from 476cb44 to 464bc0b Compare July 25, 2026 10:52
@developer0hye
developer0hye merged commit e3b8fe4 into main Jul 25, 2026
33 checks passed
@developer0hye
developer0hye deleted the fix/xlsx-icon-set-glyphs branch July 25, 2026 11:06
