Center the indeterminate checkbox mark (#376)

[czarandy]

Fixes #376.

What was wrong

CheckboxInput's checked and indeterminate marks render through one recipe slot, and that slot carried mt: '1px' unconditionally. The nudge is an optical correction shaped for the lucide Check glyph, whose stroke sits above the middle of its 24×24 viewBox. The Minus bar is already on that centre line, so it inherited a correction it never needed.

The isChecked variant collapsed both states (isChecked: isCheckedOrIndeterminate), so there was no seam to hang a per-glyph rule on.

The shift is 0.5px, not the full 1px: the icon is centred by the box's flex layout, and a top margin on a flex-centred item only moves it by half the margin ((H − h − 1) / 2 + 1).

Changes

• isChecked becomes a three-state mark variant (none / check / indeterminate). Both marked states still paint the same filled box — that's shared through a local markedBox constant — but only check carries the nudge.
• The 1px literal stays. It's the smallest thing the design needs and the spacing scale bottoms out at 0.5 (2px), so there's no token that fits; it now sits next to a comment explaining which glyph it belongs to.
• ColorSwatchPicker.recipe.ts:62 has the same literal, but that recipe only ever renders Check, so its nudge is on the right glyph and is left alone.

Verified in a browser

Measured in headless Chromium against Storybook — the painted bounding box of the glyph's <path> against the box's border-box centre, at every size:

	before	after
indeterminate (sm/md/lg)	+0.5px	0px
checked (sm/md/lg)	+0.083px	+0.083px (unchanged)

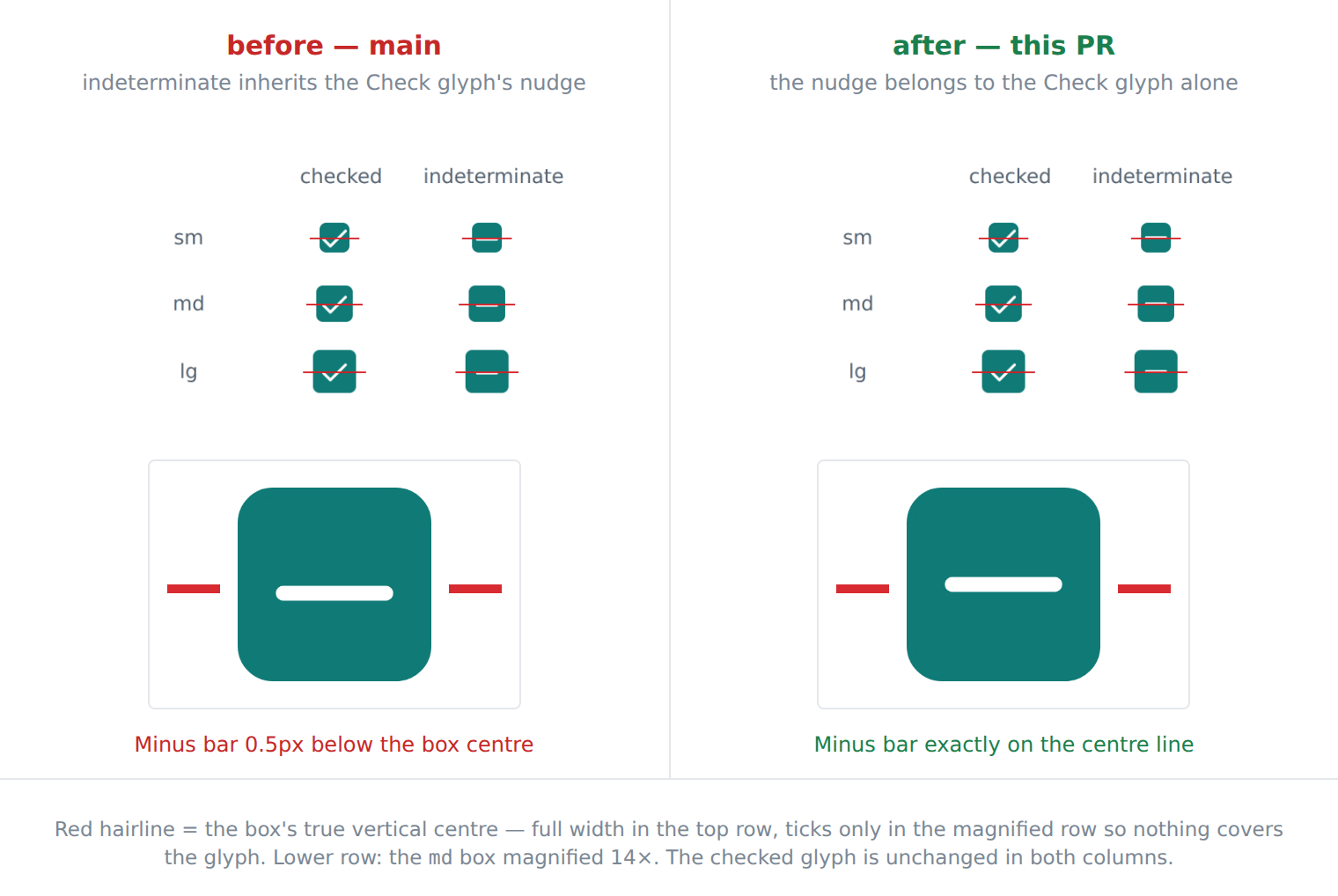

The red marks are the box's true vertical centre, placed from the measured geometry (verified to land within 0.008px of it). Full-width in the overview; ticks only in the magnified row so nothing covers the glyph.

Tests

Two regression tests in CheckboxInput.test.tsx:

• the checked mark carries silver-mt_1px and the indeterminate mark does not — fails on main, where the Minus glyph renders with that class;
• both marked states still fill the box and the unchecked state does not, guarding the isChecked → mark refactor.

Full suite green (3179 tests), lint and typecheck clean.

Note: the screenshot is hosted on a throwaway screenshots/issue-376 branch — safe to delete once this is reviewed.
