Wemos D1 Mini Blynk RGB strip

Control a ws2812b rgb strip over blynk.

Basic steps to create your own RGB light

• Buy a Wemos D1 Mini board
• Download this piece of code and edit auth(ssid, pwd) details.
• Download the blynk app from google play.
• Create a new project for your Wemos board.
• You will receive a token, you need to write into the code.
• Upload the code to board.
• Connect the strip to board.
• Enjoy it.

Attentions

• Be aware that this RGB strip need a lot Amps. (1 meter/ 60 leds with white color of full brightness ~ 3.6 A)

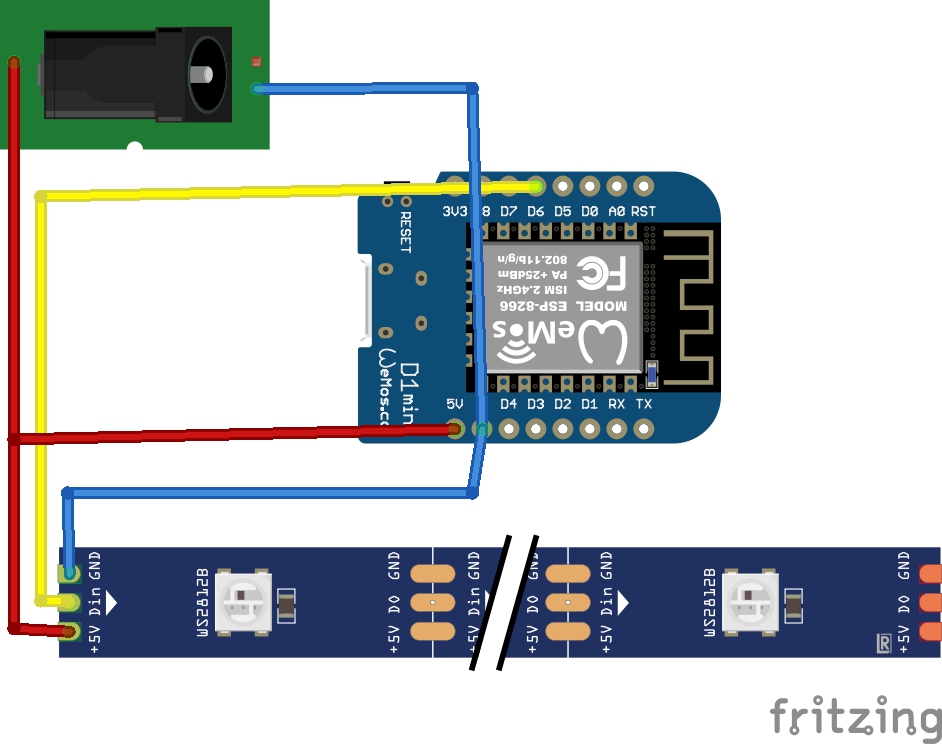

Circuit

If you have any suggestions or you noticed any bug feel free to contact me.
