perf(detray): Make Jacobian a non-pointer member of param updater - #6054

Draft
stephenswat wants to merge 2 commits into
acts-project:mainfrom
stephenswat:detray/perf/jac_in_mbf_state
Draft

perf(detray): Make Jacobian a non-pointer member of param updater#6054
stephenswat wants to merge 2 commits into
acts-project:mainfrom
stephenswat:detray/perf/jac_in_mbf_state

Conversation

@stephenswat

@stephenswat stephenswat commented Sep 8, 2026

Copy link
Copy Markdown
Member

This commit makes the Jacobian a non-pointer member of the parameter updater and adds an optimisation of cases where the matrix is not set.

@stephenswat
refactor(detray): Split MBF parameter updater into new class
cdc392e
This commit splits the parameter updater type in two, preserving a
non-MBF-enabled version and a new type which supports Jacobian
propagation for MBF workflows.
@stephenswat
perf(detray): Make Jacobian a non-pointer member of param updater
5e49c34
This commit makes the Jacobian a non-pointer member of the parameter
updater and adds an optimisation of cases where the matrix is not set.
@stephenswat
stephenswat force-pushed the detray/perf/jac_in_mbf_state branch from d1ee77c to 5e49c34 Compare September 8, 2026 16:04
@stephenswat

stephenswat commented Sep 8, 2026

Copy link
Copy Markdown
Member Author

Physics performance summary

Here is a summary of the physics performance effects of this PR. Command used:

traccc_seeding_example_cuda --input-directory=/data/Acts/odd-simulations-20240506/geant4_ttbar_mu200 --digitization-file=geometries/odd/odd-digi-geometric-config.json --conditions-file=geometries/odd/odd-digi-geometric-config.json --detector-file=geometries/odd/odd-detray_geometry_detray.json --grid-file=geometries/odd/odd-detray_surface_grids_detray.json --material-file=geometries/odd/odd-detray_material_detray.json --input-events=10 --use-acts-geom-source=on --check-performance --truth-finding-min-track-candidates=5 --truth-finding-min-pt=1.0 --truth-finding-min-z=-150 --truth-finding-max-z=150 --truth-finding-max-r=10 --seed-matching-ratio=0.99 --track-matching-ratio=0.5 --track-candidates-range=5:100 --seedfinder-vertex-range=-150:150

Seeding performance

Total number of seeds went from 298341 to 298338 (-0.0%)

Seeding plots



Track finding performance

Total number of found tracks went from 50212 to 50212 (+0.0%)

Finding plots









Track fitting performance

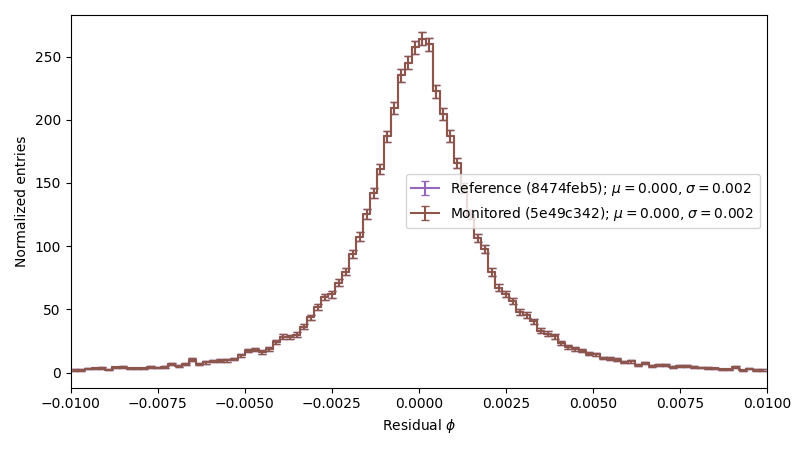

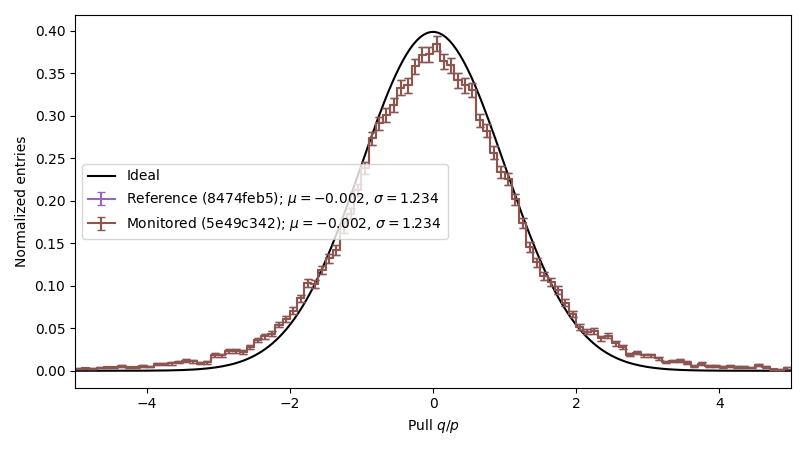

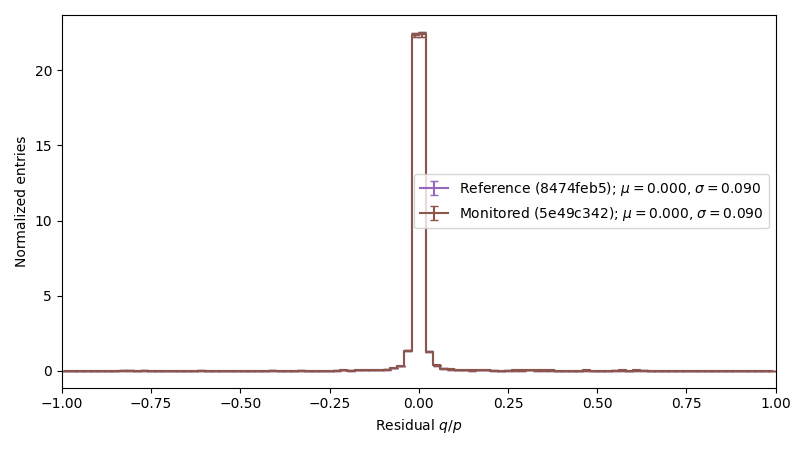

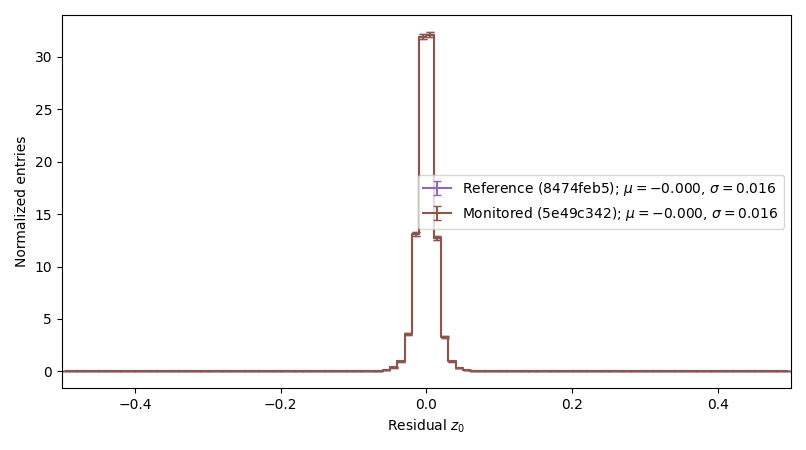

Fitting plots














Seeding to track finding relative performance

Seeding to track finding plots



Note

This is an automated message produced on the explicit request of a human being.

@stephenswat

stephenswat commented Sep 8, 2026

Copy link
Copy Markdown
Member Author

Performance summary

Here is a summary of the performance effects of this PR:

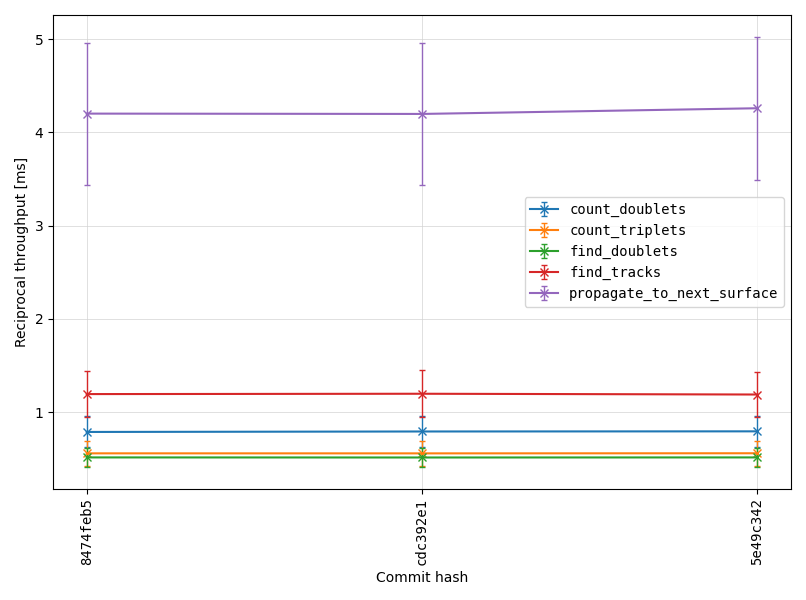

Graphical

Tabular

KernelReciprocal ThroughputParallelism
8474feb5e49c34Delta8474feb5e49c34
propagate_to_next_surface4.20 ms4.26 ms1.4%4.884.85
find_tracks1.19 ms1.19 ms-0.4%1.841.84
count_doublets786.91 μs793.46 μs0.8%1.611.61
count_triplets557.46 μs558.31 μs0.2%1.021.02
find_doublets513.77 μs513.75 μs-0.0%3.083.08
ccl_kernel435.66 μs433.87 μs-0.4%1.711.71
Thrust::sort383.88 μs384.41 μs0.1%7.277.27
condense_tracks250.76 μs250.72 μs-0.0%5.765.76
find_triplets162.61 μs161.24 μs-0.8%1.311.31
build_tracks125.39 μs125.24 μs-0.1%3.723.72
select_seeds58.35 μs57.74 μs-1.0%1.341.34
estimate_track_params26.45 μs26.45 μs-0.0%2.682.69
populate_grid23.56 μs23.55 μs-0.1%1.221.22
count_grid_capacities21.93 μs21.91 μs-0.1%1.221.22
remove_duplicates19.83 μs19.87 μs0.2%25.7625.76
fill_sorted_measurements16.13 μs16.06 μs-0.4%1.131.13
update_triplet_weights14.74 μs14.68 μs-0.4%1.271.27
fill_finding_propagation_sort_keys9.85 μs9.82 μs-0.3%7.237.23
form_spacepoints7.42 μs7.42 μs0.0%1.471.48
reduce_triplet_counts5.50 μs5.50 μs-0.1%3.083.08
unknown5.03 μs5.04 μs0.2%4.274.27
count_spacepoints2.98 μs2.99 μs0.3%1.471.47
Thrust::scan1.79 μs1.79 μs-0.3%92.4592.67
fill_finding_duplicate_removal_sort_keys1.55 μs1.55 μs-0.0%38.1338.13
create_device_detectorNoneNone-0.0%32764.7232764.72
Total8.83 ms8.88 ms0.6%3.723.72

Important

All metrics in this report are given as reciprocal throughput, not as wallclock runtime.

Note

This is an automated message produced upon the explicit request of a human being.

@github-actions github-actions Bot added Component - Detray Affects the Detray project Component - Traccc labels Sep 8, 2026
@github-actions github-actions Bot added this to the next milestone Sep 8, 2026
@sonarqubecloud

sonarqubecloud Bot commented Sep 8, 2026

Copy link
Copy Markdown

Quality Gate Passed Quality Gate passed

Issues
0 New issues
0 Accepted issues

Measures
0 Security Hotspots
0.0% Coverage on New Code
0.0% Duplication on New Code

See analysis details on SonarQube Cloud

@github-actions

github-actions Bot commented Sep 8, 2026

Copy link
Copy Markdown
Contributor

Public API surface diff

No change to the public API surface. ✅

@github-actions

github-actions Bot commented Sep 8, 2026

Copy link
Copy Markdown
Contributor

📊: Physics performance monitoring for 5e49c34

Full contents

physmon summary
