perf(detray): Align transform3 struct to 16 bytes - #6027
Draft
stephenswat wants to merge 1 commit into
Draft
Conversation
Member
Author

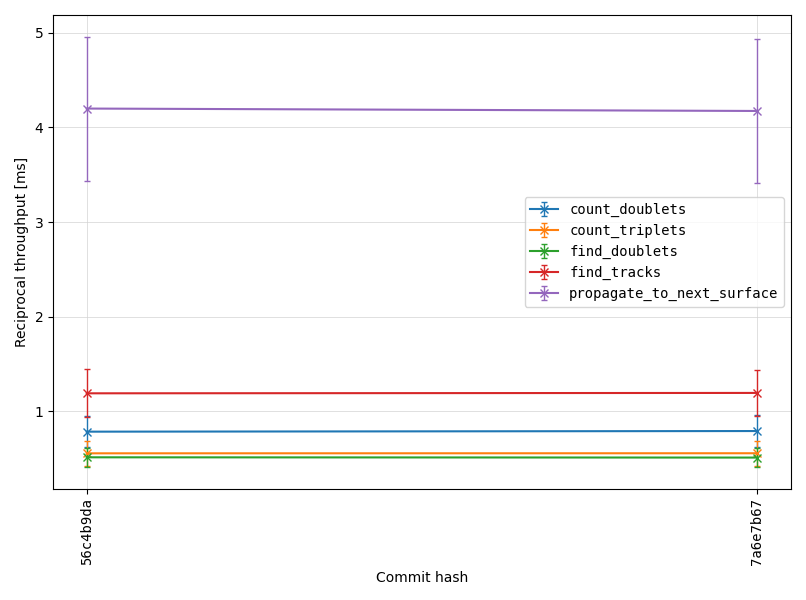

Performance summaryHere is a summary of the performance effects of this PR: GraphicalTabular
Important All metrics in this report are given as reciprocal throughput, not as wallclock runtime. Note This is an automated message produced upon the explicit request of a human being. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Contributor
Public API surface diffNo change to the public API surface. ✅ |
Contributor
niermann999
previously approved these changes
Sep 4, 2026
niermann999
left a comment
niermann999
left a comment
Contributor
There was a problem hiding this comment.
I also have been playing around with alignment of these during the vectorization studies and never saw much of a difference...
The transform3 struct is exactly 128 bytes (although it can go down to 48 without issue), but is aligned to 4 byte boundaries. This means that any loads into the struct must assume non-alignment. Aligning the struct to 16 bytes allows the compiler to issue 128 bit loads if it wants, which should improve latency and throughput.
stephenswat
force-pushed
the
detray/perf/align_transform3_to_16_bytes
branch
from
September 7, 2026 11:34
574ba42 to
7a6e7b6
Compare
acts-policybot
Bot
dismissed
niermann999’s stale review
September 7, 2026 11:34
Invalidated by push of 7a6e7b6
Member
Author
Performance summaryHere is a summary of the performance effects of this PR: GraphicalTabular
Important All metrics in this report are given as reciprocal throughput, not as wallclock runtime. Note This is an automated message produced upon the explicit request of a human being. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
niermann999
reviewed
Sep 8, 2026
| /// @param m is the matrix | ||
| /// @param col is the column index | ||
| DETRAY_HOST_DEVICE | ||
| static constexpr array_type<4> column(const matrix44 &m, index_t col) { |
Contributor
There was a problem hiding this comment.
I think it would be better to implement this as specialized block getter? That could benefit more code than just the transform3
Contributor
There was a problem hiding this comment.
See e.g. acts-project/algebra-plugins#140
Also, could this go into a dedicated PR?
