Creating a Virtual Machine Using Azure

Prerequisites and Installation

This tutorial outlines the prerequisites and installation steps for Creating a Virtual Machine Using Azure

Environments and Technologies Used

Azure Portal

• The Azure Portal is the main web interface for creating, configuring, and managing Azure VMs and other resources
• Usage: It offers a visual interface to select VM types, configure networking, assign storage, set up security, and manage monitoring options

Operating Systems Used

• Azure VMs can run Windows Server for enterprise and web hosting, various Linux distributions like Ubuntu, CentOS, and RHEL for open-source projects and development, while macOS can be used for connecting to and managing VMs using tools like Azure CLI and PowerShell

List of Prerequisites

• Azure Account
• Computer with Internet Connection
• Credit Card (Required for free Azure credits)

Installation Steps

Step 1: Create an Azure Account

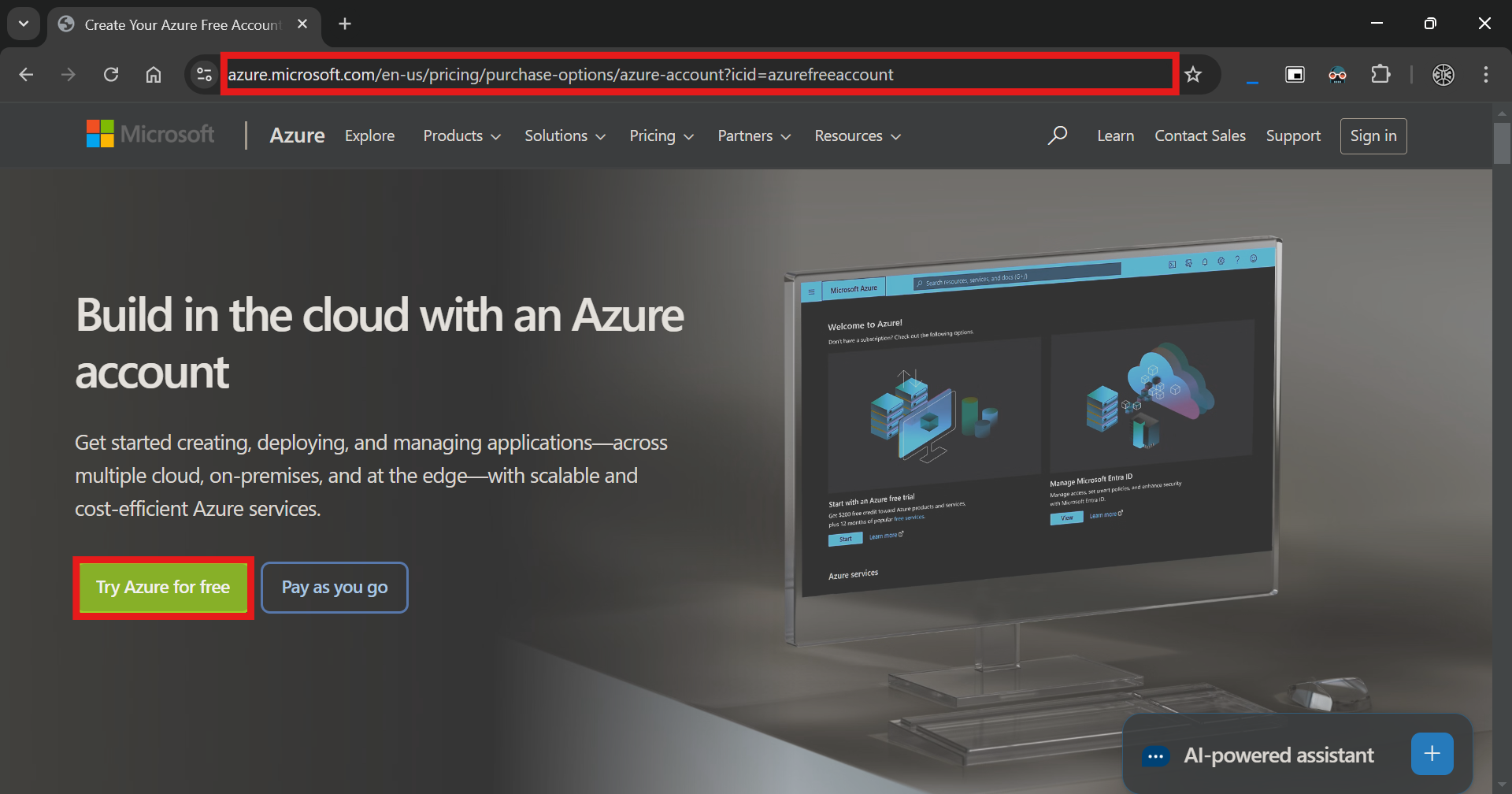

1. Create an Azure account here
2. Follow the prompt to create the account
3. You will need to put in your credit card information for verification purposes, this will allow you to get $200 worth of Azure credit and will have 30 days to use those credits. You will not be charged until then
4. Finish the prompt, click Go to Azure Portal, and you are ready to start with Azure!

Additionally If You Already Have An Account Go Here To Start

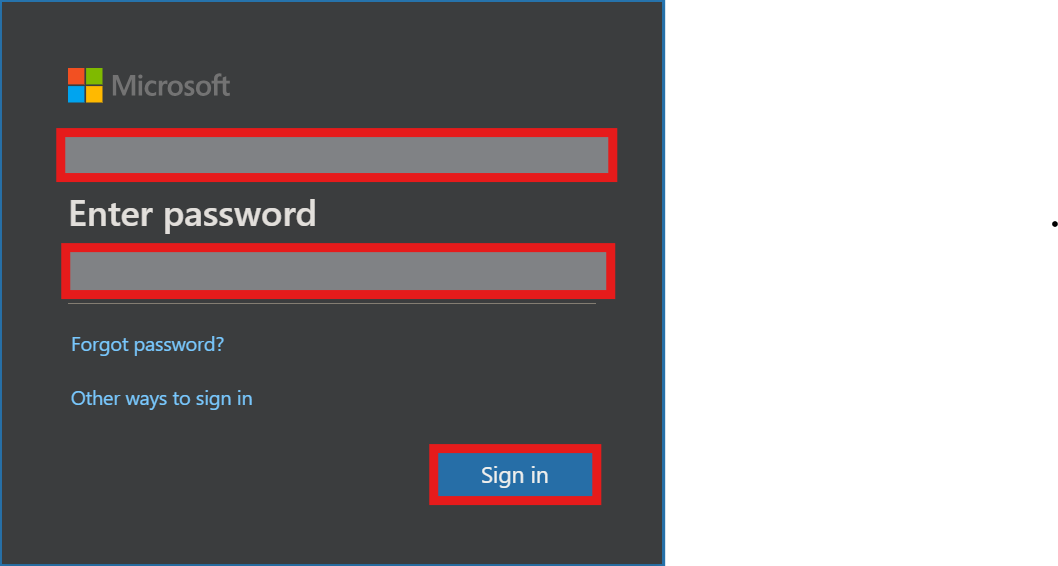

Azure Portal Login

Step 2: Create a Resource Group

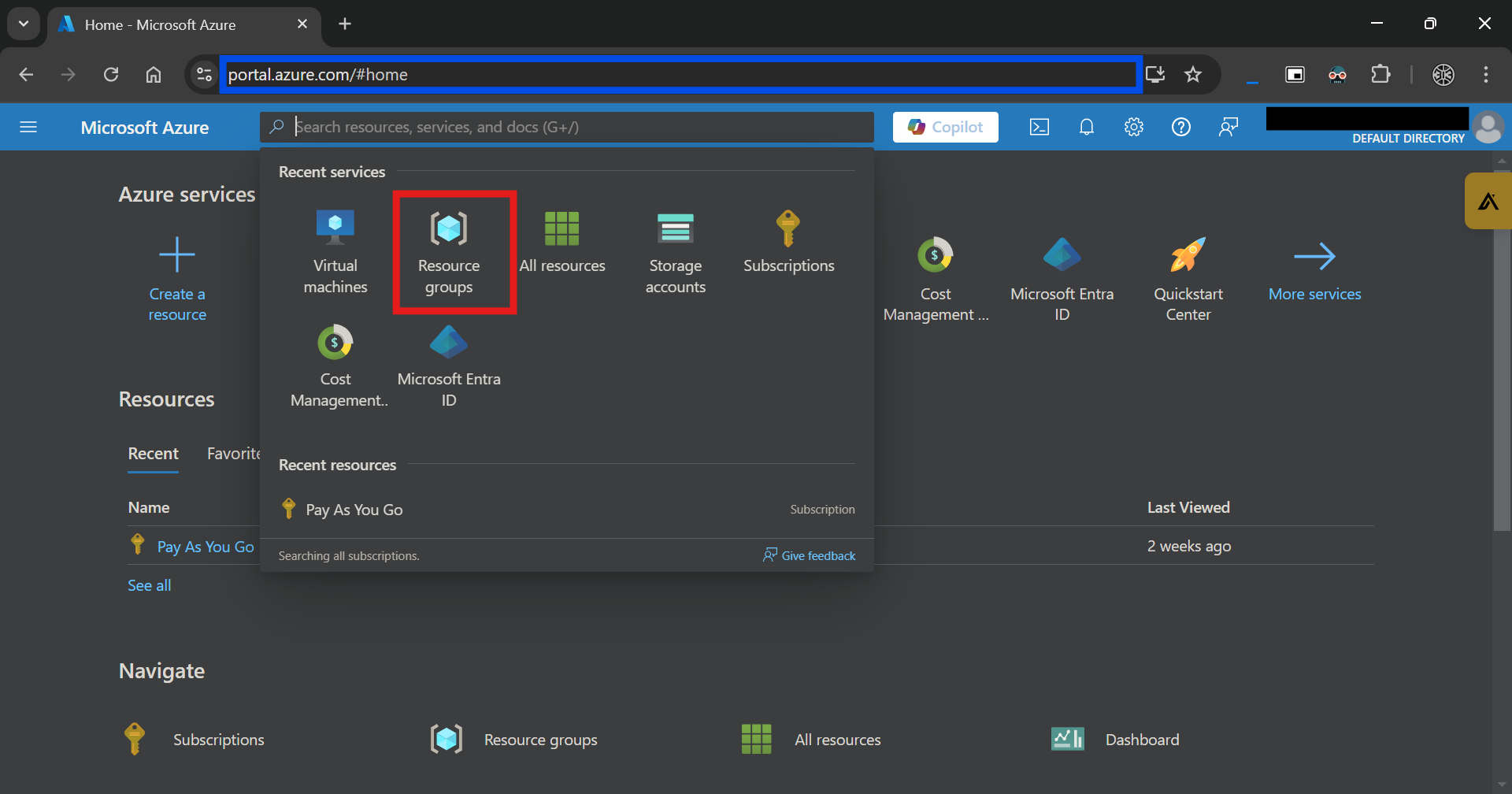

1. Go to the Azure portal search bar at the middle top of the screen and search resource group
2. Select Resource Groups

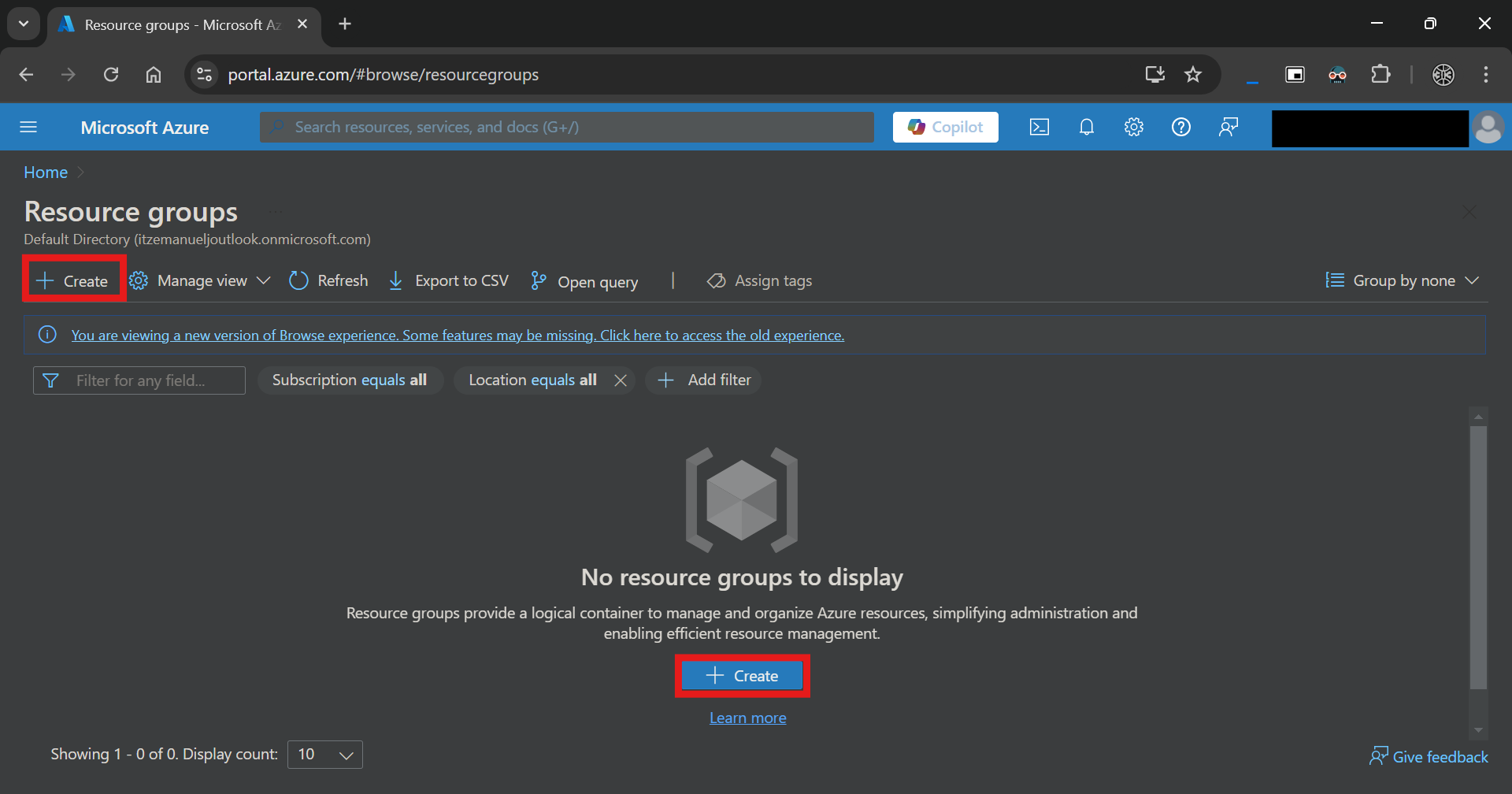

3. In the Resource Groups tab click Create on the left top side of the screen or on the bottom middle
4. We then need to name the resource group and select a region

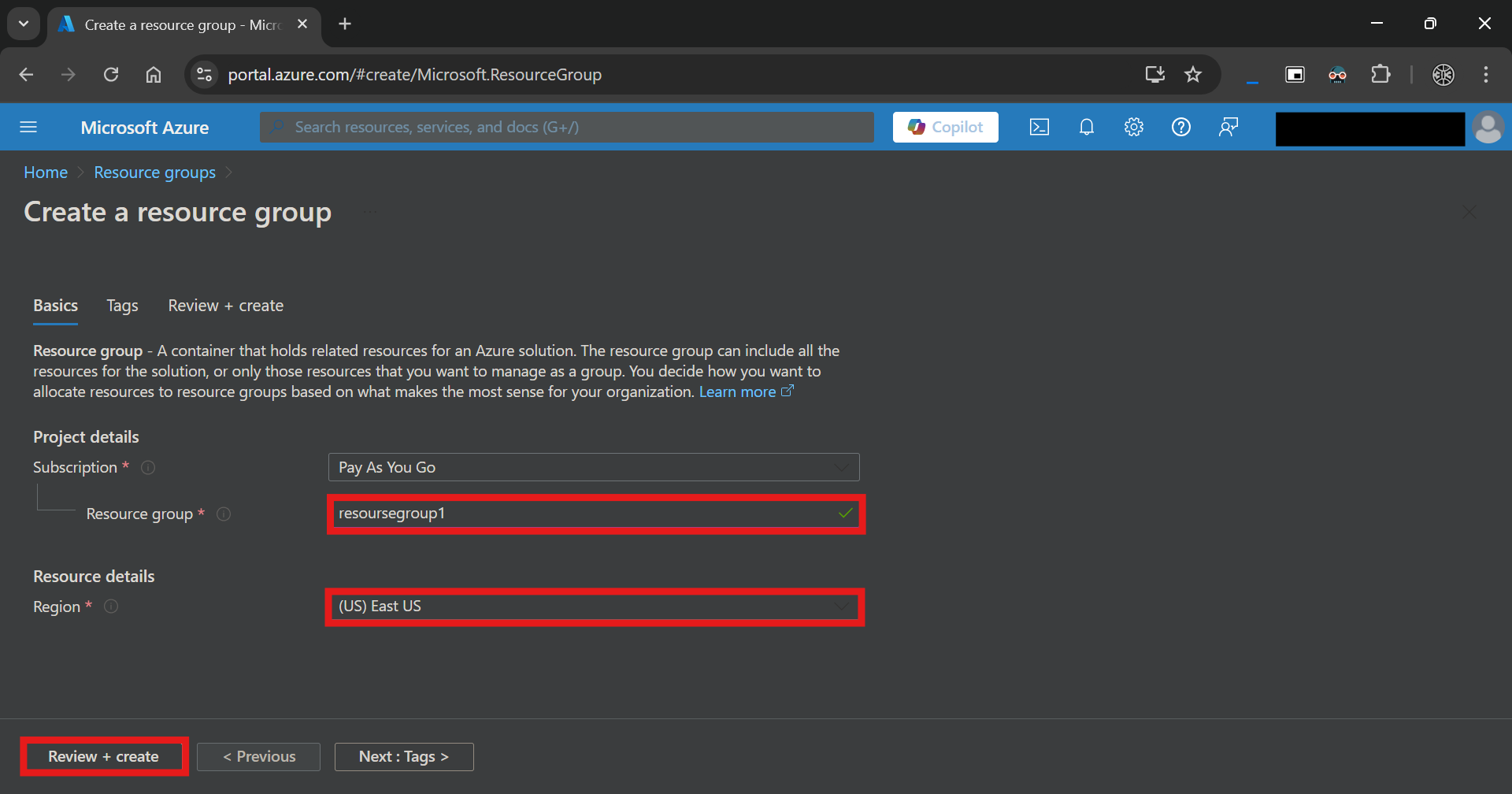

5. In this tutorial we will name the resource group resourcegroup1 and select (US) East US for the region

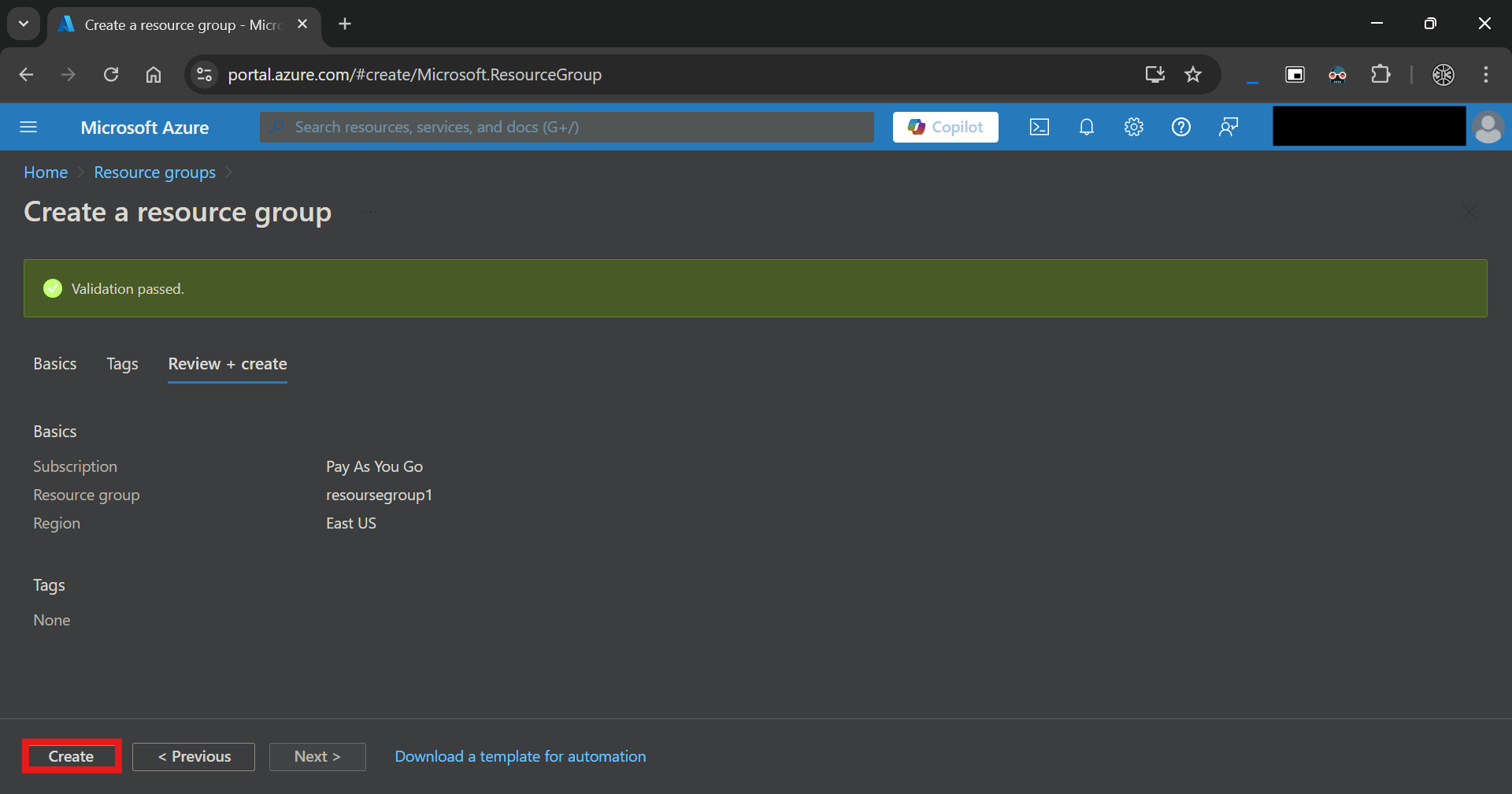

6. On the bottom left of the screen click Review + Create (it should say Azure subscription 1 if using a brand new account)

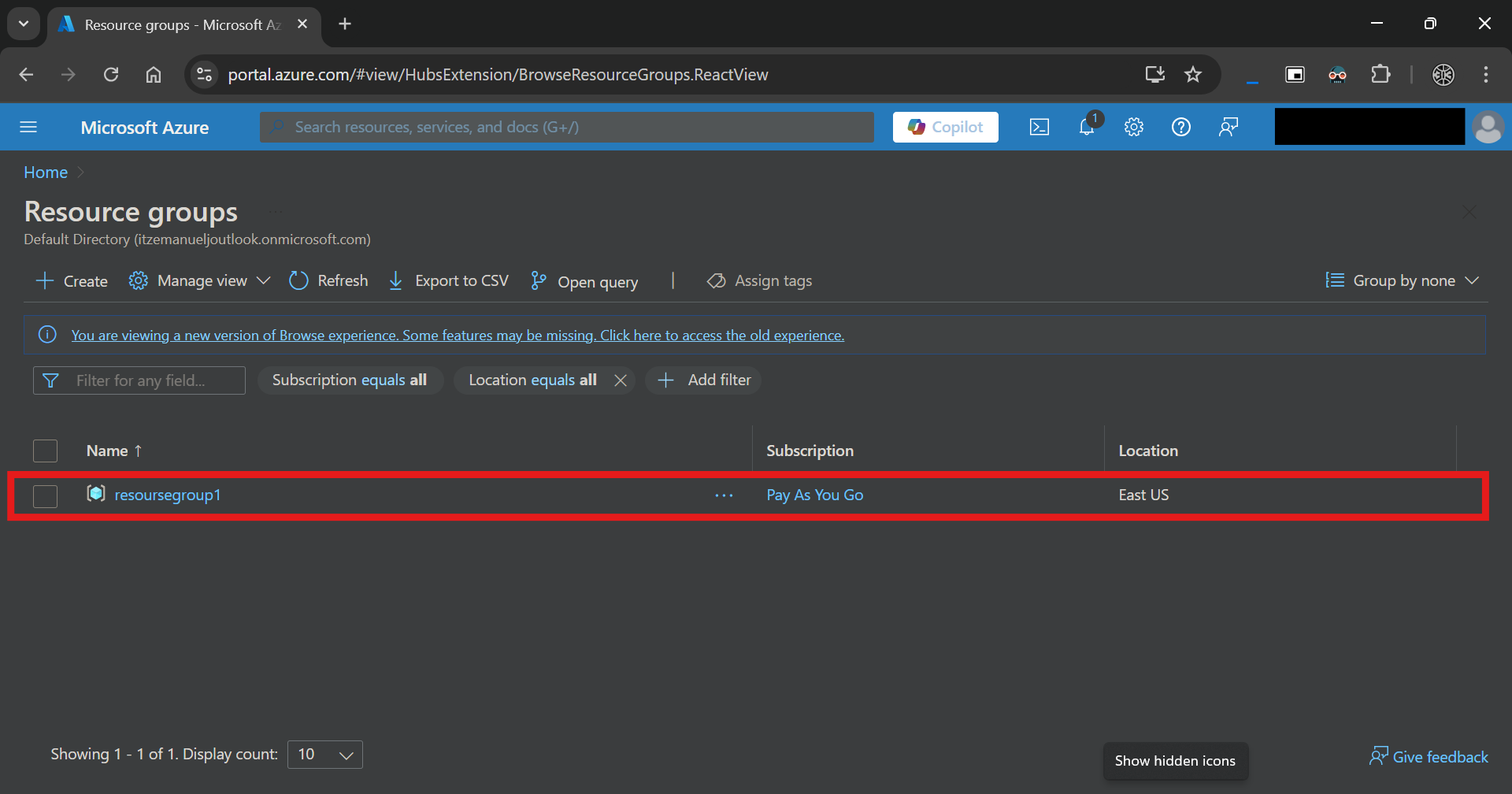

7. Once verification is complete we have successfully created a Resource Group. We can then click Create at the bottom right of the screen

Step 3: Create a Storage Account

1. Go to the Azure portal search bar at the middle top of the screen and search Storage Accounts
2. Select Storage Accounts

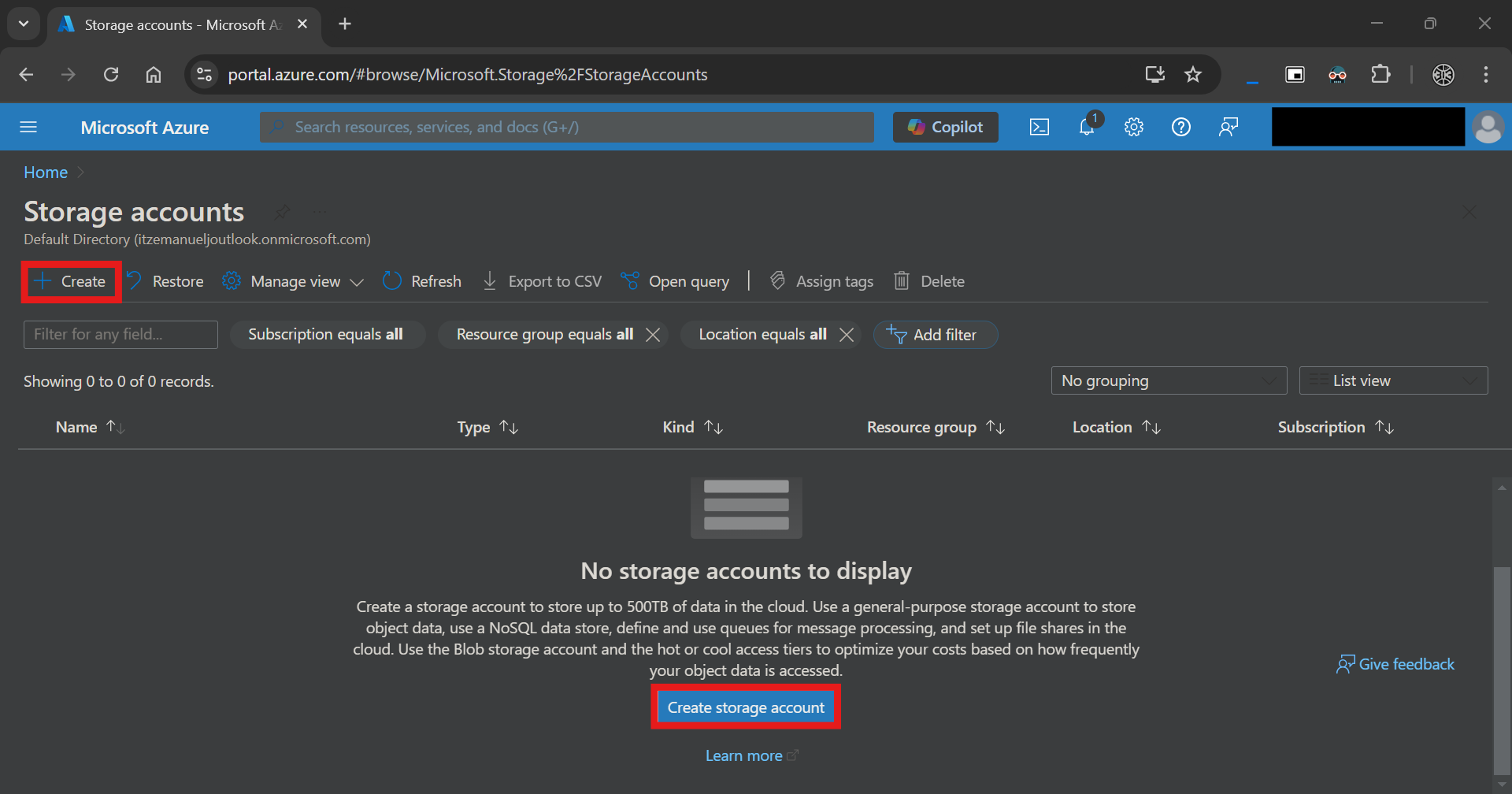

3. Click Create on the left top side of the screen or on the bottom middle
4. We need to select the same Resource Group and Region we used in step 2

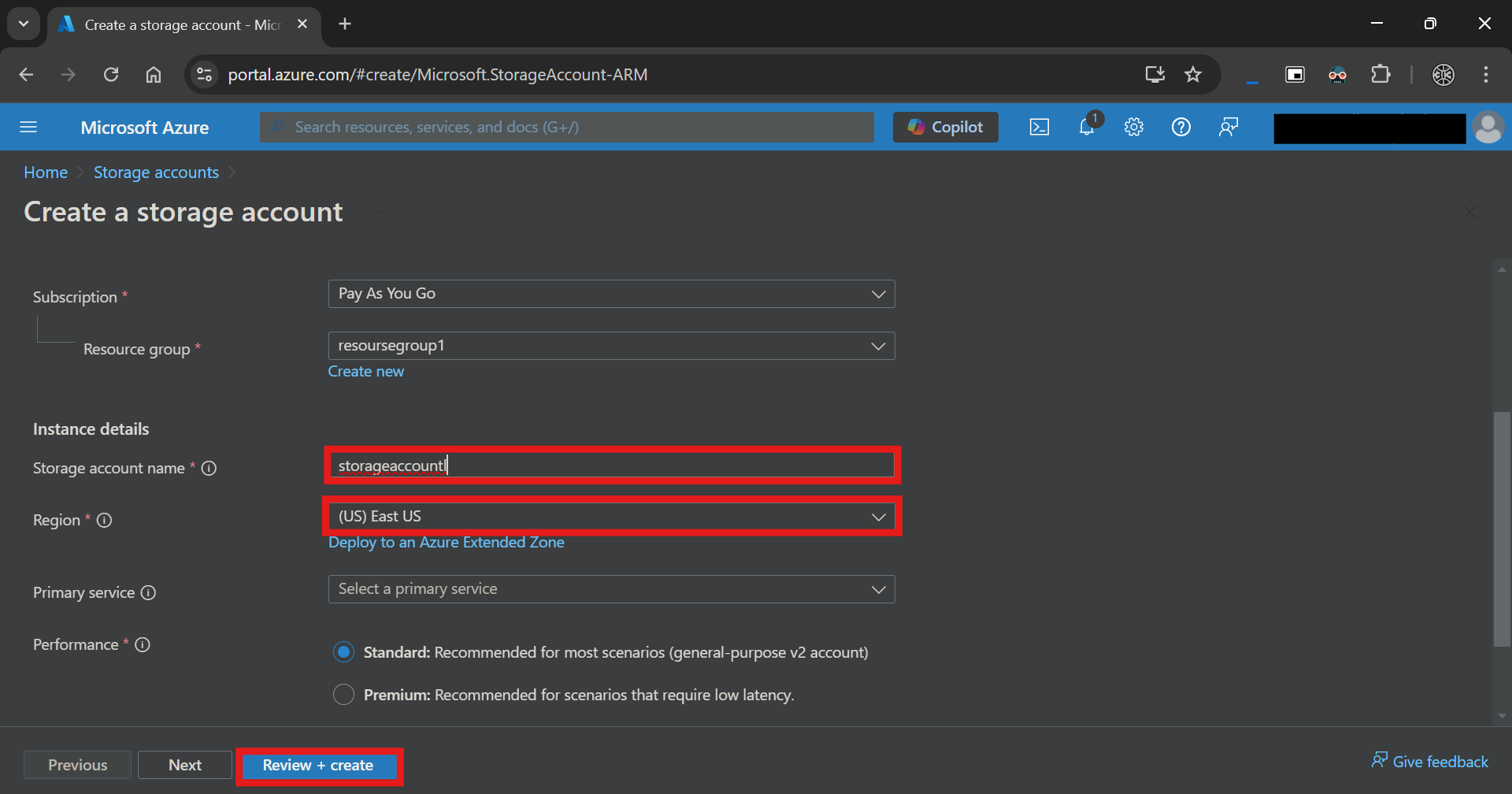

5. In this tutorial we will name the Storage Account storageaccount1 and select (US)East US for the region

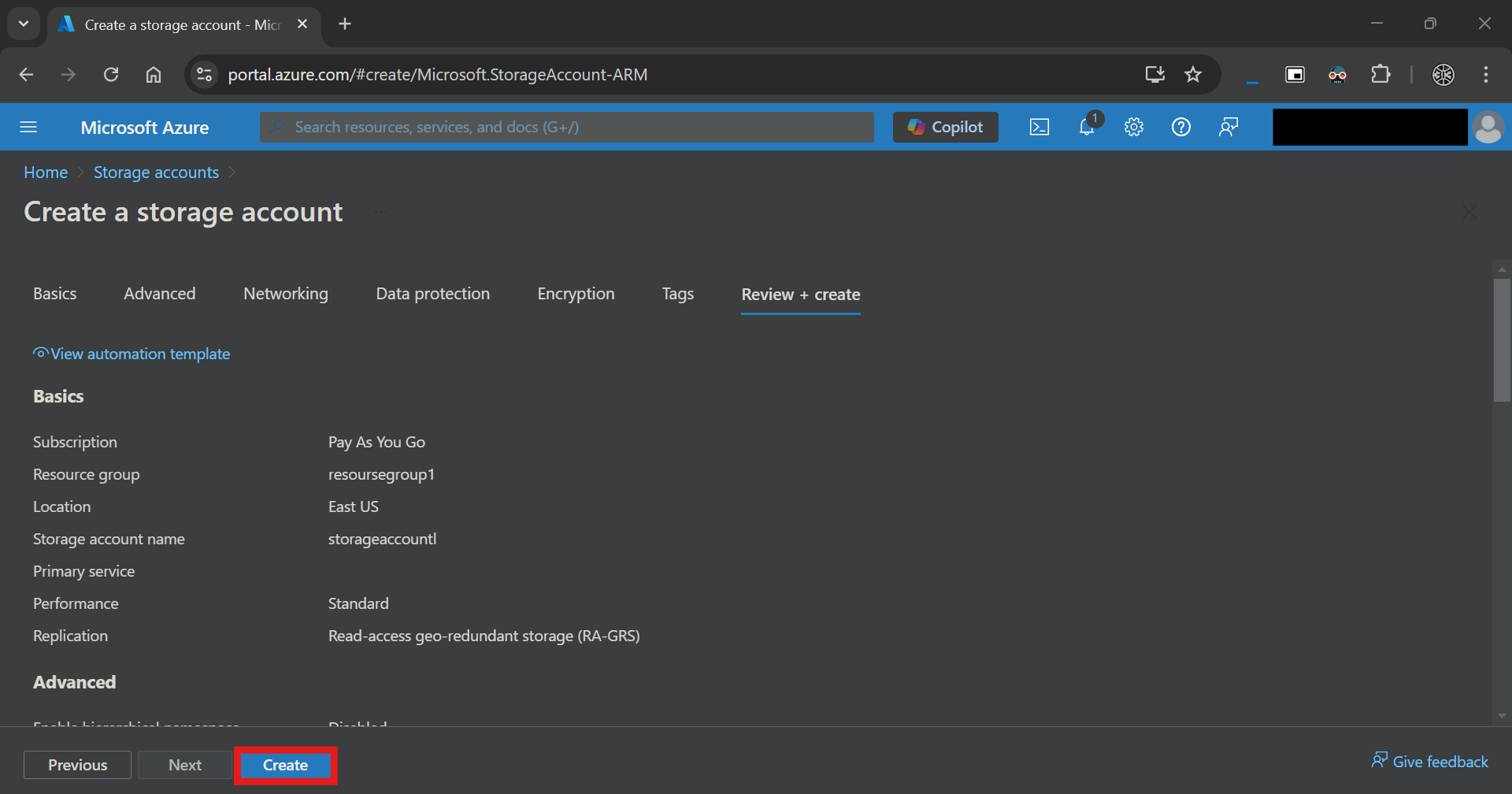

6. At the bottom left of the screen we will select Review + Create and in the next one click Create
7. Our Storage Account is now successuccessfully fully created

Step 4: Create a Virtual Machine

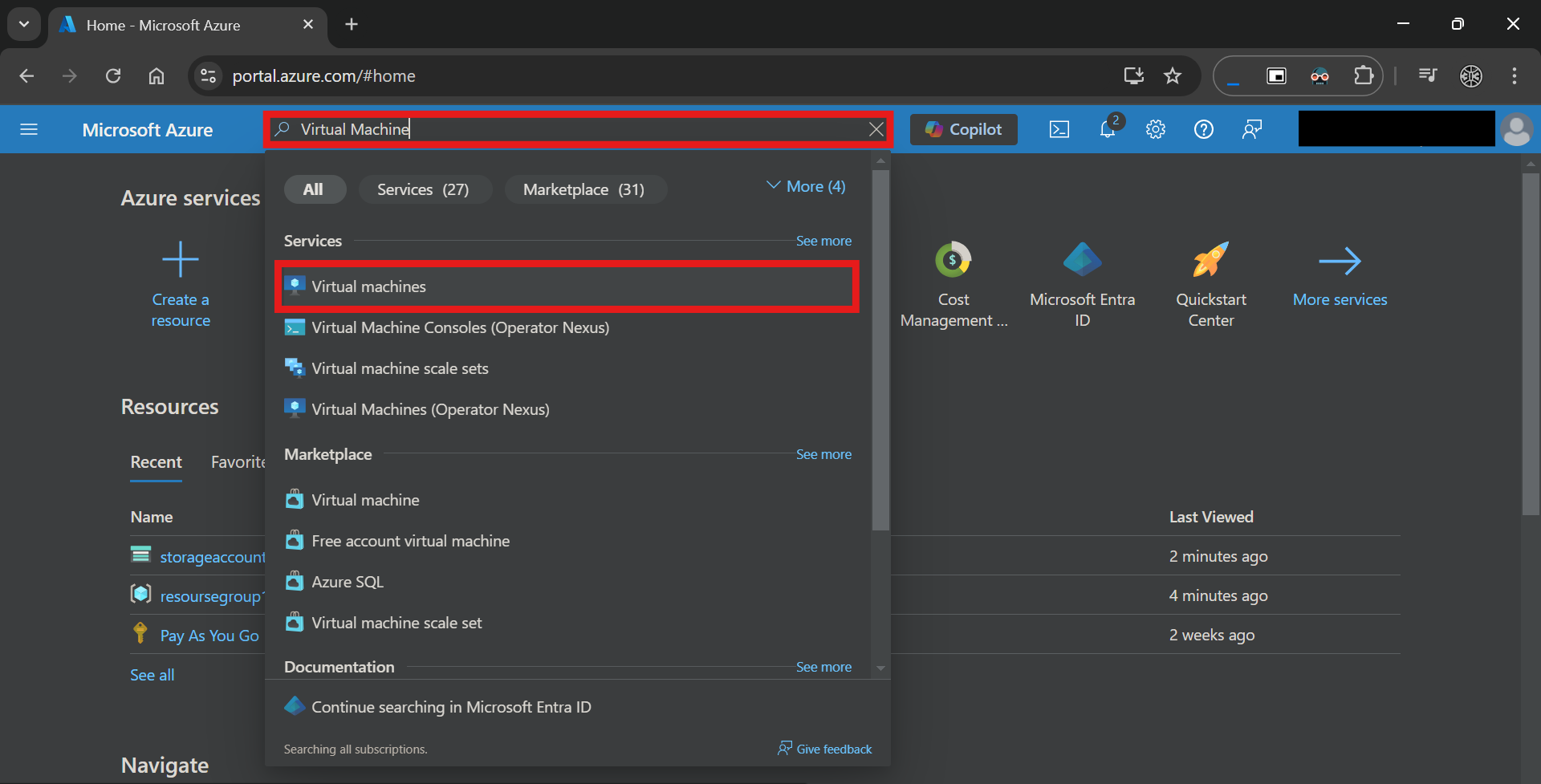

1. Go to the Azure portal search bar at the middle top of the screen and search Virtual Machines.
2. Select Virtual Machines

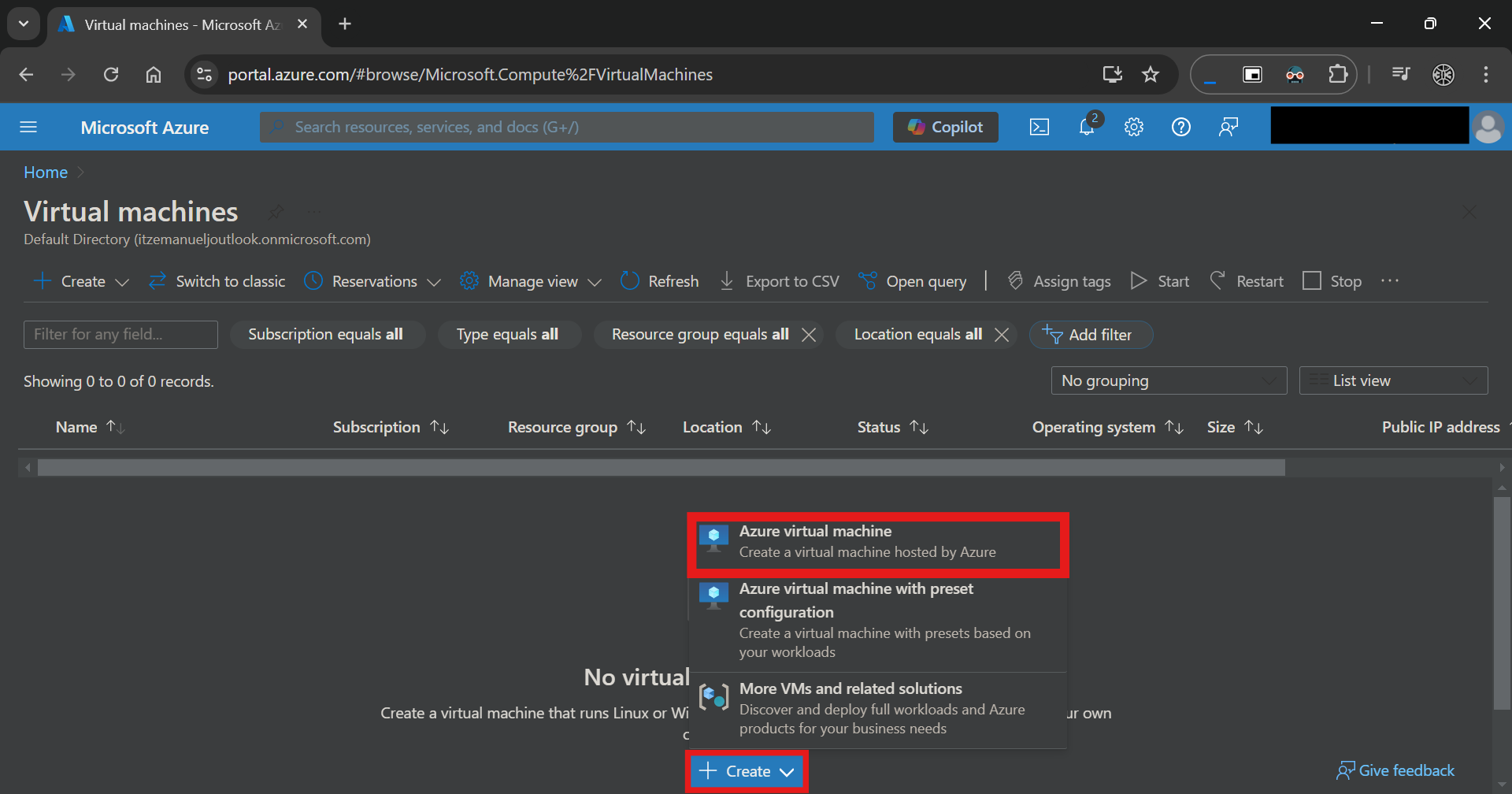

3. Click Create Azure Virtual Machine at the middle bottom of the screen of the page

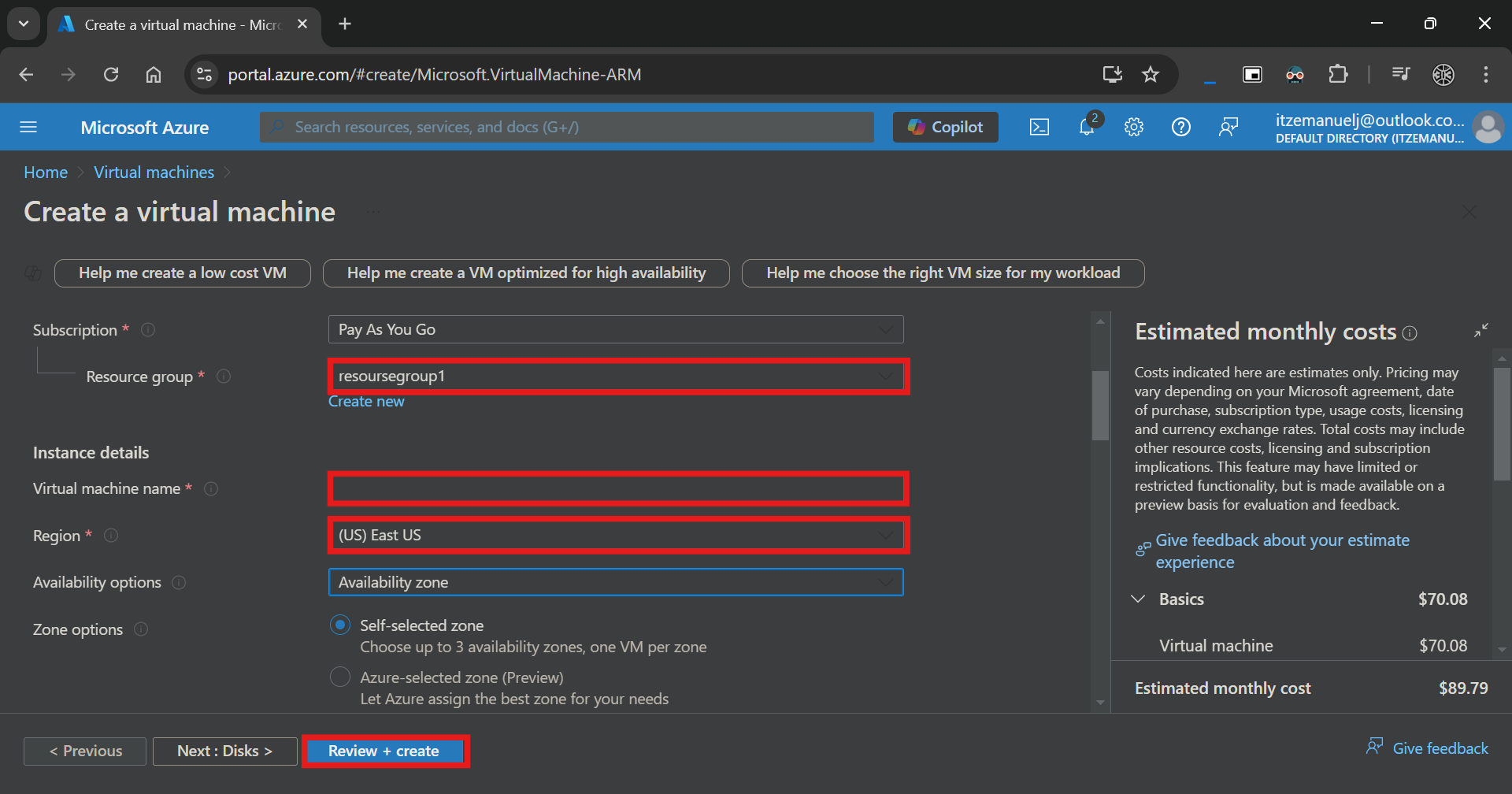

4. We will need to select the same Resource Group, Region, and create a name for the virtual machine
5. In this tutorial, we will name the virtual Machine "Windows10ProVM"

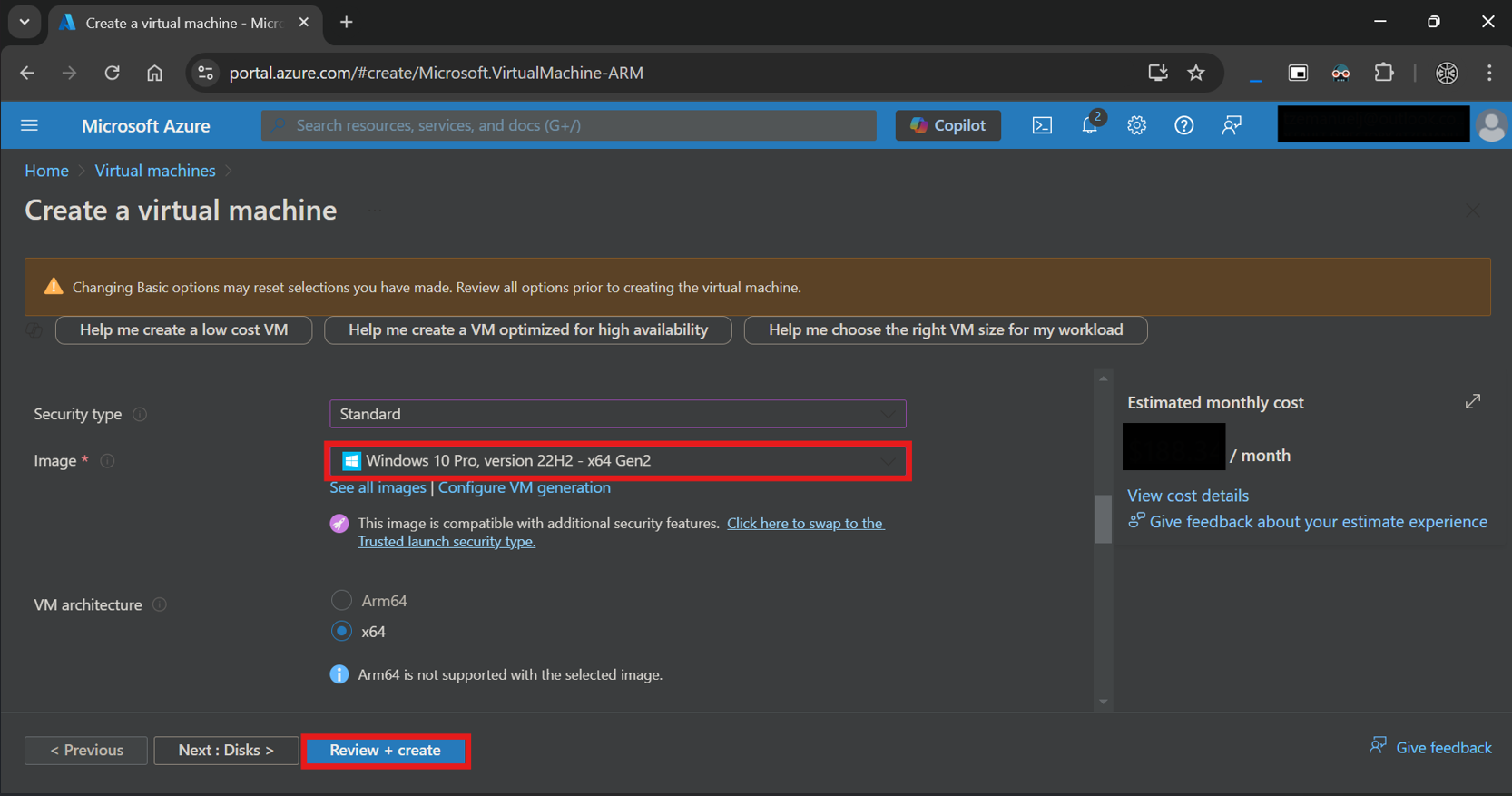

6. We now need to select an Image for our virtual machine
7. In this tutorial, we will be using a Windows 10Pro VM image

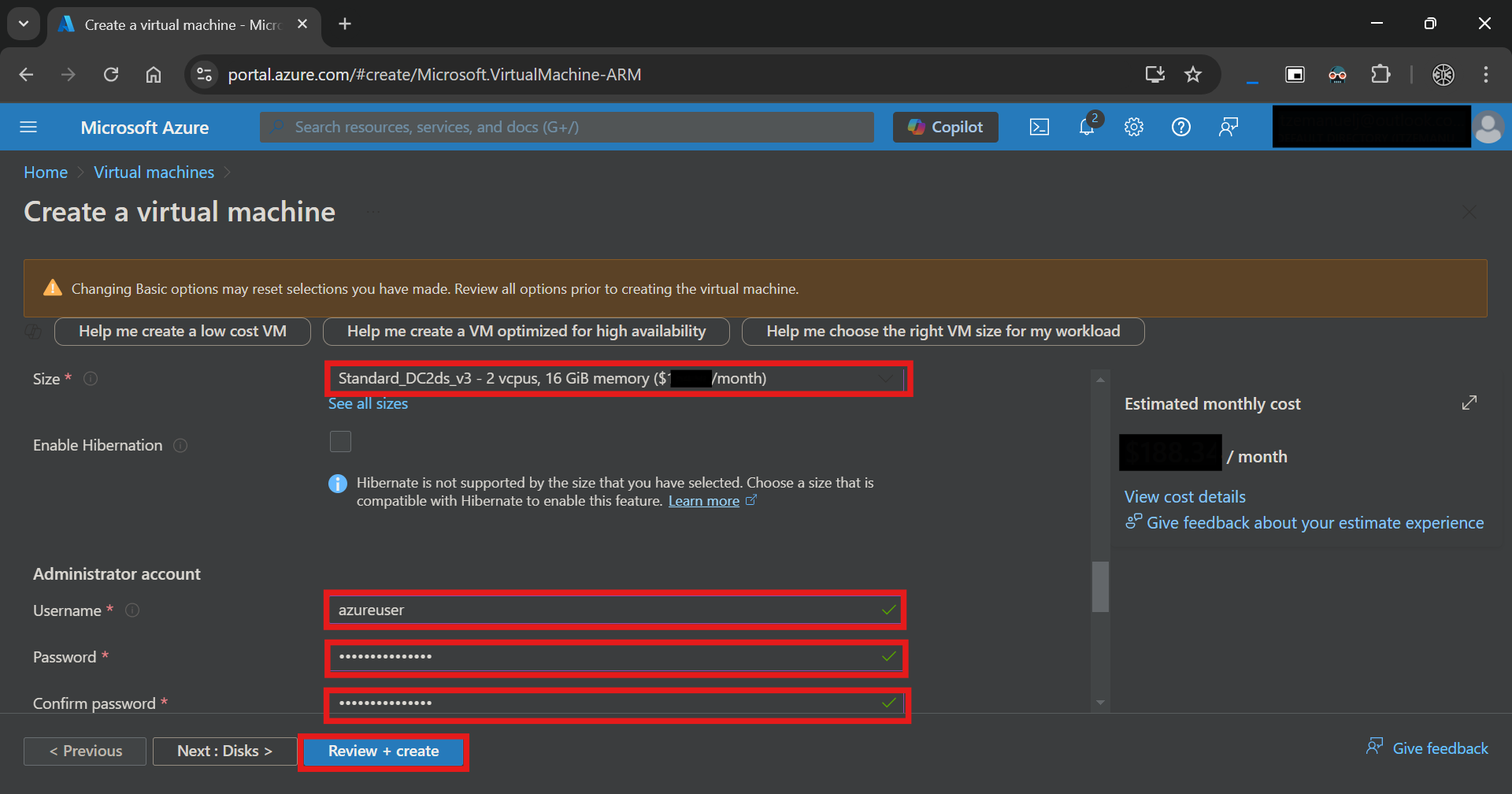

8. Next scroll down to size , we need to select a VM size with 2vcpus
9. Finally, we will create a username and password so we can login to our VM

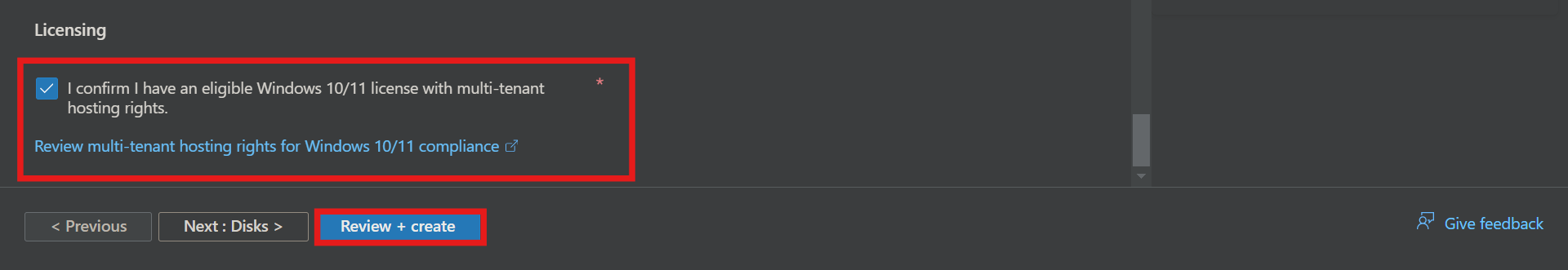

10. Make sure to confirm and agree to licensing agreements

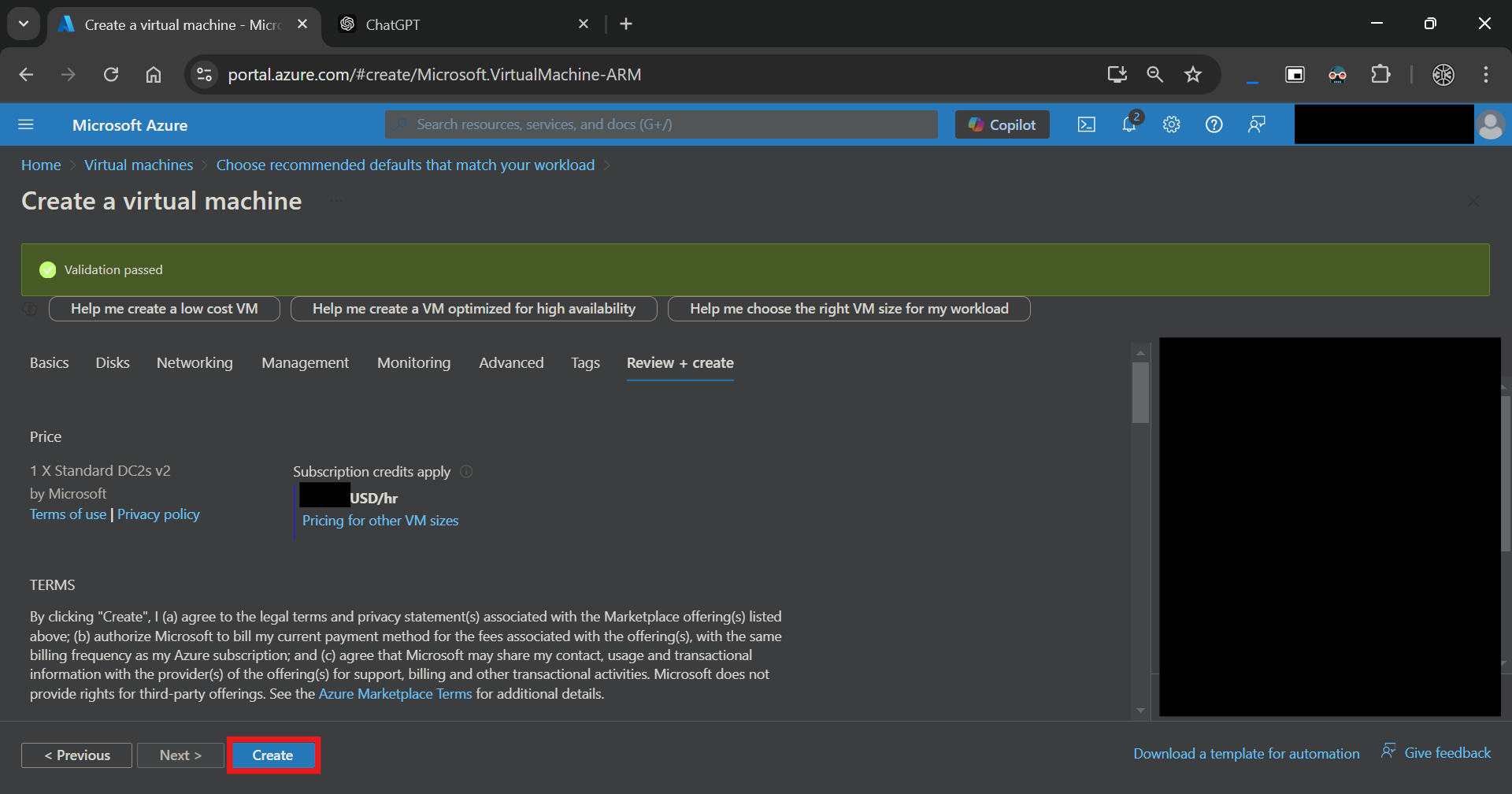

11. Once validation is passed we have now successfully created our VM

Step 5: Connect to the Virtual Machine (Windows)

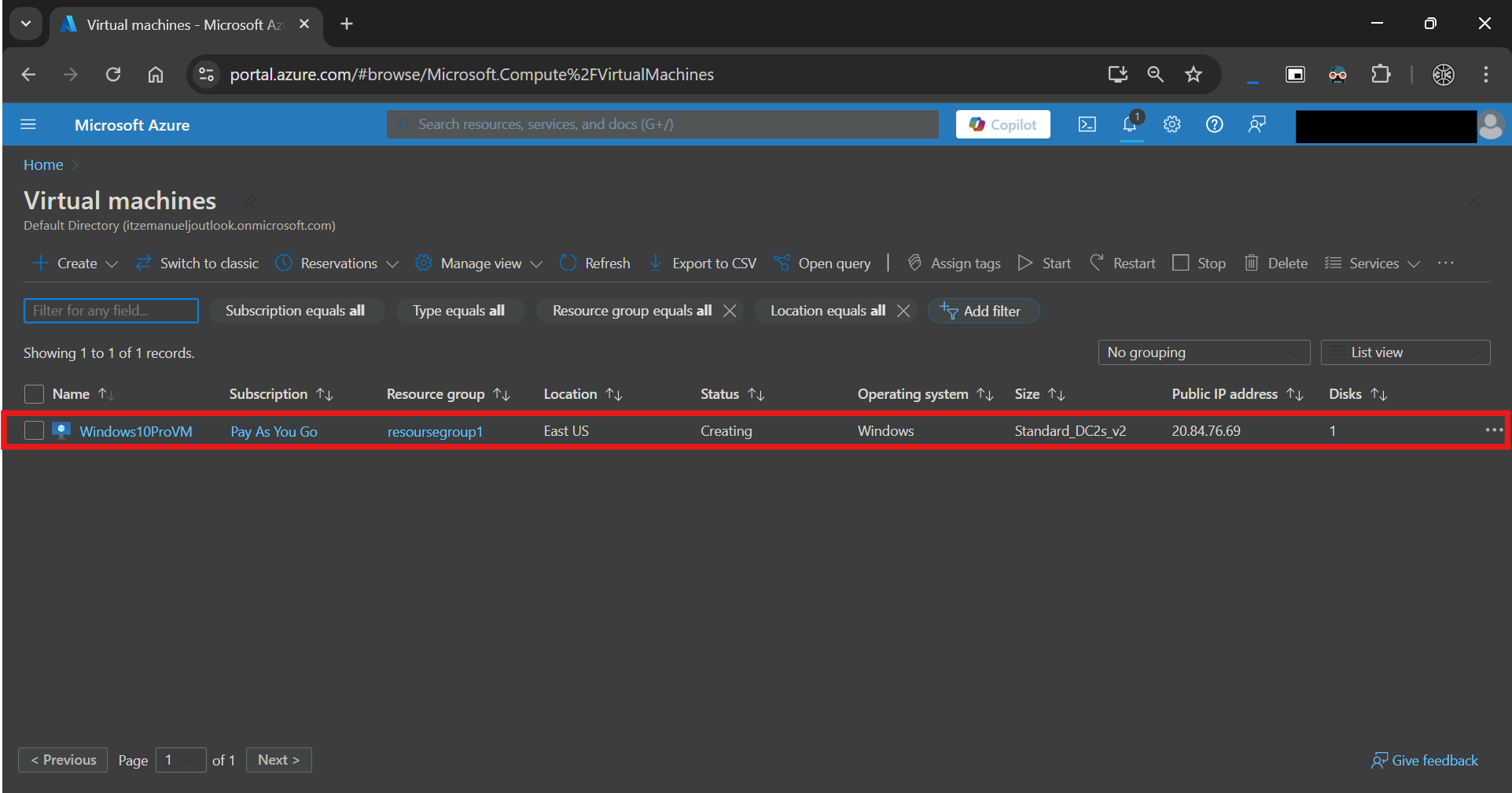

1. First we need to find the public IP Address of our virtual machine
2. Select the virtual machine we created and copy the public IP Address on the right side of the Virtual Machine of the screen

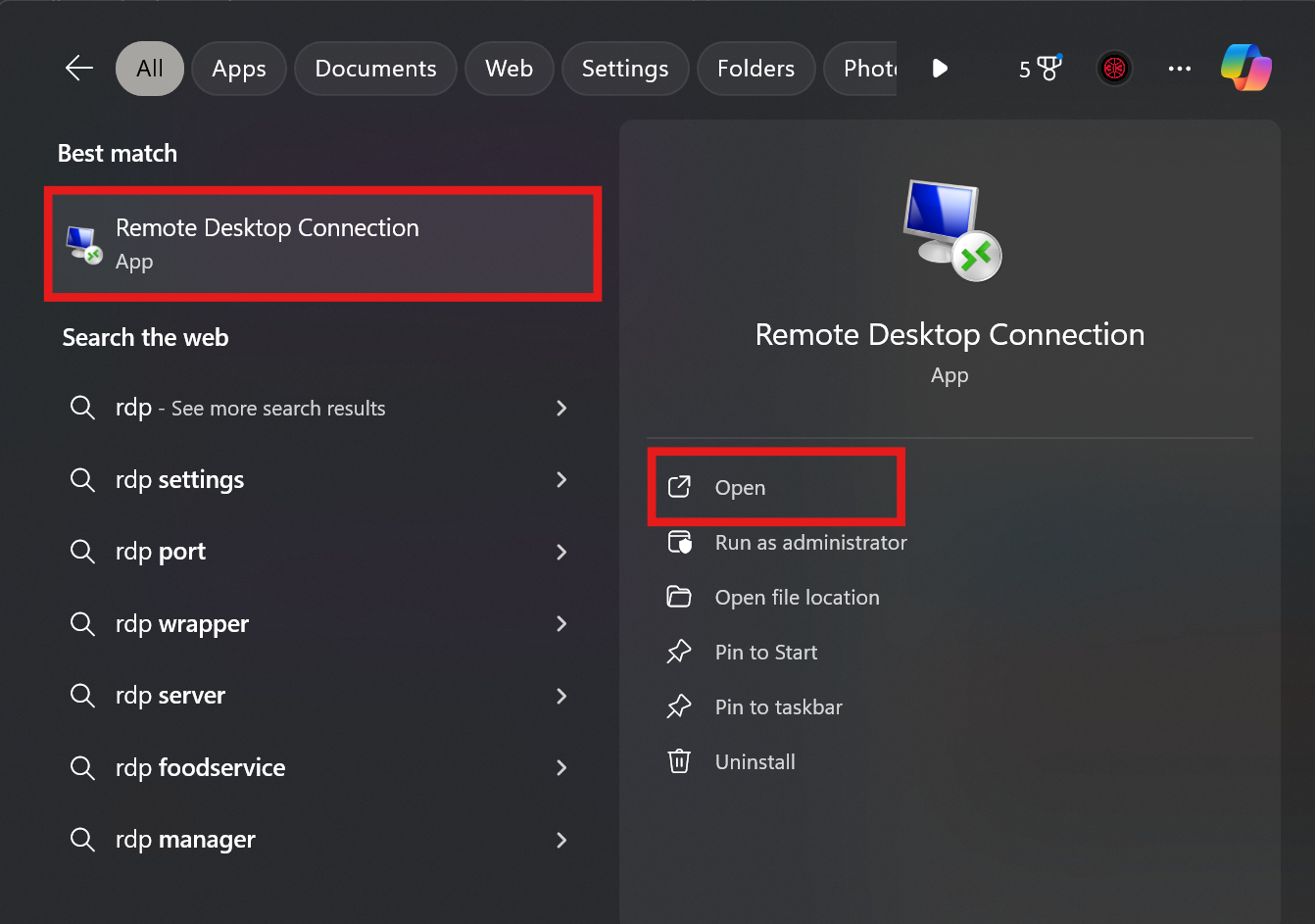

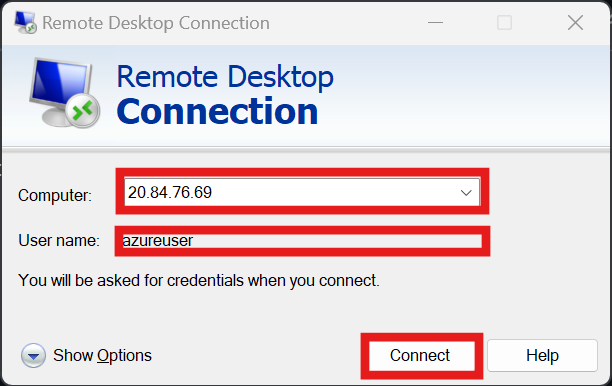

3. Open up Remote Desktop Connection or type MSTSC in the search bar
4. In Remote Desktop Connection we can then now paste in our IP Address

Step 6: Connect to the Virtual Machine

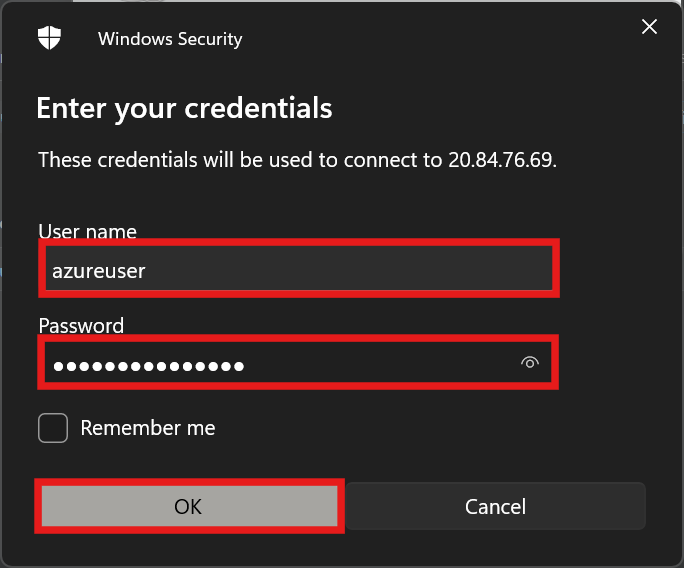

1. Enter the username and password from step 4

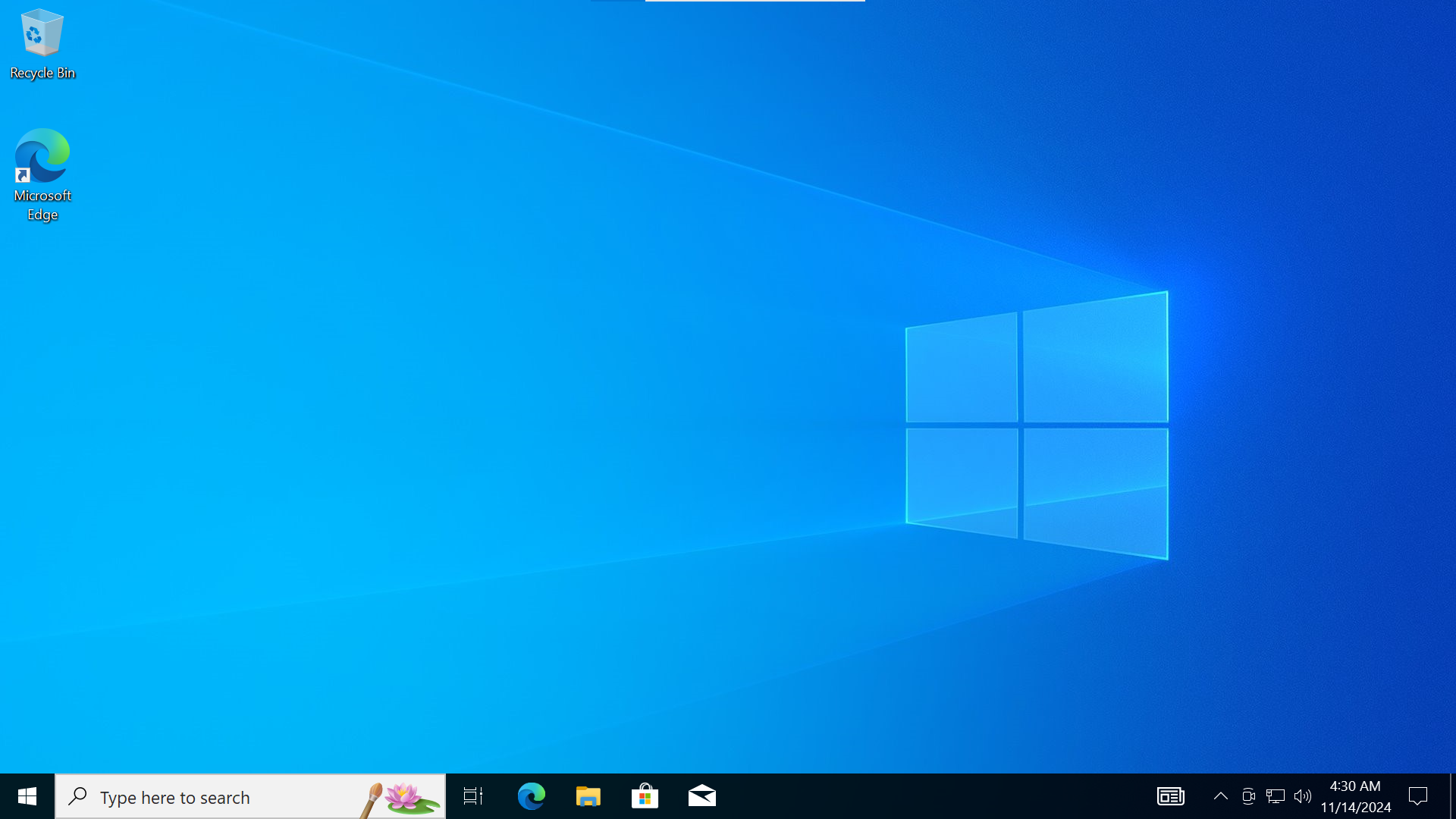

2. Congratulations! You have created your first virtual machine within Azure!

Mac Users

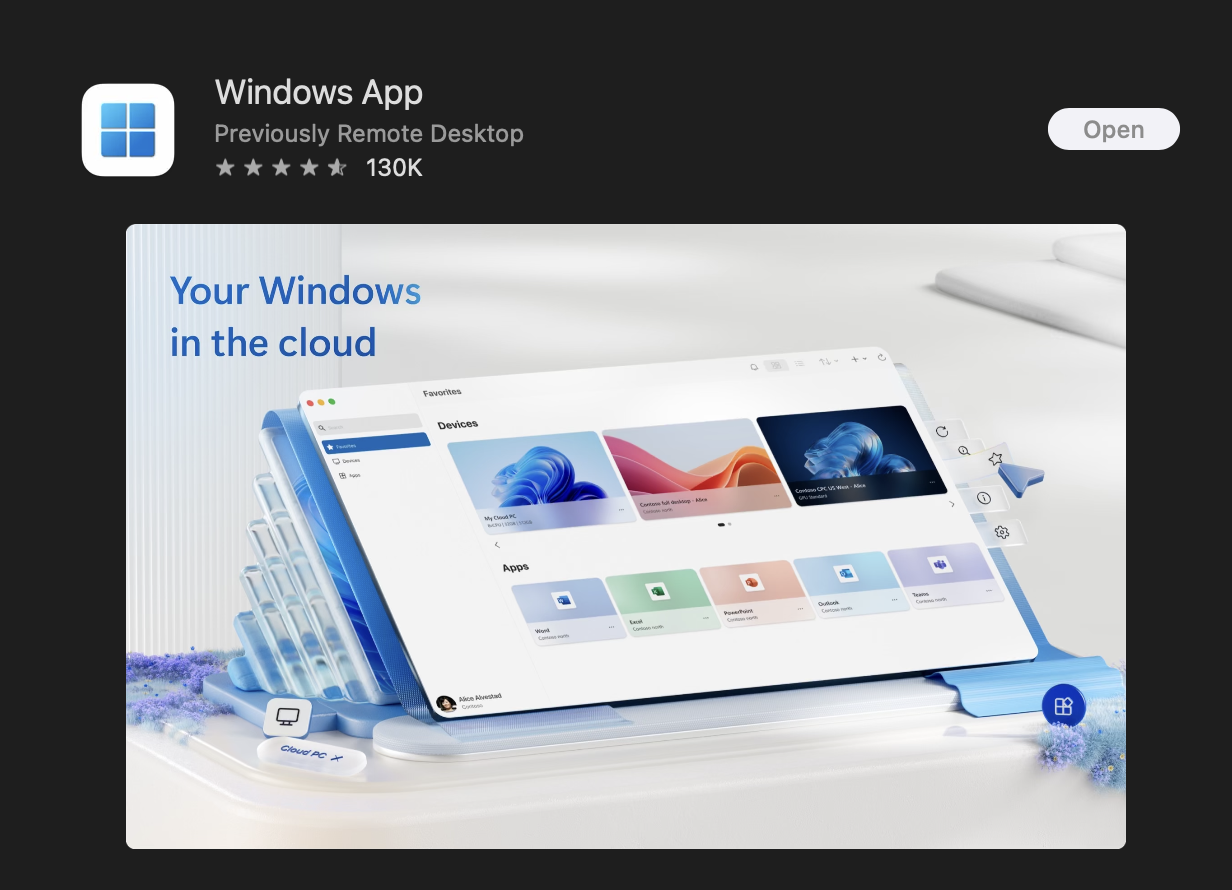

1. Download Windows App from the App Store

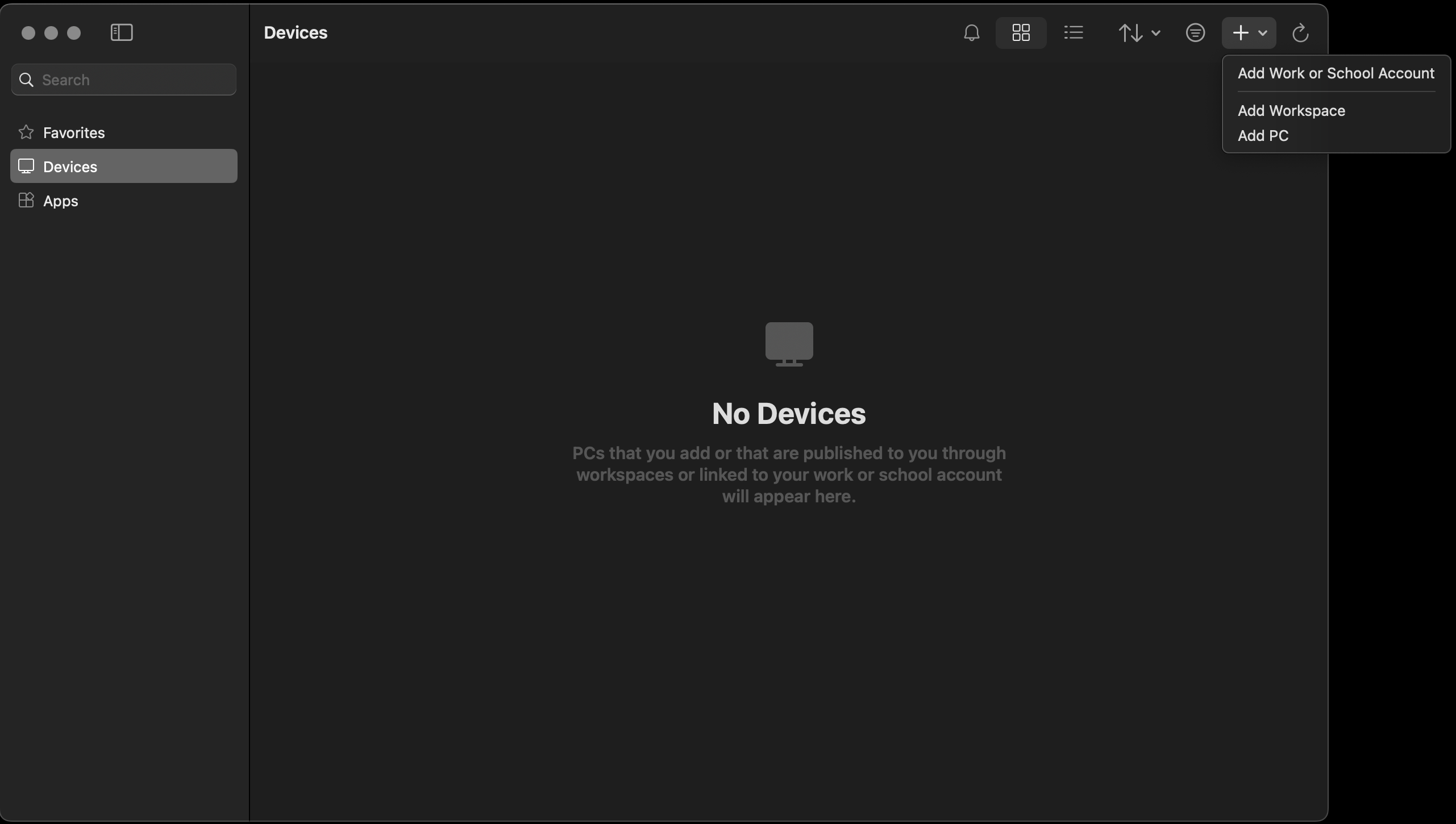

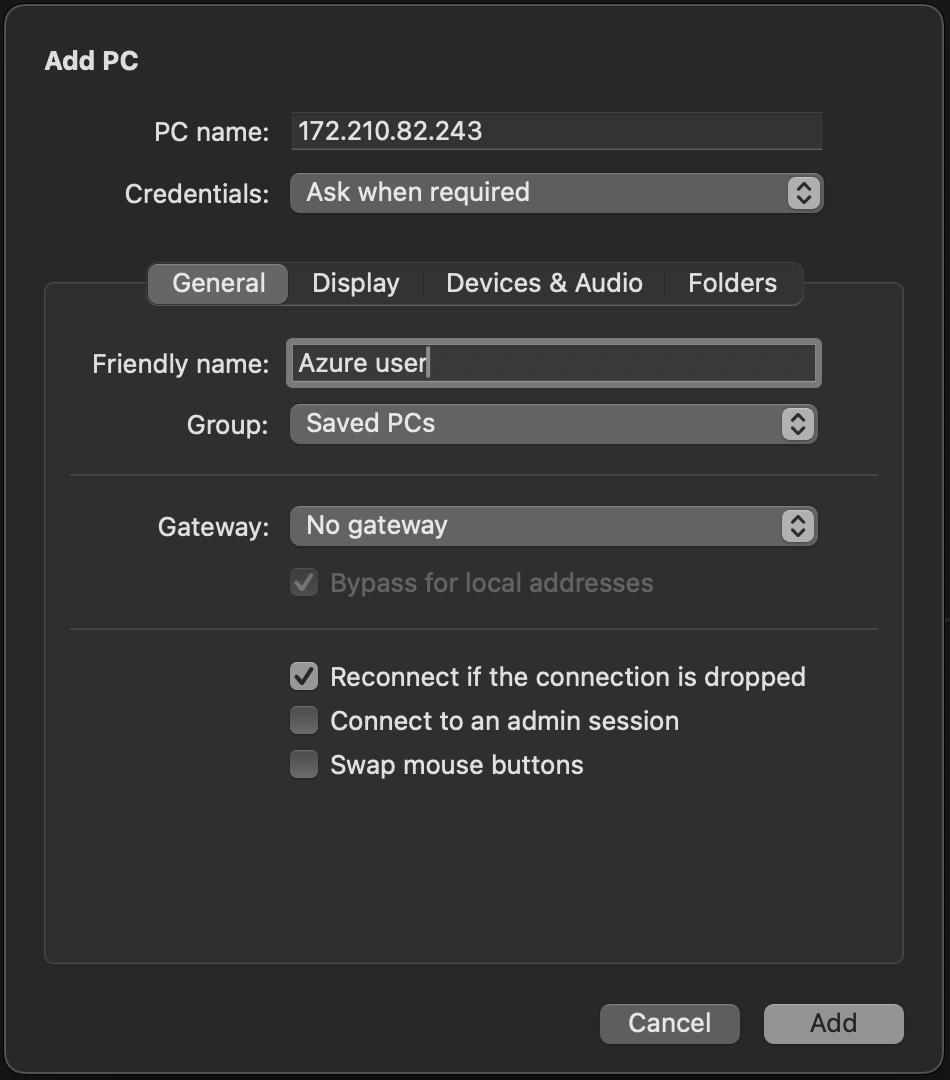

2. Open the application and click the + sign and then Add PC
3. Paste the public IP address from the created Virtual Machine on PC Name and select Add

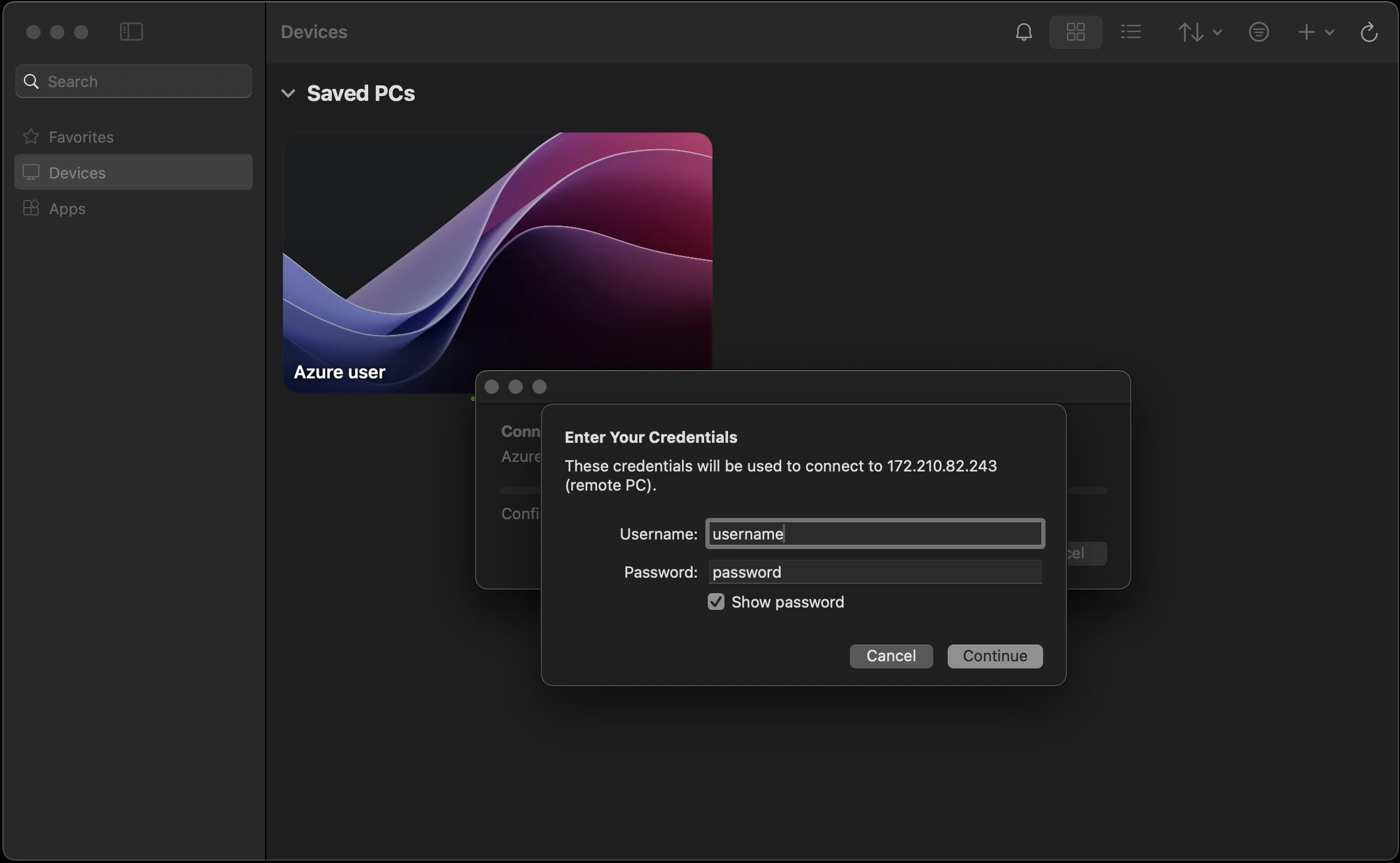

4. Double-click on the virtual machine and enter the username and password from step 4

5. Congratulations! You have created your first virtual machine within Azure!

Conclusion

🎉You’ve successfully created a Vitrual Machine in Azure🎉
