Real-Time Chat Application

Overview

The Real-Time Chat Application is a cutting-edge, desktop-style web application designed to provide seamless and secure communication. Powered by a robust .NET 8 backend and a React Vite frontend, the application leverages modern technologies to deliver a fast, reliable, and feature-rich user experience.
This application supports real-time messaging for private and group conversations, enhanced by advanced features such as email-based authentication, user management, and instant notifications.

---

Key Features

Authentication and Account Management

• Email-Based Registration:
  • Users register with their email, verify their accounts through a secure email link, and gain full access to the application.

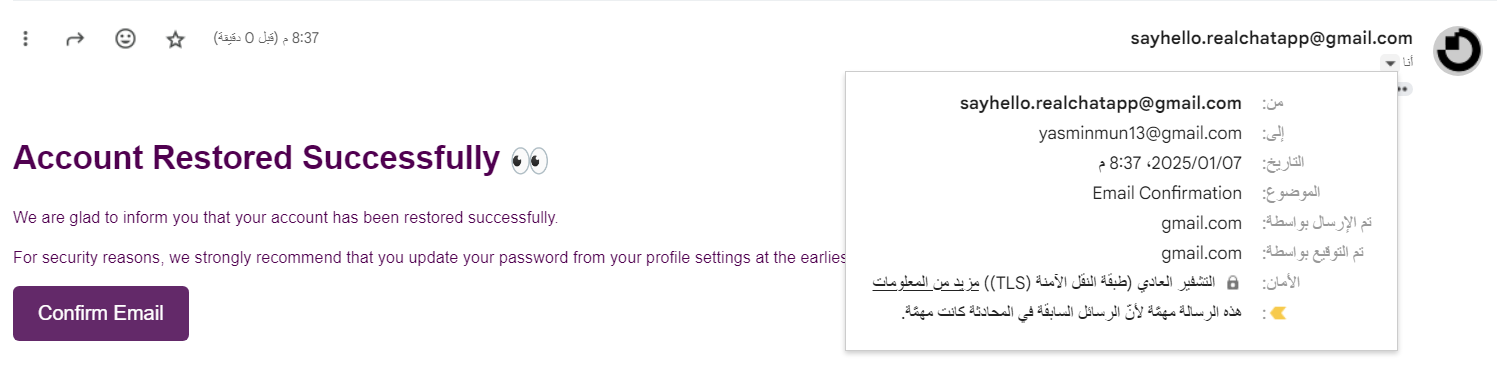

• Password Recovery:
  • Includes a "Forgot Password" feature that sends a secure email link for resetting passwords.
• User Profile Management:
  • Edit profile details and update passwords.
  • Block or archive other users for better organization.

Real-Time Messaging

• Private Chats:
  • Instantaneous one-on-one communication with real-time updates.

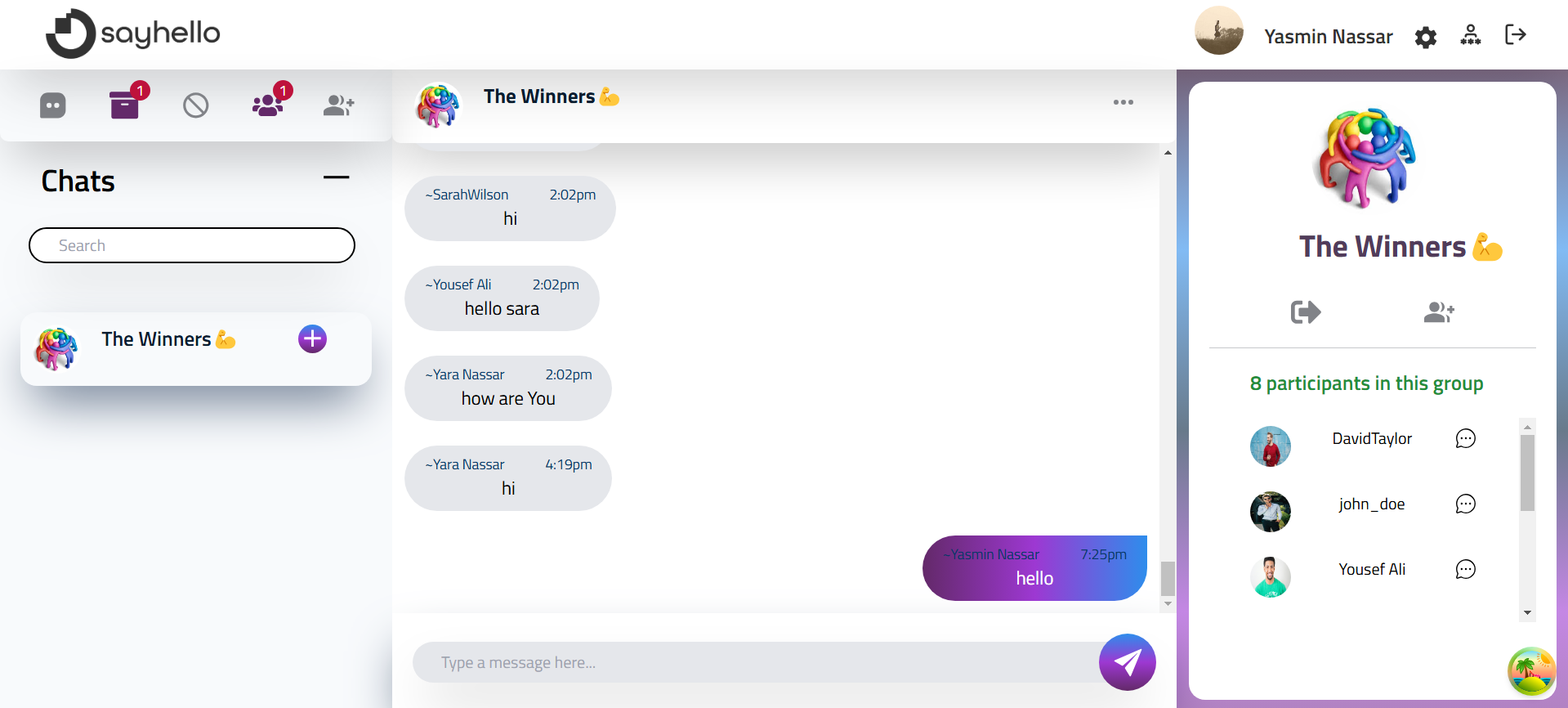

• Group Chats:
  • Dynamic group messaging where all participants receive messages instantly.

Search and Interaction

• User Search:
  • Find other users by name or email to initiate chats.
• Interactive Features:

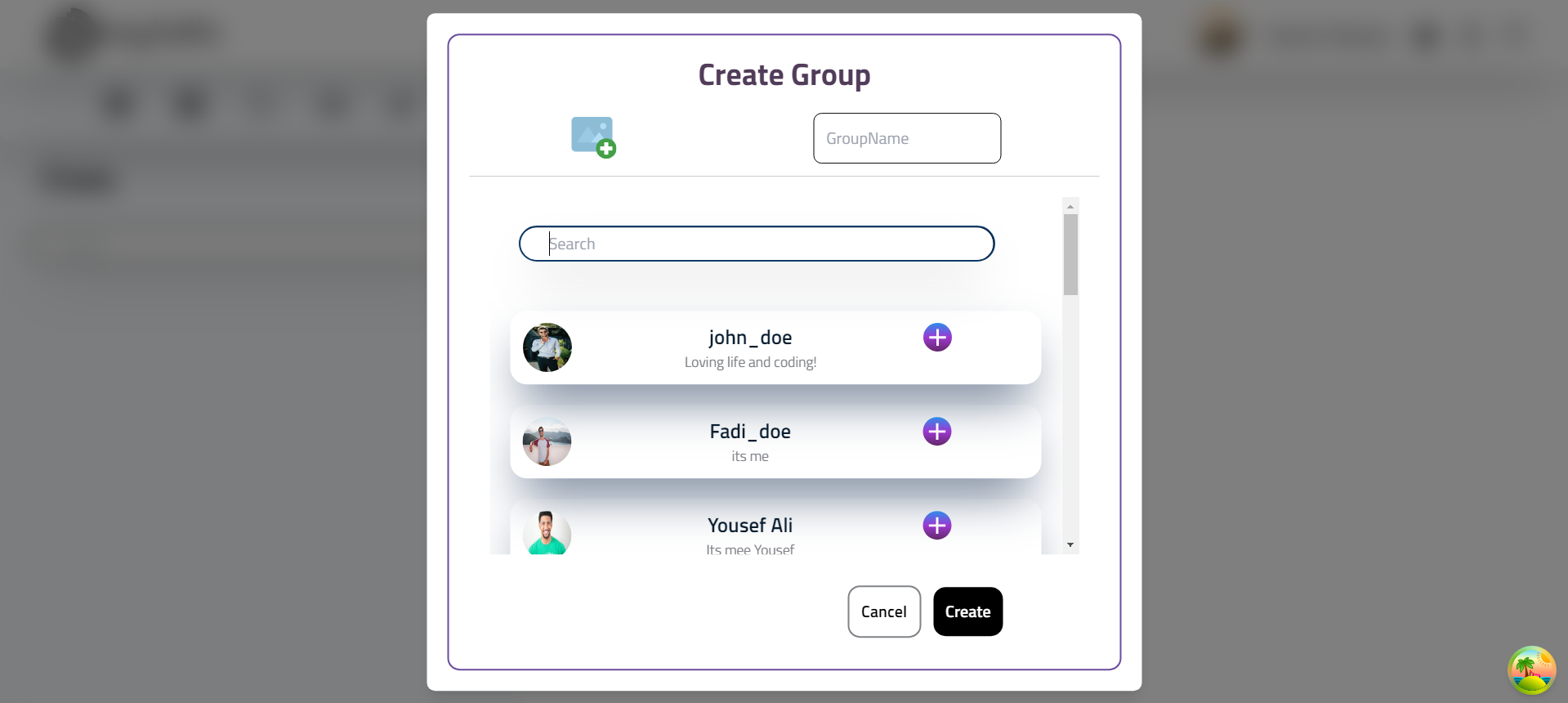

  • Create groups for collaboration.
  • Block or archive chats for streamlined user experience.

Security Features

Authentication System

• JWT-Based Authentication:
  • Secure access tokens with configurable expiration
  • Refresh token mechanism for seamless session management
  • Protection against token theft and replay attacks

Authorization Framework

• Role-Based Access Control (RBAC):

  • Predefined roles: Admin, GroupMember, User
  • Each role has specific permissions and access levels
  • Hierarchical permission structure

• Permission System:

  • Admin Permissions:

    • Full system access
    • User management
    • Group management
    • Message management
    • System configuration

  • GroupMember Permissions:

    • Send messages
    • Manage group members
    • Block users
    • Archive chats
    • View chat history

  • User Permissions:

    • Basic messaging
    • Profile management
    • Chat archiving
    • User blocking

Security Measures

• Token Management:

  • Access tokens expire after 15 minutes
  • Refresh tokens valid for 7 days
  • Automatic token refresh mechanism
  • Secure token storage and transmission

• Session Security:

  • Automatic session termination on inactivity
  • Concurrent session handling
  • Secure session state management

• API Security:

  • Protected endpoints with JWT authentication
  • CORS policy implementation
  • Rate limiting for API calls
  • Request validation and sanitization

---

Technical Architecture

Backend

• Framework: ASP.NET Core 8
• • Authentication & Authorization:
  • JWT (JSON Web Tokens): Secure token-based authentication
  • Refresh Token System: Enhanced security with token rotation
  • Role-Based Access Control: Granular permissions management
  • Permission-Based Authorization: Fine-grained access control
• Database: SQL Server, managed with Entity Framework Core
• Real-Time Communication:
  • Implemented using SignalR for two-way communication between server and clients.
• Validation and Mapping:
  • FluentValidation: Ensures robust data validation for DTOs.
  • Mapster: Simplifies mapping between DTOs and entities.
• Email Services:
  • Built-in email functionality for account verification and password recovery.

Frontend

• Framework: React with Vite for fast builds and optimized performance.
• Styling: Tailwind CSS for sleek and modern UI.
• Libraries and Tools:
  • React Query: Efficient state management and seamless data fetching.
  • React Router: Handles navigation and routing between pages.
  • React Hook Form: Simplifies form validation and data handling.
  • React Hot Toast: Displays elegant toast notifications.
  • SignalR Client: Connects the React application to the backend for real-time updates.

---

How SignalR Powers Real-Time Features

The SignalR library plays a critical role in enabling real-time communication for the chat application:

• Persistent Connection:
  • SignalR establishes a continuous connection between the server and clients, ensuring real-time delivery of messages.
• Message Flow:
  • When a user sends a message, it is transmitted to the SignalR Hub on the server.
  • The hub processes the message and instantly broadcasts it to the intended recipient(s).
  • All participants, whether in private or group chats, receive the message in real time.
• Group Chat Synchronization:
  • SignalR manages group communication, ensuring every group member receives messages simultaneously, maintaining consistent state across all devices.

By utilizing WebSockets, SignalR guarantees efficient and seamless communication, even under varying network conditions.

Project Workflow

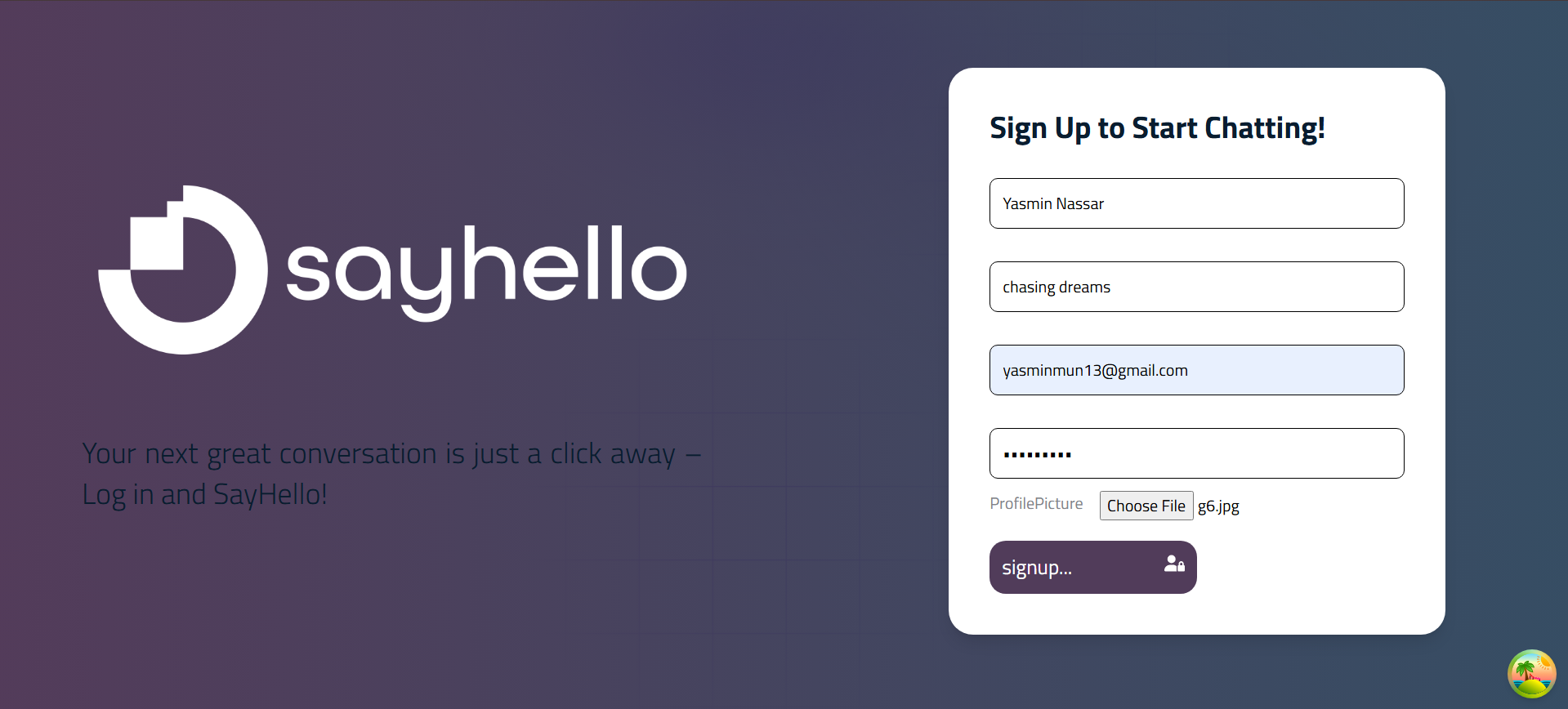

Registration and Verification

• A user creates an account, triggering a verification email with a secure link.





• Upon verification, the user gains access to their dashboard.



---

Real-Time Chat

• Users can search for other registered users and initiate chats.



• Group creation enables collaborative conversations in real time.



---

Message Delivery

• All messages are stored in the SQL Server database for retrieval and archival.
• SignalR ensures instantaneous delivery and updates for all connected users.

---

Account Management

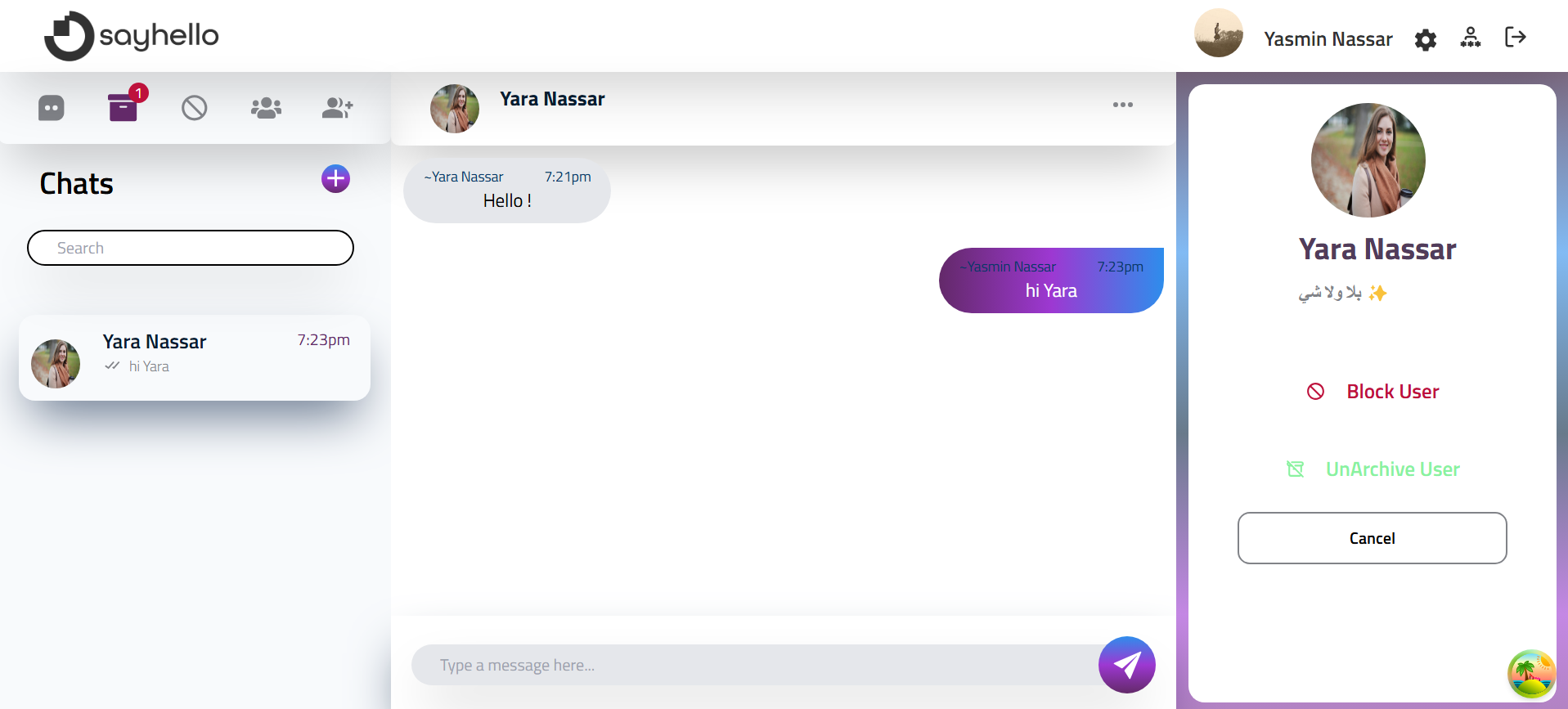

• Users can block or archive conversations.
• Profiles can be edited to update information or reset passwords.








Live Demo

🔗click me 😊!
