vnc

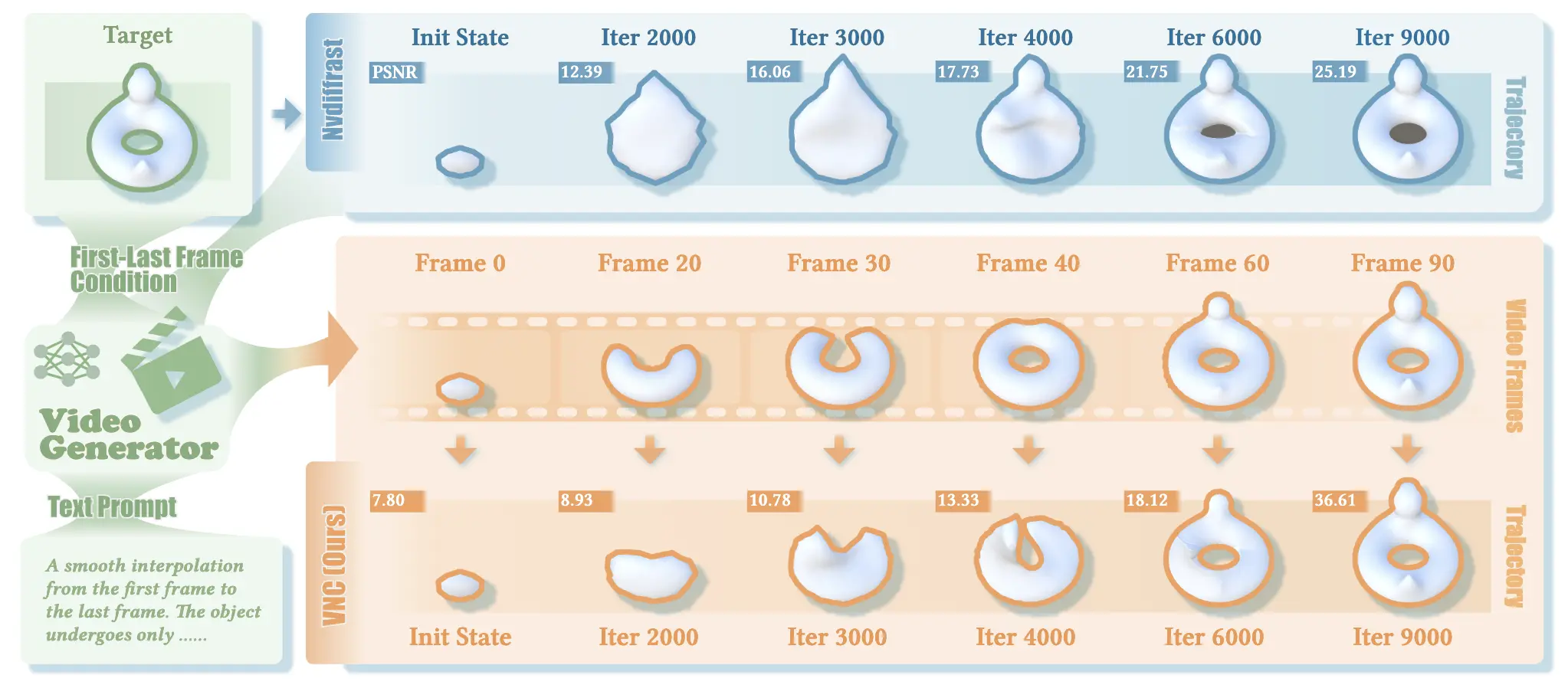

code for SIGGRAPH Asia 2026 paper "Video Numerical Continuation for Differentiable Inverse Rendering".

project page: https://suikasibyl.github.io/vnc

Setup

The experiments require Linux (maybe Windows works as well, I'm not sure), an NVIDIA GPU, a recent NVIDIA driver, Conda, and Git. Blender and FFmpeg must be available on PATH for some experiments that convert assets or write videos, but likely you can easily remove them with some hack.

Create the Python environment with:

bash scripts/create_vnc_env.sh
conda activate vnc

The optional first argument changes the environment name:

bash scripts/create_vnc_env.sh vnc-dev

The setup script installs PyTorch with CUDA 12.8, Mitsuba/Dr.Jit, and the pinned PyTorch3D and nvdiffrast revisions used for these experiments. It also configures the bundled DROT, PRDPT, and remeshing code on environment activation.

The layout should look like:

vnc/
  external/
    DROT/
    prdpt/
  geometry/
  lights/
  material/
  pose/
  scenes/
  skeleton/
  scripts/

Scene assets and video references are included under scenes/; experiment outputs are written under outputs/.

Experiments

• geometry/: single- and multi-view mesh optimization for Bob, bunny, dragon, heart, and Suzanne, including glossy and video-guided variants.
• pose/: rigid pose and scene-layout optimization for the castle, Earth, furniture, gnome, house, mug, penguin, and Rubik's cube scenes.
• skeleton/: articulated fitting for the breakdance and uprock sequences.
• lights/: light and shadow optimization with rasterization and Mitsuba.
• material/: Mitsuba-based teapot alpha/material optimization.

Run launchers from the repository root. For example:

bash geometry/experiments-dragon.sh
bash pose/experiments-mug.sh
bash skeleton/run-experiments-uprock.sh
bash material/experiments-teapot.sh

Some launchers retain a machine-specific default PYTHON_BIN. Override it with the active environment when needed:

PYTHON_BIN="$(which python)" bash geometry/experiments-dragon.sh

The full launchers can be long-running and require substantial GPU memory. Their shell variables (for example OUTPUT_ROOT, TRAJECTORY_FPS, and PRDPT_SIGMAS) can be overridden to select outputs or smaller sweeps.

pose/gnome.py downloads the Stanford-ORB baseline on first use. geometry/experiments-curve.sh and pose/mirror.ipynb still contain paths from the original development workspace and need to be adapted before running from a standalone clone.
