Improve player nametag rendering#479

Open
domdomegg wants to merge 3 commits into
PrismarineJS:masterfrom
domdomegg:improve-nametags
Open

Improve player nametag rendering#479
domdomegg wants to merge 3 commits into
PrismarineJS:masterfrom
domdomegg:improve-nametags

Conversation

@domdomegg

@domdomegg domdomegg commented May 1, 2026

Copy link
Copy Markdown

The current player nametag is rendered as black 50pt Arial text on a transparent 500×100 canvas with text packed to one corner. The sprite scales the result, so the aspect ratio is wrong and the text reads as a horizontally-squashed black blob hovering above the player — at distance it's effectively invisible against any non-light background.

This PR replaces it with a vanilla-MC-style nametag:

  • White text with a soft drop shadow on a translucent black background.
  • Canvas sized exactly to the measured text + padding, so the sprite's aspect ratio is correct and the text doesn't squash.
  • 80px sans-serif rendered with linear filtering so the tag stays legible at any distance.
  • depthTest: false so the tag is visible even when partially occluded by the player or terrain (matches vanilla).

Before / after

Both bots in spectator mode at fixed positions; observer (camera) at the same coords for each pair.

before after

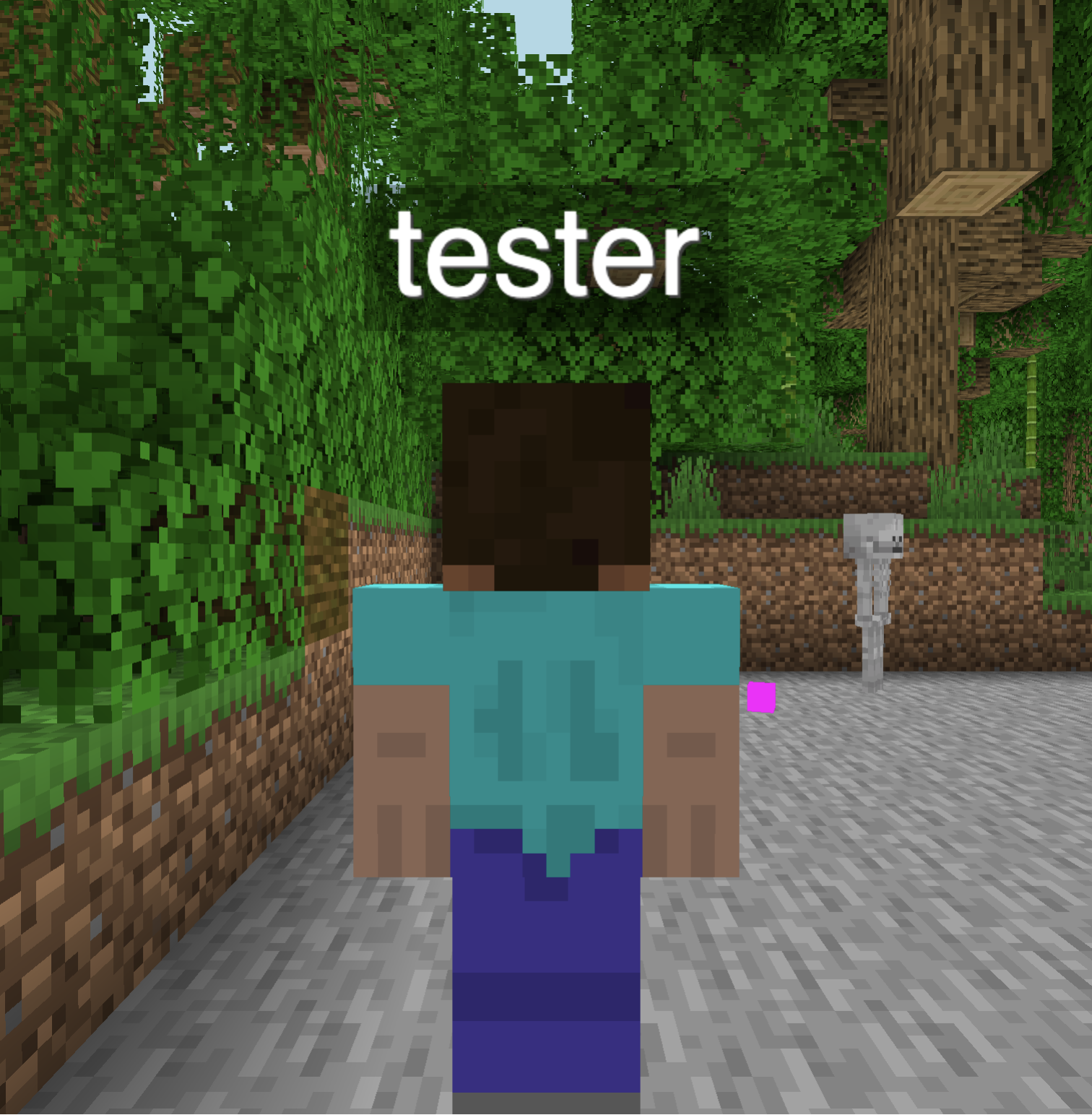

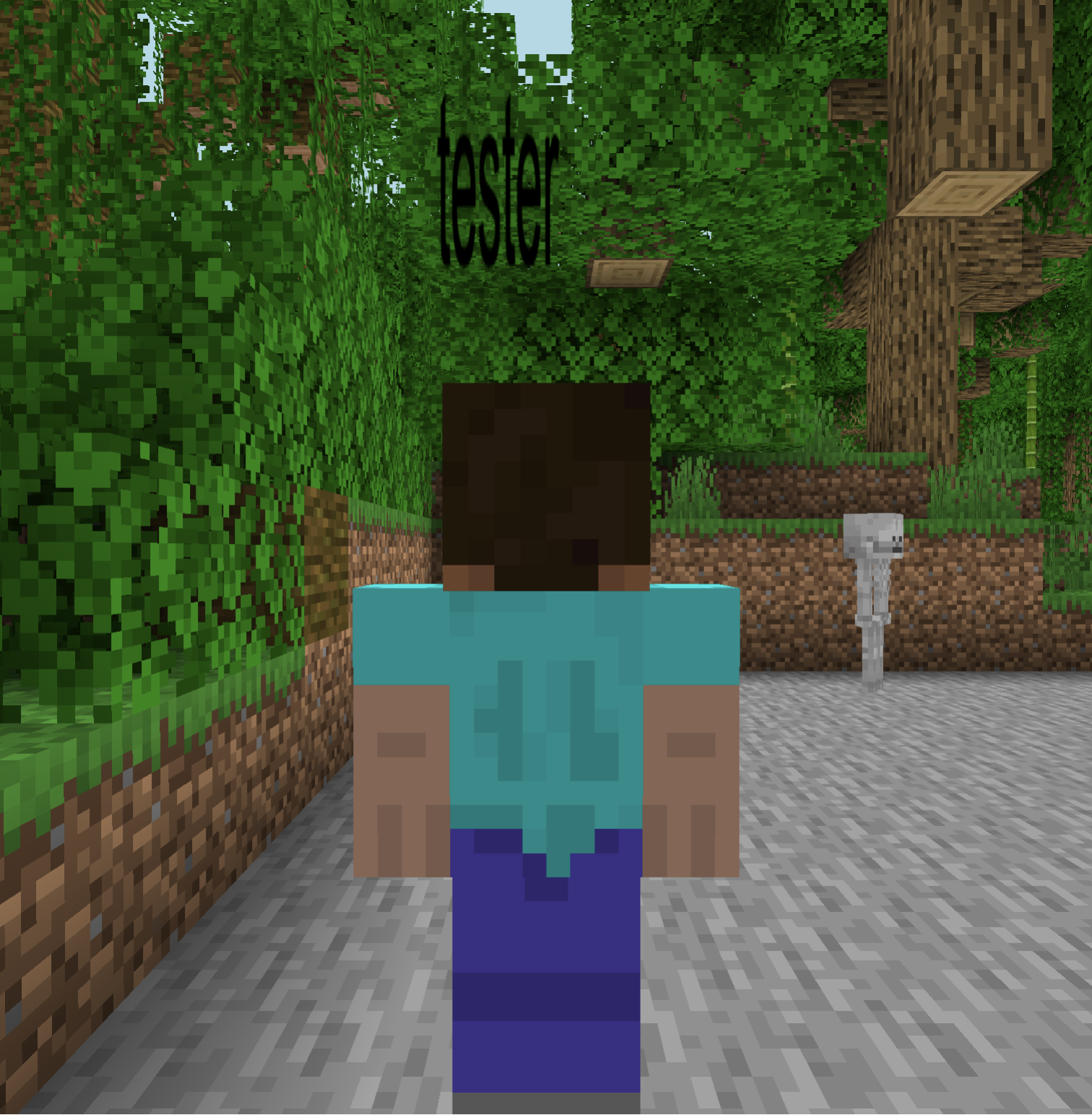

near (~2 blocks)

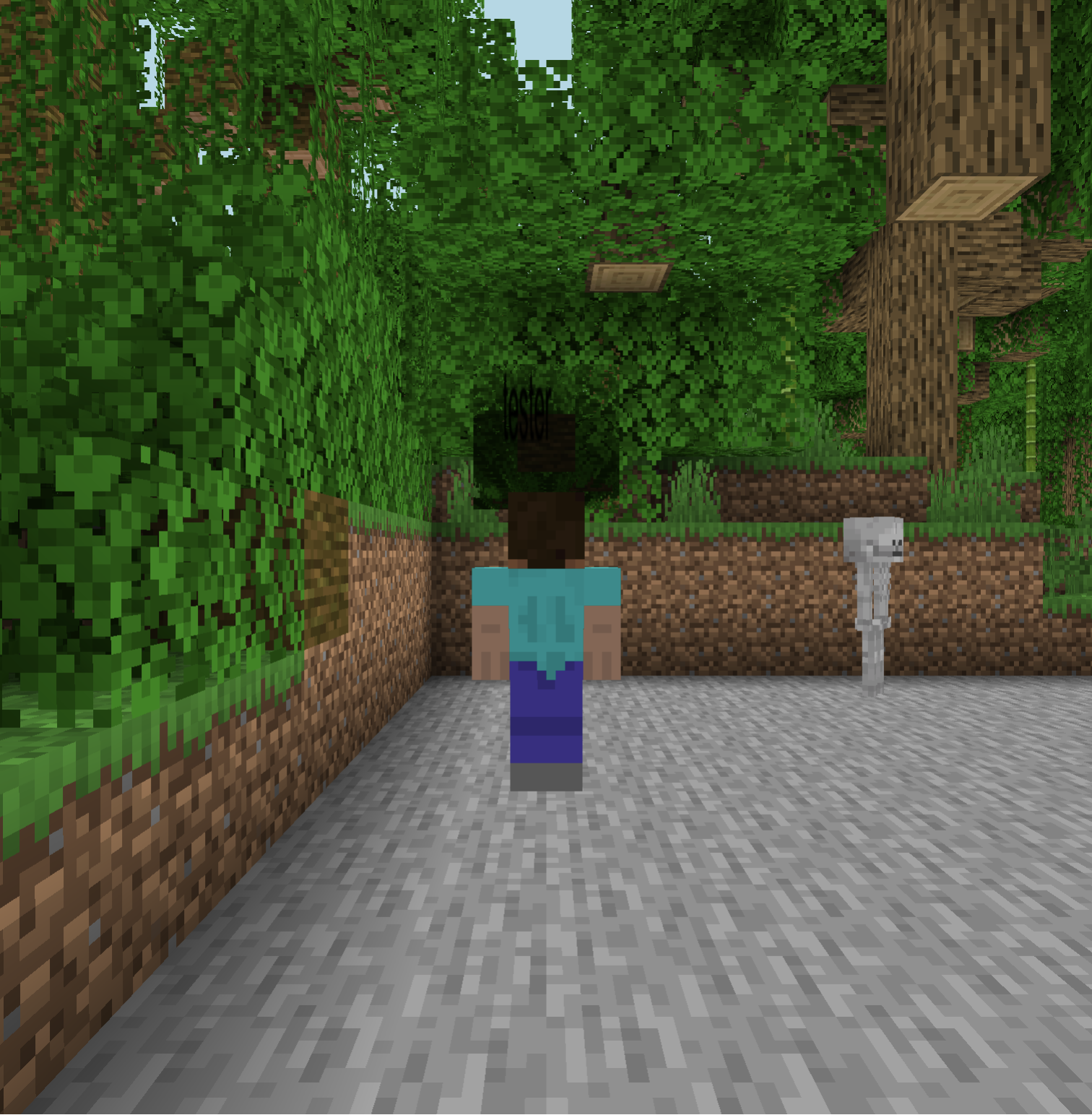

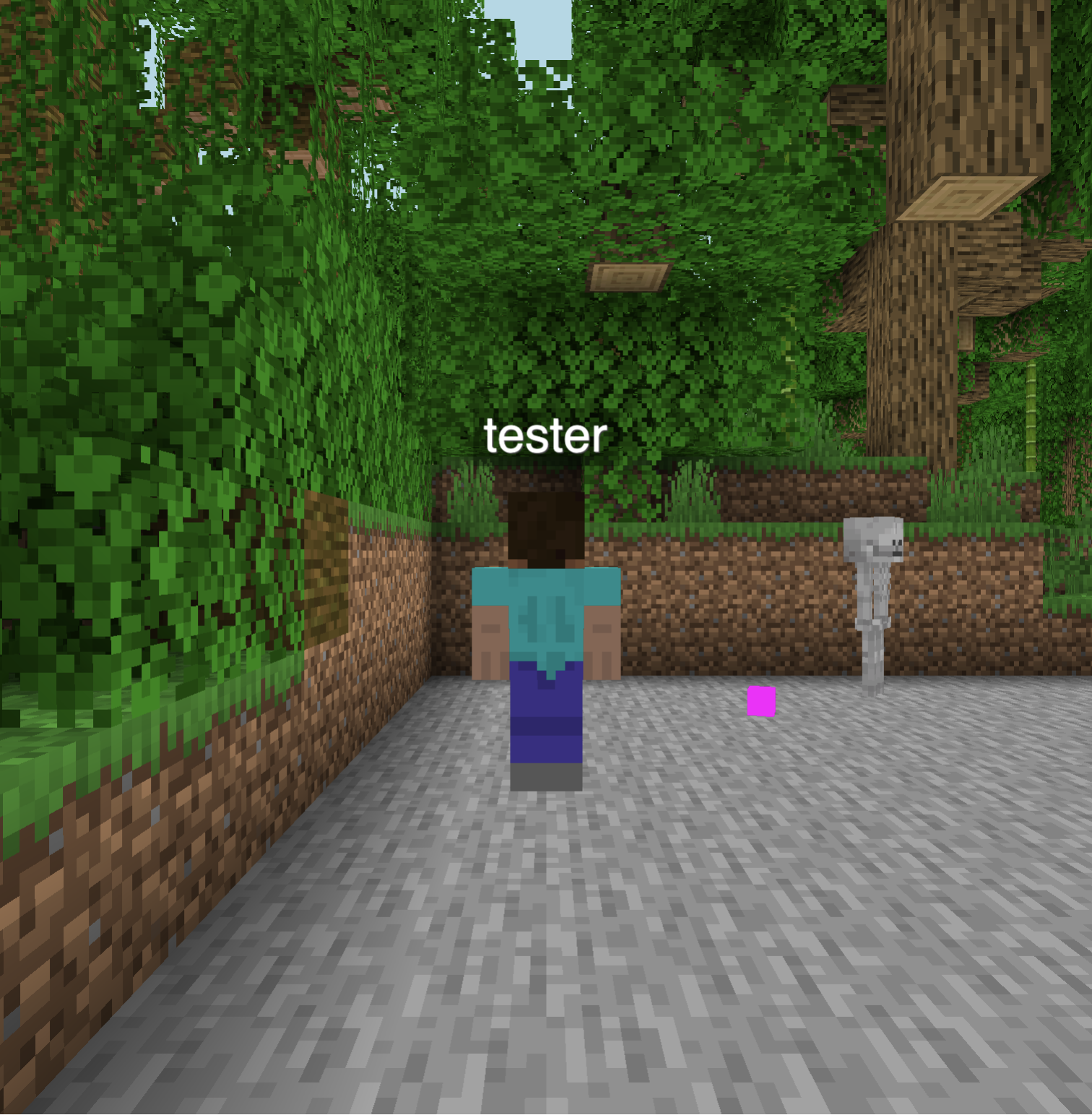

mid (~5 blocks)

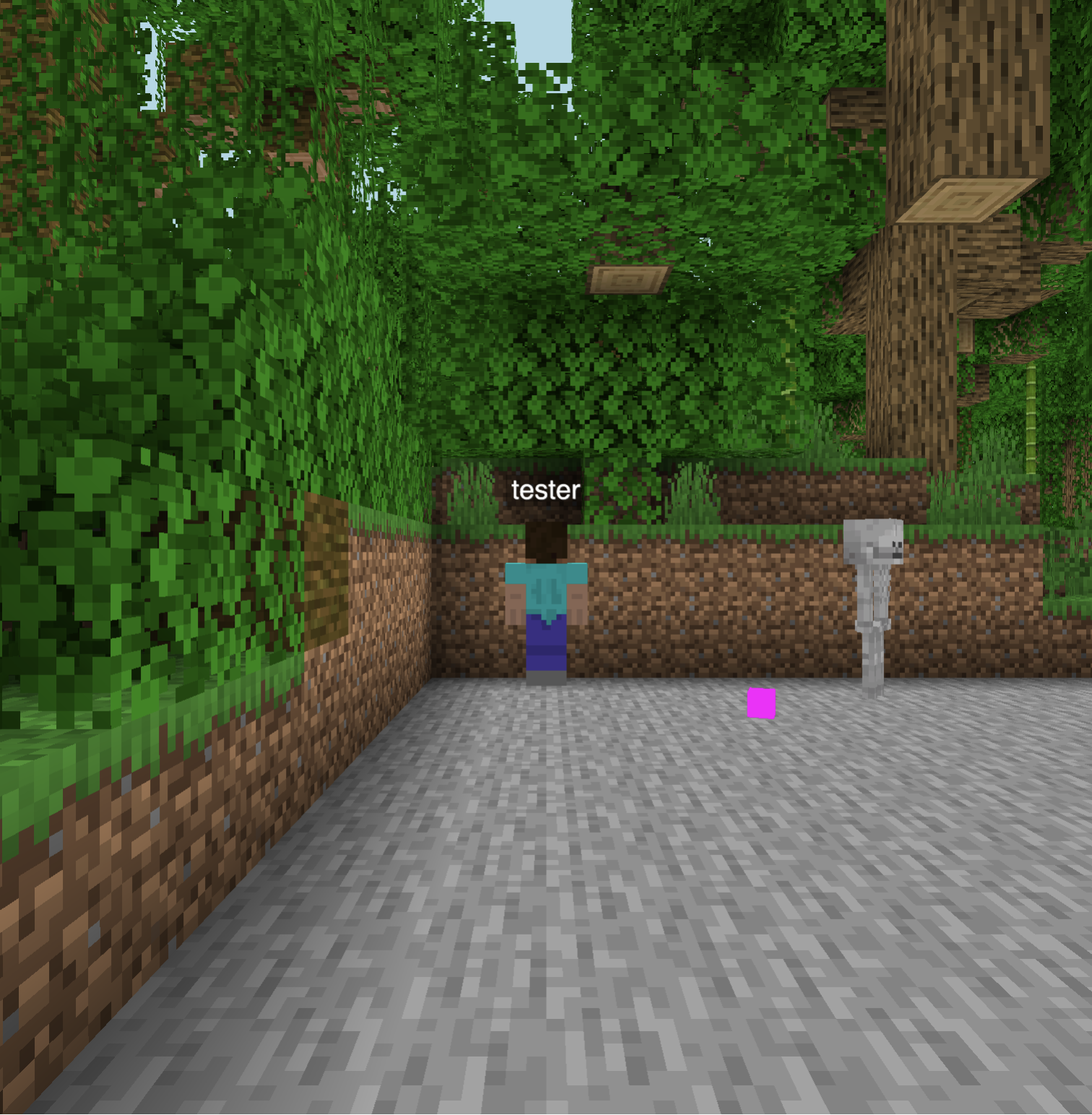

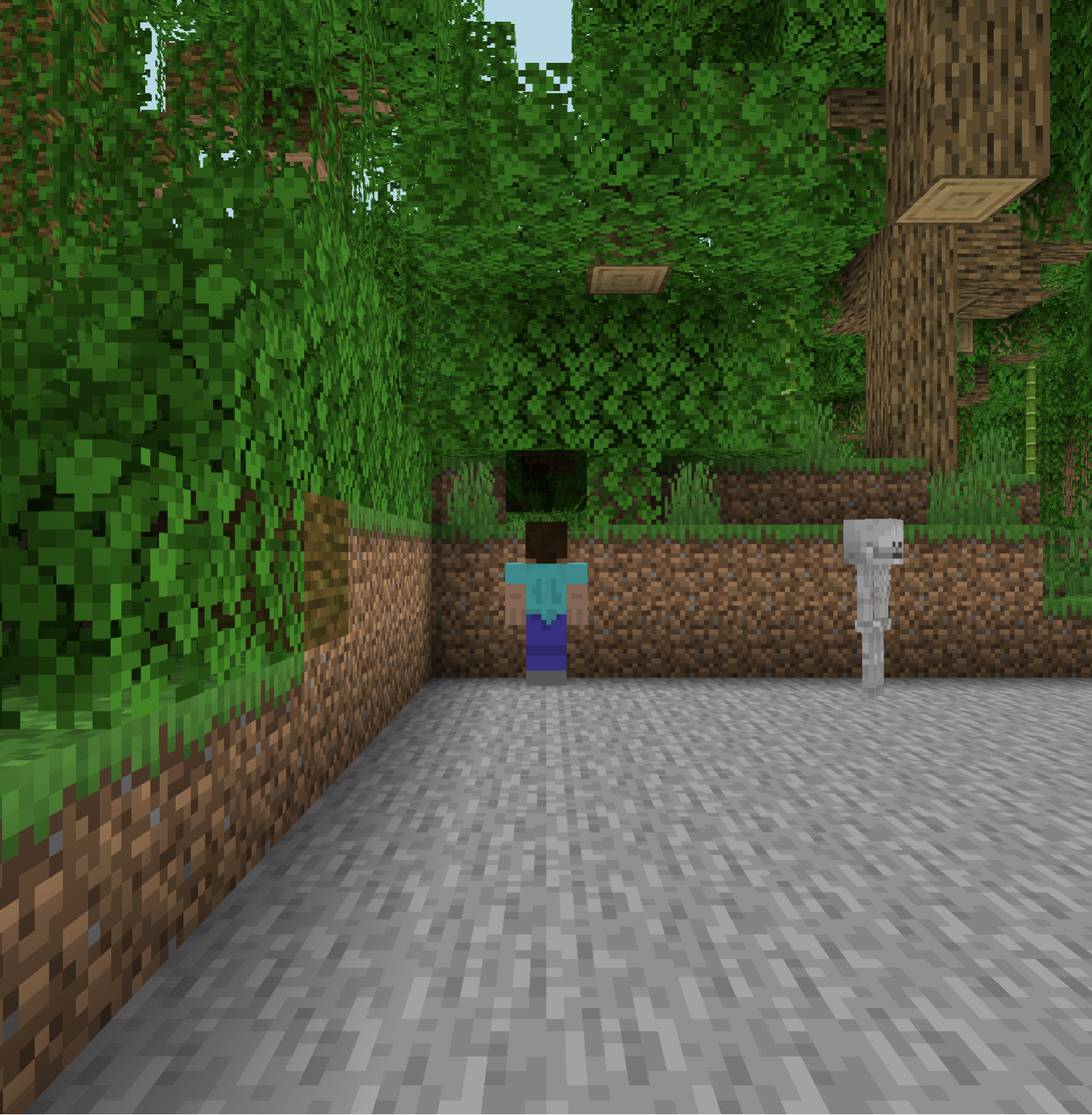

far (~9 blocks)

The current nametag is rendered as black 50pt Arial text on a 500×100
transparent canvas with the text packed to one corner. The sprite
scales the result, so the aspect ratio is wrong and the text reads as
a horizontally-squashed black blob hovering above the player.

Replace it with a vanilla-MC-style nametag:
- White text with a soft drop shadow on a translucent black background.
- Canvas sized exactly to the measured text + padding, so the sprite
  preserves the correct aspect ratio.
- 80px sans-serif rendered with linear filtering so the tag stays
  legible at any distance.
- depthTest: false so the tag is visible even when the player is
  partially occluded (matches vanilla).
Comment thread viewer/lib/entities.js Outdated
const fontPx = 80

const measure = createCanvas(1, 1).getContext('2d')
measure.font = `${fontPx}px sans-serif`

Copy link
Copy Markdown
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

you should include a better set of font-family defaults something like minecraft,mojangles,monospace (or sans-serif) and maybe making this option customizable

Address review: replace the bare `sans-serif` nametag font with a
fallback stack so it picks up a real Minecraft font when one is
installed and degrades to monospace otherwise. Hoisted the font string
into a single `font` const so the measure and draw contexts can't drift.

Co-Authored-By: Claude Opus 4.7 (1M context) <noreply@anthropic.com>
@domdomegg

Copy link
Copy Markdown
Author

Good call — done. Switched the nametag font from a bare sans-serif to a fallback stack minecraft, mojangles, monospace, so it picks up a real Minecraft font if one's installed and degrades gracefully to monospace otherwise. (Also hoisted it into a single font const so the measure and draw contexts can't drift apart.)

I left the font non-customizable for now — happy to add an option to override it if there's a concrete need, but erring towards fewer knobs to keep things simple unless someone actually wants it.

@extremeheat extremeheat left a comment

Copy link
Copy Markdown
Member

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

No need for monospace but otherwise looks good beyond the nit that a new canvas is unnecessarily created for every call here

Per review: minecraft, mojangles, sans-serif (sans-serif is a fine
generic fallback; monospace isn't needed).

Co-Authored-By: Claude Opus 4.7 (1M context) <noreply@anthropic.com>
@domdomegg

Copy link
Copy Markdown
Author

Thanks! Dropped monospace from the fallback — now minecraft, mojangles, sans-serif.

Good catch on the per-call measuring canvas too. I've left it as-is for this PR to keep it focused on the nametag rendering, but happy to hoist a shared 1×1 measuring canvas into a module-level const in a quick follow-up if you'd prefer it in here.

@domdomegg
domdomegg requested a review from zardoy May 25, 2026 18:44
