OpenCV zGUI

Build C++ GUIs with OpenCV using ASCII art layouts — no Qt, no GTK, no extra dependencies.

Define your entire window layout in a text string. Event-driven, cross-platform, and fully modern C++.

struct Win : z::AsciiWindow {
  Win() : z::AsciiWindow{R"(
    WHello World----------------
    | T0-------------------
    | |Enter your name|
    | B0-------------
    | |Hello|
    |)"} {
    start();
    B[0]->click([this]() {
      cout << "Hello " << T[0]->value() << endl;
    });
  }
};

---

Why opencv-gui?

Most OpenCV projects already link against OpenCV. This library gives you a complete GUI toolkit on top of what you already have — no additional framework needed.

• Zero extra dependencies beyond OpenCV (and optionally libhangul for Korean/CJK input)
• ASCII art layout — declare your UI as a text diagram, positions computed automatically
• Event-driven — no polling loop eating your CPU
• Cross-platform — anywhere OpenCV builds, this builds
• Modern C++ — lambdas, composition, type-safe widget access

---

Widget gallery

All common widgets are included out of the box:

Widget	Access	Description
Button	B[n]	Clickable button with lambda callback
TextInput	T[n]	Single-line text field
TextBox	E[n]	Multi-line text area
Label	L[n]	Static text label
Checkbox	C[n]	Toggle with checked state
RadioButton	Grouped C[]	Mutually exclusive selection
Slider	S[n]	Range input with configurable min/max/step
ProgressBar	P[n]	Progress indicator
Image	I[n]	Display cv::Mat inline
ComboBox	tie(T, B, vector)	TextInput + Button + list
NumberSpinner	tie(T, B, B)	TextInput + up/down buttons
Tabs	tabs(...)	Switchable tabbed panels
ScrolledWindow	scroll_to()	Scrollable content area
Popup	popup(...)	Modal sub-window with return value
Custom (Z[n])	Any cv::Mat	Draw your own widget

---

How the layout syntax works

Each character in the ASCII string maps to a widget:

WHello World----------------    ← Window title
| T0-------------------         ← TextInput, index 0, width from dashes
| |Enter your name|             ← Default text
| B0-------------               ← Button, index 0, width from dashes
| |Hello|                       ← Button label
|

Capital letters are widget types. The number after is the index (accessed as B[0], T[0], etc.). Dashes set width; vertical bars set height.

---

Combined widgets

Combine primitives into compound controls with tie():

// ComboBox = TextInput + dropdown Button + list
tie(*T[0], *B[0], v, 30);

// NumberSpinner = TextInput + up/down Buttons
auto f1 = tie(*T[1], *B[1], *B[2], 0, 1);

// RadioButton group = multiple Checkboxes
auto f2 = tie(*C[0], *C[1], *C[2]);

---

Tabs

tabs(10, 10, tab1, tab2);

---

Scrolled window

scroll_to({0, 0, 400, 400});
*this + label + handle;

---

Popup windows

// Pop up a sub-window and get its return value
B[0]->click([this]() {
  pop.popup(*this, [](int i) { cout << i << endl; });
});

// Inside the popup, close with a return value
B[0]->click([this]() { popdown(7); });

---

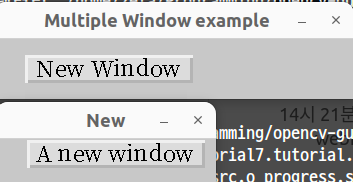

Multiple windows

B[0]->click([this]() {
  if(w.open() == 7) cout << "closed" << endl;
});

---

Custom widgets

Any cv::Mat drawing is a valid widget. Inherit Widget, draw into mat_, call update():

struct WButton : Widget {
  WButton(cv::Rect2i r) : z::Widget{r} {
    mat_ = widget_color_;
    gui_callback_[cv::EVENT_LBUTTONUP] = [this](int xpos, int) {
      if(xpos - x < width / 2) mat_ = cv::Vec3b{0,0,255};
      else mat_ = cv::Vec3b{255,0,0};
      update();
    };
  }
};

Place custom widgets inside ASCII layouts using Z:

W----------------------------------------------
|
|   Z0-------
|   ||
|

---

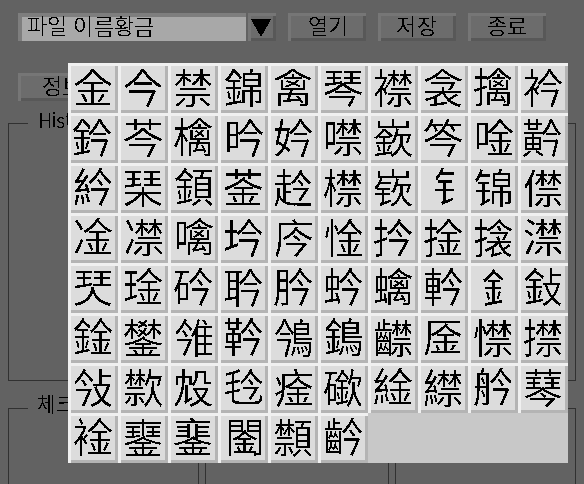

Korean / CJK input

TextInput supports Korean → Hanja conversion via libhangul. Set the CJK font path in the first line of font.dat.

---

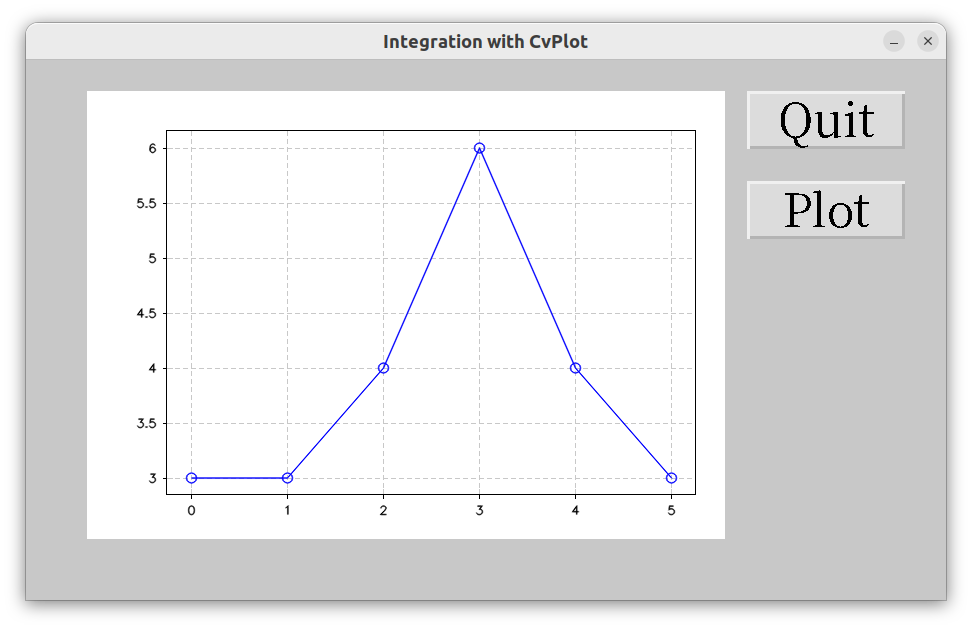

CvPlot integration

Embed scientific plots directly into your GUI using CvPlot:

B[1]->click([this]() {
  auto axes = CvPlot::plot(std::vector<double>{3, 3, 4, 6, 4, 3}, "-o");
  *I[0] = axes.render(I[0]->height, I[0]->width);
  I[0]->update();
});

---

Coordinate system

Widgets inherit cv::Rect2i{x, y, width, height}. Positions are relative to their parent window. Scrolling is handled by the parent — child widgets are unaffected.

---

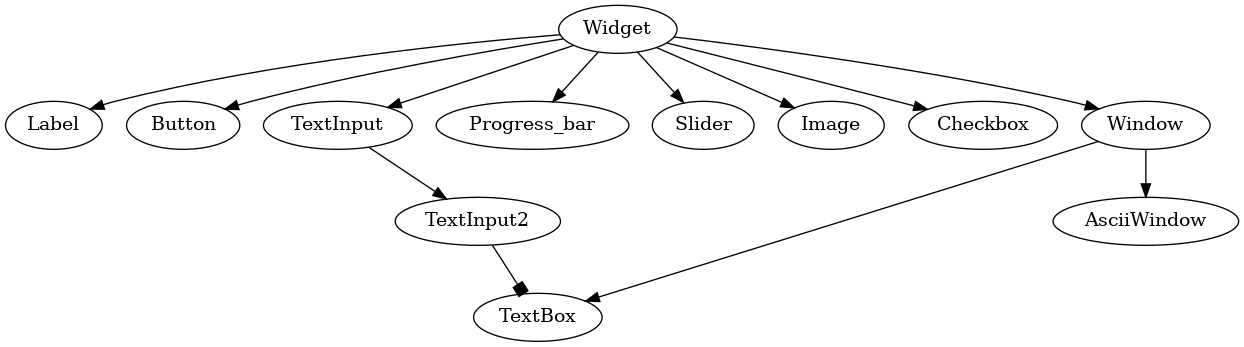

Widget hierarchy

---

Install

sudo apt install libhangul-dev libopencv-dev xclip
git clone --depth=1 https://github.com/ParkSeungwon/opencv-gui
cd opencv-gui
make

Set the CJK font path in the first line of font.dat.

---

Good for

• Rapid prototyping — get a GUI up in minutes, not hours
• OpenCV parameter tuning — sliders, live image display, buttons, all in one window
• Cross-platform tools — one codebase, everywhere OpenCV runs
• Embedding plots — CvPlot integration for scientific/data apps

---

Reference

Full API documentation: gui.zeta2374.com

License: LGPL v2
