ambient_border_glow

An animated glow that hugs the edges of a box - the whole screen, a widget you point it at, or any shape you can express as an SVG path. A sweep gradient rotates so the hue travels around the frame, with a wide blurred bloom under a thinner bright core.

The painter repaints straight off a ticker, so no widget rebuilds per frame, and the whole thing sits inside a RepaintBoundary so the app behind it is never dragged into the repaint.

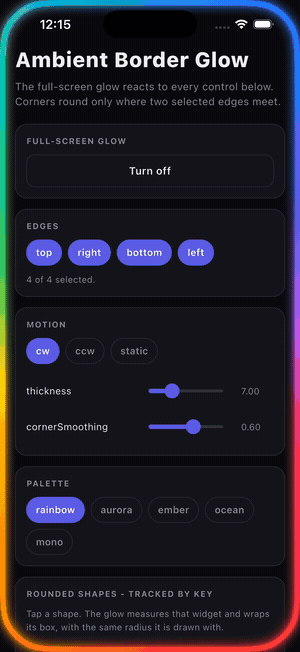

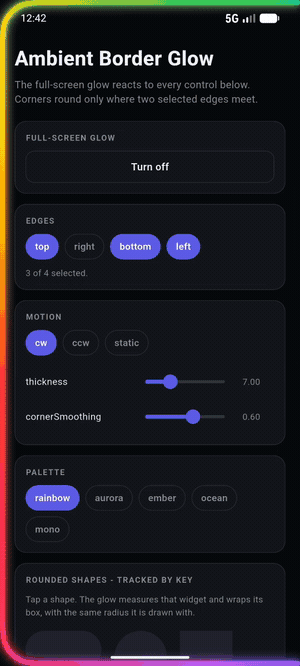

_{Full-screen glow, edges being toggled. iPhone 17 Pro and Pixel 8.}

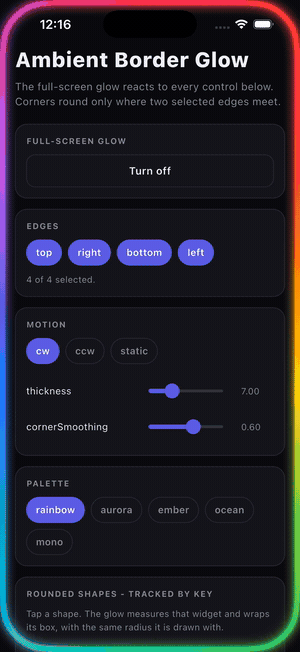

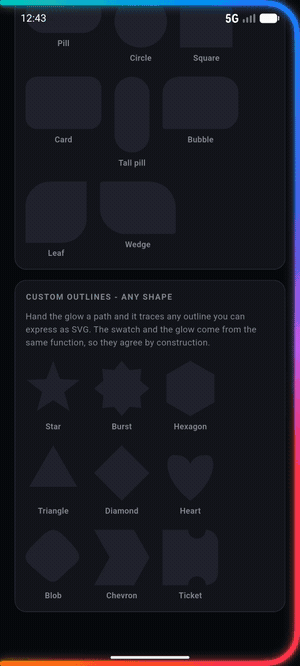

Any shape, not just rectangles

Hand it a path and it traces any outline you can express as SVG path data - stars, polygons, curves, shapes with cutouts. The swatch and the glow below are drawn from the same function, so they agree by construction.



Install

dependencies:
  ambient_border_glow: ^0.1.0

No dependencies beyond Flutter itself.

Use it

Full screen

Stack(
  children: [
    YourApp(),
    AmbientBorderGlow(
      visible: busy,
      radius: const GlowRadius.display(),
      cornerSmoothing: 0.6,
    ),
  ],
)

GlowRadius.display() looks the radius up from the screen size, so the glow sits on the bezel instead of guessing. And iPhone display corners are squircles, not circular arcs - a circular corner changes curvature abruptly where it meets the straight edge, so it reads as squarish at any radius. cornerSmoothing eases into a shortened arc using Figma's model; 0.6 is about where Apple sits.

Around a widget

final cardKey = GlobalKey();
final hostKey = GlobalKey();

Stack(
  key: hostKey,
  children: [
    Card(key: cardKey),
    AmbientBorderGlow(
      visible: busy,
      targetKey: cardKey,
      relativeTo: hostKey,
      radius: const GlowRadius.all(16),
      bleed: 16,
    ),
  ],
)

relativeTo is how the glow sticks to something that scrolls: the position is fixed within that content rather than the window, so the glow and its target move together with nothing to re-measure. bleed gives the bloom room to spill outside a small target instead of being cut off at its edge.

Flutter gives you a widget's box but never its shape, so radius has to come from you - set it to whatever the target is drawn with.

Some edges only

AmbientBorderGlow(visible: true, edges: const {GlowEdge.top, GlowEdge.right})

A corner is rounded only where two selected edges meet, so {top, right} is one continuous L and {top, bottom} is two separate strokes. An edge with no corner beside it runs the whole length of its side - except on a side with no straight run at all, like a circle's, where it draws nothing rather than a flat tangent.

Any outline

String star(GlowPathBox box) { /* ... return SVG path data ... */ }

AmbientBorderGlow(visible: true, path: star, bleed: 20);

Full SVG path grammar: M L H V C S Q T A Z, absolute and relative. edges and radius describe the built-in rounded rectangle, so they do not apply here.

Props

visible is the only required one. Everything else has the default the effect shipped with.

	Default
edges	all four	Any subset
edgeExtent	full	Whether a lone edge runs the full side
radius	GlowRadius.all(44)	One radius, four, or .display()
cornerSmoothing	0	0 circular, 1 continuous; 0.6 matches an iPhone
thickness	7	Core line width
inset / bleed	0	Push-in, and slack for the bloom
bloomWidthScale	1.6	Bloom stroke as a multiple of thickness
bloomBlurScale	1.1	Bloom blur
coreBlurScale	0.45	Core blur
colors	GlowPalettes.rainbow	Also aurora, ember, ocean, mono
direction	cw	ccw, or static to freeze with no frame clock
spinSpeed	0.45	Revolutions per second
staticRotation	0	Degrees
bloomOpacity	0.6
pulseDepth / pulseRate	0.18 / 2.2	Bloom breathing
fadeInDuration / fadeOutDuration	220ms / 420ms
renderMode	auto	banded paints only the border strips
respectReduceMotion	true

Performance

The ring is thin but its bounding box is the whole screen, so the naive approach composites a full-screen layer every frame and shades mostly transparent pixels. renderMode bands the surface into four strips covering just the border - identical picture, 57-64% fewer pixels shaded on a phone-sized screen.

The fade is applied to the gradient stops rather than an Opacity widget, which would force a saveLayer and an offscreen buffer every frame. The parsed Path is cached across frames, since only the gradient rotates.

direction: GlowDirection.static and reduce-motion both stop the ticker entirely - a still image never schedules a frame.

Example

cd example && flutter run

Every prop on a live control, plus the rounded-shape and custom-outline galleries.

License

MIT
