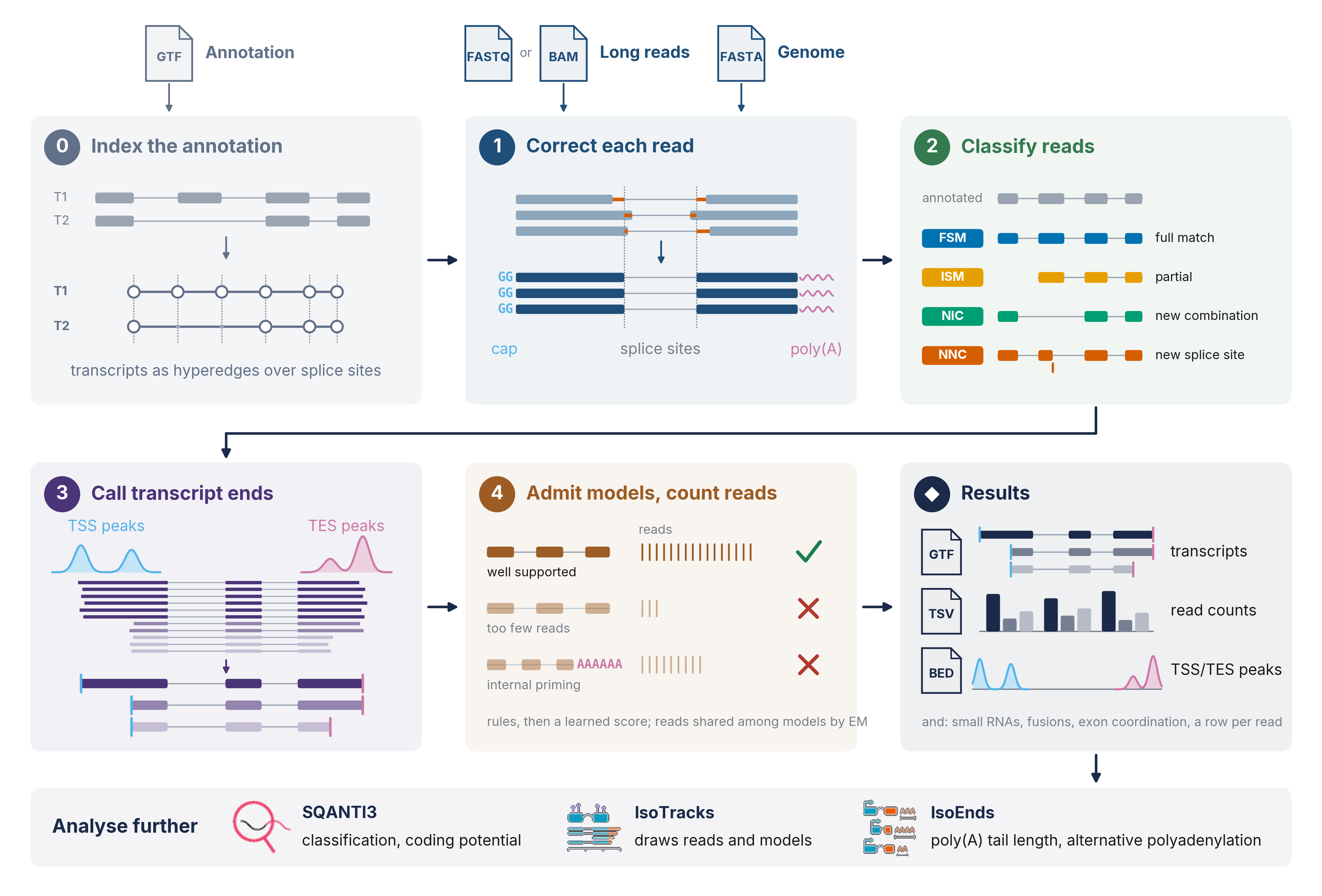

IsoForge uses a hypergraph, rather than a splice graph, to preserve transcript models and the reads behind them. Each long read is kept whole, with its intron chain and both ends, as one hyperedge. From Oxford Nanopore or PacBio RNA-seq, a single run reports annotated and novel isoforms with their transcription start and poly(A) sites, read counts per sample (annotated small RNAs included) and gene fusions.

Installation

pip install isoforge

IsoForge needs Python 3.10 or later and is tested on Linux (x86-64), where pip installs a ready-built package: minimap2 and htslib are compiled in, so there is nothing else to install. On other systems pip builds IsoForge from source, which takes a few minutes and needs Rust 1.85 or later and the C build tools (a compiler, make, cmake).

To build from this repository with conda:

git clone https://github.com/MustafaElshani/IsoForge.git
cd IsoForge
bash install.sh              # creates the conda environment "isoforge" and builds into it
conda activate isoforge

bash install.sh --help shows the other ways to call the script. The repository as it stands is installed with pip install git+https://github.com/MustafaElshani/IsoForge.git; the conda environment of environment.yml has what that build needs (conda env create -f environment.yml, then conda activate isoforge).

Quick start

IsoForge needs the reads, the genome and the annotation:

# from FASTQ
isoforge annotate --reads Control_1.fastq.gz Treated_1.fastq.gz \
    --genome hg38.fa --annotation gencode.v49.annotation.gtf --o results/project

# or from sorted BAM files
isoforge annotate --bam Control_1.bam Treated_1.bam \
    --genome hg38.fa --annotation gencode.v49.annotation.gtf --o results/project

FASTQ files are aligned with the minimap2 built into IsoForge. The annotation is indexed on the first run, beside the GTF, and the index is used again after that. Every output is written; nothing else has to be set.

If your genome has a minisplice score table (human GRCh38: human-GRCh38.v4.tsv.gz), add --splice_scores human-GRCh38.v4.tsv.gz. It is used to place and check novel splice sites.

Command	Use
isoforge annotate	The run: from FASTQ or BAM to transcript models, counts and fusions
isoforge post	Filter and write the outputs again from a kept run, without reading the alignments again
isoforge export	Write coverage tracks or the read table again from a finished run
isoforge index	Build the annotation index ahead of a run, for example on a cluster

isoforge <command> --help shows the main options of a command, and isoforge annotate --help-all every option.

Input

Reads

Give one file per sample: FASTQ or FASTA, gzipped or not, with --reads, or sorted BAM with --bam. The samples are named after their files unless --names gives the names. For FASTQ, set the library type:

Library	Options	minimap2, if you align yourself
Nanopore cDNA	none	-ax splice
Nanopore direct RNA, or cDNA oriented with pychopper	--oriented -k 14	-ax splice -uf -k14
PacBio Iso-Seq	--platform hifi --oriented	-ax splice:hq -uf

--oriented (-uf) is only for reads that run in the transcript's direction. --write_bam keeps the alignments IsoForge makes, which IsoTracks reads.

BAM files of your own must be aligned to the genome with minimap2, sorted and indexed:

minimap2 -ax splice --junc-bed annotation.bed hg38.fa reads.fastq.gz | samtools sort -o sample.bam
samtools index sample.bam

annotation.bed is made with paftools.js gff2bed annotation.gtf; --junc_bed gives the same file to the built-in aligner.

Poly(A) tail lengths are read from the pt:i tag when the reads carry it, and measured in the soft clip otherwise. To keep Dorado's tag, convert with samtools fastq -T pt and add --copy_comment (minimap2 -y).

Sample sheet

For many samples, --config takes a CSV in place of --reads or --bam, with one sample per line: name, description, platform and file.

Control_rep1,Control replicate 1,ONT,/data/control_rep1.fastq.gz
Control_rep2,Control replicate 2,ONT,/data/control_rep2.fastq.gz
Treated_rep1,Treated replicate 1,ONT,/data/treated_rep1.fastq.gz
Treated_rep2,Treated replicate 2,ONT,/data/treated_rep2.fastq.gz

The part of a sample name before the first underscore is the condition (Control, Treated).

Output

With --o results/project:

File	Content
project_isoforge.gtf	Transcript models that pass the filters, with their TSS, poly(A) site and poly(A) signal
project_isoforge_abundance_filtered.tsv	Read counts per transcript and dataset
project_isoforge_read_annot.parquet	Every read: its transcript, TSS, poly(A) site and signal, and tail length
project_isoforge_read_annot.tsv	The whole reads of the reported transcripts, as text; their other reads are in ..._unsupported.tsv
project_isoforge_summary.tsv	Genes, transcripts and reads per category and dataset
project_filter.csv	IDs of the transcripts that pass
project_TSS_TES_Clusters/	TSS and poly(A) site clusters (BED and Parquet), and read-end coverage tracks per dataset
project_isoforge_fusions.tsv	Fusion candidates. The calls are the rows with PASS in the filter column, also written as .bedpe
project_isoforge_fusion_*	The reads, parts and transcripts of each fusion (TSV, Parquet, GTF)

--hypergraph also writes the read hypergraph of the reported models (project_isoforge_hypergraph.tsv) and tests of which exons are spliced together in the same molecules (project_isoforge_coordination.tsv).

Transcript categories

Category	Meaning
Known	Full splice match to an annotated transcript
ISM	Incomplete splice match: a contiguous part of an annotated intron chain (Prefix, Suffix or Both)
NIC	Novel in catalogue: annotated splice sites in a new combination
NNC	Novel not in catalogue: at least one new splice site
Novel	An intron chain given a new ID because its reads have a start or poly(A) site of their own
Antisense	On the opposite strand of an annotated gene
Intergenic	Outside annotated genes
Genomic	Overlaps an annotated gene without sharing its splice structure
Fusion	Spans two or more annotated genes

Columns of the tables and GTF attributes

Abundance table:

Column	Content
gene_ID, transcript_ID	IsoForge gene and transcript numbers
annot_gene_id, annot_transcript_id	Annotation IDs; novel transcripts are ISOFORT…, novel genes ISOFORG…
annot_gene_name, annot_transcript_name	Gene and transcript names
n_exons, length	Number of exons and transcript length (nt)
gene_novelty, transcript_novelty, ISM_subtype	Categories, as above
one column per dataset	Read counts. A read that fits several transcripts is shared among them, so counts can be fractional

Read table:

Column	Content
read_name, dataset, genome_build	Read, dataset and genome build
chromosome, read_start, read_end, strand	5′ and 3′ end of the alignment (1-based) and transcript strand
n_exons, read_length	Exons of the assigned transcript, and length of the read
gene_ID … ISM_subtype	The assigned gene and transcript, as in the abundance table
fraction_As	A content of the 20 nt after the 3′ end
custom_label, allelic_label	The lC and lA BAM tags, if present
start_support, end_support	TSS and poly(A) cluster the read's ends joined
tss_site, tss_feature	TSS position and the annotated feature there
polya_site, polya_feature, polya_signal	Poly(A) site, the feature there and the poly(A) signal (a hexamer, or DSE)
cluster_supported	True for a whole read of its transcript: every exon, both ends at the transcript's, not internally primed
polya_length	Poly(A) tail length

GTF transcript records carry transcript_status, tss_site, tss_Feature, polyA_site, polyA_Feature and polyA_signal. A transcript that has the intron chain of an annotated one and another start or poly(A) site also carries variant_of, the ID of that annotated transcript.

gene_type and transcript_type are the annotation's: annotated genes and transcripts keep them, novel ones have none. SQANTI3 classifies the novel transcripts (coding, NMD, intron retention).

Options

The defaults are meant to be run as they are. These are the options most often changed:

Option	Default	Effect
--threads	all cores	Threads
--minCount	5	Reads per dataset a novel transcript needs
--minCountKnown	2	Reads per dataset an annotated transcript needs
--minDatasets	1	Datasets in which a novel transcript must pass (0: all)
--no_polya_filter	off	Accept 3′ ends without a poly(A) tail, for reads without tail information
--known_ends_as_annotated	off	Write annotated transcripts at their annotated ends; the read-derived ends stay in the GTF attributes
--no-small_rna	counted	Do not count annotated small RNAs
--no-fusions	called	Do not call fusions
--sj_dir, --cage_peaks	none	STAR SJ.out.tab files and CAGE peaks as further evidence for splice sites and starts
--read_annot_format parquet, --no-end_tracks	both, on	A smaller output: no read table as text, no coverage tracks
--write_bam	off	Keep the alignments made from FASTQ, in <prefix>_alignments/
--keep-db	off	Keep the run database for isoforge post

Filtering a run again

A run kept with --keep-db can be filtered with other settings without reading the alignments again:

isoforge post --database results/project_isoforge_db --annotation gencode.v49.annotation.gtf \
    --genome hg38.fa --minCount 10 --o results/project_min10

isoforge post takes the filtering options of isoforge annotate. Give it --genome and --splice_scores as in the run.

Downstream analysis

Tool	Use	Reads from a run
SQANTI3 v6	Structural classification and quality control of the transcript models	The GTF
IsoForge_Sqanti3	Runs SQANTI3 on a run and writes its classification, coding status and CDS back into the GTF, with a BED12 for genome browsers	The GTF
IsoTracks	Draws the isoform models of a gene with the reads behind them, their poly(A) tails and coverage, and gene fusions	The GTF, the read-annotation Parquet, the clusters, the fusion tables and the BAM files
IsoEnds	Statistics on poly(A) tail length, alternative polyadenylation and transcription start sites between conditions	The read-annotation Parquet, the GTF and the clusters

IsoForge_Sqanti3, IsoTracks and IsoEnds are companion tools of IsoForge. SQANTI3 itself takes the GTF as it is:

python sqanti3_qc.py --isoforms results/project_isoforge.gtf \
    --refGTF gencode.v49.annotation.gtf --refFasta hg38.fa -d results/sqanti3 -o project

Citation

The IsoForge manuscript is in preparation. Until it is out, please cite this repository:

Elshani M, Zhang Y, Harrison DJ. IsoForge, version 1.0.0. https://github.com/MustafaElshani/IsoForge

License

MIT, see LICENSE.
