Zuup is a cicropad is a 9 key macropad built around the Arduino Pro Micro.
- 9 MX-style mechanical switches in a 3x3 grid
- xiao-rp2040-dip as the brains
- circuitpython

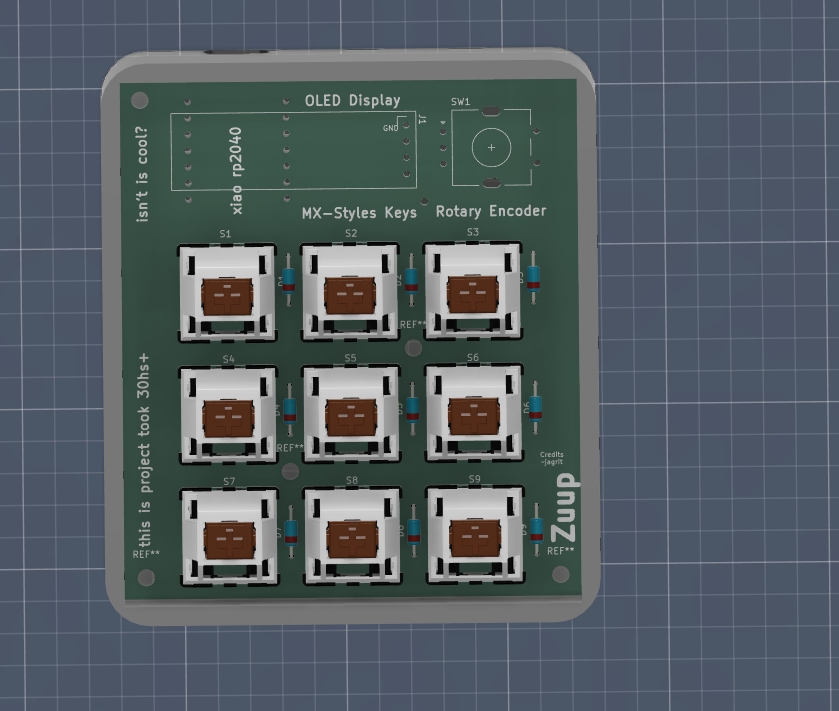

in my case the switches and controller are fully visible because it looks cool like tht lol

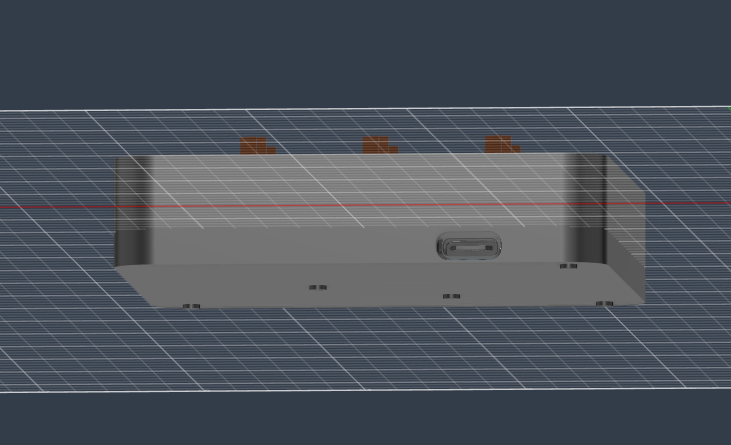

for usb c there with a pill shaped cutout. i didn't made top panel i have made the bezzle and i am going to manually cut and place a acrylic sheet so that internal components are always visible hence i didn't made a top panel and my pcb is elevated so it doesnt require a plate

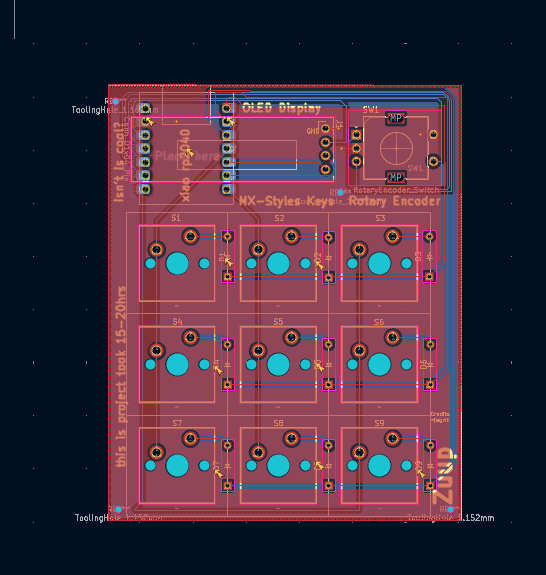

i made it on KiCad 10. i used 9 MX_PCB_1.00u switch footprints in a clean 3x3 grid. Diodes are DO-35 1N4148, one per key i also aded random usless cool stuff on the pcb too
Uses circuitpython firmware.
9 keys act as fully remappable macros
- 9x MX-style mechanical switches
- 9x keycaps (1u)
- 9x 1N4148 DO-35 diodes
- 1x xiao-rp2040-dip
- 3x M2x5mm screws
- 1x 3D printed open-top tray
- 1x PCB i made
i made a micropad yay!
