L.I.T.H.O.S.

Lego Identification Through Home Online Systems

Point a camera at a LEGO piece → get the part number, name, and image instantly.

---

Hardware Required

Item	Notes
Raspberry Pi 5	Main unit
Pi Camera Module 3	Connects to CSI port
Photo lightbox tent (30cm cube)	Collapsible cube with built-in LEDs and white backdrop — provides even, shadow-free lighting. Search "product photography lightbox" on Amazon (~$20-35)
Small screen (optional)	Official 7" touchscreen or any HDMI display
MicroSD card	16GB+ with Raspberry Pi OS (64-bit)
HDMI cable	Mini to micro; the raspberrypi has a micro and the small screens usually need the mini

---

Raspberry Pi Setup

1. Install Raspberry Pi OS

Use Raspberry Pi Imager to flash Raspberry Pi OS (64-bit) to your SD card.
Enable SSH and set your username/password in the imager settings.

2. Enable the camera

sudo raspi-config
# Interface Options → Camera → Enable
sudo reboot

3. Clone and install

git clone https://github.com/DreamThief/lithos.git /home/$USER/lithos
cd /home/$USER/lithos
python3 -m venv venv --system-site-packages
source venv/bin/activate
pip install -r requirements.txt

Note: picamera2 is a system-level package on Pi OS. The --system-site-packages flag is required so the venv can see it. Do not pip install picamera2.

4. Run the server

source /home/$USER/lithos/venv/bin/activate
cd /home/$USER/lithos/backend
uvicorn main:app --host 0.0.0.0 --port 8000

Then open http://localhost:8000 in Chromium on the Pi, or visit http://<pi-ip>:8000 from any device on your network.

---

Run at Startup (optional)

Create a systemd service so L.I.T.H.O.S. starts automatically on boot:

sudo nano /etc/systemd/system/lithos.service

Paste:

[Unit]
Description=L.I.T.H.O.S. LEGO Scanner
After=network.target

[Service]
User=YOUR_USERNAME
WorkingDirectory=/home/YOUR_USERNAME/lithos/backend
ExecStart=/home/YOUR_USERNAME/lithos/venv/bin/uvicorn main:app --host 0.0.0.0 --port 8000
Restart=always

[Install]
WantedBy=multi-user.target

sudo systemctl enable lithos
sudo systemctl start lithos

---

Development (non-Pi machine)

The camera module gracefully falls back to a placeholder image when picamera2 is not available, so you can develop and test the UI and identification logic on your laptop.

cd backend
uvicorn main:app --reload

Use the Upload Image button to test identification without a physical camera.

---

Project Structure

lithos/
├── backend/
│   ├── main.py         # FastAPI app — routes for stream, scan, upload
│   ├── camera.py       # Camera abstraction (Pi + dev fallback)
│   └── identify.py     # Brickognize API integration
├── frontend/
│   ├── index.html      # Single-page UI
│   ├── style.css       # LEGO-themed dark UI
│   └── app.js          # Fetch calls, result rendering
├── requirements.txt
└── README.md

---

How It Works

1. camera.py captures a JPEG frame from the Pi Camera via picamera2
2. identify.py POSTs the image to the Brickognize API
3. Brickognize returns a ranked list of LEGO parts with names, IDs, and reference images

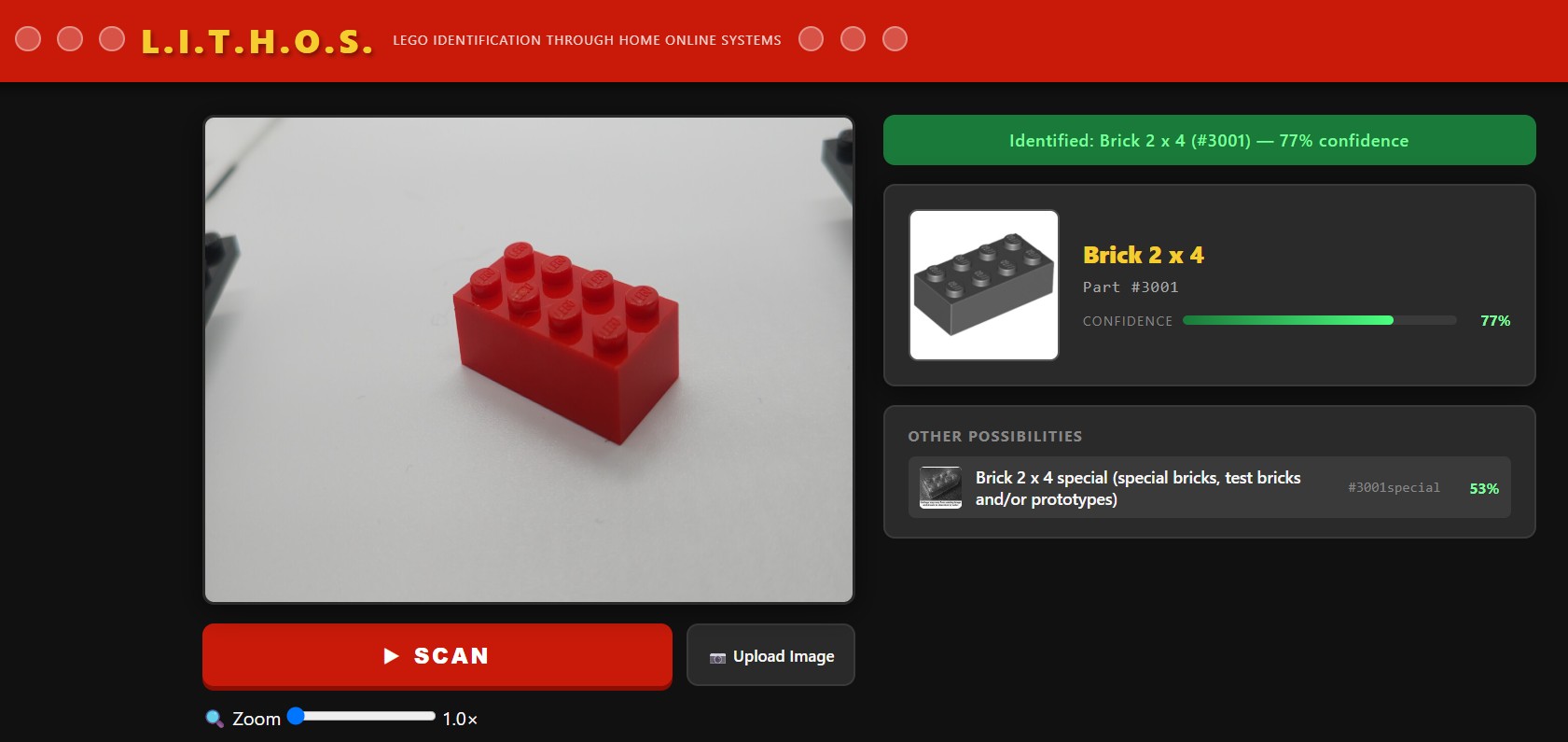

4. The web UI renders the top match with a confidence bar, plus alternative candidates

---

Keyboard Shortcut

Press Spacebar to trigger a scan (same as clicking the SCAN button).
