📸 Serverless Image Processing Pipeline

A full-stack serverless application that creates a secure image upload workflow. It utilizes a Node.js Express backend to handle uploads to AWS S3, which triggers an event-driven Lambda function to automatically resize and process images using the Sharp library.

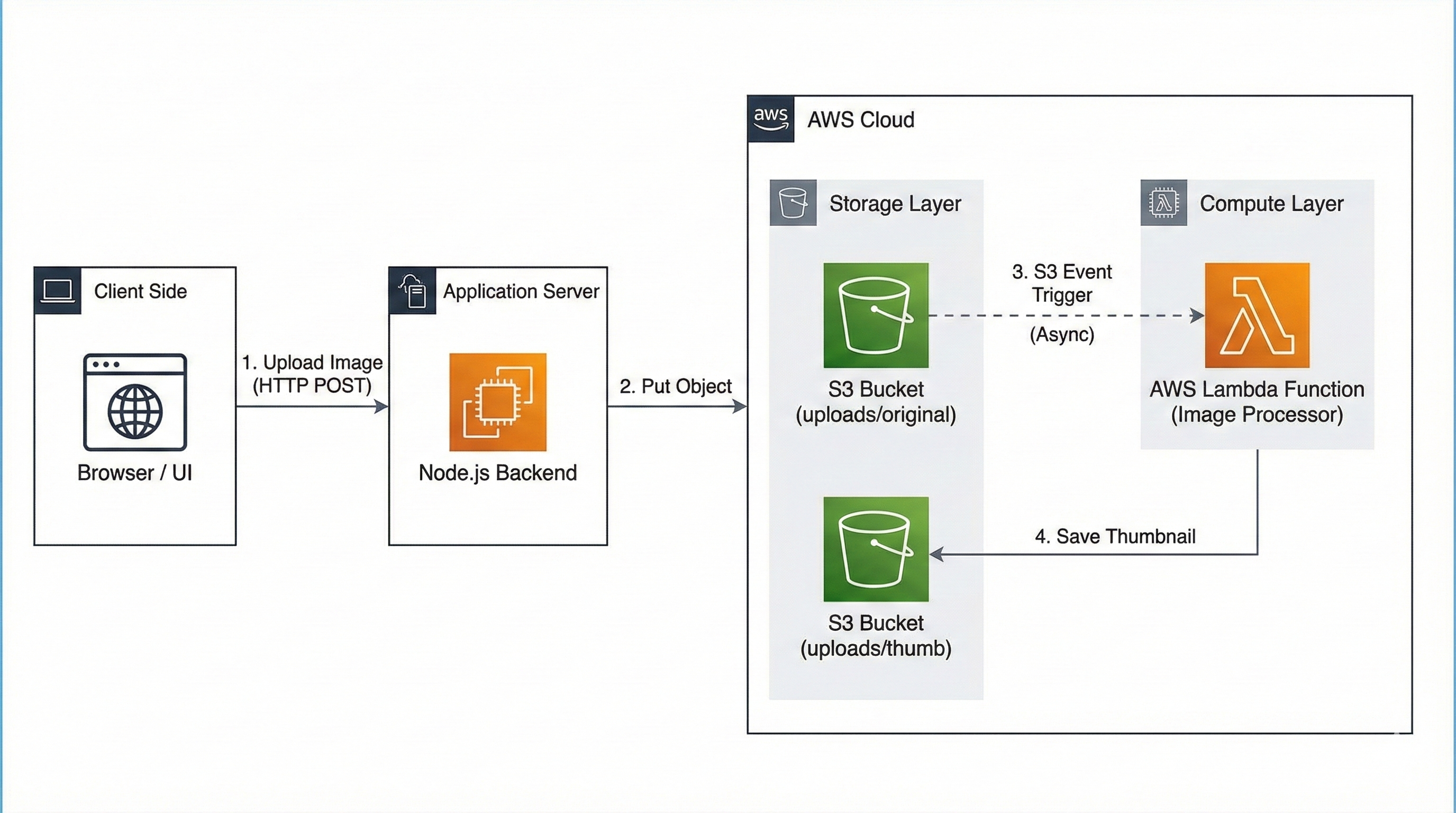

🏗️ Architecture

The pipeline follows a decoupled, event-driven architecture:

🚀 Features

• Secure Uploads: Direct streaming to S3 with validated file types and size limits (5MB).
• Event-Driven Processing: Automatic thumbnail generation triggered immediately upon upload.
• Signed URLs: Secure, time-limited access (1 hour) to private S3 objects.
• Scalable: Leverages AWS Serverless infrastructure (Lambda/S3) to handle variable loads.
• Modern UI: Clean, dark-themed frontend with real-time upload progress.

🛠️ Technical Stack

• Frontend: HTML5, CSS3 (Grid/Flexbox), Vanilla JavaScript.

• Backend: Node.js, Express.js, Multer (streaming), AWS SDK v3.

• Cloud Infrastructure:

• AWS S3: Object storage for original and processed images.

• AWS Lambda: Serverless compute for image manipulation.

• AWS IAM: Granular permission management.

• Image Processing: Sharp (High-performance Node.js image processor).

📂 Project Structure

serverless-image-processing-pipeline/
├── aws/
│   └── lambda_code.mjs       # The Lambda function logic (triggers on S3 create)
├── backend/
│   ├── server.js             # Main Express application & S3 controller
│   ├── package.json          # Backend dependencies
│   └── .env                  # Environment variables (Gitignored)
├── frontend/
│   ├── index.html            # User Interface
│   └── style.css             # (If separated)
└── README.md

⚙️ Installation & Setup

1. Prerequisites

• Node.js (v18+) and npm installed.
• An active AWS Account.
• AWS CLI configured (optional, but helpful).

2. AWS Configuration

You need to set up the cloud resources before running the code.

A. S3 Bucket Setup

1. Create a bucket (e.g., my-image-pipeline-bucket).
2. Block all public access (Private bucket).
3. Create two folders inside: uploads/original/ and uploads/thumb/.
4. Enable CORS in the bucket permissions to allow your frontend (or localhost) to access it if needed.

B. IAM & Lambda Setup

1. Create IAM Role: Create a role for Lambda with AWSLambdaBasicExecutionRole and inline permission to s3:GetObject (from original) and s3:PutObject (to thumb).
2. Create Lambda Function:

• Runtime: Node.js 20.x
• Upload the code from the aws/ directory (ensure node_modules containing sharp is included).

3. Add Trigger: Configure the Lambda to trigger on S3 Object Create events specifically for the prefix uploads/original/.

3. Local Development

Clone the repository:

git clone https://github.com/yourusername/serverless-image-processing.git
cd serverless-image-processing-pipeline

Setup Backend:

cd backend
npm install

Configure Environment: Create a .env file in the backend/ folder:

# AWS Credentials (IAM User with S3 access)
AWS_REGION=us-east-1
AWS_ACCESS_KEY_ID=your_access_key
AWS_SECRET_ACCESS_KEY=your_secret_key
AWS_BUCKET_NAME=my-image-pipeline-bucket

# Server Config
PORT=3000

Run the Server:

npm start
# Output: Server running on port 3000

Run Frontend: Simply open frontend/index.html in your browser. For best results, use a live server (e.g., VS Code Live Server extension).

🔌 API Endpoints

1. Upload Image

Uploads an image to the uploads/original/ S3 folder.

• Endpoint: POST /upload
• Body: form-data with key file (Image binary).
• Response:

{
  "message": "Upload successful",
  "key": "uploads/original/17042836-image.jpg"
}

2. Get Secure URLs

Retrieves signed URLs for viewing the private images.

• Endpoint: GET /geturl
• Query Param: ?key=uploads/original/filename.jpg
• Response:

{
  "url1": "https://s3.us-east-1... (Original)",
  "url2": "https://s3.us-east-1... (Thumbnail)"
}

🐛 Troubleshooting

• "Access Denied" on Upload: Check that your IAM User (in .env) has s3:PutObject permissions.

• Thumbnails not appearing:

• Check AWS CloudWatch logs for the Lambda function.

• Ensure the Lambda timeout is set to at least 10 seconds (Sharp processing can take time on cold starts).

• Verify the S3 trigger prefix is strictly uploads/original/ to prevent infinite loops.

• CORS Errors: Ensure your backend server.js has CORS enabled and your S3 bucket CORS configuration allows the request methods.

📄 License

This project is licensed under the ISC License.
