Plug-and-play edge connectivity for SMT production lines, enabling real-time data harmonization, end-to-end traceability, and smart factory integration.
The Containerized IPC-CFX Manufacturing Data Exchange is a robust, edge-ready middleware solution designed to eliminate information silos on the shop floor. By deploying this lightweight container directly onto Advantech Edge IPCs, manufacturers can instantly leverage the global IPC-CFX (Connected Factory Exchange) standard.
Utilizing the open AMQP v1.0 messaging protocol and structured JSON data encoding, this solution translates fragmented, proprietary machine schemas into a single, unified data language. It provides seamless, bi-directional integration between your SMT equipment (AOI, SPI, Printers, Reflow, Mounters) and enterprise MES/ERP/Digital Twin platforms, creating a transparent, efficient, and fully traceable manufacturing environment.
The Challenge: Breaking Down Data Silos & Enabling a Unified Data Schema for Electronics Manufacturing
While modern SMT production lines feature highly automated equipment, the data they generate remains deeply fragmented. Traditional integration suffers from:
- Proprietary Schemas: Each vendor utilizes unique data structures, preventing cross-machine communication.
- High Integration Costs: Point-to-point custom API developments drive up deployment time and maintenance overhead.
- Delayed Intelligence: Lack of real-time data restricts factory-wide visibility, stalling the realization of closed-loop, AI-driven smart manufacturing.
Deploying the IPC-CFX container fundamentally transforms edge-to-cloud data workflows, delivering proven business outcomes:
- 66% Automation Improvement: Automated exchange of process and equipment data drastically reduces manual intervention and human error.
- 25% - 35% Throughput Increase: Real-time manufacturing data enables dynamic line balancing and optimized OEE (Overall Equipment Effectiveness).
- Sub-3-Minute Changeovers: Centralized, automated recipe management and reporting minimize operational downtime during product shifts.
- Board-Level Traceability: Deep integration with IPC-Hermes-9852 allows continuous tracking of PCB serial numbers, batch data, and routing.
- Real-time data visibility & digital twin readiness: Production output, equipment status, and alarms are reported live to MES and shared with digital twins for optimizing production processes.
- Unified equipment integration: A common data language enables seamless integration of AOI, SPI, Printer, Reflow, Mounter, AMRs and all supporting equipment.

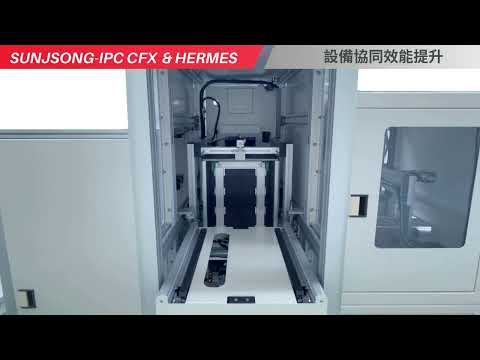

SUNJSONG - IPC CFX and HERMES Integration
Provides the key manufacturing data required for real-time visibility, process transparency, and end-to-end traceability.
- Equipment status and events: operating states, alarms, downtime, and maintenance events
- Process and production data: throughput, cycle time, production counts, and process parameters
- Quality and inspection data: AOI, SPI, and test results
- Material and traceability data: part numbers, batch information, and material usage records
- Operational performance data: foundational data supporting utilization, yield, and OEE analysis
- Digital twin simulation: live equipment configuration and telemetry for simulating and adjusting your production line in digital twins
- Demo Request: Schedule a live demonstration with our demo line. Contact Us
- Proof of Concept Pilot: Evaluate adopting CFX for your SMT productions
