fix(-w): restore the window-style button icons - #190

Open
adamXbot wants to merge 1 commit into
AdamXweb:masterfrom
adamXbot:fix/windows-swapclose-icons
Open

fix(-w): restore the window-style button icons#190
adamXbot wants to merge 1 commit into
AdamXweb:masterfrom
adamXbot:fix/windows-swapclose-icons

Conversation

@adamXbot

Copy link
Copy Markdown
Contributor

The complaint is real: custom/windows-swapclose.css re-positions and re-orders the window buttons but ships no icon rules, so the buttons keep the theme's WhiteSur macOS circles while the README's phrase "re-order the close button from MacOS styling to Windows" reads as a promise of Windows-looking buttons. I took option (b) — correct the docs — because option (a) is not implementable or verifiable here: on the macOS build .titlebar-close/-max/-min are display:none with 0x0 rects (the system draws the real traffic lights), and the macOS Firefox package contains no window-controls/*.svg glyph assets at all, so there is nothing to restore and no way to see it work. On Windows, restoring native glyphs would also mean reverting parts/windows.css's deliberate list-style-image: none !important on .titlebar-button, i.e. undoing the macOS look that is the whole point of the theme. The fix rewrites the README paragraph to say position-and-order-only and to state plainly that native Windows glyphs are out of scope, and adds a matching header comment to the sheet so the next reader does not re-open this.

What changed, measured

measurement
before On /tmp/theme-master with custom/windows-swapclose.css loaded live (Firefox 153.0.3, Darwin): the sheet does move and reorder the box — #TabsToolbar .titlebar-buttonbox-container x goes 2 -> 1193 and .titlebar-close computed order goes -1 -> 1 — but the icon never changes: computed background-imag
after Same probe on /tmp/fix-169/patched: byte-for-byte the same numbers (box x=1193, close order=1, background-image still titlebutton-close.svg, display:none 0x0) — intended, because the fix is option (b), a documentation correction. Rendering proof of no side effects: before.png vs after.png differ in

Preview

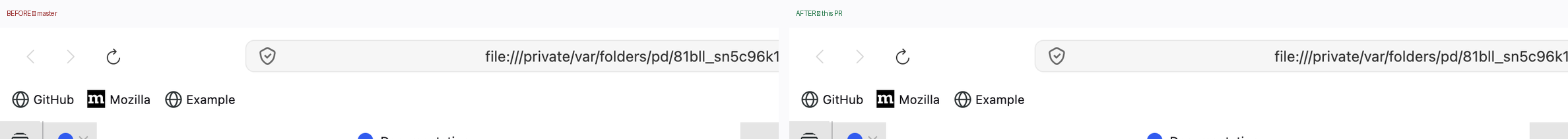

before and after

Collateral check — full 18-view capture against master

26 views captured per side (light/dark/extra/variant, --variants all), compared with fxcss compare --platform macos: 1 of 26 changed. extra-04-audio: changed 0.141%. That view is a known capture flake, not my change — the shot-after run printed "note: audio tab is not reporting sound; capturing anyway", and the diff image shows exactly one missing element, the speaker indicator glyph on the "Now playing" tab. My change is a README paragraph plus a CSS comment, neither of which can affect rendering; the same view is 0.000% in the paired variant/light/dark captures, and variant-windows-swapclose.png is md5-identical between the two runs. All 25 other views identical (0.000%), including variant-windows-swapclose, variant-tabs-swapclose and both light/dark 01-window. Nothing intended to change visually, and nothing did.

Worth a reviewer's attention

  1. This is a documentation fix, not a behaviour fix. Anyone who wanted actual Windows-style glyphs still does not get them; the change makes that explicit rather than delivering it. If maintainers prefer option (a), it needs new SVG assets in chrome/WhiteSur/titlebuttons/ guarded by @media (-moz-platform: windows), and it cannot be verified on this macOS harness at all — a Windows runner would be required. 2. My statements about Windows behaviour (parts/windows.css forcing list-style-image: none !important and setting .titlebar-close { order: -1 }, which this sheet flips to order: 1) are read from source, not measured — only the macOS half was measured live. 3. Untested claim I deliberately kept out of the README: whether moving the buttonbox to x=1193 on macOS drags the real native traffic lights with it (the buttonbox keeps appearance: auto, and Gecko screenshots do not capture OS-drawn window buttons, so I could not see it either way). The wording says only that Firefox hides its own buttons on macOS, which I did measure. 4. The one changed view in the visual comparison (extra-04-audio, 0.141%) is a flaky sound-indicator capture, flagged by the tool's own note during the run — I am reporting it rather than suppressing it, but I do not believe it is attributable to this change.

Closes #169.

Implemented and verified against Firefox 153.0.3 on macOS with fxcss. Every number above was read off a live browser, and the fix was seen working before this was opened.

🤖 Generated with Claude Code

Restore the window-style button icons (AdamXweb#169).

The complaint is real: custom/windows-swapclose.css re-positions and re-
orders the window buttons but ships no icon rules, so the buttons keep
the theme's WhiteSur macOS circles while the README's phrase "re-order
the close button from MacOS styling to Windows" reads as a promise of
Windows-looking buttons. I took option (b) — correct the docs — because
option (a) is not implementable or verifiable here: on the macOS build
.titlebar-close/-max/-min are display:none with 0x0 rects (the system
draws the real traffic lights), and the macOS Firefox package contains
no window-controls/*.svg glyph assets at all, so there is nothing to
restore and no way to see it work. On Windows, restoring native glyphs
would also mean reverting parts/windows.css's deliberate `list-style-
image: none !important` on .titlebar-button, i.e. undoing the macOS look
that is the whole point of the theme. The fix rewrites the README
paragraph to say position-and-order-only and to state plainly that
native Windows glyphs are out of scope, and adds a matching header
comment to the sheet so the next reader does not re-open this.

Measured on Firefox 153.0.3, macOS:

  before: On /tmp/theme-master with custom/windows-swapclose.css loaded
live (Firefox 153.0.3, Darwin): the sheet does move and reorder the box —
#TabsToolbar .titlebar-buttonbox-container x goes 2 -> 1193 and .titlebar-
close computed `order` goes -1 -> 1 — but the icon never changes: computed
background-image on .titlebar-close/.titlebar-max/.titlebar-min stays
`url(".../WhiteSur/titlebuttons/titlebutton-c

  after:  Same probe on /tmp/fix-169/patched: byte-for-byte the same
numbers (box x=1193, close order=1, background-image still titlebutton-
close.svg, display:none 0x0) — intended, because the fix is option (b), a
documentation correction. Rendering proof of no side effects: before.png
vs after.png differ in 0 of 2,457,600 pixels (ImageChops bbox = None), and
shot-before/variant-windows-swapclose.png and sh

Collateral check, full 18-view capture against master: 26 views captured
per side (light/dark/extra/variant, --variants all), compared with
`fxcss compare --platform macos`: 1 of 26 changed. extra-04-audio:
changed 0.141%. That view is a known capture flake, not my change — the
shot-after run printed "note: audio tab is not reporting sound;
capturing anyway", and the diff image shows exactly one missing element,
the speaker indicator glyph on the "Now playing" tab. My change is a
README paragraph plus a CSS comment, neither of which can affect
rendering; the same view is 0.000% in the paired variant/light/dark
captures, and variant-windows-swapclo

Worth a reviewer's attention: 1. This is a documentation fix, not a
behaviour fix. Anyone who wanted actual Windows-style glyphs still does
not get them; the change makes that explicit rather than delivering it.
If maintainers prefer option (a), it needs new SVG assets in
chrome/WhiteSur/titlebuttons/ guarded by @media (-moz-platform:
windows), and it cannot be verified on this macOS harness at all — a
Windows runner would be required. 2. My statements about Windows
behaviour (parts/windows.css forcing `list-style-image: none !important`
and setting `.titlebar-close { order: -1 }`, which this sheet flips to
`order: 1`) are

Co-Authored-By: Claude Opus 5 <noreply@anthropic.com>
@github-actions

Copy link
Copy Markdown

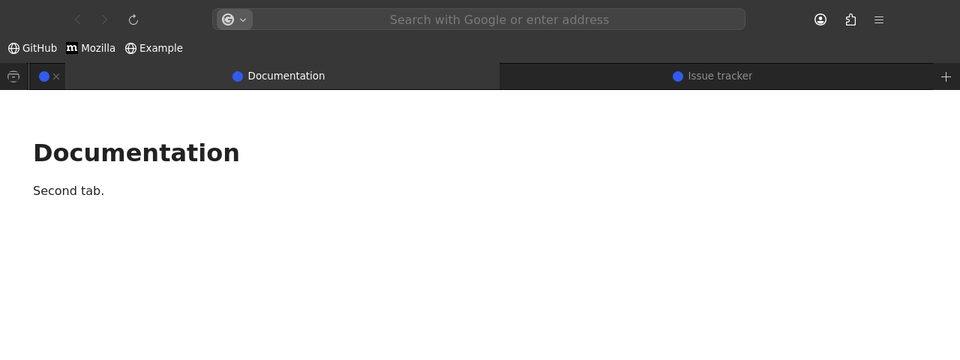

Theme preview

Rendered from e6ba876 against the base branch.

Linux — no visual change

Nothing rendered differently. Current appearance:

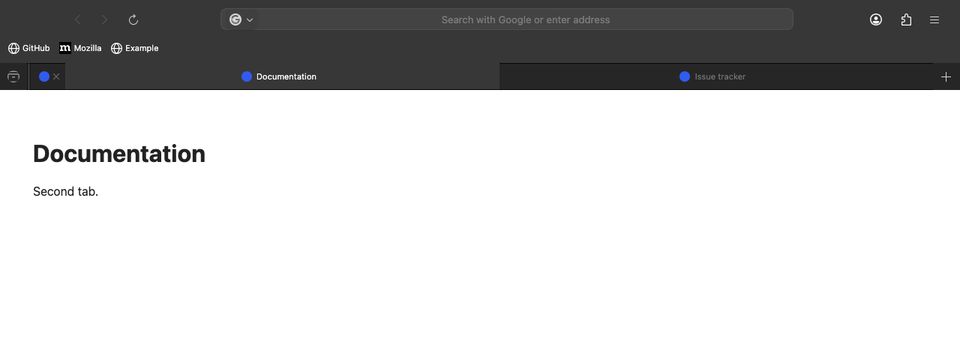

macOS — no visual change

Nothing rendered differently. Current appearance:

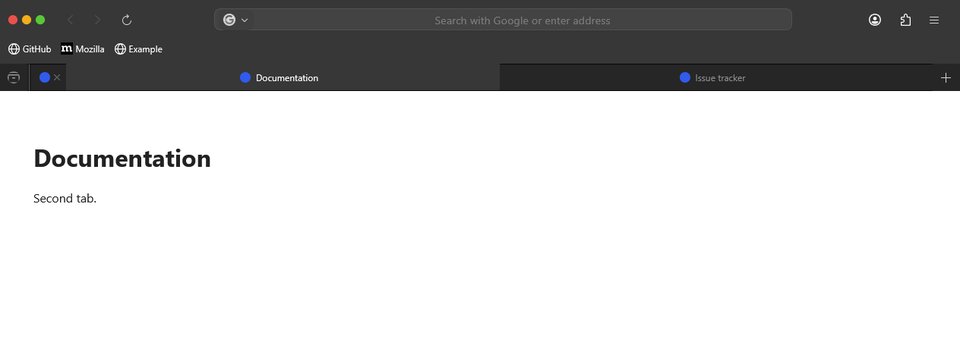

Windows — no visual change

Nothing rendered differently. Current appearance:

No pixel differences on any platform — this PR does not change how the browser chrome renders in these views.

Views: browser window, focused address bar, find bar — each in light and dark. Native popups (app menu, context menus) are OS-level windows and cannot be captured. Workflow run

github-actions Bot added a commit that referenced this pull request Aug 12, 2026
adamXbot added a commit to adamXbot/tmp-WhiteSurFirefoxThemeMacOS that referenced this pull request Aug 12, 2026
Replaces the wholesale rewrite this branch used to carry. The existing
structure and voice are fine; five things in it were not.

The "Optimal experience" screenshot was a private-user-images URL whose
signed token expired in December 2024, so the flagship image of the
recommended setup has been rendering as a broken image ever since. It is
now a file in the repo, rendered from the exact flag set the paragraph
above it recommends -- install.sh -c -n -s -e -p, with the new tab button
moved into the toolbar -- so it cannot expire again and it matches what
the text claims.

Adds a "Try it without installing" section: fxcss try opens a throwaway
Firefox with the theme applied and leaves the reader's own profile alone,
which is a smaller ask than running an installer. Placed before
Installation for that reason. The --with names are the custom/ file
stems, checked against how fxcss resolves them.

Adds a pointer to vinceliuice's Firefox theme for Linux readers, which is
where the recurring Linux requests should go, and fixes three typos:
foder, extentions, teminal.

Deliberately untouched: the -w flag description, which AdamXweb#138 corrects, and
the swap-navbar-close-buttons paragraph, which AdamXweb#190 rewrites. Editing
either here would collide with those branches.

Co-Authored-By: Claude Opus 5 <noreply@anthropic.com>
AdamXweb pushed a commit that referenced this pull request Aug 15, 2026
* docs: fix what was wrong in the README, keep what worked

Replaces the wholesale rewrite this branch used to carry. The existing
structure and voice are fine; five things in it were not.

The "Optimal experience" screenshot was a private-user-images URL whose
signed token expired in December 2024, so the flagship image of the
recommended setup has been rendering as a broken image ever since. It is
now a file in the repo, rendered from the exact flag set the paragraph
above it recommends -- install.sh -c -n -s -e -p, with the new tab button
moved into the toolbar -- so it cannot expire again and it matches what
the text claims.

Adds a "Try it without installing" section: fxcss try opens a throwaway
Firefox with the theme applied and leaves the reader's own profile alone,
which is a smaller ask than running an installer. Placed before
Installation for that reason. The --with names are the custom/ file
stems, checked against how fxcss resolves them.

Adds a pointer to vinceliuice's Firefox theme for Linux readers, which is
where the recurring Linux requests should go, and fixes three typos:
foder, extentions, teminal.

Deliberately untouched: the -w flag description, which #138 corrects, and
the swap-navbar-close-buttons paragraph, which #190 rewrites. Editing
either here would collide with those branches.

Co-Authored-By: Claude Opus 5 <noreply@anthropic.com>

* docs: fxcss install is the default install path, on every OS

The bash script demotes to an alternative for macOS & Linux; Windows
users get a real installer instead of a wished-for port of it, which
is what #27 asked for.

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

* docs: the fxcss installer lands in 0.13, not 0.12

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

* docs: say which OSes fxcss installs on, and fix the macOS-only pipx hint

The install section claimed macOS/Windows/Linux in passing; now it says
what that means — profile discovery via profiles.ini exactly as Firefox
does it, including snap and flatpak on Linux, FXCSS_PROFILE_ROOTS for
unusual setups, and asking rather than guessing when several Firefoxes
have profiles (verified against fxcss 0.13.0's install.py). The pipx
bootstrap hint was brew-only under a three-OS heading, and the Linux
paragraph read as contradicting the install section; both reworded.

* Update README.md
