dataView

[dunland]

modes overview

mode switching happens via tokens in frontend → UDP string initiates switching of modes

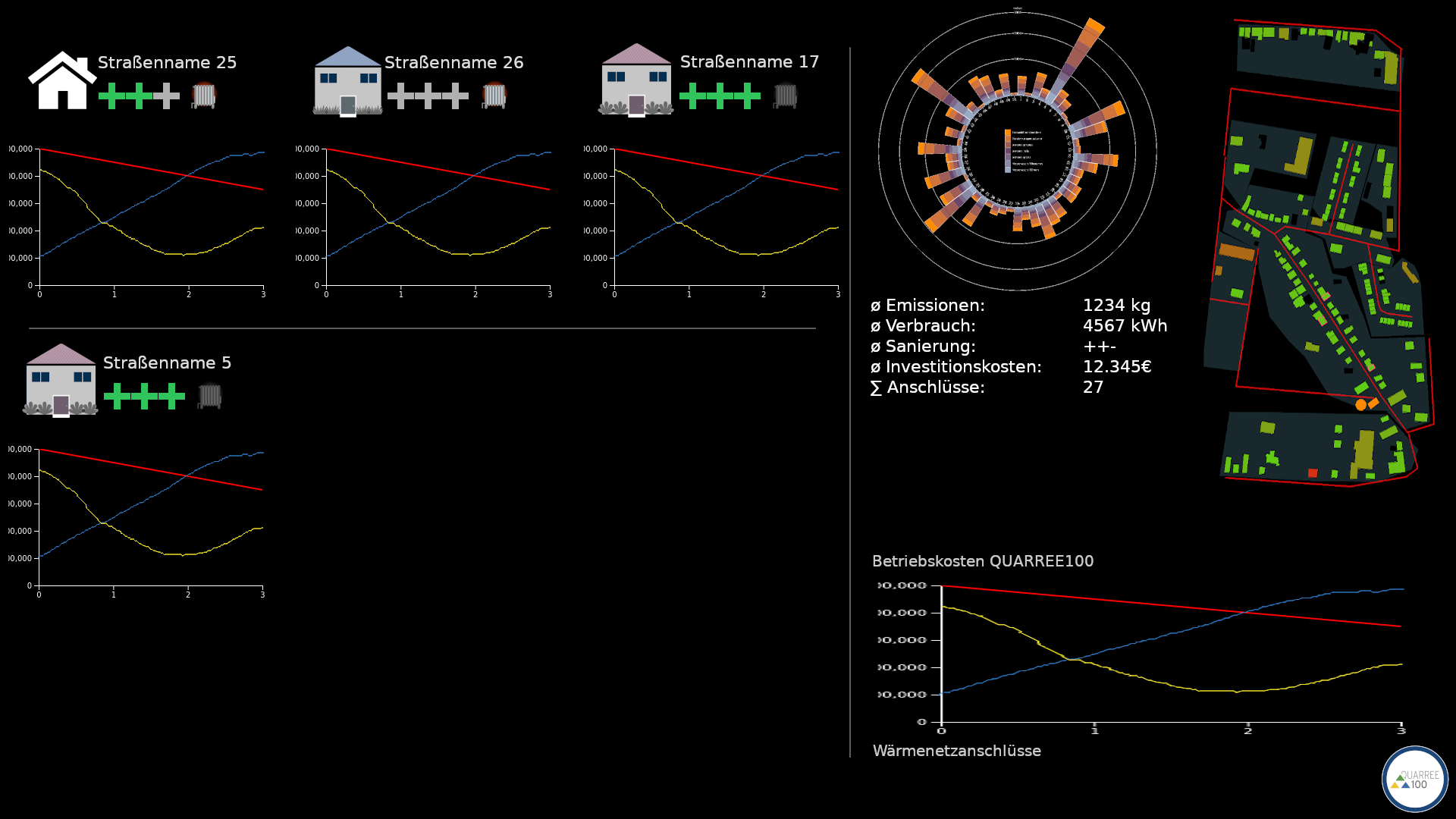

data view

could look somewhat like this:

features:

• accessing specific, pre-defined sub-view-modes (yet to define)
• en-detail-view of specific variables; interactive graphs, etc.

[kazux2]

screenshots of current views

questionnaire

input mode

Gebaeudecluster = cluster

uses clusterBefore

let clusterBefore = {
  Energieverbrauch: {
    "Strom": 103.159,
    "Wärme": 720.3691
  },
  CO2: 3.459
};

Quartier gesamt = totalCharts

uses `totalBefore

let totalBefore = {
  Energieverbrauch: {
    "Strom": 1103.629,
    "Wärme": 134720.5319
  },
  CO2: 30.459
};

on left = house info

uses sampleHouseInfo

const sampleHouseInfo = [{
  "adresse": "Straßenname 19",
  "CO2": 0.2036314841,
  "anschluss": 0,
  "investment": 2,
  "versorgung": "konventionell",
  "Wärmeverbrauch 2017 [kWh]": 71921,
  "Stromverbrauch 2017 [kWh]": 10260
},
...
]

at the bottom = renderSimulationVariables

uses simulationData

let simulationData = {
  year: 2022,
  co2: '500',
  wärme: 'y',
  strom: 'z',
  förderung: 'n'
}

simulation (replaced by data view)

on left = ClusterSimulations

uses clusterData = simulation_df

[
    {
        "step": int,
        "buildings": [
            {
                "geometry": polygon data,
                "Straße": string,
                "Hausnr.": string,
                "Wärmeverbrauch 2017 [kWh]": int,
                "Stromverbrauch 2017 [kWh]": int,
                "waerme_2017_rel": int,
                "strom_2017_rel": int,
                "adresse": string (strasse + hausnr),
                "CO2": int,
                "investment": 0,
                "versorgung": ?,
                "anschluss": 0,
                "EEH": int,
                "cell": ?,
                "selected": bool
            },
            ...
        ]
    },
    ...
]

on right = QuartierSimulations = district

const districtData = [
  {
    "step": 0,
    "attributes": {
      "Verbrauch": 1000000,
      "CO2": 10.813611631,
      "Investment": 0.3,
      "EEH": 0.4458936055
    }
  },
...
]

[kazux2]

data view

on left (households)

what should this data set be called?

neccesary data for individual house

• identification (address)
• ??? tendency (plus icon)
• heizung
• time-series data 1
• time-series data 2
• time-series data 3

[
    {
        "address": string,
        "xxxTendancy": int,
        "isHeizung": bool,
        "timeSeriesData1": [
            {
                "date": date,
                "value": int
            },
            ...
        ],
        "timeSeriesData2": ...,
        "timeSeriesData3": ...
    },
    ...
]

on right

todo

[dunland]

So as we decided:

• the simulation screen is deprecated
• the data structure, needed for the communication of building parameters, shall look like this:

[
    {
    "geometry": "POLYGON ((1013386.153050112 7207286.029202758, 1013385.351549778 7207291.661587165, 1013378.349553807 7207290.691142268, 1013374.876385694 7207313.468086478, 1013385.295890033 7207315.827606605, 1013391.552045415 7207287.494383448, 1013386.153050112 7207286.029202758))",
    "address": "Hamburger Straße 22",
    "electricity_consumption": 1023,
    "heat_consumption": 12300,
    "CO2": 0.2731330627,
    "refurbished": true/false,
    "electricity_supplier": "green/gray/mix",
    "connection_to_heat_grid": true/false
    }
]

I will now adjust the code in the frontend to support and provide this structure.

another open question (to @dunland @lwinkeler): where does this data come from initially? is it still GIS-based or pre-fetched by GAMA?

[dunland]

TODO:

• clarify communication between frontend and infoscreen
  • json-struct / protocol
  • for debugging!

[kazux2]

currently, the first section on the upper left renders by startup.
for other section, you can display by commenting in main.js line at 90-91 which uses sampleGAMAImgSrcPaths in sampleData.js (can be modified with four type from 0 to 3) as mock UDP message.

ToDo: UDP messaging test with frontend, and check if the dataview can be renewed by UDP.

[dunland]

individual dataView

@kazux2 the mockup UPD protocol for this mode will probably look like this:

{
    "data_view_individual_data": {
        "buildings_groups": {
            "group_0": {
                "buildings": [
                    {
                        "address": "Hamburger Straße 2",
                        "CO2": 0.01021516,
                        "connection_to_heat_grid": false,
                        "refurbished": false,
                        "environmental_engagement": false,
                        "energy_source": "Öl",
                        "year": 1910,
                        "area": 150.365,
                        "cell": ""
                    },
                    {
                        "address": "Hamburger Straße 12",
                        "CO2": 0.0091610135,
                        "connection_to_heat_grid": false,
                        "refurbished": false,
                        "environmental_engagement": false,
                        "energy_source": "Gas",
                        "year": 1910,
                        "area": 548.1735,
                        "cell": ""
                    }
                ],
                "average_generic_buildings": [
                    [
                        {
                            "spec_heat_consumption": 168.2295352941,
                            "spec_power_consumption": 35.4187367647,
                            "address": "Hamburger Straße 2"
                        }
                    ],
                    [
                        {
                            "spec_heat_consumption": 355.3933733333,
                            "spec_power_consumption": 22.1920166667,
                            "address": "Hamburger Straße 12"
                        }
                    ]
                ]
            },
            "group_1": {
                "buildings": [
                    {
                        "address": "Stettiner Straße 13",
                        "CO2": 0.0187162015,
                        "connection_to_heat_grid": false,
                        "refurbished": false,
                        "environmental_engagement": true,
                        "energy_source": "Gas",
                        "year": 1982,
                        "area": 213.39533,
                        "cell": ""
                    },
                    {
                        "address": "Im Redder 18",
                        "CO2": 0.01108181,
                        "connection_to_heat_grid": false,
                        "refurbished": false,
                        "environmental_engagement": false,
                        "energy_source": "Gas",
                        "year": 1950,
                        "area": 68.256,
                        "cell": ""
                    }
                ],
                "average_generic_buildings": [
                    [
                        {
                            "spec_heat_consumption": 168.2295352941,
                            "spec_power_consumption": 35.4187367647,
                            "address": "Stettiner Straße 13"
                        }
                    ],
                    [
                        {
                            "spec_heat_consumption": 355.3933733333,
                            "spec_power_consumption": 22.1920166667,
                            "address": "Im Redder 18"
                        }
                    ]
                ]
            },
            "group_2": {
                "buildings": [
                    {
                        "address": "Neue Heimat 20",
                        "CO2": 0.0083857645,
                        "connection_to_heat_grid": false,
                        "refurbished": false,
                        "environmental_engagement": true,
                        "energy_source": "Gas",
                        "year": 1955,
                        "area": 48.864,
                        "cell": ""
                    }
                ],
                "average_generic_buildings": [
                    [
                        {
                            "spec_heat_consumption": 168.2295352941,
                            "spec_power_consumption": 35.4187367647,
                            "address": "Neue Heimat 20"
                        }
                    ]
                ]
            },
            "group_3": [
                ""
            ]
        }
    }
}

updated! 2022-08-29
