Missing entity explanation on DG

[Musfirahe0556596]

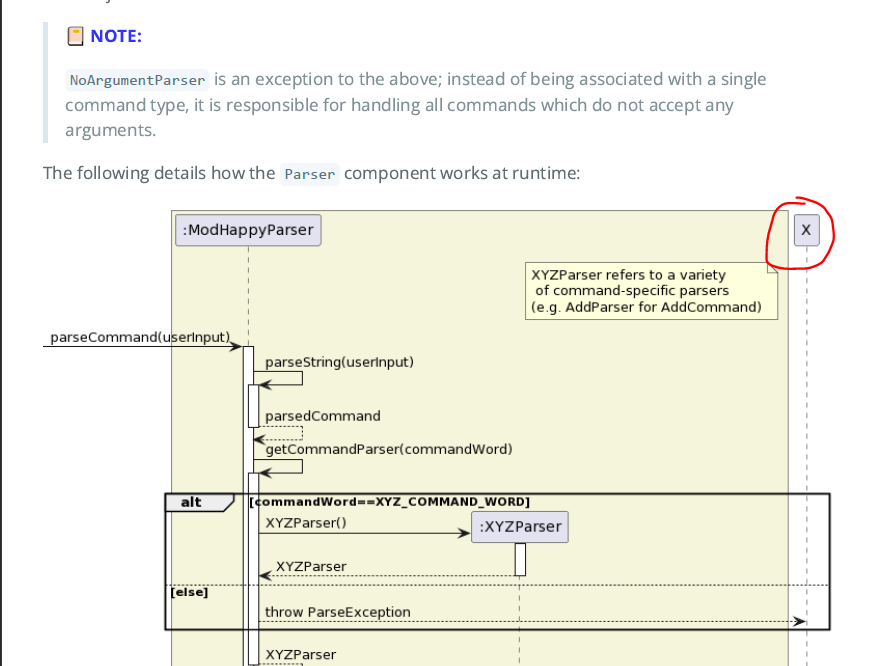

Under parser component DG, it was not stated what X entity is:

[soc-se-bot]

Team's Response

No details provided by team.

The 'Original' Bug

[The team marked this bug as a duplicate of the following bug]

Parser Component Sequence Diagram

Note from the teaching team: This bug was reported during the Part II (Evaluating Documents) stage of the PE. You may reject this bug if it is not related to the quality of documentation.

---

It is not clear what the X object is in the diagram. The only connection to it is shown when ParseException is thrown. Perhaps the ParseException can be showed to return to Main as that is what creates the the instance of ModHappyParser.

---

_{[original: nus-cs2113-AY2122S2/pe-interim#58] [original labels: severity.Medium type.DocumentationBug]}

Their Response to the 'Original' Bug

[This is the team's response to the above 'original' bug]

This is indeed a diagram error, PlantUML probably auto-generated an extra "X" when the receiving end of the throw ParseException arrow contained a typo.

Items for the Tester to Verify

❓ Issue duplicate status

Team chose to mark this issue as a duplicate of another issue (as explained in the Team's response above)

• I disagree

Reason for disagreement: [replace this with your explanation]

---
