Animation Graph Tutorial

Chained Engine features a visual, data-driven Animation Graph system (.chag) for driving state machine animations with smooth blending.

Table of Contents

• Overview & Graph File Format
• Editor Workflow
• Driving from C# Scripts
• Transition Condition Operators
• Runtime vs. Edit Mode

---

1. Overview & Graph File Format (.chag)

Animation Graphs are node-based state machines serialized as YAML. A graph contains:

• Default Variables: Declares the schema of parameters (e.g., speed, isMoving, isGrounded).
• Nodes (AnimNode): Define animation states, frame ranges, looping, and playback speed.
• Transitions (AnimTransition): Define connections between states with blend durations and variable-based conditions.

Example new_graph.chag structure:

AnimationGraph:
  EntryNodeID: 4
  NextNodeID: 5
  Variables:
    speed: 0
    isMoving: 0
    isGrounded: 1
  Nodes:
    - ID: 1
      Name: Walk
      AnimationIndex: 0
      IsLooping: true
      StartFrame: 690
      EndFrame: 780
      Speed: 1.0
    - ID: 2
      Name: Run
      AnimationIndex: 0
      IsLooping: true
      StartFrame: 1450
      EndFrame: 1500
      Speed: 1.0
    - ID: 4
      Name: Stop
      AnimationIndex: 0
      IsLooping: true
      StartFrame: 0
      EndFrame: 0
      Speed: 1.0
  Transitions:
    - ID: 1
      SourceNodeID: 1
      TargetNodeID: 2
      BlendDuration: 0.2
      HasExitTime: false
      Conditions:
        - VariableName: speed
          Op: 4 # GreaterThan (>)
          Value: 0.9

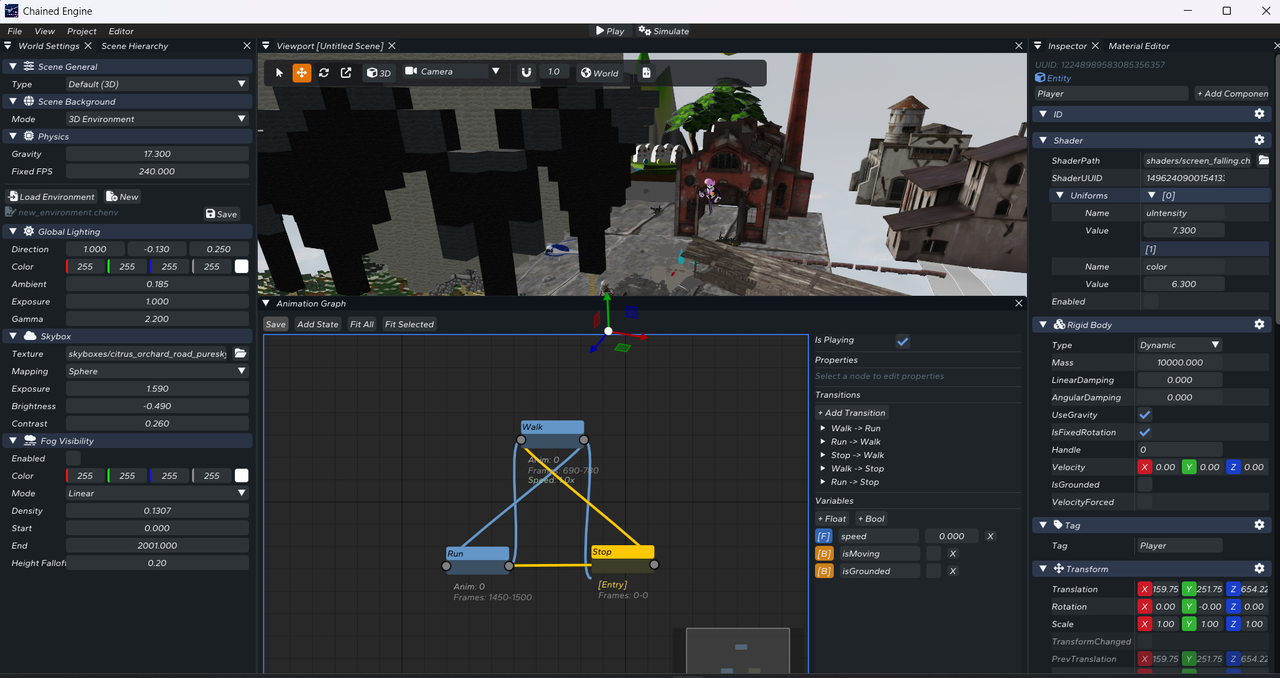

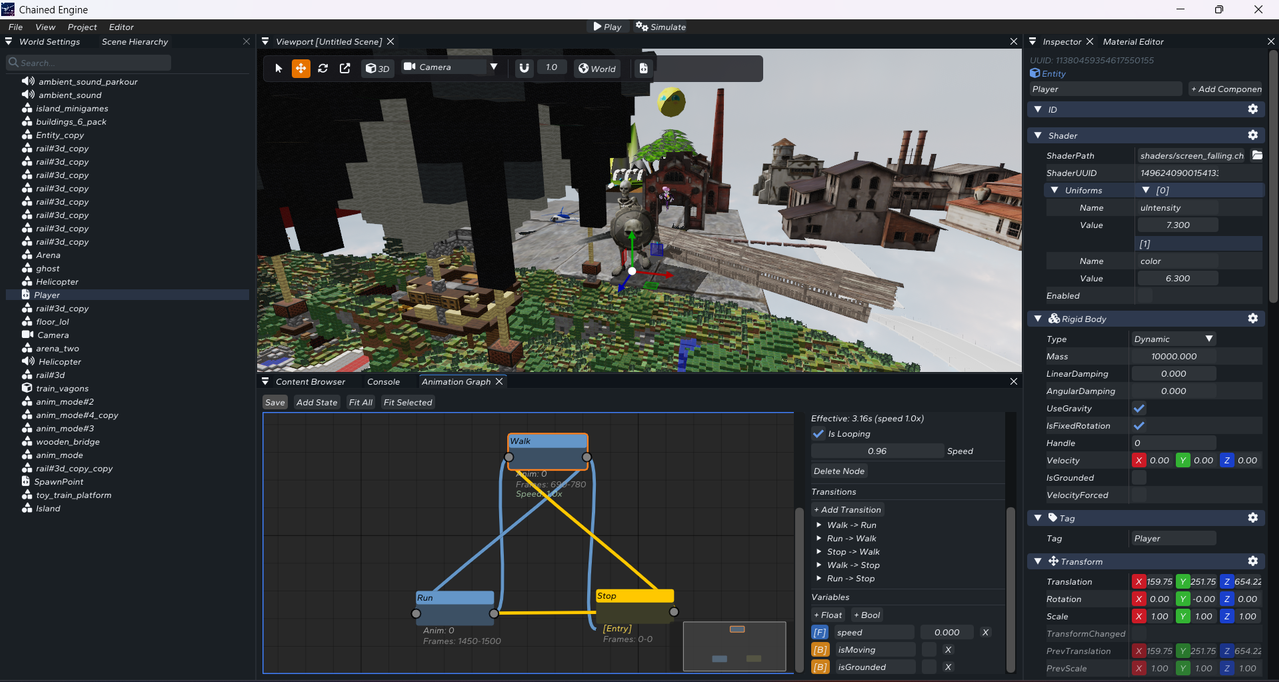

2. Editor Workflow (AnimGraphPanel)

1. Open the Animation Graph Panel: In the editor top menu, open Panels -> Animation Graph Editor.
2. Create/Load Graph: Click New Graph or select an existing .chag file.
3. Configure Nodes:
   • Add nodes for states like Idle/Stop, Walk, Run, Jump.
   • Set StartFrame and EndFrame according to your model asset's animation tracks.
4. Manage Variables:
   • Add variables (e.g., speed, isMoving, isGrounded).
   • Use the type toggle in the editor to switch between Float and Bool parameter types.
5. Create Transitions & Conditions:
   • Drag connections between nodes.
   • Select a transition to edit BlendDuration (e.g., 0.2s crossfade) and add conditions (e.g., isMoving == 1, speed >= 0.9).
6. Assign to Entity:
   • Select an entity with an AnimationComponent.
   • Set GraphPath to assets/animations/new_graph.chag.

3. Driving Animation Graph from C# Scripts

C# gameplay scripts pass parameters directly to AnimationComponent. The engine automatically seeds graph variables on entity initialization and updates state transitions at runtime during simulation.

using Chained;

public class PlayerController : Script
{
    private AnimationComponent? m_Anim;

    public override void OnCreate()
    {
        m_Anim = GetComponent<AnimationComponent>();
    }

    public override void OnUpdate(float ts)
    {
        Vector3 movement = GetInputVector();
        bool isMoving = movement.LengthSquared() > 0.01f;
        bool isSprinting = Input.IsKeyDown(Key.LeftShift);

        float speed = 0.0f;
        if (isMoving)
        {
            speed = isSprinting ? 1.0f : 0.5f;
        }

        // Drive graph variables dynamically from script
        m_Anim?.SetBool("isMoving", isMoving);
        m_Anim?.SetFloat("speed", speed);
        m_Anim?.SetBool("isGrounded", IsGrounded());
    }
}

4. Transition Condition Comparison Operators

Op Code	Operator	Description
0	==	Equal
1	!=	Not Equal
2	<	Less Than
3	<=	Less Than or Equal
4	>	Greater Than
5	>=	Greater Than or Equal

5. Runtime vs. Edit Mode Execution

• Simulation Mode (Play): C# scripts update AnimationComponent.Variables, and AnimationSystem evaluates transitions frame-by-frame with smooth interpolation.
• Edit Mode: Animation transitions are paused to keep the editor viewport stable and prevent state jitter while authoring.
