Spec-Driven Database Migration

Overview

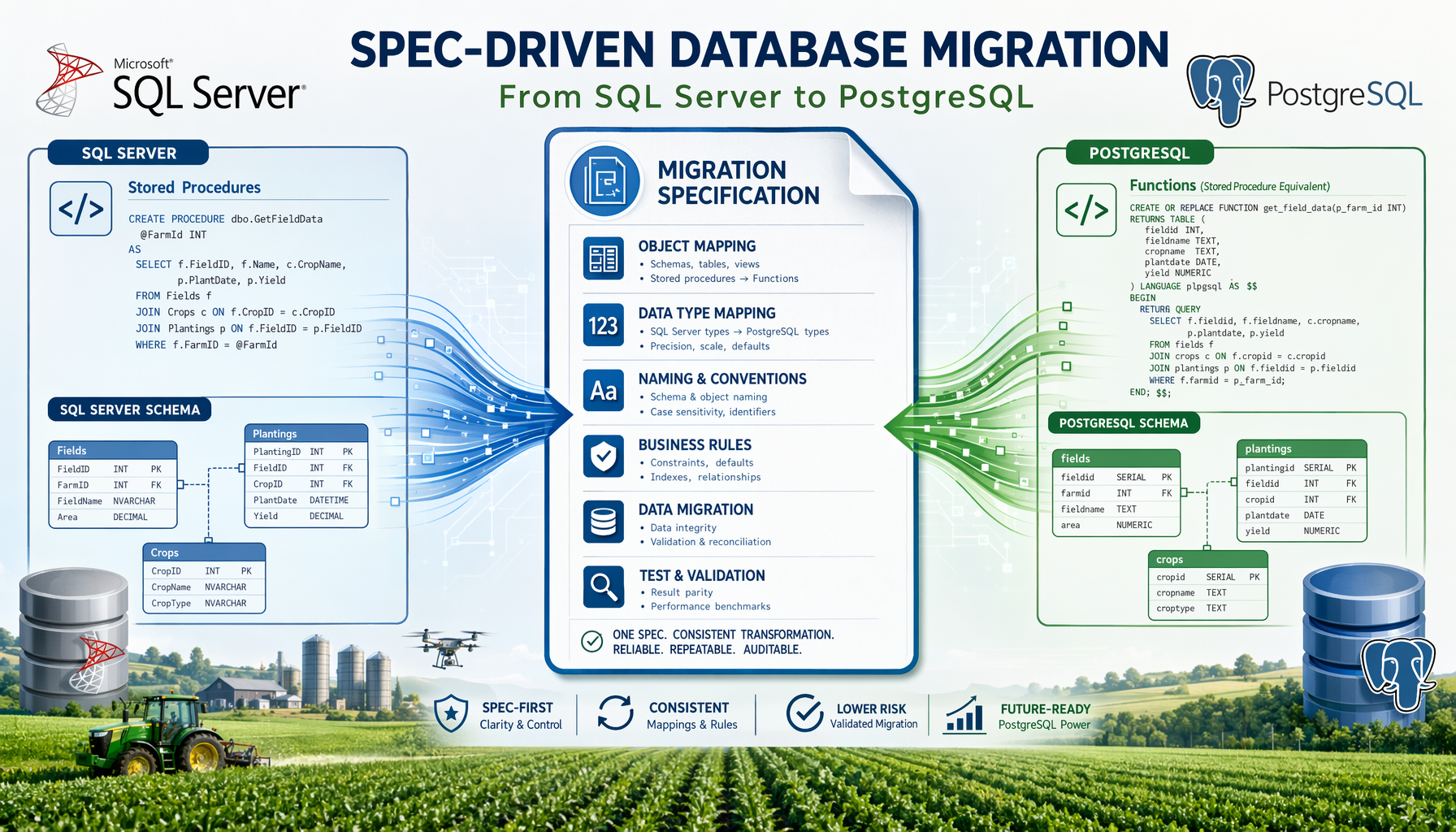

This lab demonstrates migrating a SQL Server database to PostgreSQL using a spec-driven approach with the GreenHarvest agricultural cooperative system. Spec2Cloud analyzes the legacy schema, extracts business rules from stored procedures, and generates a complete migration plan.

Source Database (SQL Server)

Schema Tables

The GreenHarvest legacy database contains 6 core tables across the CropManagement, Members, Inventory, and Trading schemas, with indexes and foreign keys enforcing referential integrity.

📸 View: Source Schema Tables (SQL Server) Open the HTML file in a browser to view the syntax-highlighted rendering.

Stored Procedures — Business Logic

Key business logic lives in stored procedures: sp_CalculateOptimalRotation handles crop planning, and sp_CalculateMemberPayment computes cooperative settlement amounts.

📸 View: Stored Procedures — Business Logic Open the HTML file in a browser to view the syntax-highlighted rendering.

Triggers, Functions & Views

The database includes the tr_AuditHarvestChanges audit trigger, fn_CalculateYieldBushels unit conversion UDF, and vw_FieldProductivity summary view.

📸 View: Trigger, Scalar Function & View Open the HTML file in a browser to view the syntax-highlighted rendering.

Target Database (PostgreSQL)

Migration Script

Spec2Cloud generates the PostgreSQL migration script 001_create_schema.sql, converting GEOGRAPHY to PostGIS, computed columns to GENERATED ALWAYS, and UDFs to PL/pgSQL.

📸 View: PostgreSQL Migration Script Open the HTML file in a browser to view the syntax-highlighted rendering.

Validation & Seed Data

Validation queries verify row counts, computed column correctness, and foreign key integrity. Seed data includes CropTypes and sample Members for testing.

📸 View: Validation Queries & Seed Data Open the HTML file in a browser to view the syntax-highlighted rendering.

Development Infrastructure

The Docker Compose stack runs three services: SQL Server 2019, PostgreSQL 16, and PostGIS 16-3.4 with named volumes for data persistence.

📸 View: Docker Compose Infrastructure Open the HTML file in a browser to view the syntax-highlighted rendering.

Screenshots

The assets/screenshots/ directory contains syntax-highlighted HTML renderings of the lab's key files. Open any .html file in a browser to view or capture a screenshot.

#	File	What it shows
1	01-source-schema-tables.html	Source Schema Tables (SQL Server)
2	02-stored-procedures.html	Stored Procedures — Business Logic
3	03-trigger-and-function.html	Trigger, Scalar Function & View
4	04-postgresql-migration.html	PostgreSQL Migration Script
5	05-validation-and-seed-data.html	Validation Queries & Seed Data
6	06-docker-compose.html	Docker Compose Infrastructure
