Arcade BASIC for Unity

Embed a complete ISO/IEC 10279:1991 BASIC interpreter in your Unity game.

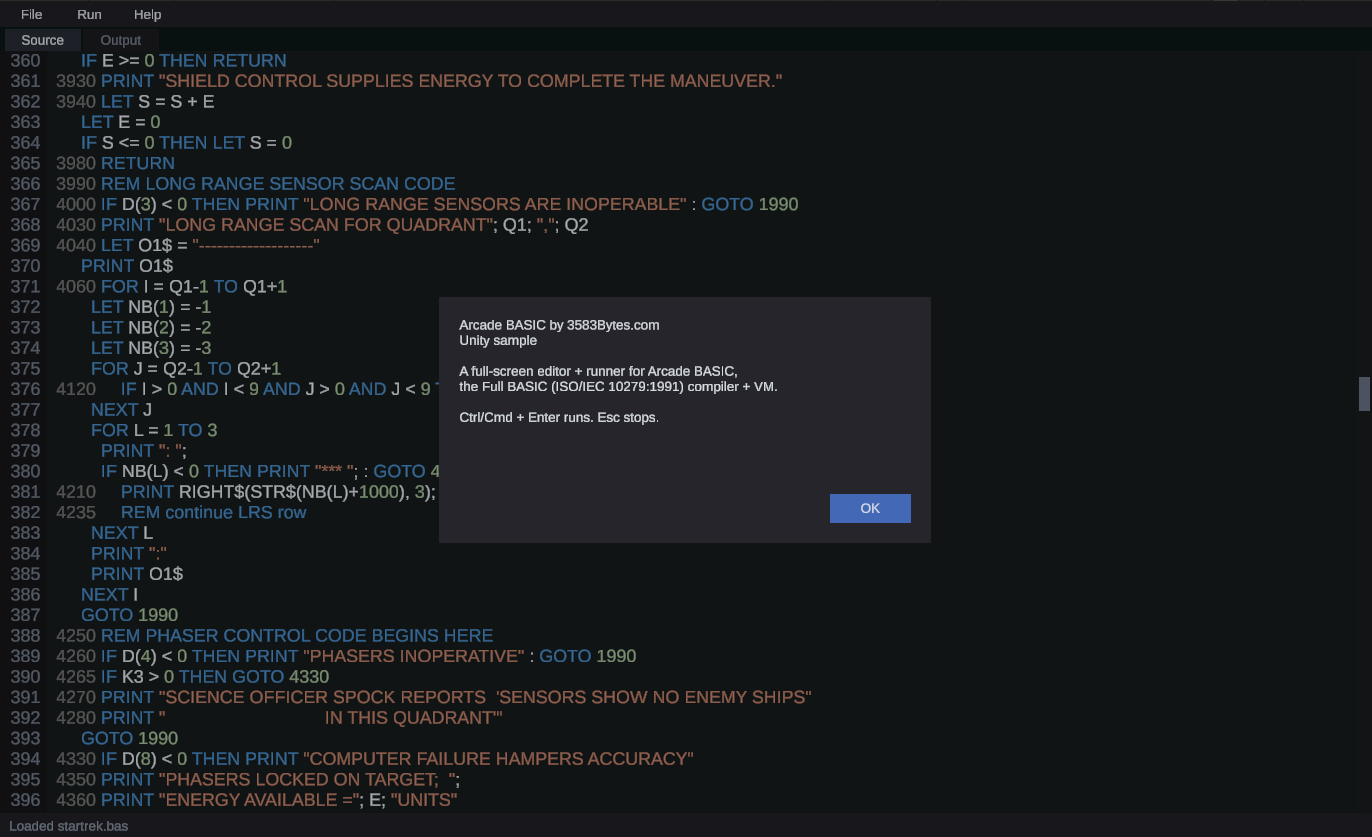

Arcade BASIC Unity sample — startrek.bas loaded with the About dialog open

Install

The published package ships pre-built netstandard2.1 DLLs and a clean embedding API. Two install paths:

Via Unity Package Manager (UPM)

In Unity, open Window → Package Manager, click the + button, choose "Add package from git URL", and paste:

https://github.com/3583Bytes/Arcade-BASIC.git?path=unity#v0.1.0

Pin to a tagged release rather than main so unrelated changes don't break your project.

Via downloaded ZIP

Grab arcade-basic-unity-<version>.zip from the releases page, extract under Packages/com.arcadebasic.interpreter/ in your Unity project.

Quickstart

using ArcadeBasic;
using System.IO;
using UnityEngine;

public class HelloArcadeBasic : MonoBehaviour
{
    void Start()
    {
        const string source = @"
            PRINT ""hello from BASIC""
            FOR I = 1 TO 5
              PRINT ""square of ""; I; "" is ""; I * I
            NEXT I
        ";

        var result = BasicEngine.Run(source, out string output);
        Debug.Log(output);

        foreach (var diag in result.Diagnostics)
        {
            if (diag.Contains("error")) Debug.LogError(diag);
            else                        Debug.LogWarning(diag);
        }
    }
}

Output appears in the Unity console:

 hello from BASIC
 square of  1  is  1
 square of  2  is  2 0
 ...

API

using ArcadeBasic;

// One-call, output captured to a string.
BasicEngine.Result Run(
    string source,
    out string output,
    TextReader stdin = null,        // optional: for INPUT statements
    string filename = "<embedded>"  // optional: shows up in diagnostics
);

// One-call, output streamed to your TextWriter (e.g. a UI buffer).
BasicEngine.Result Run(
    string source,
    TextWriter stdout,
    TextReader stdin = null,
    string filename = "<embedded>"
);

Result.ExitCode is 0 on success, 1 on parse/sema/runtime failure. Result.Diagnostics is the rendered text of every compile-time warning and error.

For finer control (custom diagnostics handling, embedding the lexer/parser/sema/interpreter individually), reference ArcadeBasic.Lexer, ArcadeBasic.Parser, ArcadeBasic.Sema, ArcadeBasic.Interpreter directly — the public types are intentionally small but complete.

What's supported

Per the upstream docs/conformance.md:

Feature Status
Statements, expressions, control flow ✅
Arrays + MAT ✅
Exception handling (WHEN/USE/RETRY/CONTINUE) ✅
Modules ✅
File I/O (DISPLAY mode) ✅
PRINT USING picture strings ✅
Codepoint-aware string functions (LEN("π") = 1) ✅
Graphics + Picture (SVG) ❌ Not yet
Fixed-decimal arithmetic ❌ Not yet
Real-time module ❌ Out of scope

Graphics (preview)

BASIC's ECMA-116 §13 graphics module (SET WINDOW/GRAPH LINES/AREA/POINTS/TEXT) renders to a Texture2D you can show in your scene — an embedded "retro screen."

Add the Basic Screen component (Add Component → Arcade BASIC → Basic Screen) to a GameObject, paste a program into its source, set a resolution, and assign a Renderer (e.g. a Quad) to targetRenderer — the rendered texture becomes that material's mainTexture. (For a UI RawImage, read the component's Screen property and assign it yourself.)

var screen = gameObject.AddComponent<ArcadeBasic.Unity.BasicScreen>();
screen.source = "SET WINDOW 0,100,0,100\nGRAPH LINES: 10,10; 90,10; 50,90; 10,10\n";
screen.targetRenderer = GetComponent<Renderer>();
screen.Run();

The rasterization itself lives in the engine-agnostic, unit-tested RasterGraphicsDevice in ArcadeBasic.Runtime; the Unity component just blits its pixel buffer into a texture. Scope: v1 handles static programs (they run to completion and the final frame is shown — e.g. examples/graphics.bas). Real-time programs that loop on INKEY$/SLEEP (kanban, invaders) need the threaded driver that runs the program off the main thread — a planned follow-up.

After building the engine DLLs (./unity/scripts/copy-dlls.sh), the RasterGraphicsDevice/BitmapFont ship inside ArcadeBasic.Runtime.dll — no extra plugins needed.

Editor integration

Installing the package activates a small Unity editor extension:

  • Window → Arcade BASIC → Console — interactive REPL-ish window with a source pane, output pane, and run button. Ctrl/Cmd + Enter runs. Source persists across editor sessions via EditorPrefs.
  • Assets → Create → Arcade BASIC — templates for new .bas files: Empty Program, Hello World, FOR Loop Demo, Function Demo.
  • .bas files in the Project window are imported as TextAssets via a ScriptedImporter. Selecting one shows a custom inspector with a source preview and a green ▶ Run button.
  • Assets → Run Arcade BASIC Program (context menu) — right-click any selected .bas to open it in the console.
  • Window → Arcade BASIC → Documentation / Conformance notes / About — link straight to the project's docs and the spec-deviation list.

All of the above is in Editor/ of the package and only compiled when Unity is in Editor mode, so the runtime build stays clean.

Sample

The package ships an Arcade BASIC IDE sample — a full in-game IDE at feature parity with the console TUI IDE: menu bar (File / Run / Help), syntax-highlighted source pane with line gutter and live Ln/Col, scrollable output transcript, INPUT bar, Problems pane, Build Standalone, F5/F6/F7/Esc hotkeys, a Graphics tab that renders §13 GRAPH/SET drawing to a texture screen, and real-time INKEY$ input so SLEEP-driven games (Space Invaders) play in-IDE. It's delivered as a ready-to-play scene + prefab (an ArcadeBasicCodeEditor MonoBehaviour with its UI wired in the Inspector); the Graphics tab, Help menu, and About modal are built at runtime.

  1. Open Window → Package Manager → Arcade BASIC Interpreter → Samples and click Import next to "Arcade BASIC IDE".
  2. Open the imported Scene/ArcadeBasicIDE.unity — or run Window → Arcade BASIC → Samples → Open BASIC IDE Scene, which locates and opens it for you. (To build your own, drop the Prefab/ArcadeBasicIDE.prefab into a Canvas instead.)
  3. Press Play.

See Samples~/ArcadeBasic/README.md for layout and customization notes.

Performance notes

Numeric values are arbitrary-precision decimal (Singulink.Numerics.BigDecimal). This is great for spec conformance and terrible for arithmetic-heavy real-time code. For physics or inner loops, do the math in C# and call into BASIC for high-level logic only.

A simple program (Lunar Lander, ~50 lines) ticks fine each frame on a desktop GPU. A MAT INV on a 200×200 matrix is not realtime.

Troubleshooting

"Reference has errors 'Singulink.Numerics.BigDecimal'" on import

If you imported a package built before this fix, Unity's strict plugin-reference validation may reject the netstandard2.1 DLLs because their System.* references don't bind exactly to Unity's bundled BCL.

The fix is to ship .meta files for every plugin DLL with validateReferences: 0, which the package now does. To recover:

  1. Delete Packages/com.arcadebasic.interpreter/ from your project (or whatever folder you extracted into).
  2. Re-install from the v0.1.0 or later release zip, or re-pull the UPM git URL.
  3. Re-open Unity. The DLLs should now load cleanly.

If you're developing against a local clone, re-run ./unity/scripts/copy-dlls.sh from the repo root — it now generates the .meta files alongside each DLL.

Other things to check

  • API Compatibility Level must be .NET Standard 2.1 (Player Settings → Other Settings → Configuration). Unity 2021.3+ defaults to this.
  • .bas files don't show the custom inspector — make sure the Editor folder is included (it is in the released zip; if you cherry-picked files, you need both Runtime/ and Editor/).
  • Console window doesn't appear under Window menu — Unity sometimes caches menu entries; restart the editor or do Assets → Reimport All.

License

See LICENSE in the upstream repo.
